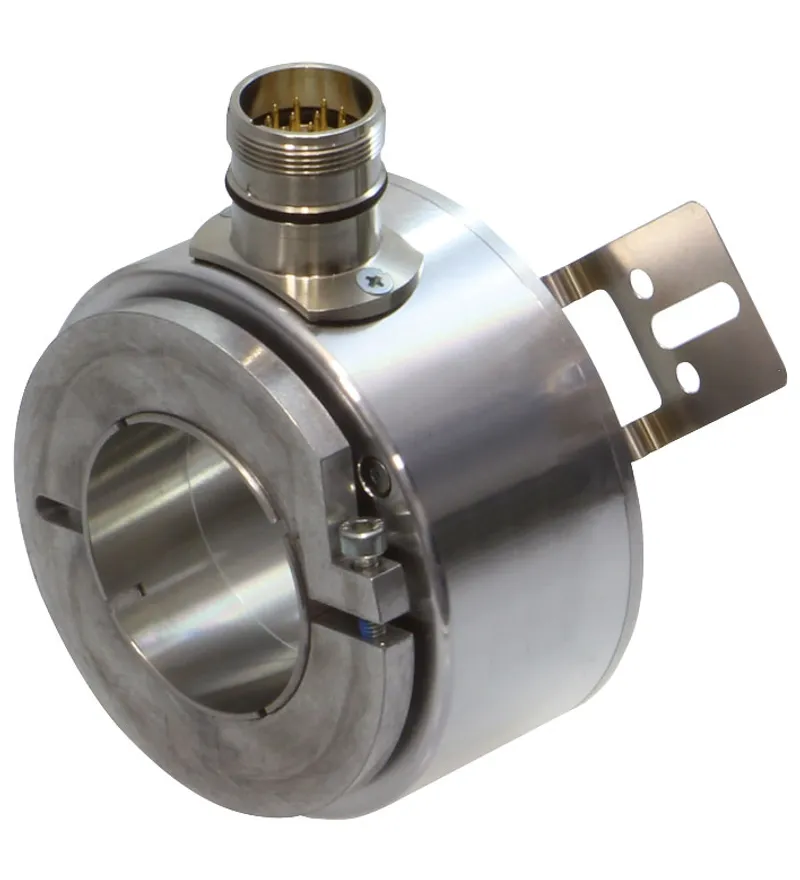

Pepperl Fuchs RHI90N
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Incremental Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RHI90N be shipped?
RHI90N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RHI90N in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RHI90N and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RHI90N, subject to availability and destination.
Incremental rotary encoder. Compact design housing ∅90 mm, Hollow shaft ∅45 mm, Easy shaft clamping, High resolution and accuracy, Enclosure type: 90 mm, Type of shaft: Hollow shaft, Interface: RS-422, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental <BR>(see "Output circuit" in the ordering information). Detection type: photoelectric sampling. Pulse count: max. 2500. MTTFd: 140 a. L10: 50 E+9 at 1750 rpm. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information). No-load supply current: max. 70 mA. Output type: push-pull, incremental or RS-422, incremental (see "Output circuit" in the ordering information). Voltage drop: < 2.5 V (push-pull, incremental). Load current: max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental). Output frequency: max. 200 kHz. Rise time: 600 ns. De-energized delay: 600 ns. Connector: type 9416 (M23), 12-pin, type 9416L (M23), 12-pin. Cable: ∅6.5 mm, 4 x 2 x 0.14 mm2, 1 m. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-78. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. UL approval: E223176 , cULus Listed, General Purpose, Class 2 Power Source. Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). Operating temperature: -5 ... 70 °C (23 ... 158 °F) , cable, movable installation-20 ... 70 °C (-4 ... 158 °F), cable, fixed installation. Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Material: . Housingaluminum, blankFlange3.1645 aluminumShaftStainless steel 1.4305 / AISI 303: . Housing: aluminum, blank. Flange: 3.1645 aluminum. Shaft: Stainless steel 1.4305 / AISI 303. Mass: approx. 900 g. Rotational speed: max. 3500 min -1. Starting torque: ≤ 18 Ncm. Shaft load: . Angle offset1 °Axial offsetmax. 1 mm: . Angle offset: 1 °. Axial offset: max. 1 mm. Dimensions: . Length48.5 mmDiameter87.1 mm: . Length: 48.5 mm. Diameter: 87.1 mm
Specifications
General specifications
| Detection type | photoelectric sampling |
| Pulse count | max. 2500 |
Functional safety related parameters
| MTTFd | 140 a |
| L10 | 50 E+9 at 1750 rpm |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Operating voltage | 10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information) UB |
| No-load supply current | max. 70 mA I0 |
Output
| Output type | push-pull, incremental or RS-422, incremental (see "Output circuit" in the ordering information) |
| Voltage drop | < 2.5 V (push-pull, incremental) Ud |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental) |
| Output frequency | max. 200 kHz |
| Rise time | 600 ns |
| De-energized delay | 600 ns toff |
Connection
| Connector | type 9416 (M23), 12-pin, type 9416L (M23), 12-pin |
| Cable | ∅6.5 mm, 4 x 2 x 0.14 mm2, 1 m |
Standard conformity
| Degree of protection | DIN EN 60529, IP65 |
| Climatic testing | DIN EN 60068-2-78 |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | E223176 , cULus Listed, General Purpose, Class 2 Power Source |
| Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F) | Maximum permissible ambient temperature |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) |
Ambient conditions
| Operating temperature | -5 ... 70 °C (23 ... 158 °F) , cable, movable installation-20 ... 70 °C (-4 ... 158 °F), cable, fixed installation |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |
Mechanical specifications
| Material | |
| Housingaluminum, blankFlange3.1645 aluminumShaftStainless steel 1.4305 / AISI 303 | Housing |
| Housing | aluminum, blank |
| Flange | 3.1645 aluminum |
| Shaft | Stainless steel 1.4305 / AISI 303 |
| Mass | approx. 900 g |
| Rotational speed | max. 3500 min -1 |
| Starting torque | ≤ 18 Ncm |
| Shaft load | |
| Angle offset1 °Axial offsetmax. 1 mm | Angle offset |
| Angle offset | 1 ° |
| Axial offset | max. 1 mm |

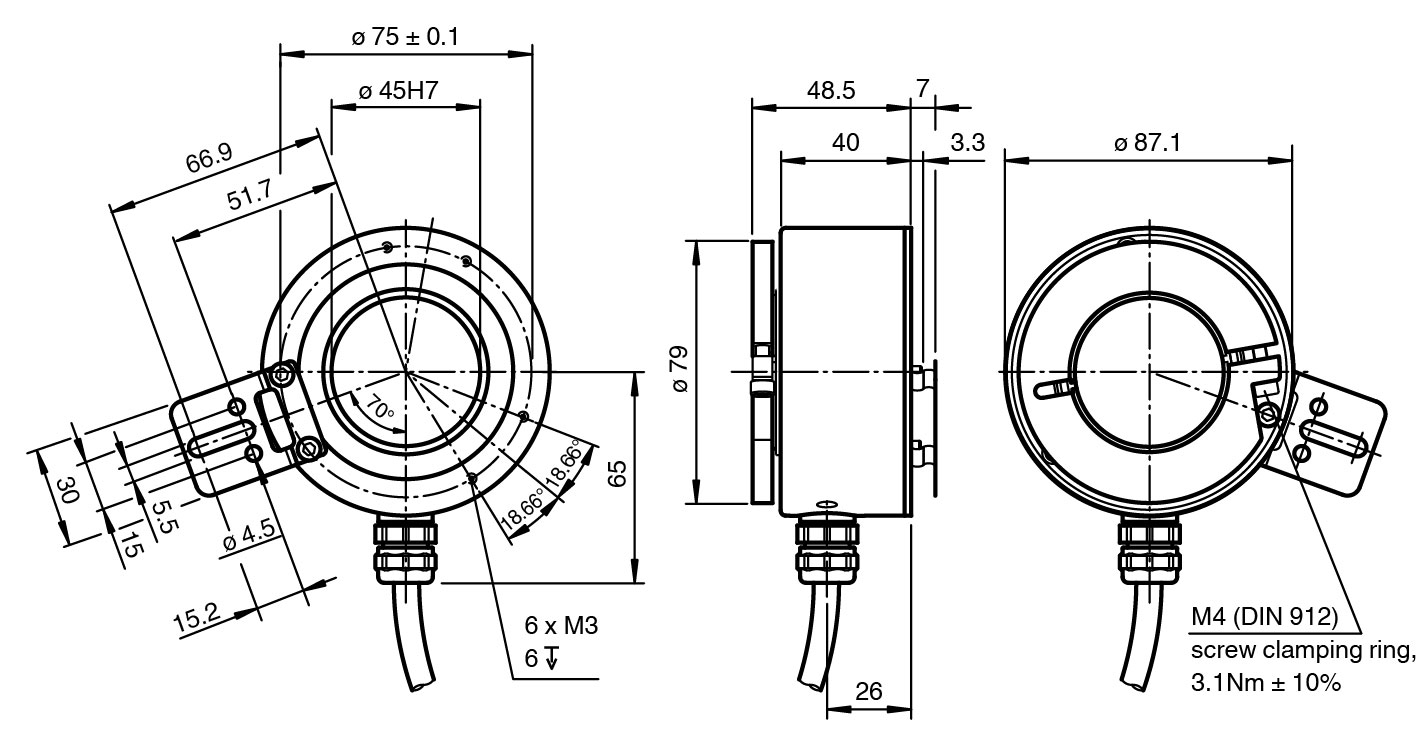

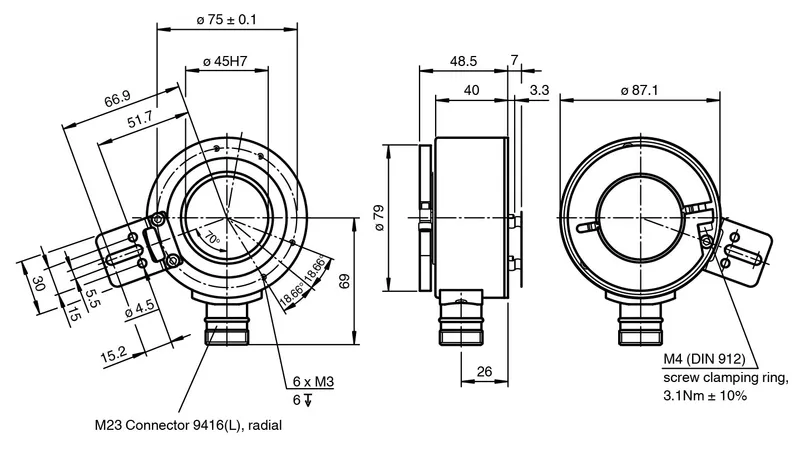

| Dimensions | |
| Length48.5 mmDiameter87.1 mm | Length |
| Length | 48.5 mm |
| Diameter | 87.1 mm |
