Pepperl Fuchs REF-VDM05
Reflector
- MPN
- REF-VDM05
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs REF-VDM05?

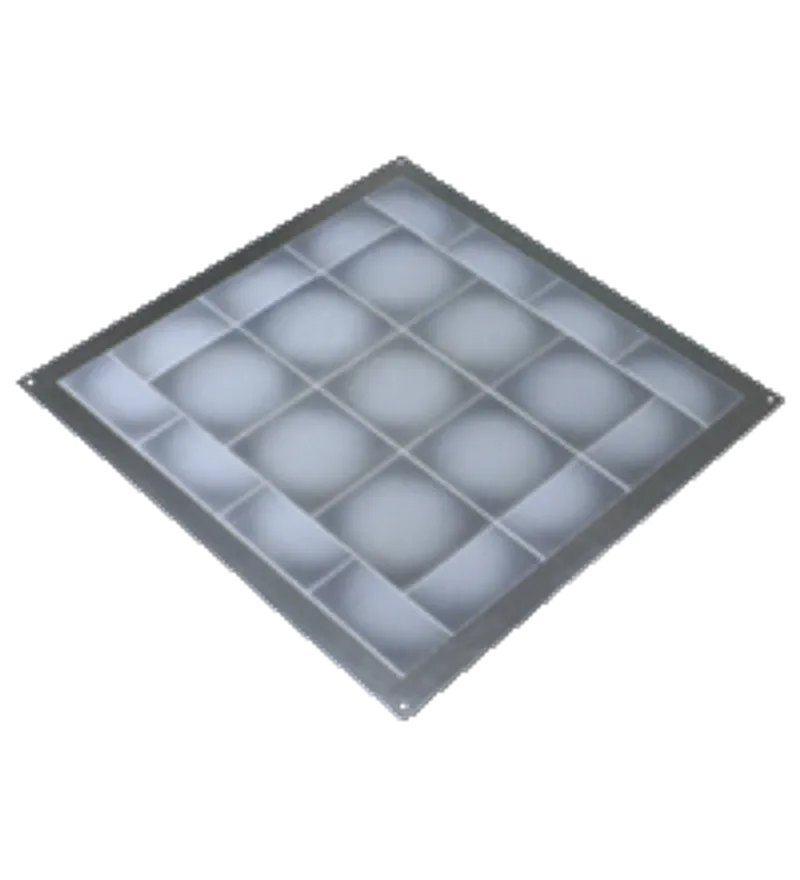

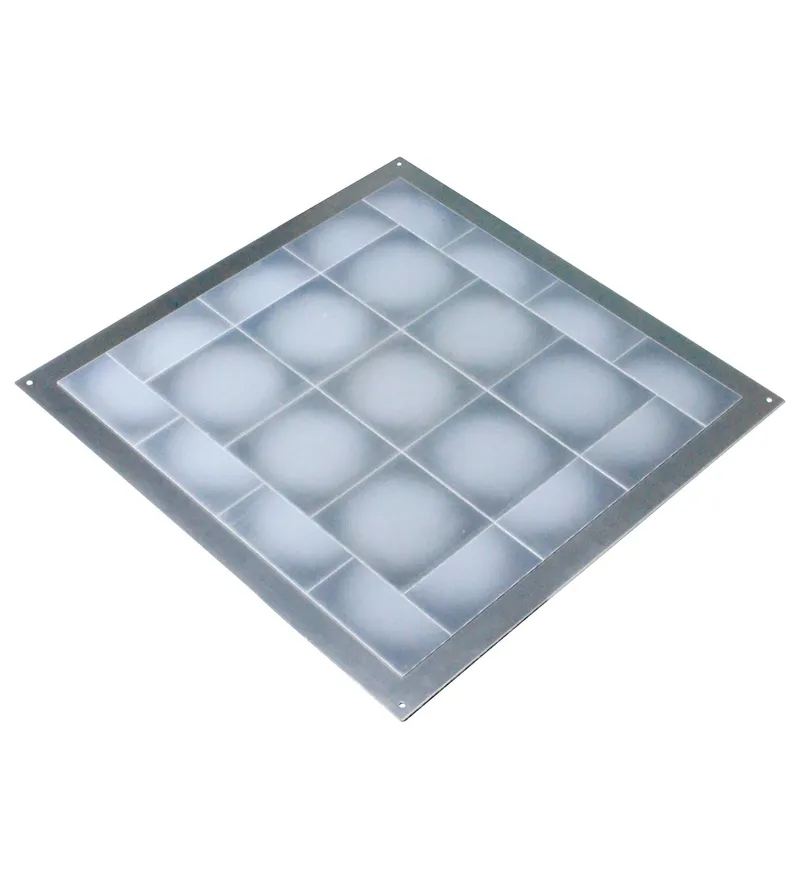

Reflector with measuring range up to 250 m
Reflector for distance measurement devices, Reflector with measuring range up to 250 m
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 243599 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
Mechanical specifications
| Material | PMMA reflectors metal base |

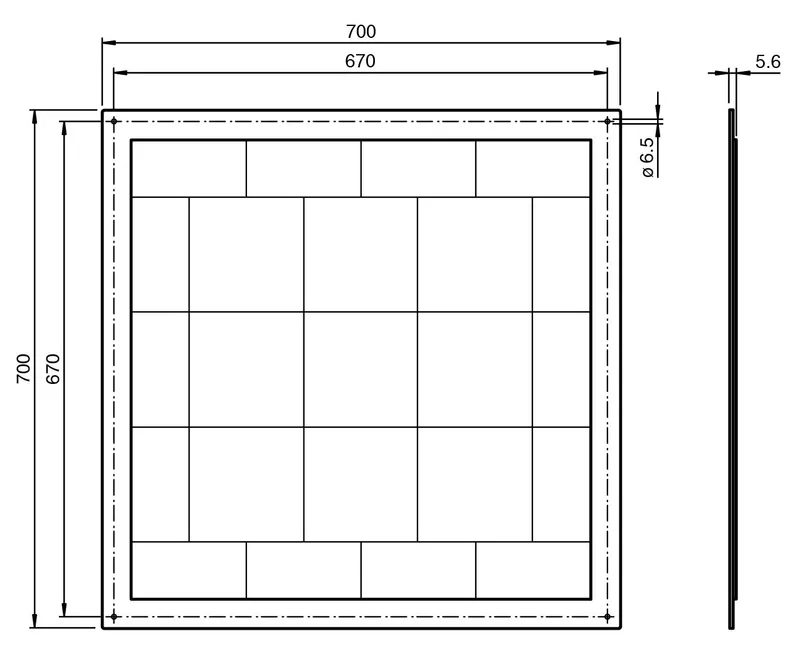

| Dimensions: Height | 5.6 mm |
| Dimensions: Width | 700 mm |
| Dimensions: Length | 700 mm |
| Mounting | mounting holes |
Suitable series
| Series | VDM70 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
REF-VDM05: frequently asked questions
When can REF-VDM05 be shipped?
REF-VDM05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-VDM05 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-VDM05 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-VDM05, subject to availability and destination.
