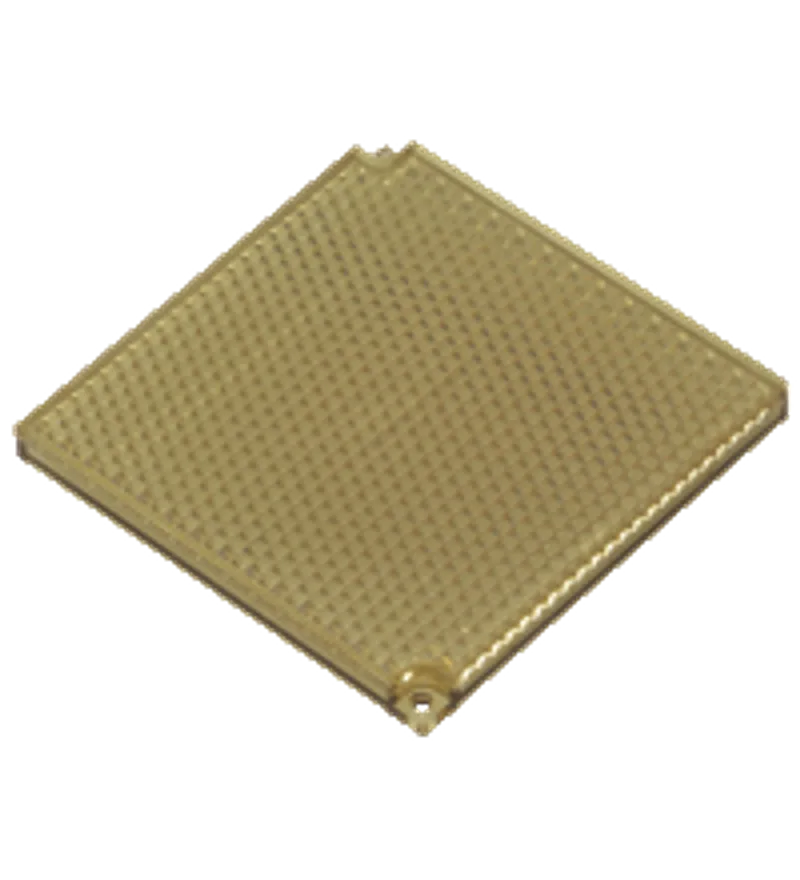

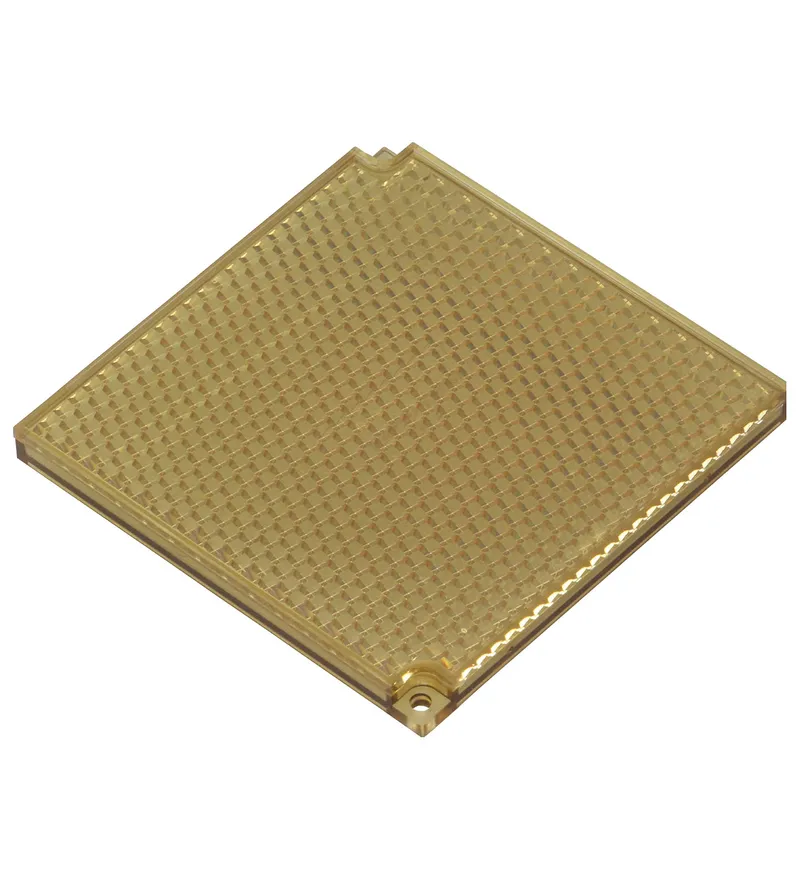

Pepperl Fuchs REF-H100F

Reflector

MPN: REF-H100F
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs REF-H100F?

Mounting holes for simple installation

Chemical-resistant

tested by TÜV

Reflector, rectangular 100 mm x 100 mm, mounting holes, Mounting holes for simple installation, Chemical-resistant, tested by TÜV

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	207569
Construction type	rectangular
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-30 ... 50 °C (-22 ... 122 °F)

Mechanical specifications

Degree of protection	IP69K
Material	SC

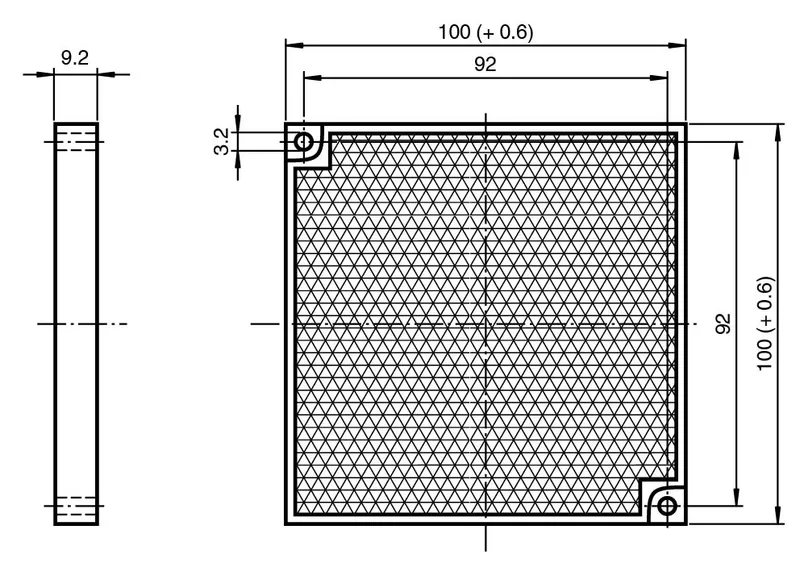

Dimensions: Height	9.2 mm
Dimensions: Width	100 mm
Dimensions: Length	100 mm
Mounting	mounting holes

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet REF-H100FPDF

CAD & dimension drawings

3-D model (STEP) REF-H100FSTP · 76 kB
