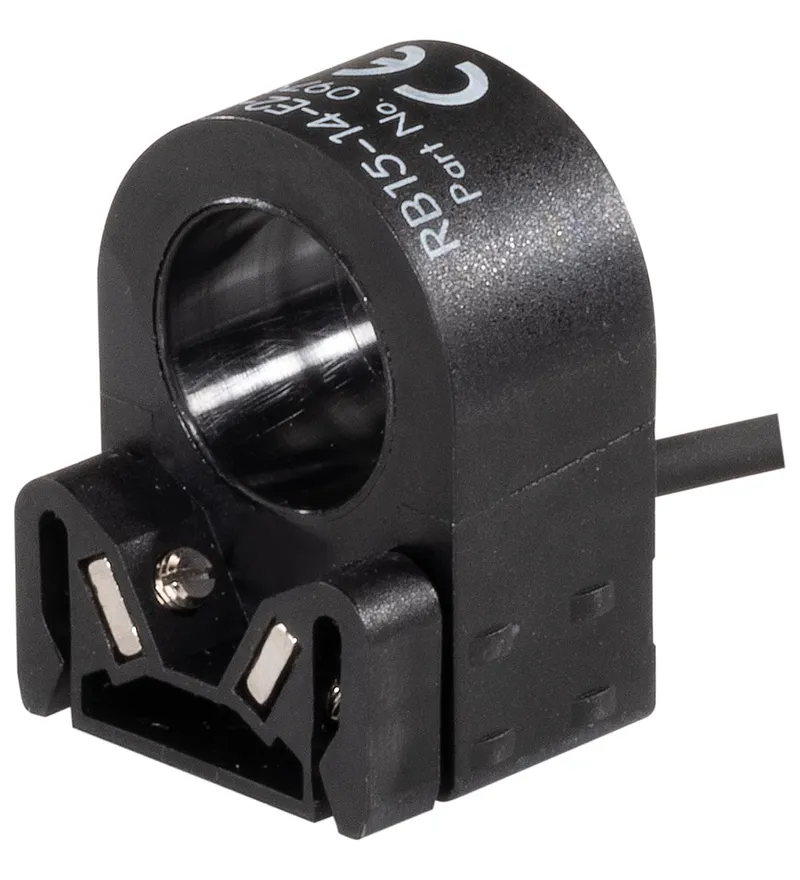

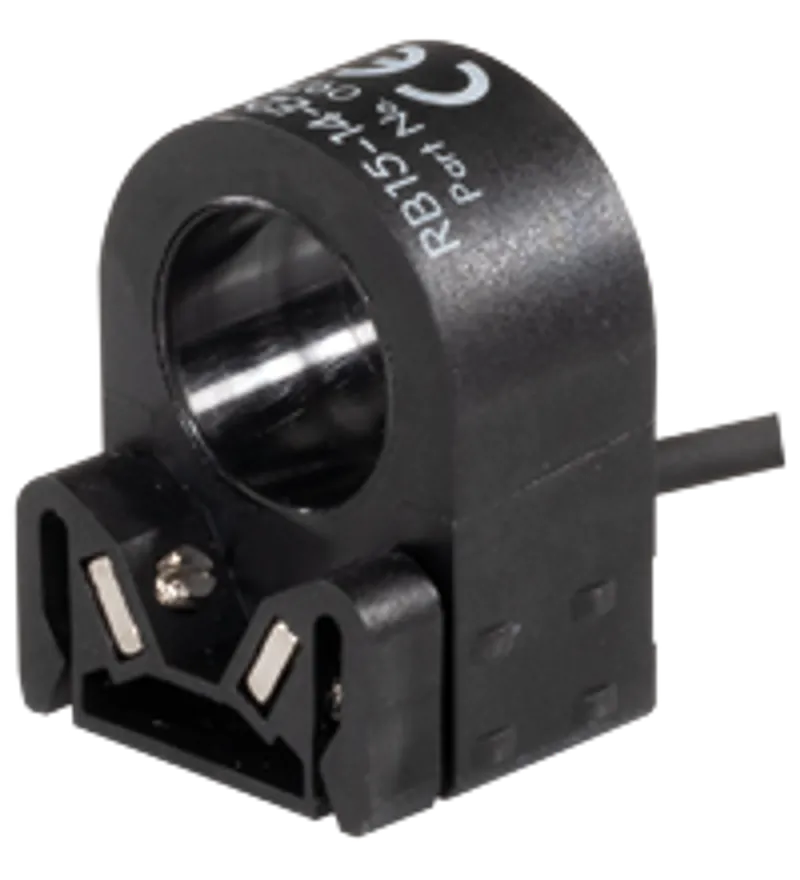

Pepperl Fuchs RB15-14-E2-BI-Y97927

Inductive ring sensor

MPN
RB15-14-E2-BI-Y97927
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs RB15-14-E2-BI-Y97927?

15 mm inside diameter

Basic series

Bistable

Direction detection

Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Ring, Series: Ring Type, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PUR

Specifications

General specifications

Order code (Pepperl+Fuchs part number)097927
Switching functionNormally open (NO)
Output typePNP
Output polarityDC
Inside diameter15 mm
Measuring cone6 mm
Material1.4401
Passage speed≤ 10 m/s v
Output type3-wire
LifecycleActive (current Pepperl+Fuchs product)

Nominal ratings

Operating voltage10 ... 30 V UB
Reverse polarity protectionreverse polarity protected
Short-circuit protectionpulsing
Output voltage: Traverse A1 V
Output voltage: Traverse BUB - 3 V
Output voltage: Power ON1 V
Voltage drop≤ 1.5 V Ud
Operating current0 ... 100 mA IL
No-load supply current≤ 10 mA I0

Safety-relevant product characteristics

MTTFd1449 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %

Compliance with standards and directives

Standard conformity: StandardsEN IEC 60947-5-2

Approvals and certificates

UL approvalcULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA

Ambient conditions

Ambient temperature-25 ... 70 °C (-13 ... 158 °F)

Mechanical specifications

Connection typecable
Housing materialPBT
Degree of protectionIP67
Cable: Wire end ferrulesyes
Cable: Cable diameter3 mm - 0.2 mm
Cable: Bending radius> 12 x cable diameter
Cable: MaterialPUR
Cable: Colorblack
Cable: Number of cores3
Cable: Core cross section0.14 mm2
Cable: Length2 m L

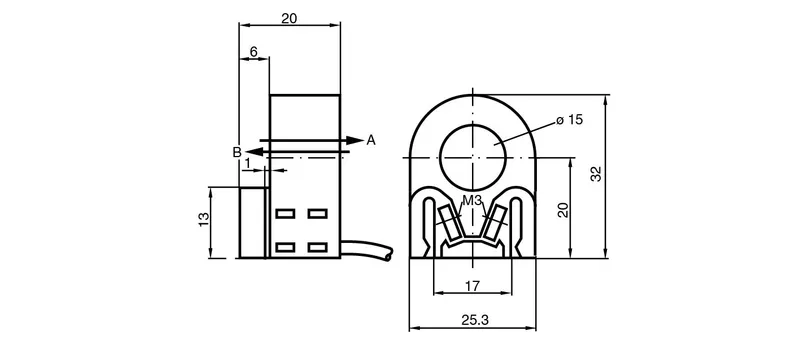

Dimensions: Height32.5 mm
Dimensions: Width25 mm
Dimensions: Length20 mm

RB15-14-E2-BI-Y97927: frequently asked questions

When can RB15-14-E2-BI-Y97927 be shipped?

RB15-14-E2-BI-Y97927 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RB15-14-E2-BI-Y97927 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RB15-14-E2-BI-Y97927 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RB15-14-E2-BI-Y97927, subject to availability and destination.

More Pepperl Fuchs parts

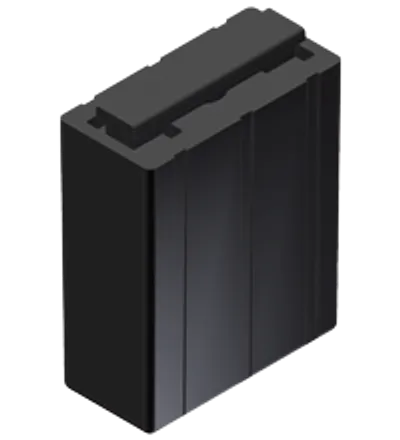

Pepperl Fuchs RAS 40 – Accessory DGE
Pepperl Fuchs
RAS 40

Accessory DGE

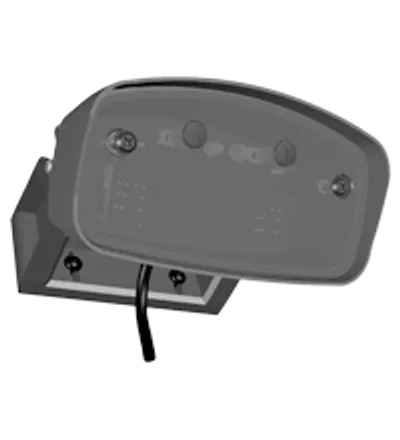

Pepperl Fuchs RAVE-D – Radar sensor
