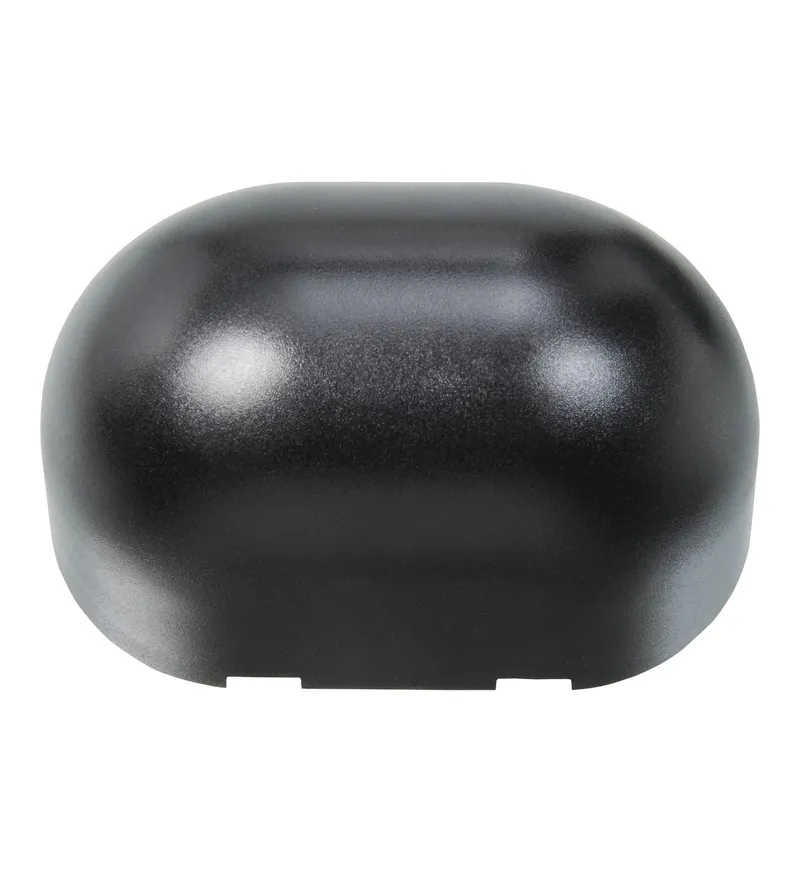

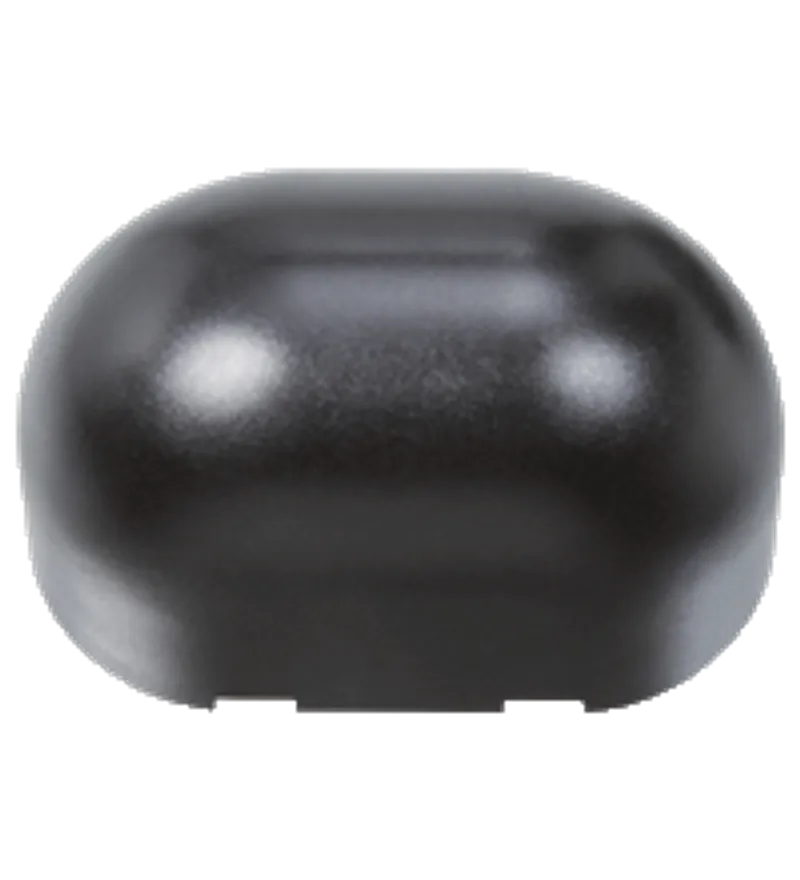

Pepperl Fuchs RaDec-D-NA

Radar sensor

MPN
RaDec-D-NA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs RaDec-D-NA?

Microwave motion sensor with intelligent functions

Reliable detection of people and vehicles

Simplest adjustement of the sensing range

Wall and ceiling mountable

Version with direction detection and cross-traffic suppression

Version with FCC-frequency

Microwave motion sensor with intelligent functions, Reliable detection of people and vehicles, Simplest adjustement of the sensing range, Wall and ceiling mountable, Version with direction detection and cross-traffic suppression, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 36 V DC , 12 ... 28 V AC, Signal output: Relay, 1 NO contact/NC contact, Connection: Connecting cable 2.5 m included with delivery

Specifications

General specifications

Order code (Pepperl+Fuchs part number)258909
Sensing rangeWide: 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle narrow: 4500x 2000 mm (DxW) at 2200 mm mounting height and 30° inclination angle
Function principleMicrowave module
Detection speedmin. 0.1 m/s
Setting angle0 ... 90 ° in 5 ° increments
Operating frequency24.075 ... 24.175 GHz K-Band
Operating modeRadar motion sensor
Transmitter radiated power (EIRP)< 20 dBm
LifecycleActive (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd300 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %

Indicators/operating means

Function indicatorLED red
Control elementspotentiometer , DIP switch for selection of operating modes
Control elementssensitivity adjustment

Electrical specifications

Operating voltage12 ... 36 V DC , 12 ... 28 V AC UB
No-load supply current≤ 50 mA at 24 V DC I0
Power consumption≤ 1.7 W P0

Output

Switching typeNO/NC
Signal outputRelay, 1 NO contact/NC contact
Switching voltagemax. 48 V AC / 48 V DC
Switching currentmax. 0.5 A AC / 1 A DC
Switching powermax. 24 W / 60 VA
De-energized delay1 s toff

Approvals and certificates

FCC approvalFCC Rules part 15 / This device can be used in the USA.
IC approvalRSS210 Issue 8.0 / This device can be used in Canada.
ApprovalsUse in countries within the European Union is not permitted. In other countries, all applicable national regulations must be observed.

Ambient conditions

Operating temperature-20 ... 60 °C (-4 ... 140 °F)
Storage temperature-30 ... 70 °C (-22 ... 158 °F)
Relative humiditymax. 90 % non-condensing

Mechanical specifications

Mounting heightmax. 4000 mm
Degree of protectionIP54
ConnectionConnecting cable 2.5 m included with delivery
Material: HousingPC/ABS black
Mass130 g

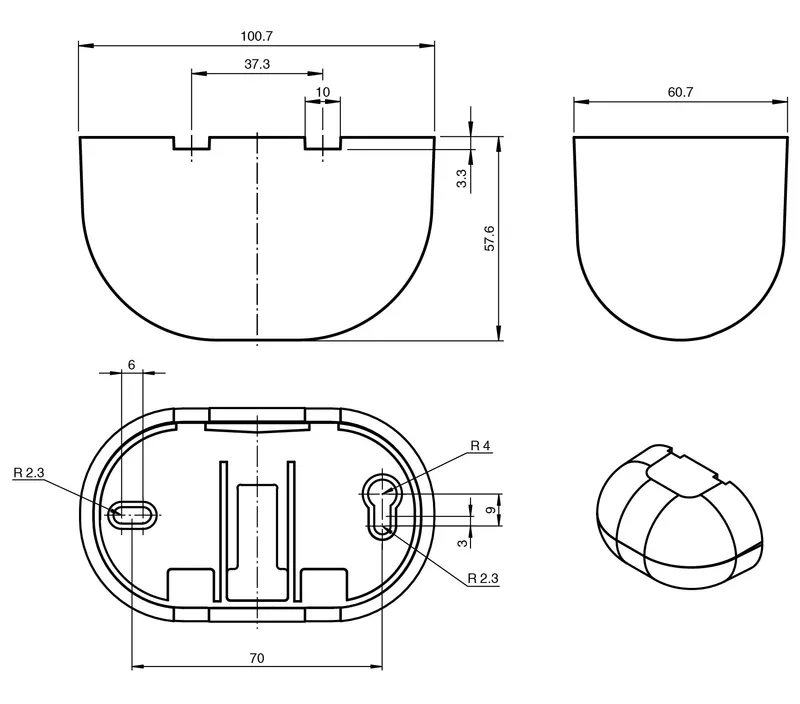

Dimensions101 mm x 60 mm x 59 mm
Height60 mm
Width101 mm
Depth59 mm

Suitable series

SeriesRaDec

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

RaDec-D-NA: frequently asked questions

When can RaDec-D-NA be shipped?

RaDec-D-NA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RaDec-D-NA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RaDec-D-NA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RaDec-D-NA, subject to availability and destination.

More Pepperl Fuchs parts

Pepperl Fuchs RADAR RC – Remote control
Pepperl Fuchs
RADAR RC

Remote control

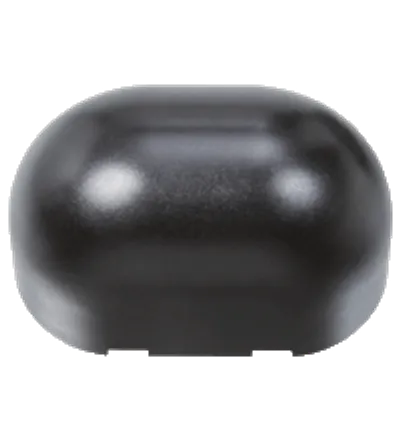

Pepperl Fuchs RaDec-D – Radar sensor
