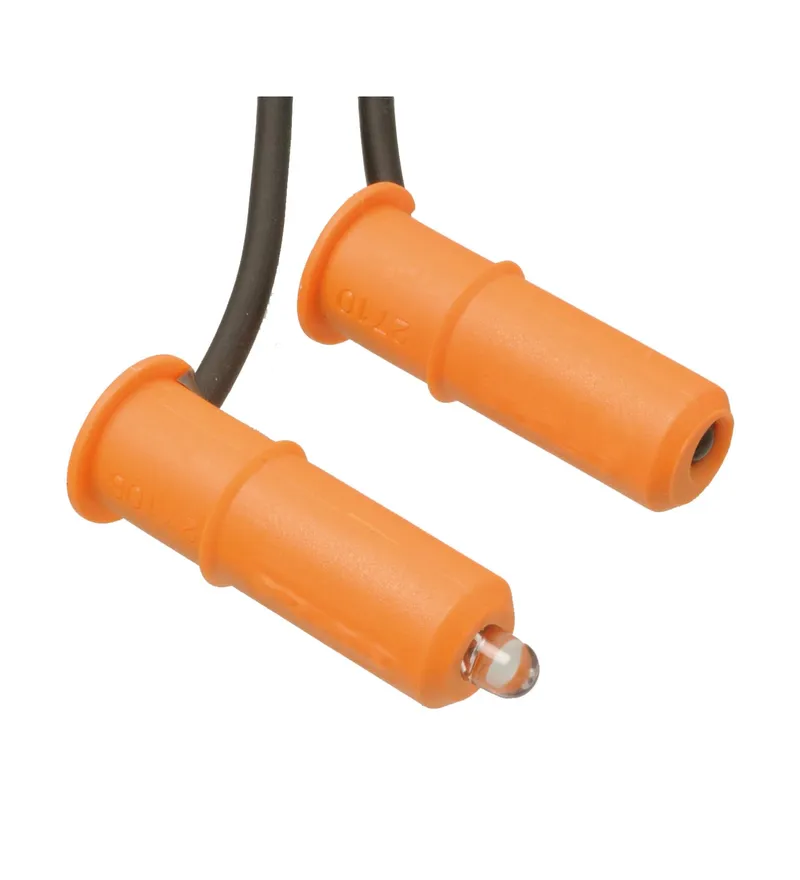

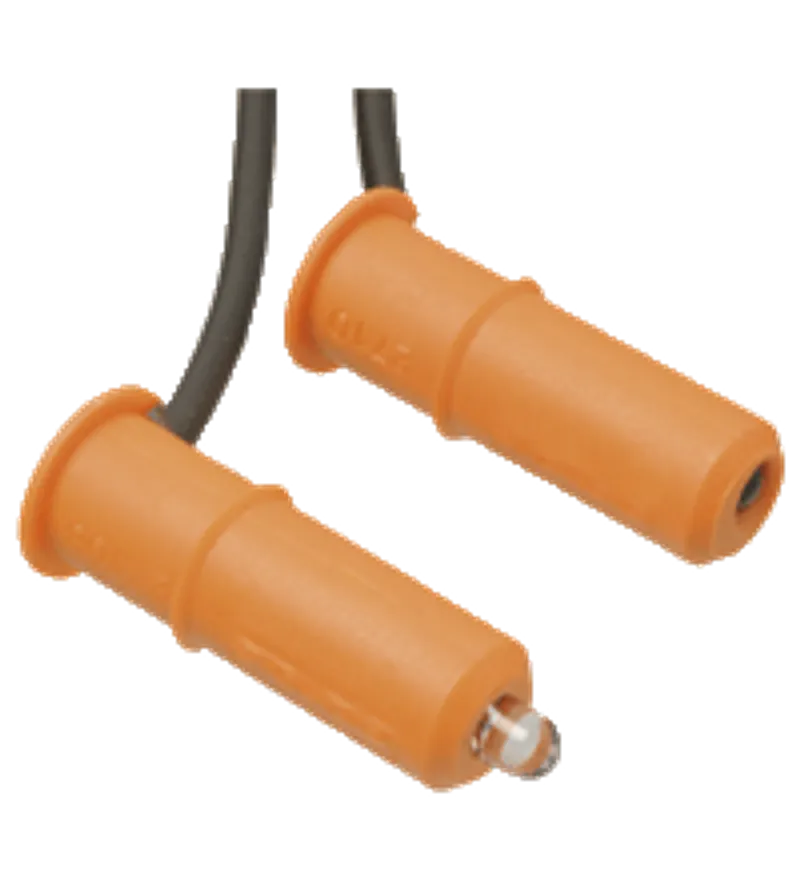

Pepperl Fuchs PSE4-SL-01

Safety edge

MPN: PSE4-SL-01
Category: Safety Edges

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs PSE4-SL-01?

Safety thru-beam sensor

Evaluation via safety control unit PSE4-SC-01

Modulated infrared light

For mounting in sensor strip PSE4-RUB and -ROI

No additional mounting materials required

Component of PSE4 modular system

Safety thru-beam sensor, Evaluation via safety control unit PSE4-SC-01, Modulated infrared light, For mounting in sensor strip PSE4-RUB and -ROI, No additional mounting materials required, Component of PSE4 modular system

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	233909
Effective detection range	0.4 ... 10 m
Number of protective field beams	1
Light source	LED
Light type	modulated infrared light
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

Performance level (PL)	PL e
Category	Cat. 4
Mission Time (TM)	20 a

Electrical specifications

Operating voltage

Power supply via control unit UB

Conformity

Functional safety	ISO 13849-1
Product standard	EN 12978 ; ISO 13856-2

Approvals and certificates

UL approval	cULus Listed File no: NRNT.E344450
TÜV approval	TÜV Rheinland 968/M 301.00/11

Ambient conditions

Ambient temperature

5 ... 55 °C (41 ... 131 °F)

Mechanical specifications

Degree of protection	IP68
Connection	fixed cable Emitter: 10 m Receiver: 2.9 m
Mech. capacity	500 N
Material: Housing	Polyethylene (PE) ; Emitter: gray / Receiver: black
Material: Cable	PUR
Mass	per 150 g

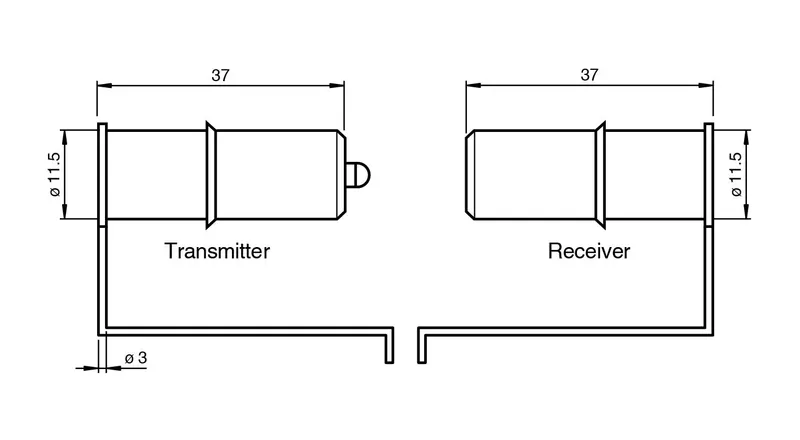

Dimensions: Length	37 mm
Dimensions: Diameter	11 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (1)

Product-Specific Certificates (01/205/5100.04/25)PDF · 611 kB
