Pepperl Fuchs PSE4-RUB-01
Safety edge
- MPN
- PSE4-RUB-01
- Category
- Safety Edges
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs PSE4-RUB-01?

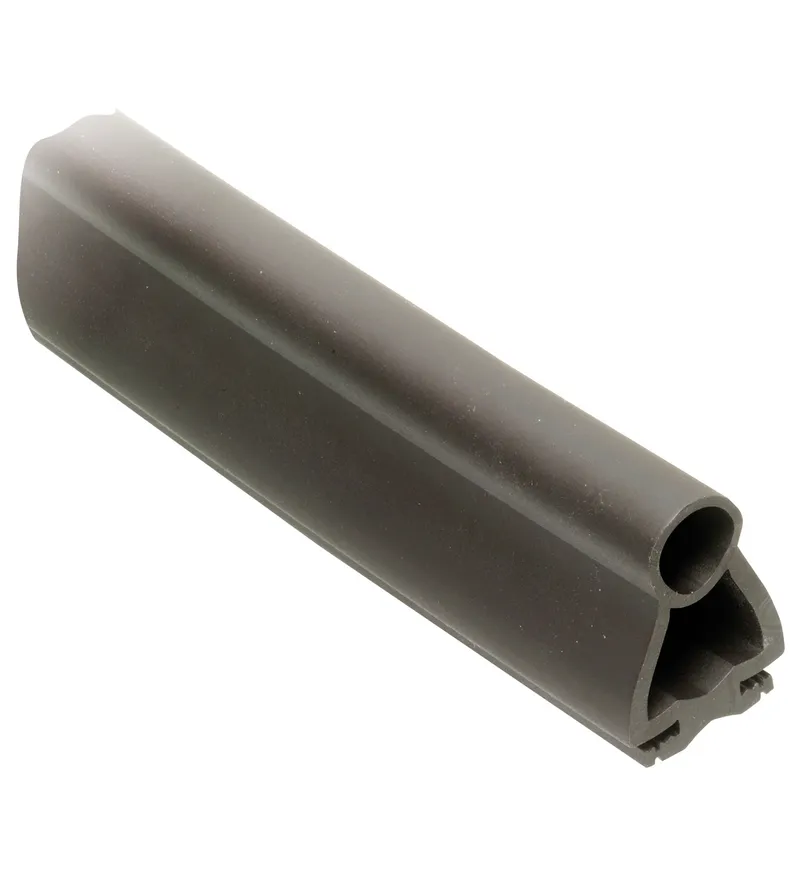

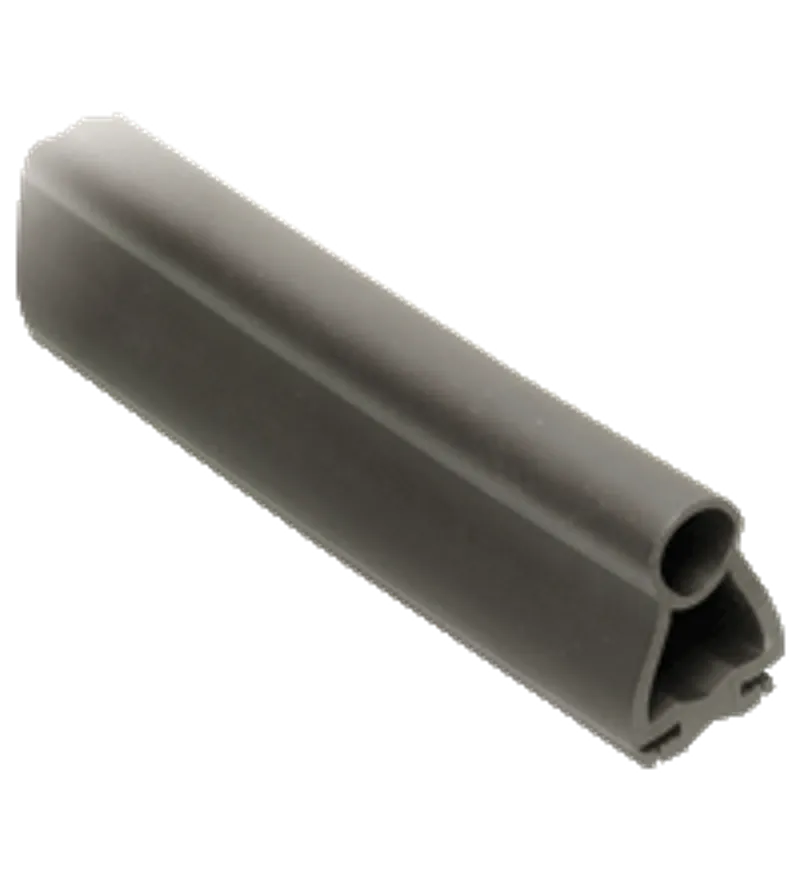

Rubber profile
For mounting to ALU mounting strip PSE4-ALU
Simple to customize to application
Versions up to 10 m in length are available
Component of PSE4 modular system
Rubber profile, For mounting to ALU mounting strip PSE4-ALU, Simple to customize to application, Versions up to 10 m in length are available, Component of PSE4 modular system
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 233901 |
| Length | 1 m |
| Dead zone | at ends 80 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | 5 ... 55 °C (41 ... 131 °F) |
| Environmental resistance | Excellent |
Mechanical specifications
| Material | EPDM (ethylene propylene diene rubber) |
| Mass | approx. 300 g |
| Dimensions: Height | 30 mm |
| Dimensions: Width | 25 mm |
| Dimensions: Length | 1 m |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

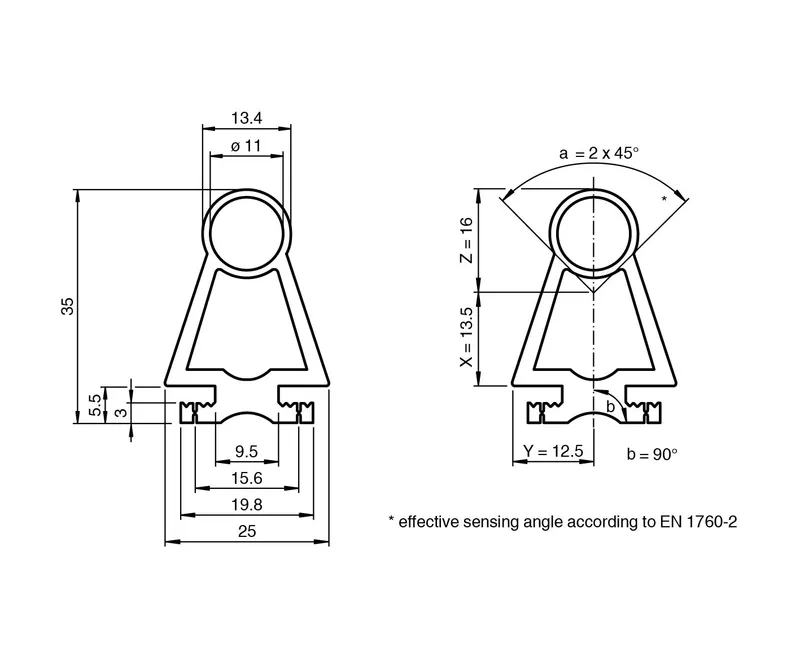

CAD & dimension drawings
Certificates (1)
PSE4-RUB-01: frequently asked questions
When can PSE4-RUB-01 be shipped?
PSE4-RUB-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PSE4-RUB-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PSE4-RUB-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PSE4-RUB-01, subject to availability and destination.
