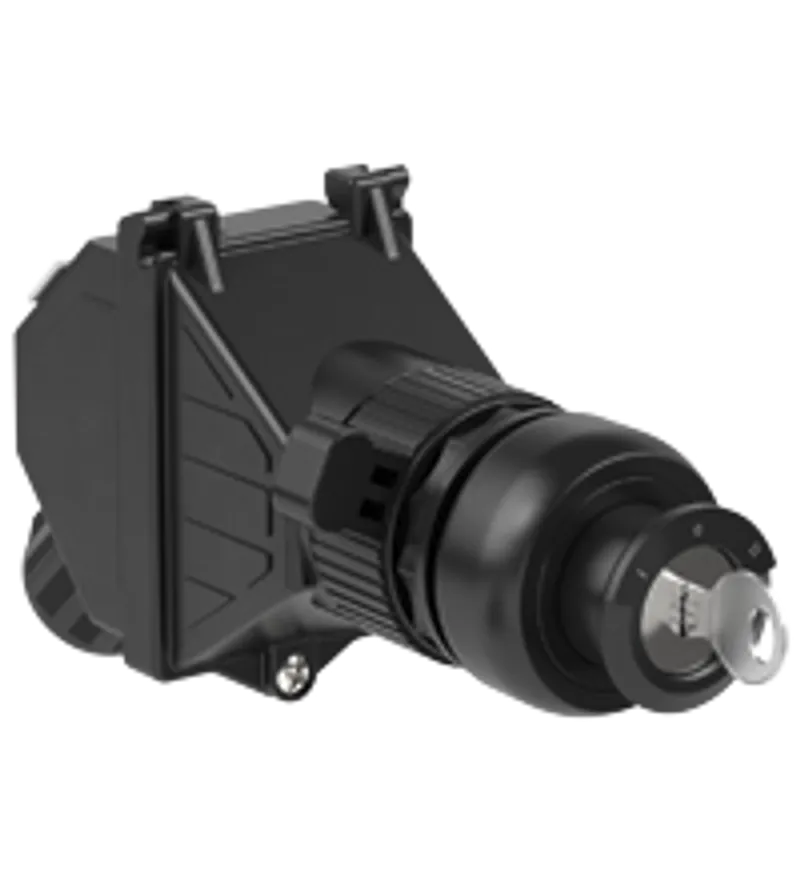

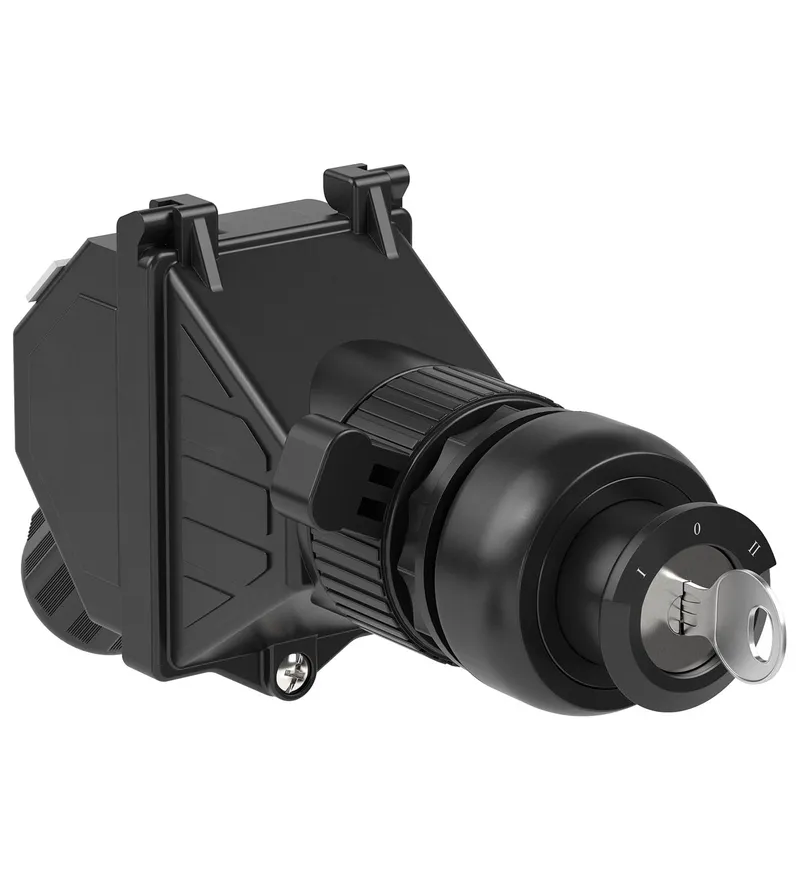

Pepperl Fuchs PMS.K8.C.20 – Control Unit Ex e, Panel Mount, Key Switch
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PMS.K8.C.20 be shipped?
PMS.K8.C.20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PMS.K8.C.20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PMS.K8.C.20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PMS.K8.C.20, subject to availability and destination.
• Key switch, 3 position with center OFF - 2x NO - labeling 'l - 0 - ll'
• Ex de and Ex tb certified
• Full equipment certified
• Polyamide housing for panel mount
• Installation in Zone 1, Zone 2, Zone 21 and Zone 22
• Cable Gland M20 integrated in protective cover
• Degree of protection IP66
Key switch, 3 position with center OFF - 2x NO - labeling 'l - 0 - ll', Ex de and Ex tb certified, Full equipment certified, Polyamide housing for panel mount, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Cable Gland M20 integrated in protective cover, Degree of protection IP66, Function: key switch, Housing: Polyamide (PA), Marking: [exsign] II 2 GD , Ex de IIC T6 Gb , Ex tb IIIC T80 °C Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 297361 |
| Operating voltage | 250 V max. |
| Operating current | 16 A max. |
| Terminal capacity | 2x 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | key switch |
| Color | black / silver |
| Contact configuration | 2x NO |

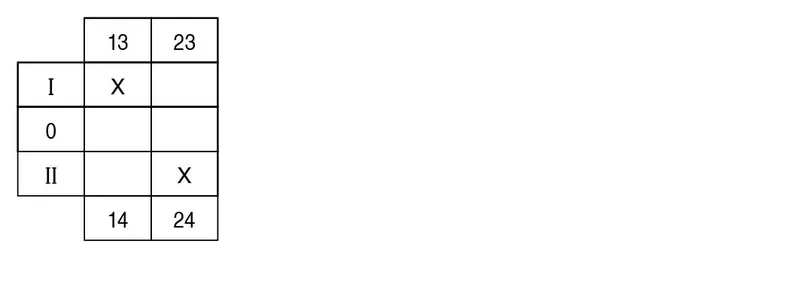

| Switching configuration | 3 position changeover with center OFF |
| Usage category | AC12 - 12 ... 250 V AC - 16 A AC15 - 12 ... 250 V AC - 10 A DC13 - 12 ... 110 V DC - 1 A DC13 - 12 ... 24 V DC - 1A |
| Number of poles | 2 |
| Operator action | engage - engage - engage |
| Lockable | yes |
| Labeling | I - 0 - II |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Cable type | non-armored cables |
| Clamping range (D) | 5.5 ... 13 mm (D) |
| Covering | Protective cap fully detachable |
| Cover fixing | Phillips head screw |
| Degree of protection | IP66 |
| Cable entry: Number of cable entries | 1x M20 cable gland in protective cover |
| Material: Housing | Polyamide (PA) |
| Material: Finish | inherent color black |
| Material: Seal | silicone |
| Material: Washer gasket | silicone |
| Mass | 150 g max. |

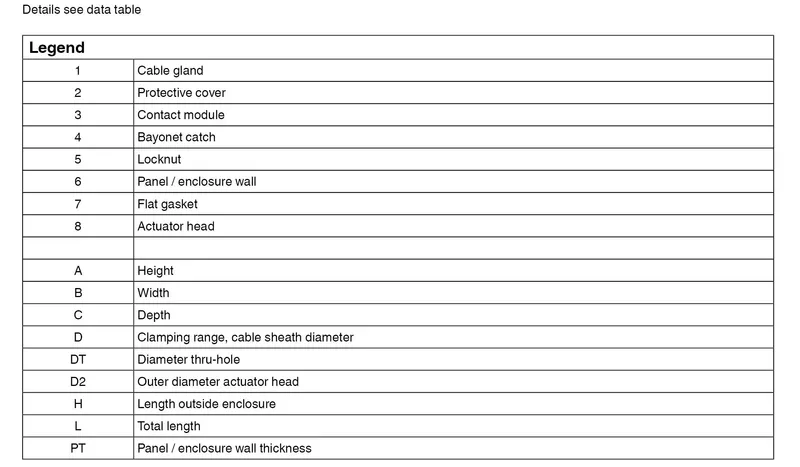

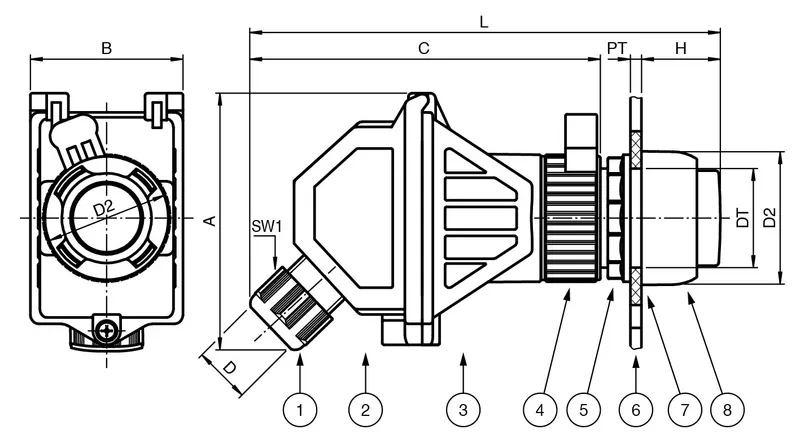

| Dimensions: Height (A) | 77 mm (A) |
| Dimensions: Width (B) | 44 mm (B) |
| Dimensions: Depth (C) | 105 mm (C) |
| Dimensions: Actuator head diameter (D2) | 39 mm (D2) |
| Dimensions: Panel wall thickness (PT) | 1 ... 6 mm (PT) |
| Dimensions: Diameter thru-hole (DT) | 30.6 mm (DT) |
| Dimensions: Length outside enclosure (H) | 33.3 mm (H) |
| Dimensions: Width across flats (SW1) | 24 mm (SW1) |
| Dimensions: Total length (L) | 145.8 mm (L) |
| Tightening torque: Nut torque at enclosure (SW1) | 2 Nm (SW1) |
| Mounting | via actuator head |
Ambient conditions
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3106X |
| Marking | II 2 GD Ex de IIC T6 Gb Ex tb IIIC T80 °C Db |
International approvals
| IECEx approval | IECEx CML 16.0046X |
| UKCA approval | CML 21 UKEX 21275X |
Conformity
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet PMS.K8.C.20 | |
| Brief Instructions - Panel Mount Control Units PM*.*.* | PDF · 172 kB |
Certificates (3)
| Europe CML ATEX Category 2 D ATEX Category 2 G (CML 16 ATEX 3106X) | PDF · 126 kB |
| UK-Type Examination Certificate (CML 21UKEX21275X) | PDF · 145 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 273 kB |
More Pepperl Fuchs parts

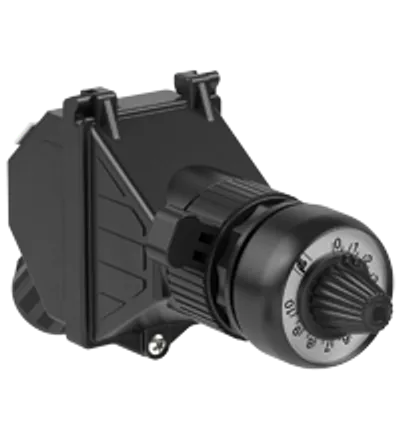

Available on requestControl Unit Ex e, Panel Mount, Potentiometer PMR.R2.P.0.5KAvailable on requestControl Unit Ex e, Panel Mount, Potentiometer PMR.R2.P.10KAvailable on requestControl Unit Ex e, Panel Mount, Potentiometer PMR.R2.P.1KAvailable on requestControl Unit Ex e, Panel Mount, Potentiometer PMR.R2.P.2K
Available on requestControl Unit Ex e, Panel Mount, Key Switch PMS.K6.C.11Available on requestControl Unit Ex e, Panel Mount, Key Switch PMS.K6.C.20
Available on requestControl Unit Ex e, Panel Mount, Control Switch PMS.N6.C.20

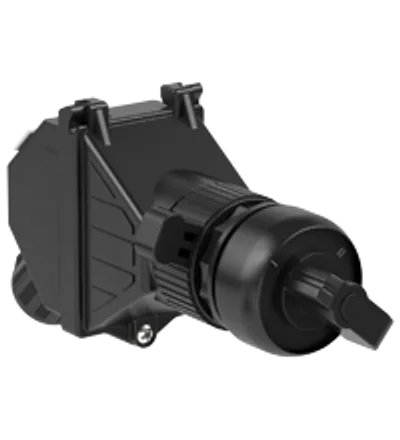

Available on requestControl Unit Ex e, Panel Mount, Control Switch PMS.N7.C.11
