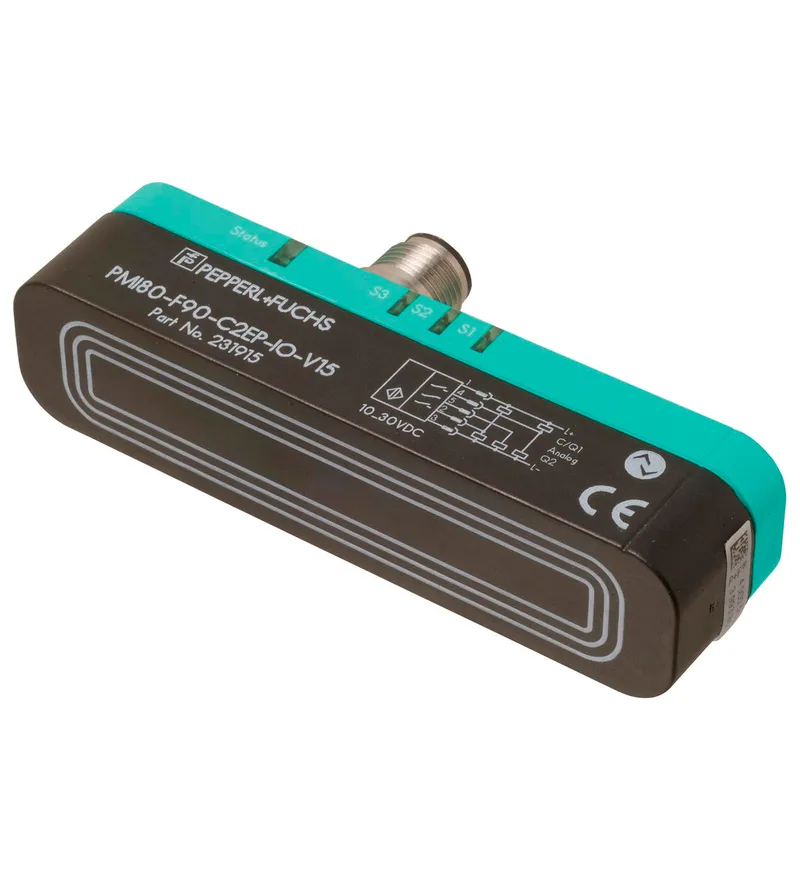

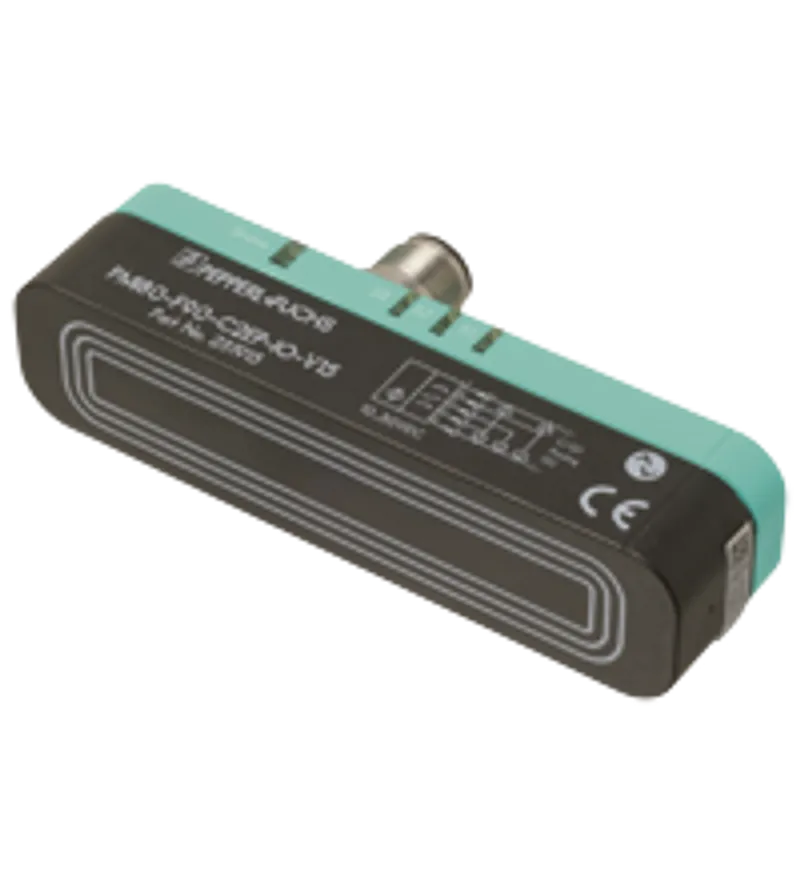

Pepperl Fuchs PMI80-F90-IU2EP-IO-V15 – Inductive positioning system
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PMI80-F90-IU2EP-IO-V15 be shipped?
PMI80-F90-IU2EP-IO-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PMI80-F90-IU2EP-IO-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PMI80-F90-IU2EP-IO-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PMI80-F90-IU2EP-IO-V15, subject to availability and destination.
• Parameterization and diagnosis via IO-Link
• Measuring range 0 ... 80 mm
• Parameterizable measuring range
• Analog current or voltage output, programmable
• 2 Push-pull outputs
• Switch points programmable via IO-Link
Parameterization and diagnosis via IO-Link, Measuring range 0 ... 80 mm, Parameterizable measuring range, Analog current or voltage output, programmable, 2 Push-pull outputs, Switching element function: Analog current or voltage output, programmable , 2 switch outputs, programmable, Output polarity: DC, Operating voltage: 12 ... 30 V DC , (13 ... 30 V when analog voltage output is parameterized), Type of voltage: DC, Interface type: IO-Link (via C/Q = Pin 4)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 315193 |
| Switching element function | Analog current or voltage output, programmable 2 switch outputs, programmable |
| Object distance | 0.5 ... 3 mm , recommended: 1.5 mm |
| Measuring range | 0 ... 80 mm |
| Linearity range | 1 ... 79 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 12 ... 30 V DC (13 ... 30 V when analog voltage output is parameterized) UB |
| Reverse polarity protection | reverse polarity protected |
| Linearity error | within measuring range: ± 0.8 mm within linearity range: ± 0.4 mm |
| Repeat accuracy | ± 0.1 mm R |
| Resolution | 50 µm |
| Temperature drift | ± 0.5 mm (-25 °C ... 70 °C) |
| No-load supply current | ≤ 40 mA I0 |
| Operating voltage indicator | LED green |
Safety-relevant product characteristics
| MTTFd | 311 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| LED S1 | switching state Switching output 1 |
| LED S2 | switching state Switching output 2 |
| LED S3 | Damping element in the configured analog measuring range |
| LED STATUS | Status display LED, green/red (Power on, communication/error, missing damping element) |
Interface
| Interface type | IO-Link (via C/Q = Pin 4) |
| IO-Link revision | 1.1 |
| Device profile | Smart Sensor |
| Device ID | 0x200303 (2097923) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Value range | 0000h ... 6400h |
| Min. cycle time | 2.3 ms |
| Process data width | Process data input: 16 Bit Process data output: none |
| SIO mode support | yes |
| Compatible master port type | A |
Switching output
| Output type | 2 push-pull outputs (can be parameterized), short-circuit-proof, reverse polarity protection, surge-proof |
| Operating current | ≤ 100 mA / Output IL |
| Switching window | ± 1 mm |
| Switching hysteresis | 0.2 mm |
| Voltage drop | ≤ 3 V |
| Short-circuit protection | pulsing |
Analog output
| Output type | 1 current output: 4 ... 20 mA or 1 voltage output: 0 ... 10 V , programmable |
| Load resistor | current output: ≤ 400 Ω voltage output: ≥ 1000 Ω |
| Short-circuit protection | voltage output: current limit |
Compliance with standards and directives
| Standard conformity: Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 EN 60947-5-7:2003 EN61131-9:2013 IEC 60947-5-7:2003 IEC 61131-9:2013 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC |
| Marine approval | DNVGL TAA00001V2 |
Ambient conditions
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Connection type | 5-pin, M12 x 1 connector |
| Degree of protection | IP67 / IP69K |
| Material: Housing | PBT, stainless steel 1.4571 , brass, nickel-plated |
| Material: Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) |
| Mass | 83 g |

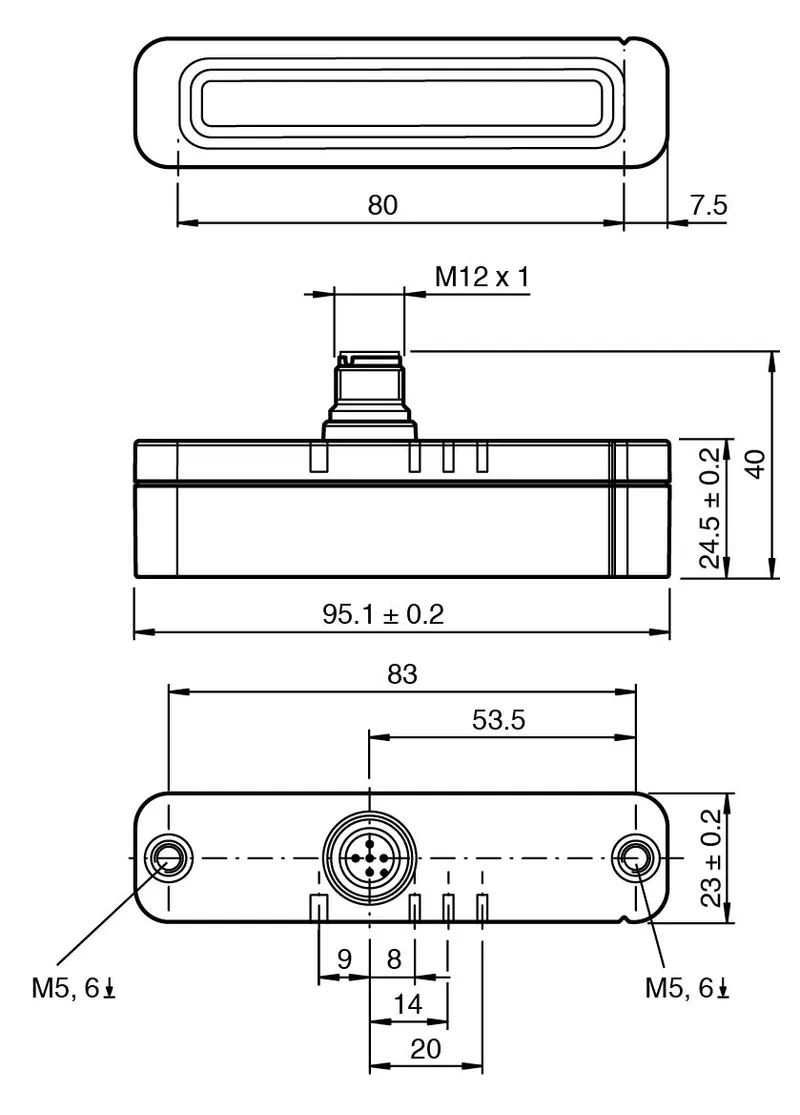

| Dimensions: Height | 40 mm |
| Dimensions: Width | 23 mm |
| Dimensions: Length | 95.1 mm |
