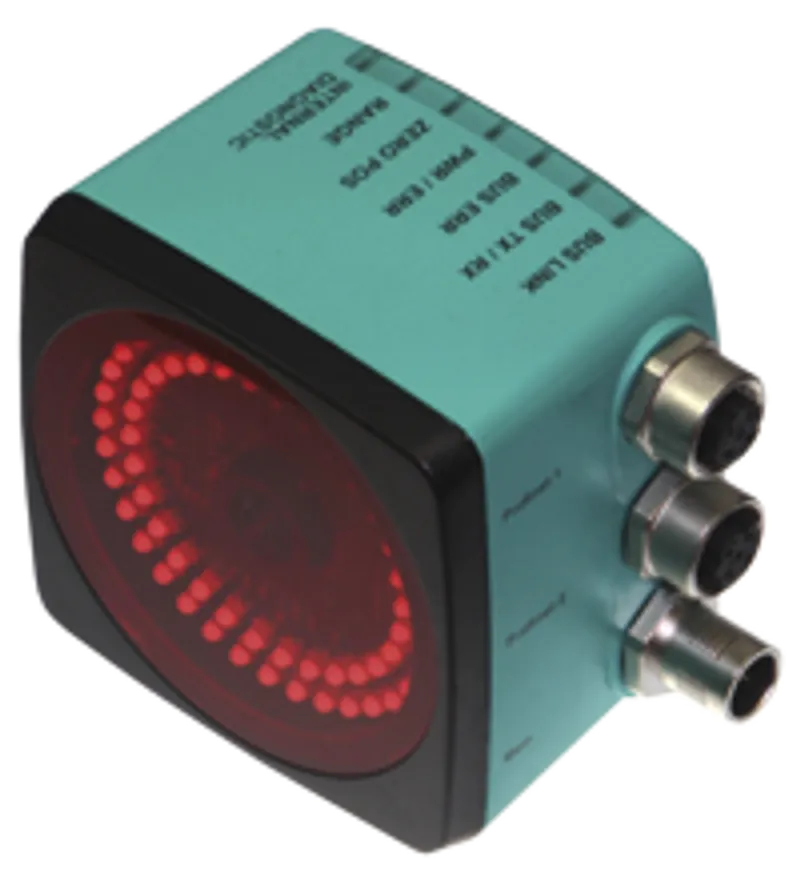

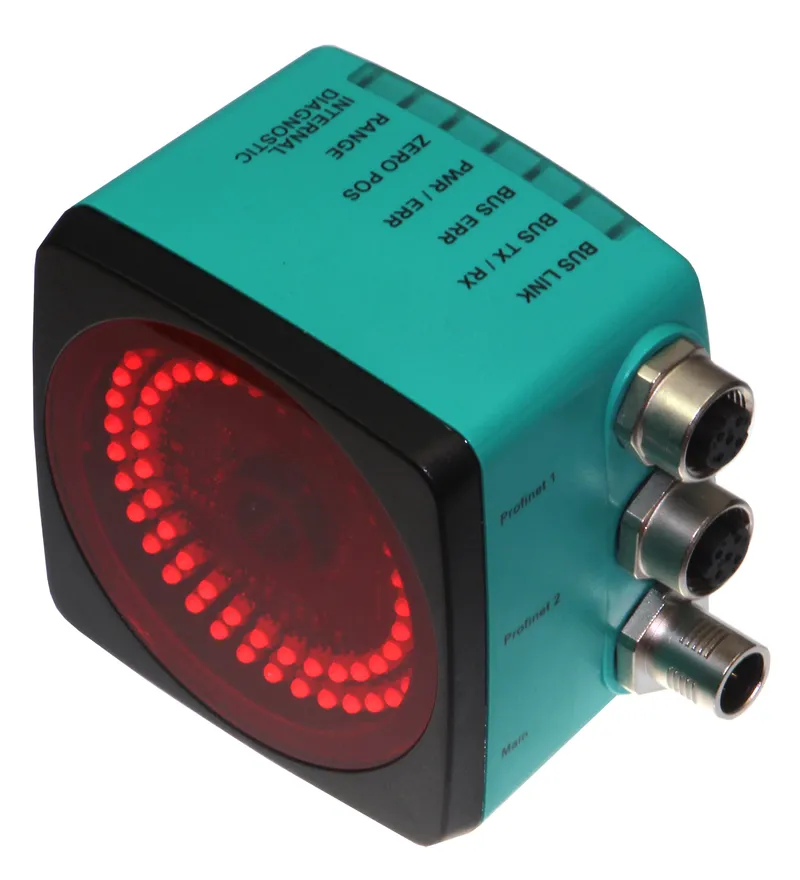

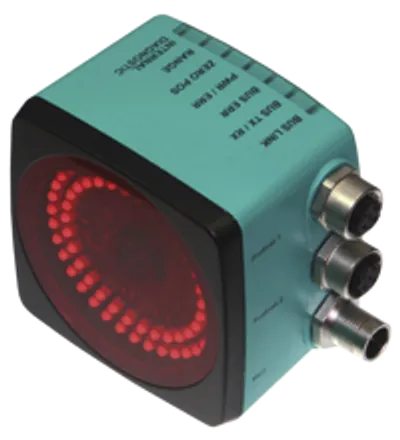

Pepperl Fuchs PHA300-F200A-B17-T-V1D – Vision Sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Precision Positioning |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PHA300-F200A-B17-T-V1D be shipped?
PHA300-F200A-B17-T-V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PHA300-F200A-B17-T-V1D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PHA300-F200A-B17-T-V1D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PHA300-F200A-B17-T-V1D, subject to availability and destination.
• Detects the position of an index hole
• Large capture range
• High operating range
• Integrated contrast compensation
• Compact design
• PROFINET interface
• Integrated illumination
• Extended temperature range
Precision positioning on hole in the 70 mm x 70 mm housing
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 283557 |
| Light type | Integrated LED lightning (infrared) |
| Object size | Hole diameter 13 mm |
| Response delay | 100 ms |
| Read distance | 300 mm |
| Depth of focus | ± 50 mm |
| Capture range | max. 120 mm x 100 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Camera: Type | CMOS , Global shutter |
| Camera: Number of pixels | 752 x 480 pixels |
| Camera: Gray scale | 256 |
Functional safety related parameters
| MTTFd | 95 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: Ready for operation |
| Function indicator | 7 LEDs (communication, alignment aid, status information) |
| Control elements | Button for parameterization |
Electrical specifications
| Operating voltage | 24 V DC +/- 15 %, PELV UB |
| No-load supply current | max. 400 mA I0 |
| Power consumption | 6 W P0 |
Interface
| Interface type | 100 BASE-TX PROFINET |
| Protocol | PROFINET IO Real-Time (RT) Conformance class A |
| Transfer rate | 100 MBit/s |
Interface 2
| Interface type | USB (serial comport) |
| Transfer rate | ... 12000 kBit/s |
Conformity
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Emitted interference | EN 61000-6-4:2007+A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Photobiological safety | exempt group according to EN 62471:2008 |
Approvals and certificates
| CE conformity | CE |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | -30 ... 60 °C (-22 ... 140 °F) (non-condensing; prevent icing on the lens!) |
| Storage temperature | -30 ... 85 °C (-22 ... 185 °F) |
| Relative humidity | 90 % , non-condensing |

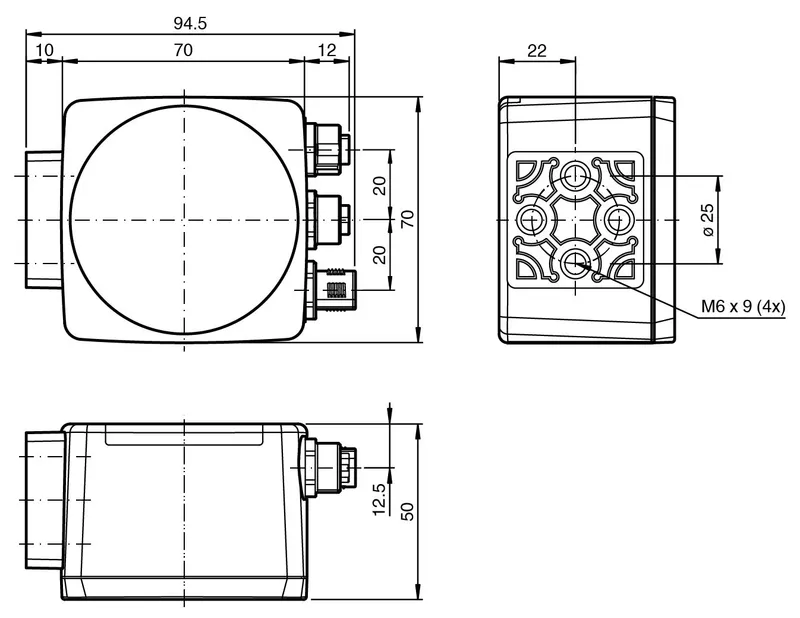

Mechanical specifications

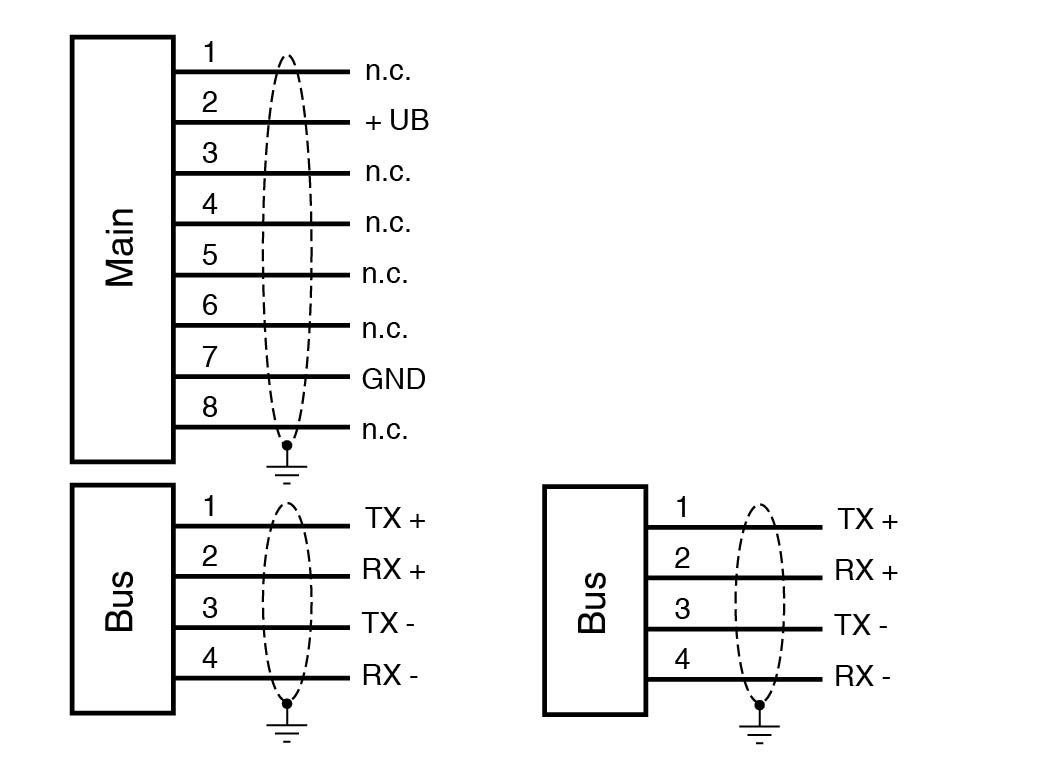

| Connection type | 8-pin, M12x1 connector, standard (supply+IO) 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN) |
| Degree of protection | IP67 |
| Material: Housing | PC/ABS |
| Material: Optical face | Plastic pane |
| Installation | 4 x M6 threading |
| Mass | approx. 200 g |
| Dimensions: Height | 70 mm |
| Dimensions: Width | 70 mm |
| Dimensions: Depth | 50 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet PHA300-F200A-B17-T-V1D | |
| Manual PHA*-F200*-B17-* | PDF · 3.5 MB |
CAD & dimension drawings
| EPLAN macro PHA300-F200A-B17-T-V1D | EDZ · 320 kB |
| 3-D model (STEP) PHA500-F200A-B17-T-V1D | STP · 1.5 MB |
