Pepperl Fuchs PGV*-CC25-*

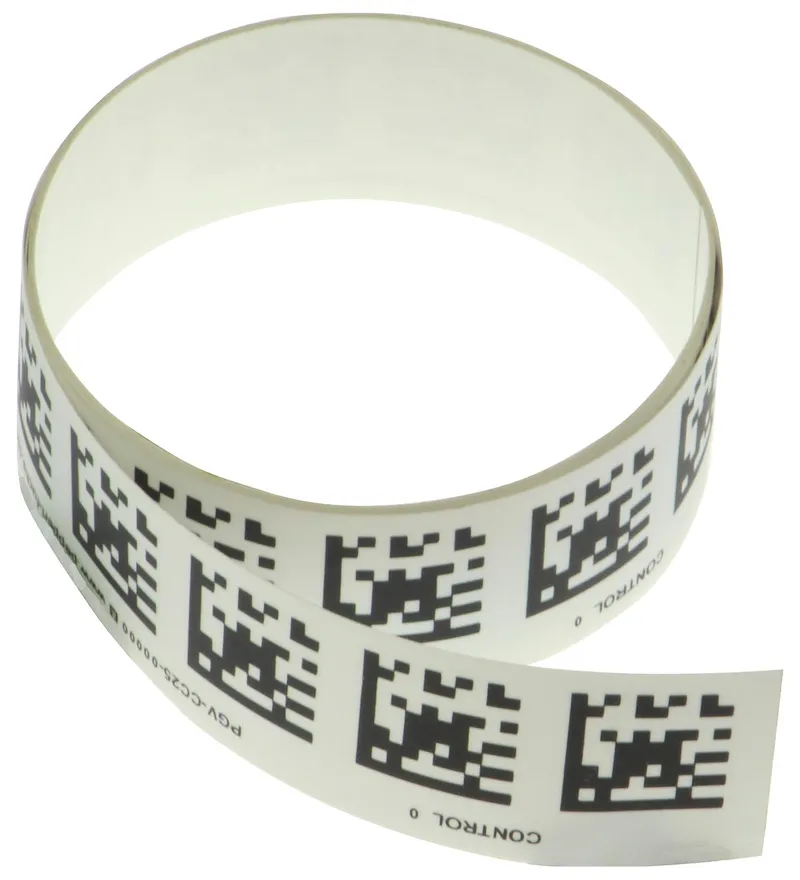

Control code tape
- MPN
- PGV*-CC25-*
- Category
- Camera-Based Track Guidance
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs PGV*-CC25-*?
High chemical resistance
Low weight
Self-adhesive mounting
High temperature resistance
High mechanical stability
Control code tape for PGV System, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 299655 |
| Start marker number | 1 ... 999 |
| Number | 1 ... 999 |
| Length | 1 m per control code number |

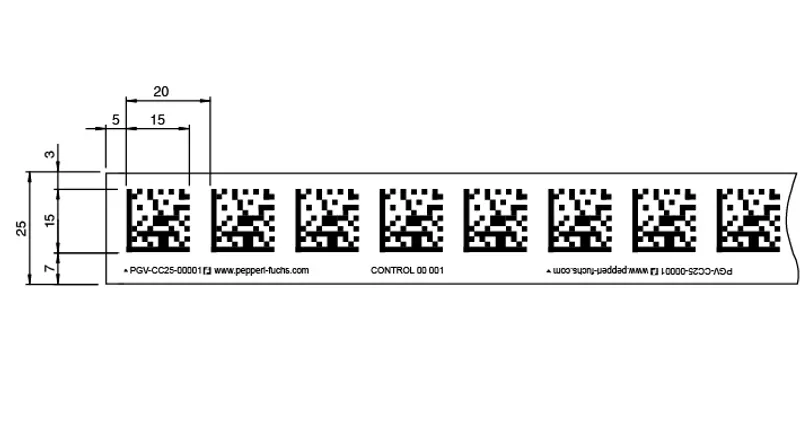

| Width | 25 mm (1 row version) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 150 µm |
| Material | polyester laminate |
| Surface | polyester , matte |
| Mass | 6.3 g / m |
| Tensile strength | ≥ 150 N |
| Manufacturing tolerance | ± 1 mm/m |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm |
