Pepperl Fuchs PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 11) – Personal Computer Unit (PCU)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial Monitors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 11) be shipped?
PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 11) is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 11) in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 11) and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 11), subject to availability and destination.
• Modular, lightweight design
• Low-power design with minimal heat dissipation
• High connectivity flexibility due to multiple interface options
• Powerful Intel® Atom Elkhart Lake processor
• Certified for ATEX and IECEx Zone 2/22
• IP66
Personal Computer Unit (PCU), Modular, lightweight design, Low-power design with minimal heat dissipation, High connectivity flexibility due to multiple interface options, Powerful Intel® Atom Elkhart Lake processor, Certified for ATEX and IECEx Zone 2/22, IP66
Specifications
Hardware
| Order code (Pepperl+Fuchs part number) | T233194 |
| Processor | Intel® Atom Elkhart Lake x6425RE |
| RAM | 8 GB |
| Mass storage | 240 GByte industrial grade SSD optional: 480 GByte SSD |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Supply
| Input voltage | 24 V DC , 2 A SELV/PELV |
| Power consumption | max. 48 W |
Interface
| Interface type | Standard:Pepperl+Fuchs interface v1.0 for display units 1 x Ethernet 100/1000BASE-TX (Ex e) or 1 x fiber optic 1000BASE-SX (Multimode) or 1 x fiber optic 1000BASE-LX (Singlemode), 1 x USB 2.0 (Ex e; service port), 2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse) Optional:1 x barcode reader interface Pepperl+Fuchs Pscan-D/B (Ex i) "S3": 1 x barcode reader interface for wired 1-D scanners IDM-160-D*, IDM-Z1-160-D-* and base station IDMx61-B-* and IDM-Z1-x61-B-* (Ex i) "S4": 1 x barcode reader interface for wired 2-D Scanner IDM-Z1-260-D-* (Ex i) "S5": 1 x RS-232 interface with Power Supply for miscellaneous devices and peripherals (Ex i) 1 x RS-232 (Ex e) 1 x RS-485 (Ex e) 1 x Ethernet 100/1000Base-TX (Ex e) Bluetooth v4.0, communication distance up to 30 m in open terrain, transmission power +8 dBm, transmission frequency 2.402 ... 2.48 GHz |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011 |
| RoHS: Directive 2011/65/EU (RoHS) | EN 50581:2012-09 |
Software
| Operating system | Windows® 11 IoT Enterprise LTSC 2024 |
Ambient conditions
| Operating temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Storage temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Relative humidity | 93% at 40°C, non-condensating, according to EN 60068-2-78 |
| Shock resistance | 30 g , 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 5 ... 100 Hz 1 G, 12 m/s2 |
Mechanical specifications
| Degree of protection | IP66 ( when mounted on the display unit from Pepperl+Fuchs ) |
| Material: Housing | anodized aluminum |
| Mass | approx. 5 kg |
| Dimensions | 280 mm x 240 mm x 43 mm |
Data for application in connection with hazardous areas
| EU-type examination certificate | BVS 16 ATEX E 082 X |
| Marking | II 3G Ex ec [ib] IIC T4 IP66 Gc [exsign] II 3D Ex tc [ib] IIIC T85°C IP66 Dc |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-11:2012, EN 60079-31:2014 |
International approvals
| IECEx approval | IECEx BVS 16.0060X |
| Approved for | Ex ec [ib] IIC T4 IP66 GcEx tc [ib] IIIC T85°C IP66 Dc |
| Standards | IEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-11:2011, IEC 60079-31:2013 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 249 kB |
| Manual Computing Unit (TCU/PCU) | PDF · 2.7 MB |
Certificates (4)
| EU Declaration of Conformity (Pepperl+Fuchs) Zone 2/22 | PDF · 245 kB |
| Japan CML Certificate of Compliance (CML 21JPN5726X) | PDF · 1.5 MB |
| China SITIIAS CCC Ex Certificate (2020322309003368 (Singapore)) | PDF · 4.6 MB |
| ATEX (BVS 16 ATEX E 082 X) | PDF · 17.4 MB |
More Pepperl Fuchs parts
Available on requestUSB connection cable PC T05 USB-C TO USB-C CABLE 1M
Available on requestConnection cable PC TPRO
Available on requestPersonal Computer Unit (PCU) PCU1100-* (Intel® Atom Elkhart Lake Processor, Windows 11)Available on requestPersonal Computer Unit (PCU) PCU1100-* (Intel® Atom Elkhart Lake Processor, Windows 10)Available on requestPersonal Computer Unit (PCU) PCU1200-* (Intel® Atom Elkhart Lake Processor, Windows 10)
Available on requestCode tape PCV*-AA20-*
Available on requestPepperl Fuchs PCV*-AA40-* – Code tape. Data Matrix code tape, High chemical resistance

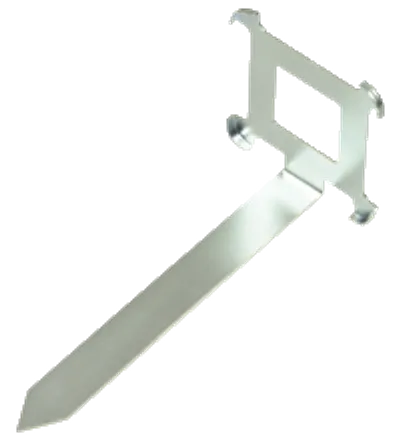

Available on requestAlignment guide PCV-AG100
