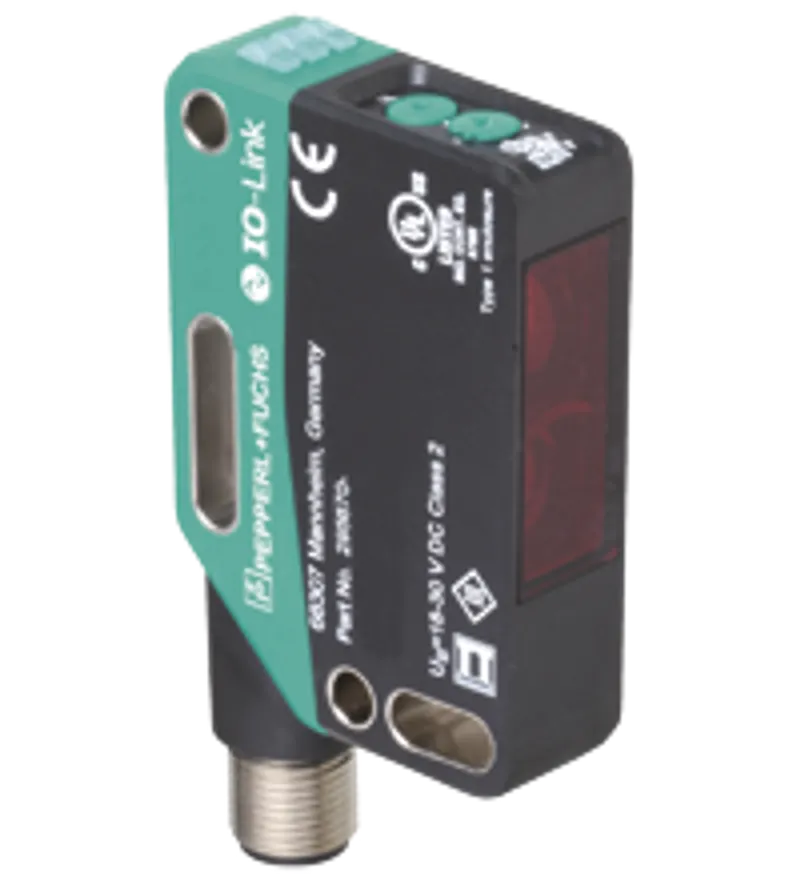

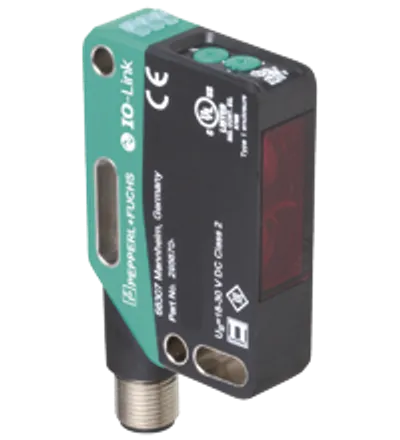

Distance sensor OMT550-R201-IEP-IO-V1 — photo 1 of 4

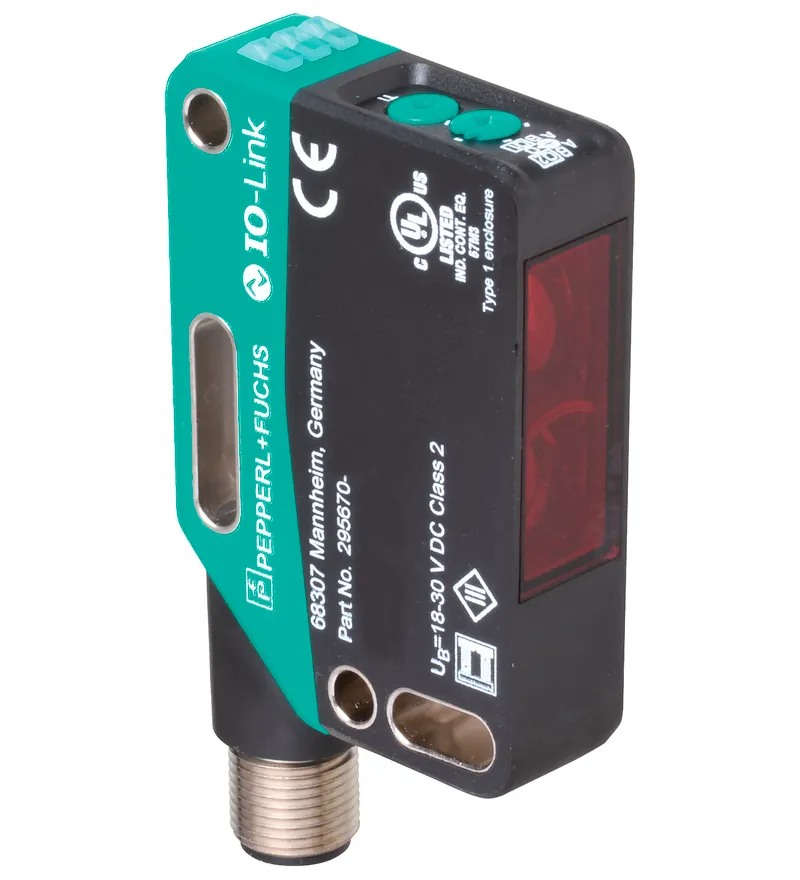

Distance sensor OMT550-R201-IEP-IO-V1 — photo 2 of 4

Distance sensor OMT550-R201-IEP-IO-V1 — photo 3 of 4

Distance sensor OMT550-R201-IEP-IO-V1 — photo 4 of 4

Available on request

Pepperl Fuchs OMT550-R201-IEP-IO-V1 – Distance sensor

MPN: OMT550-R201-IEP-IO-V1 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Distance Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OMT550-R201-IEP-IO-V1 be shipped?

OMT550-R201-IEP-IO-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OMT550-R201-IEP-IO-V1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OMT550-R201-IEP-IO-V1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OMT550-R201-IEP-IO-V1, subject to availability and destination.

• Medium design with versatile mounting options

• Space-saving distance sensors in small standardized design

• Multi Pixel Technology (MPT) - exact and precise signal evaluation

• IO-Link interface for service and process data

• Analog output 4 ... 20 mA

Distance sensor, Medium design with versatile mounting options, Space-saving distance sensors in small standardized design, Multi Pixel Technology (MPT) - exact and precise signal evaluation, IO-Link interface for service and process data, Analog output 4 ... 20 mA

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	295670-100269
Measuring range	100 ... 550 mm
Reference target	standard white, 100 mm x 100 mm
Light source	LED
Light type	modulated visible red light
LED risk group labelling	exempt group
Angle deviation	max. +/- 1.5 °
Diameter of the light spot	approx. 20 mm at a distance of 550 mm
Opening angle	2.5 °
Ambient light limit	EN 60947-5-2 : 45000 Lux
Resolution	0.1 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	520 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode
Function indicator	LED yellow: constantly on - switch output active constantly off - switch output inactive
Control elements	Teach-In key
Control elements	5-step rotary switch for operating modes selection

Electrical specifications

Operating voltage	18 ... 30 V DC UB
Ripple	max. 10 %
No-load supply current	< 25 mA at 24 V supply voltage I0
Protection class	III

Interface

Interface type	IO-Link ( via C/Q = pin 4 )
IO-Link revision	1.1
Device profile	Identification and diagnosisSmart Sensor type 0/type 3.3
Device ID	0x111912 (1120530)
Transfer rate	COM2 (38.4 kBit/s)
Min. cycle time	3 ms
Process data width	Process data input 4 byte Process data output 2 bits
SIO mode support	yes
Compatible master port type	A

Output

Switching type	The default setting is: C/Q - Pin4: NPN normally open, PNP normally closed, IO-Link I—Pin2: analog output 4...20 mA
Signal output	1 push-pull output , 1 analog output , short-circuit-proof, reverse polarity protection, surge-proof
Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Usage category	DC-12 and DC-13
Voltage drop	≤ 1.5 V DC Ud
Response time	2 ms , see table 1

Analog output

Output type	1 current output: 4 ... 20 mA
Load resistor	> 1 kΩ voltage output ; ≤ 470 Ω current output
Recovery time	2 ms

Conformity

Communication interface	IEC 61131-9
Product standard	EN 60947-5-2

Measurement accuracy

Temperature drift	0.05 %/K
Warm up time	5 min
Repeat accuracy	≤ 1 % , see table 1
Linearity error	0.75 %

Approvals and certificates

UL approval	E87056 , cULus Listed , class 2 power supply , type rating 1
CCC approval	CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature	10 ... 50 °C (50 ... 122 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP67 / IP69 / IP69K
Connection	4-pin, M12 x 1 connector, 90° rotatable
Material: Housing	PC (Polycarbonate)
Material: Optical face	PMMA
Mass	approx. 37 g
Dimensions: Height	61.7 mm
Dimensions: Width	15 mm
Dimensions: Depth	41.7 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet OMT550-R201-IEP-IO-V1	PDF
Instruction Manual	PDF · 150 kB
Installation and user instructions for offline parameterization of IO-Link sensors	PDF · 1.8 MB

CAD & dimension drawings

3-D model (STEP) OBT300-R201-2EP-IO-V1-1T	STP · 1.6 MB
EPLAN macro OMT550-R201-IEP-IO-V1	EDZ · 72 kB

Certificates (4)

Declaration of Conformity for simple apparatus	PDF · 315 kB
UK Declaration of Conformity (Pepperl+Fuchs)	PDF · 236 kB
IO-Link Manufacturer Declaration (CERT-4527A)	PDF · 326 kB
Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3)	PDF · 1.8 MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
