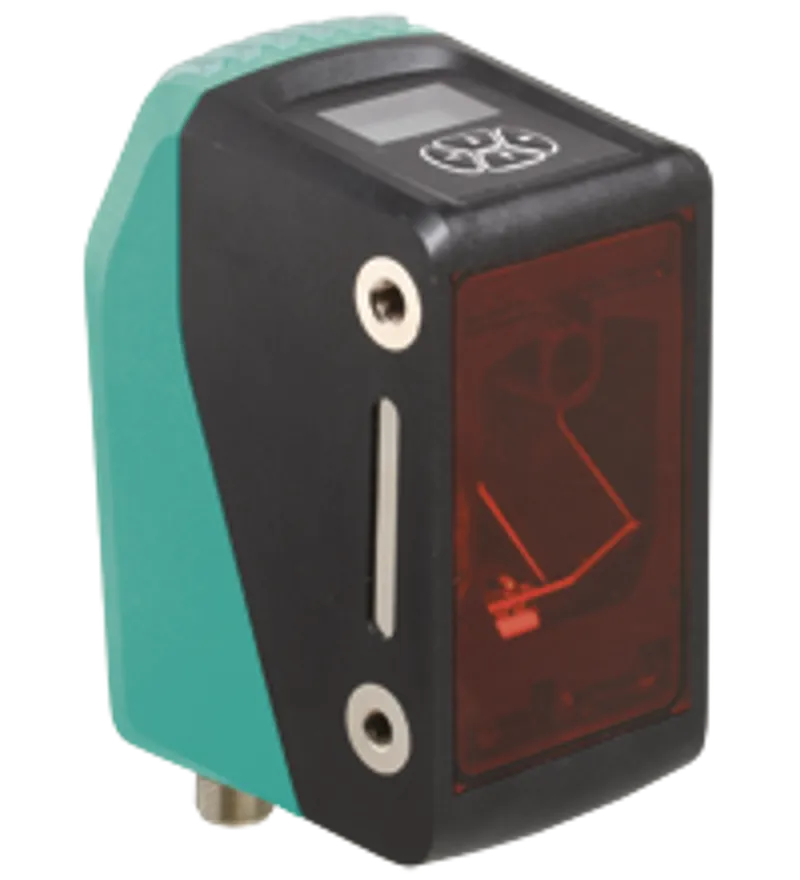

Distance sensor OMR150M-R1000-SSI-V1V1B — photo 1 of 4

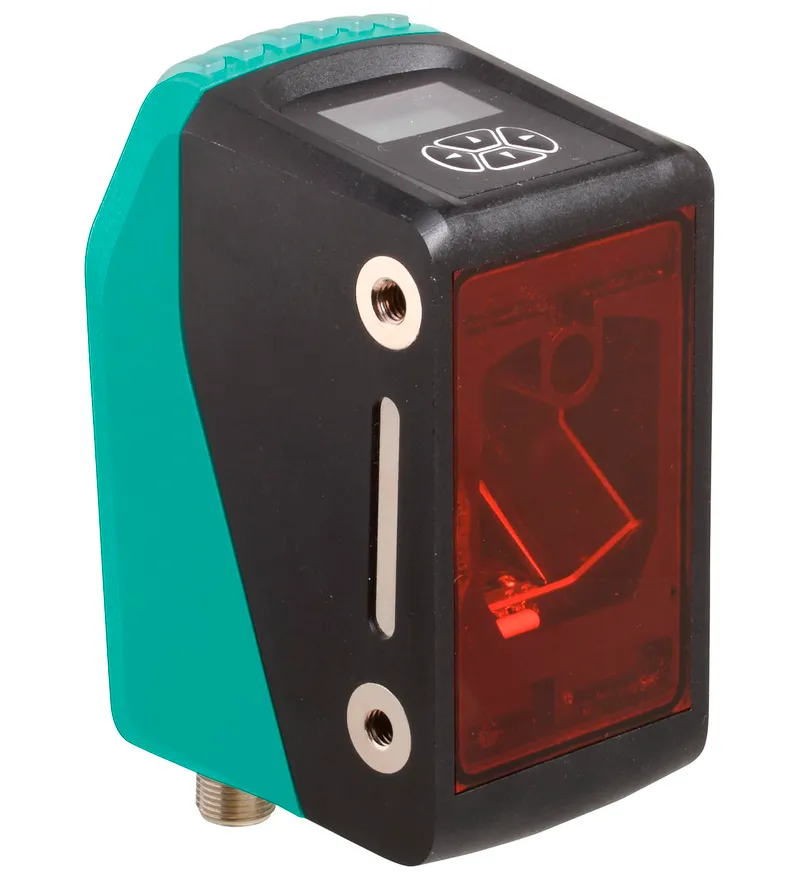

Distance sensor OMR150M-R1000-SSI-V1V1B — photo 2 of 4

Distance sensor OMR150M-R1000-SSI-V1V1B — photo 3 of 4

Distance sensor OMR150M-R1000-SSI-V1V1B — photo 4 of 4

Available on request

Pepperl Fuchs OMR150M-R1000-SSI-V1V1B – Distance sensor

MPN: OMR150M-R1000-SSI-V1V1B · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Distance Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OMR150M-R1000-SSI-V1V1B be shipped?

OMR150M-R1000-SSI-V1V1B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OMR150M-R1000-SSI-V1V1B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OMR150M-R1000-SSI-V1V1B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OMR150M-R1000-SSI-V1V1B, subject to availability and destination.

• Maximum measurement accuracy

• Switchable SSI/RS-422 interface

• Red laser as the light emitter

• Display and keypad for parameter settings

• Compact and space-saving design

Distance sensor for positioning tasks accurate to the millimeter, PRT, measuring range up to 150 m, SSI/RS-422 interface, M12 plug, Maximum measurement accuracy, Switchable SSI/RS-422 interface, Red laser as the light emitter, Display and keypad for parameter settings, Compact and space-saving design

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	324444-100001
Measuring range	0.3 ... 150 m
Reference target	REF-500MMx500MM (Foil reflector 500 mm x 500 mm) REF-250MMx250MM (Film reflector 250 mm x 250 mm) up to 75 m
Light source	laser diode
Light type	modulated visible red light
Laser nominal ratings: Note	LASER LIGHT , DO NOT STARE INTO BEAM
Laser nominal ratings: Laser class	1
Laser nominal ratings: Wave length	660 nm
Laser nominal ratings: Beam divergence	< 5 mrad
Laser nominal ratings: Pulse length	5 ns
Laser nominal ratings: Repetition rate	300 kHz
Laser nominal ratings: max. pulse energy	< 2 nJ
Measuring method	Pulse Ranging Technology (PRT)
Max. Motion velocity	15 m/s
Diameter of the light spot	< 75 cm at 150 m
Ambient light limit	> 80000 Lux
Resolution	0.1 mm , adjustable
Temperature influence	0.03 mm/K
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	> 100 a
Mission Time (TM)	10 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Function indicator	6 LEDs
Control elements	Control panel (4 membrane keys) for setting parameters
Parameterization indicator	Illuminated display for displaying measured values and parameterization

Electrical specifications

Operating voltage	10 ... 30 V DC UB
No-load supply current	625 mA (10 V) ... 250 mA (24 V) ... 220 mA (30 V) I0
Time delay before availability	< 1 s tv

Interface

Interface type	SSI
Monoflop time	20 µs
Clock frequency	0.1 ... 1 MHz

Interface 1

Interface type	RS-422
Read out rate	4.8 ... 115.2 kBit/s

Input/Output

Input/output type

2 inputs/outputs, independent configuration, short-circuit protected, reverse polarity protected

Output

Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Voltage drop	≤ 1.5 V DC Ud

Conformity

Product standard	EN 60947-5-2
Laser safety	EN 60825-1:2014

Measurement accuracy

Measured value output	1 ms
Average data age	3 ms , 6 ms , 12 ms , 25 ms , adjustable
Absolute accuracy	typ. ± 2.5 mm
Repeat accuracy	< 1 mm

Approvals and certificates

Protection class	III
UL approval	cULus Listed, Class 2 Power Source, Type 1 enclosure
FDA approval	IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.

Ambient conditions

Ambient temperature	-10 ... 60 °C (14 ... 140 °F)
Storage temperature	-40 ... 75 °C (-40 ... 167 °F)
Relative humidity	95 % , no moisture condensation

Mechanical specifications

Degree of protection	IP67

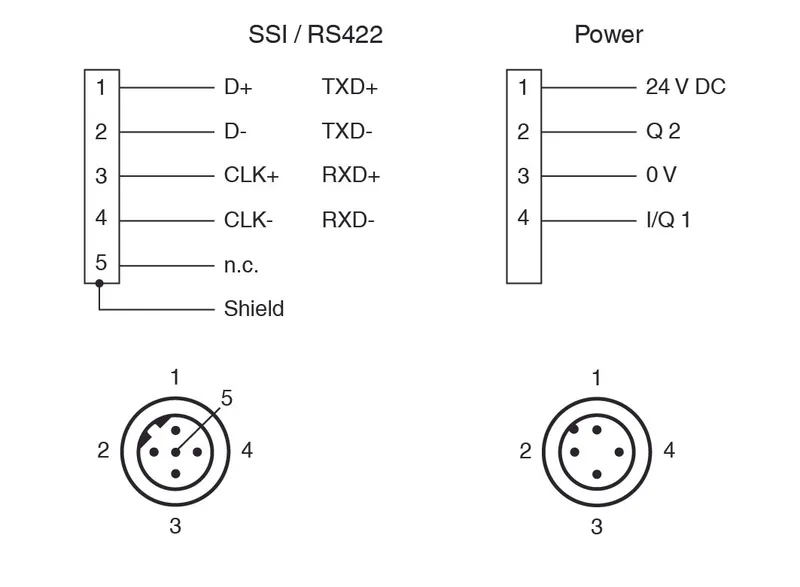

Connection	4-pin, M12x1 connector, A-coded (supply) ,5-pin, M12x1 connector, B-coded (SSI)
Material: Housing	ABS / PC
Material: Optical face	PMMA , hard coated
Mass	approx. 300 g

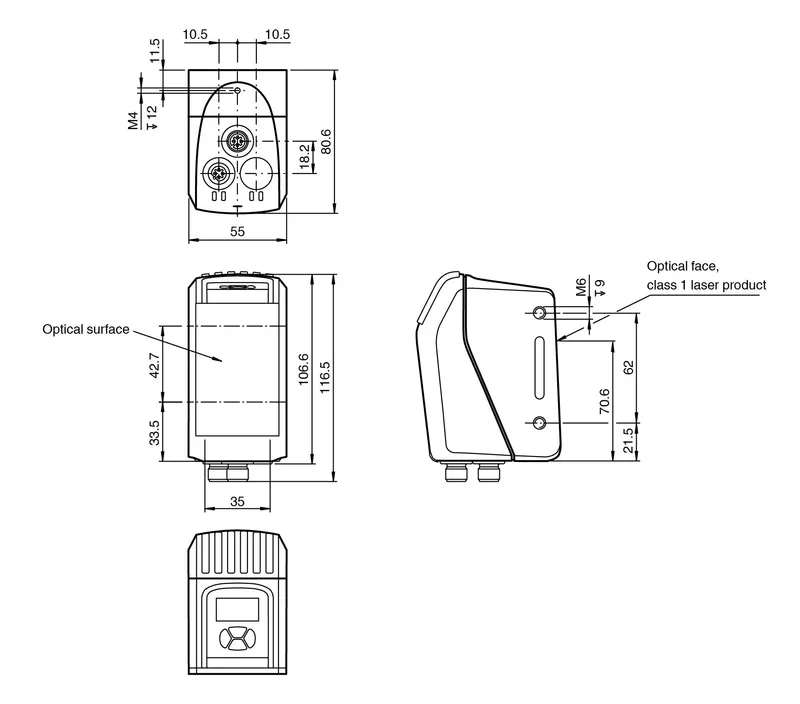

Dimensions: Height	106.6 mm
Dimensions: Width	55 mm
Dimensions: Depth	80.6 mm
