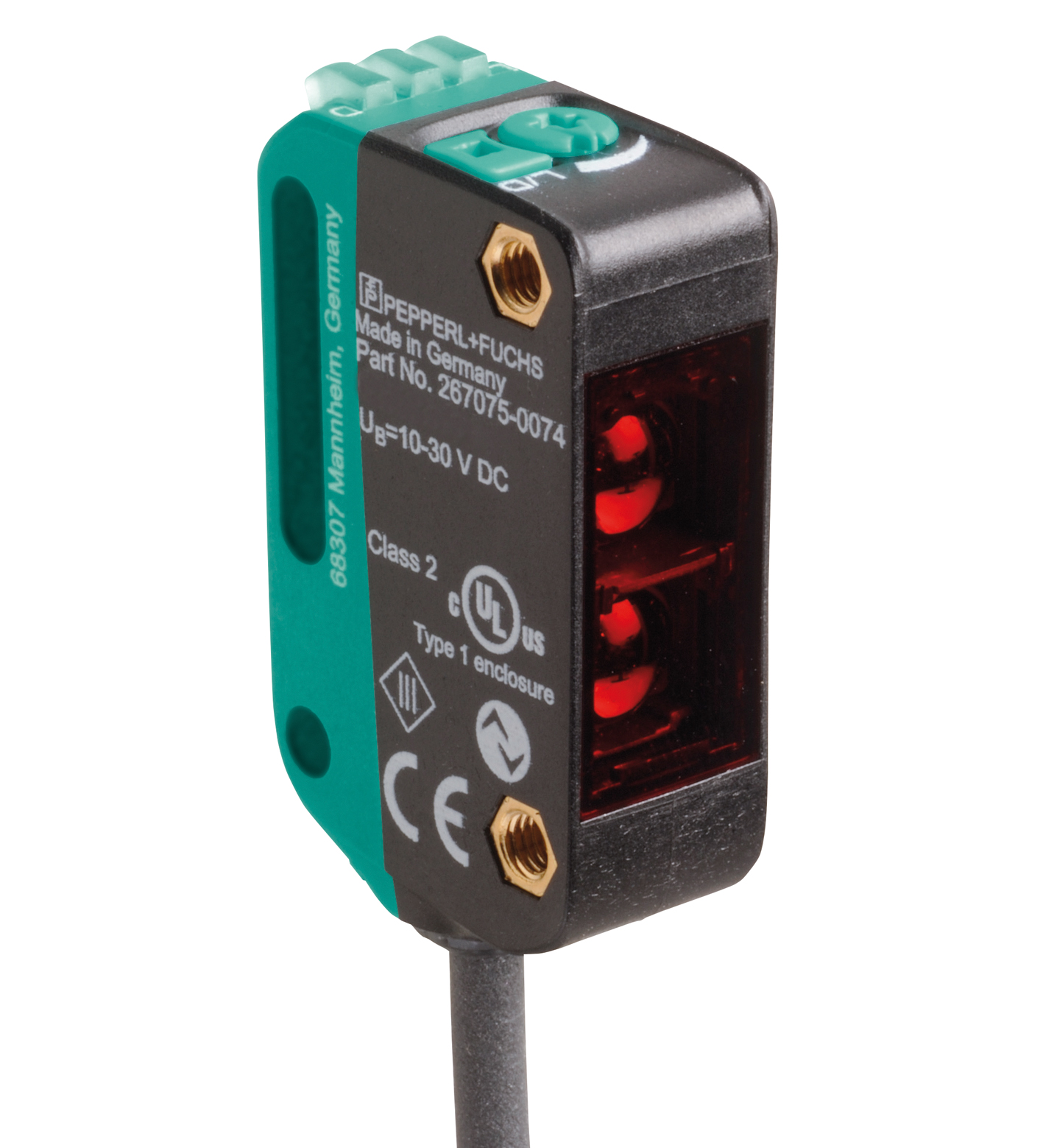

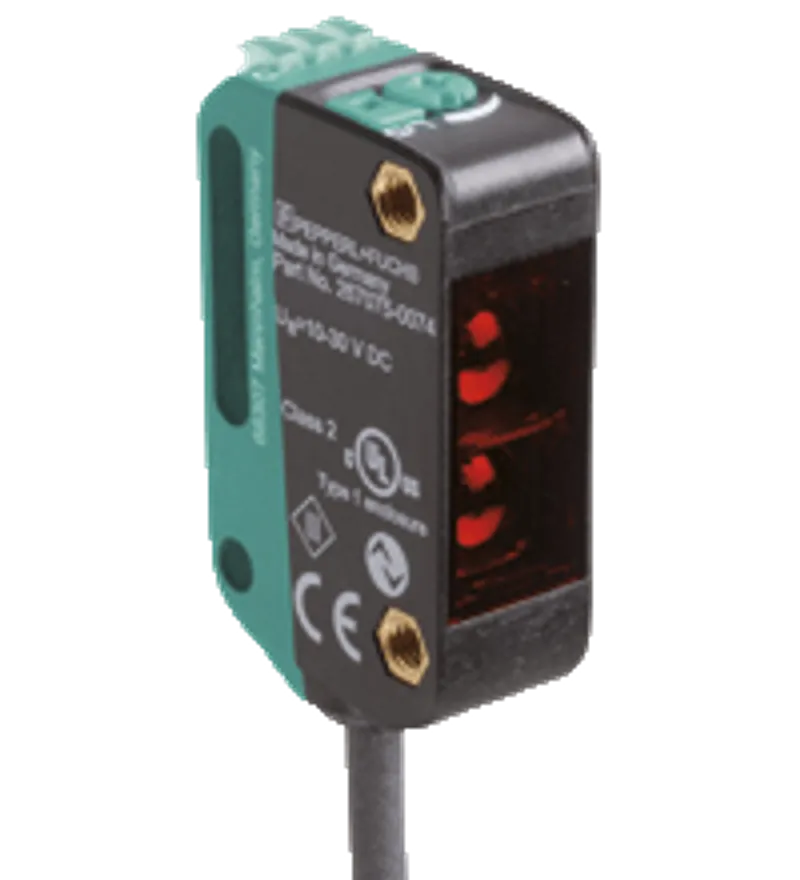

Pepperl Fuchs OBT350-R100-E5-IO-0,3M-V31 – Triangulation sensor (BGS)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBT350-R100-E5-IO-0,3M-V31 be shipped?
OBT350-R100-E5-IO-0,3M-V31 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBT350-R100-E5-IO-0,3M-V31 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBT350-R100-E5-IO-0,3M-V31 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBT350-R100-E5-IO-0,3M-V31, subject to availability and destination.
• Miniature design with versatile mounting options
• Best background suppressor in its class
• Precision object detection, almost irrespective of the color
• Extended temperature range -40 °C ... 60 °C
• High degree of protection IP69K
• IO-Link interface for service and process data
Triangulation sensor with background suppression, Miniature design with versatile mounting options, Best background suppressor in its class, Precision object detection, almost irrespective of the color, Extended temperature range, -40 °C ... 60 °C, High degree of protection IP69K
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 267075-100610 |
| Detection range | 5 ... 350 mm |
| Detection range min. | 5 ... 25 mm |
| Detection range max. | 5 ... 350 mm |
| Adjustment range | 25 ... 350 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Black-white difference (6 %/90 %) | < 15 % at 350 mm |
| Diameter of the light spot | approx. 20 mm at a distance of 350 mm |
| Opening angle | approx. 3 ° |
| Ambient light limit | EN 60947-5-2 : 40000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 600 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | LED yellow: constantly on - object detected constantly off - object not detected |
| Control elements | Light-on/dark-on changeover switch |
| Control elements | Sensing range adjuster |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA at 24 V supply voltage I0 |
| Protection class | III |
Interface

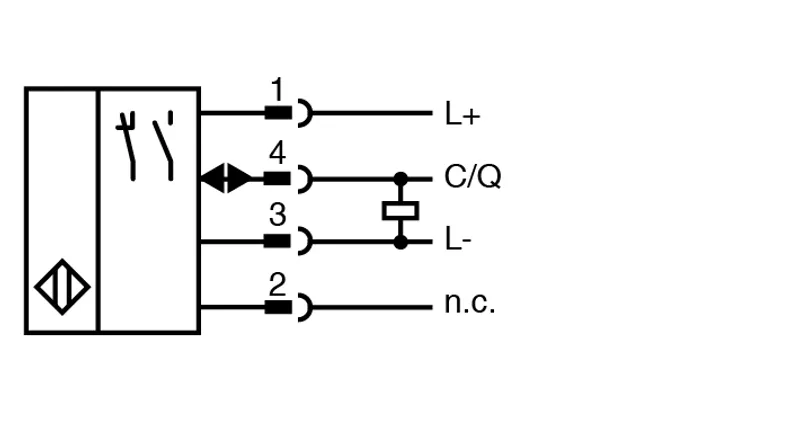

| Interface type | IO-Link ( via C/Q = pin 4 ) |
| IO-Link revision | 1.1 |
| Device profile | Smart Sensor |
| Device ID | 0x110613 (1115667) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| Process data width | Process data input 1 BitProcess data output 2 Bit |
| SIO mode support | yes |
| Compatible master port type | A |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q - BK: PNP normally open / light-on, IO-Link |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Usage category | DC-12 and DC-13 |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | 1 ms |
Conformity
| Communication interface | IEC 61131-9 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

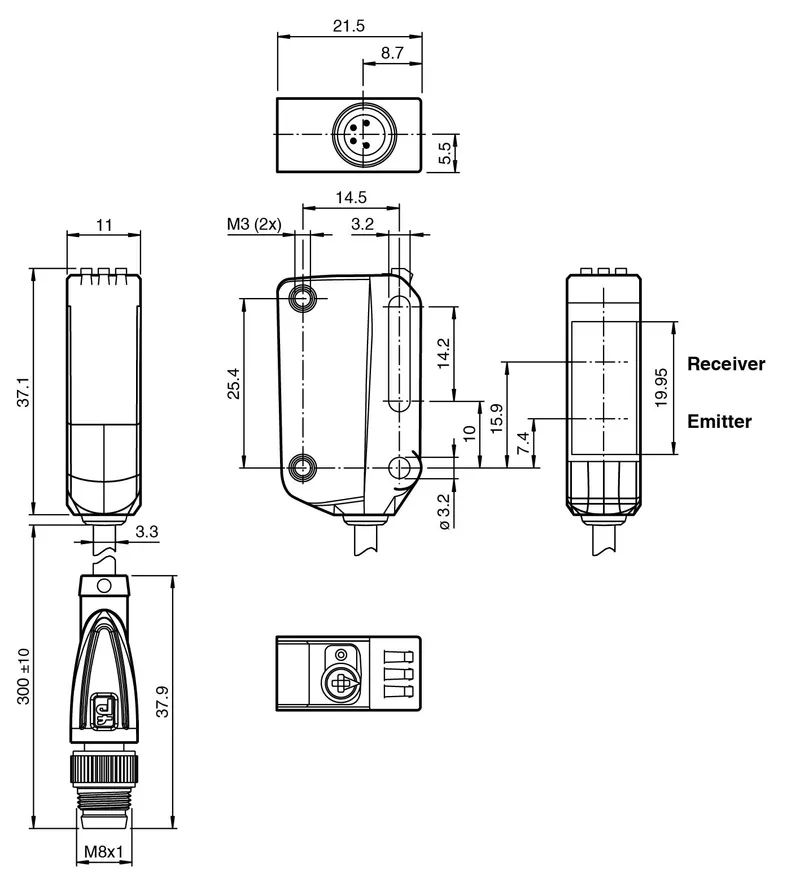

Mechanical specifications
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | fixed cable 300 mm with M8 x 1 male connector; 4-pin |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Mass | approx. 17 g |
| Dimensions: Height | 37.1 mm |
| Dimensions: Width | 11 mm |
| Dimensions: Depth | 21.5 mm |
| Cable length | 0.3 m |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBT350-R100-E5-IO-0,3M-V31 | |
| Instruction Manual | PDF · 150 kB |
| Installation and user instructions for offline parameterization of IO-Link sensors | PDF · 1.8 MB |
CAD & dimension drawings
| 3-D model (STEP) OBR7500-R100-2EP1-IO-0,3M-V31 | STP · 354 kB |
Certificates (4)
More Pepperl Fuchs parts

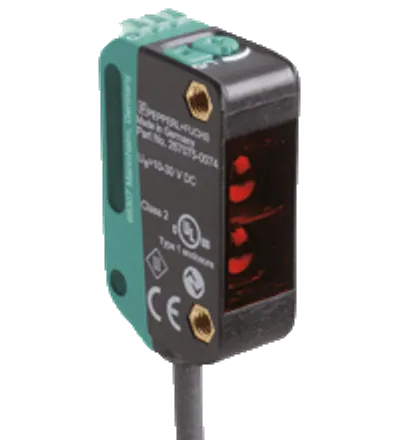

Available on requestTriangulation sensor (BGS) OBT350-R100-2EP1-IO-IRAvailable on requestTriangulation sensor (BGS) OBT350-R100-2EP1-IO-IR-Y0495

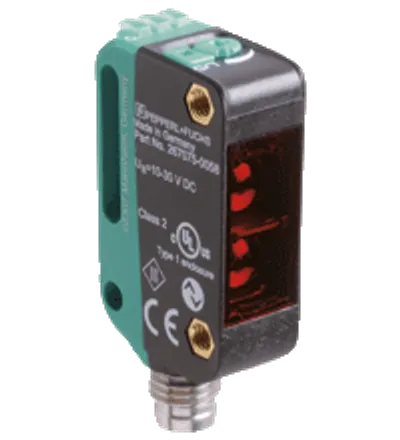

Available on requestTriangulation sensor (BGS) OBT350-R100-2EP1-IO-V31-IR

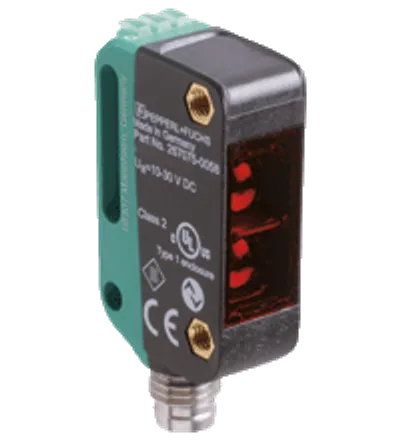

Available on requestTriangulation sensor (BGS) OBT350-R100-E2-IO-V31Available on requestTriangulation sensor (BGS) OBT350-R100-E5-IO-V31Available on requestTriangulation sensor (BGS) OBT350-R100-E5-IO-V31-IRAvailable on requestTriangulation sensor (BGS) OBT350-R100-EP-IO-0,3M-V3Available on requestTriangulation sensor (BGE) OBT350-R100-EP-IO-0,3M-V3-1T
