Pepperl Fuchs OBT22-R102-2P1-IO-0,3M-V31 – Triangulation sensor (BGS)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBT22-R102-2P1-IO-0,3M-V31 be shipped?
OBT22-R102-2P1-IO-0,3M-V31 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBT22-R102-2P1-IO-0,3M-V31 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBT22-R102-2P1-IO-0,3M-V31 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBT22-R102-2P1-IO-0,3M-V31, subject to availability and destination.
• Miniature design with versatile mounting options
• Best background suppressor in its class
• Precision object detection, almost irrespective of the color
• Extended temperature range -40 °C ... 60 °C
• High degree of protection IP69K
• IO-Link interface for service and process data
Triangulation sensor with background suppression, Miniature design with versatile mounting options, Best background suppressor in its class, Precision object detection, almost irrespective of the color, Extended temperature range, -40 °C ... 60 °C, High degree of protection IP69K
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 267075-100613 |
| Detection range | With the device at an inclination angle of approx. - 6°:on white (90 %): 10 ... 21 mm , on black (6 %): 10 ... 20 mm |
| Detection range max. | With the device at an inclination angle of approx. - 6°:5 ... 22 mm |
| Background suppression | With the device at an inclination angle of approx. - 6°:starts from 22 mm |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Black-white difference (6 %/90 %) | approx. 1 mm |
| Diameter of the light spot | approx. 1.5 mm at 20 mm |
| Opening angle | approx. 3 ° |
| Ambient light limit | EN 60947-5-2 : 40000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 600 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | LED yellow: constantly on - object detected constantly off - object not detected |
Electrical specifications
| Operating voltage | 10 ... 30 V 18 ... 30 V ( IO-Link ) UB |
| Ripple | max. 10 % |
| No-load supply current | max. 25 mA ( at 24 V ) I0 |
| Protection class | III |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D Smart Sensor - SSP 0 |
| Process data | Input 1 Bit - switching signal 1 Bit Output 2 Bit - Emitter deactivation 1 Bit - evaluation control function 1 Bit |
| Vendor ID | 1 (0x0001) |
| Device ID | 1115424 (0x110520) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| SIO mode support | yes |
| Compatible master port type | Class A |
Output

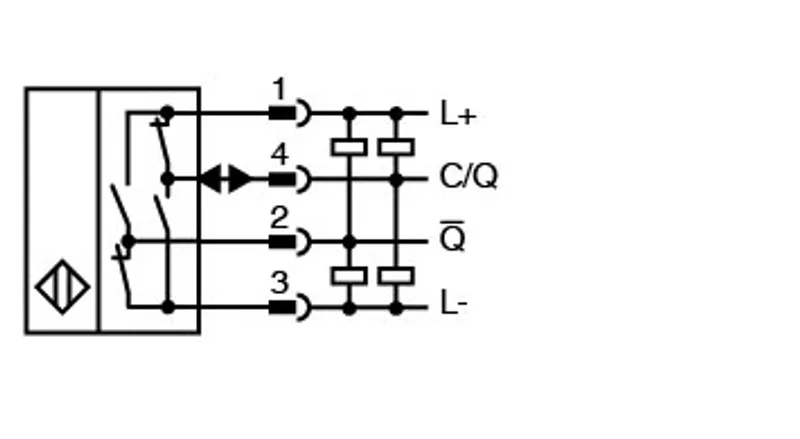

| Switching type | C/Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link /Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Usage category | DC-12 and DC-13 |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 1000 Hz f |
| Response time | 0.5 ms |
Conformity
| Communication interface | IEC 61131-9 / IO-Link V1.1.2 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | fixed cable 300 mm with M8 x 1 male connector; 4-pin |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | Float glass |
| Mass | approx. 17 g |
| Dimensions: Height | 31.9 mm |
| Dimensions: Width | 13.9 mm |
| Dimensions: Depth | 18.3 mm |
| Cable length | 0.3 m |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBT22-R102-2P1-IO-0,3M-V31 | |
| Instruction Manual | PDF · 150 kB |
CAD & dimension drawings
| 3-D model (STEP) OBT22-R102-2P1-IO-0,3M-V31 | STP · 402 kB |
Certificates (4)
More Pepperl Fuchs parts

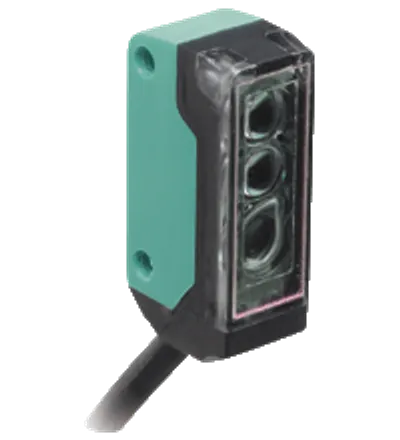

Available on requestTriangulation sensor (BGS) OBT20-R2-E2-0,2M-V31-P
Available on requestTriangulation sensor (BGS) OBT200-R200-E5F-0,3M-V1-Y0396
Available on requestTriangulation sensor (BGS) OBT200-R201-E5F-0,3M-V1-Y0397

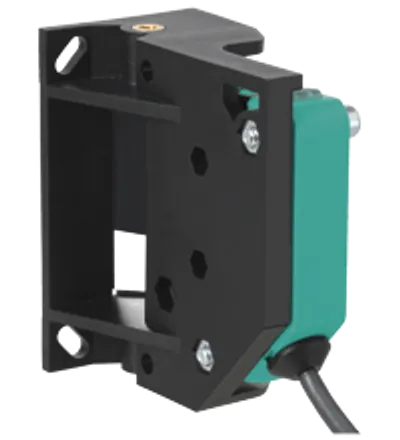

Available on requestTriangulation sensor (BGS) OBT200-R201-E5F-Y0398-SET
