Pepperl Fuchs OBT150-18GK40-A2 – Triangulation sensor (BGS)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBT150-18GK40-A2 be shipped?
OBT150-18GK40-A2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBT150-18GK40-A2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBT150-18GK40-A2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBT150-18GK40-A2, subject to availability and destination.
• Short design in M18 plastic housing
• Not sensitive to ambient light
• Adjustable background suppression
• Degree of protection IP67
• High operating distance
Triangulation sensor with background suppression, Short design in M18 plastic housing, Not sensitive to ambient light, Adjustable background suppression, Degree of protection IP67, High operating distance
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70113328-100178 |
| Detection range | 10 ... 150 mm |
| Detection range min. | 10 ... 40 mm |
| Detection range max. | 12 ... 150 mm |
| Adjustment range | 40 ... 150 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| Black-white difference (6 %/90 %) | < 10 % at 150 mm |
| Diameter of the light spot | approx. 6 mm at detection range 150 mm |
| Opening angle | approx. 2 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 100000 Lux |
| Hysteresis | < 2 % H |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 1492 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
| Function indicator | LED yellow: constantly on - object detected constantly off - object not detected |
| Control elements | sensitivity adjustment |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Protection class | III |
Output
| Switching type | Q - Pin4: PNP normally open / light-on /Q - Pin2: PNP normally closed / dark-on |
| Signal output | 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | ≤ 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

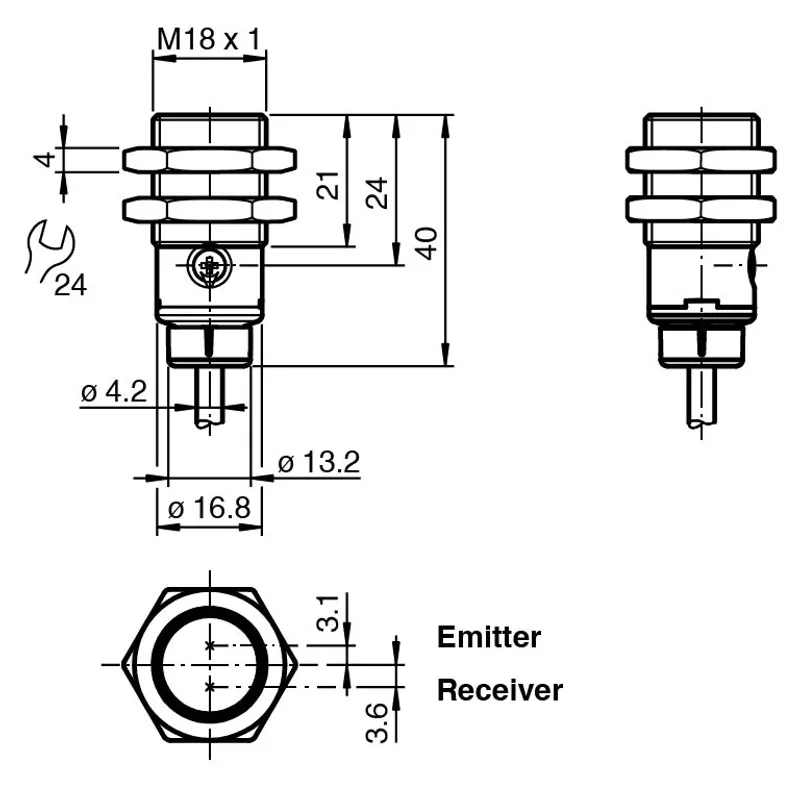

Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Material: Cable | PVC |
| Mass | approx. 54 g |
| Dimensions: Length | 40 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBT150-18GK40-A2 | |
| Instruction Manual | PDF · 150 kB |
Certificates (3)
