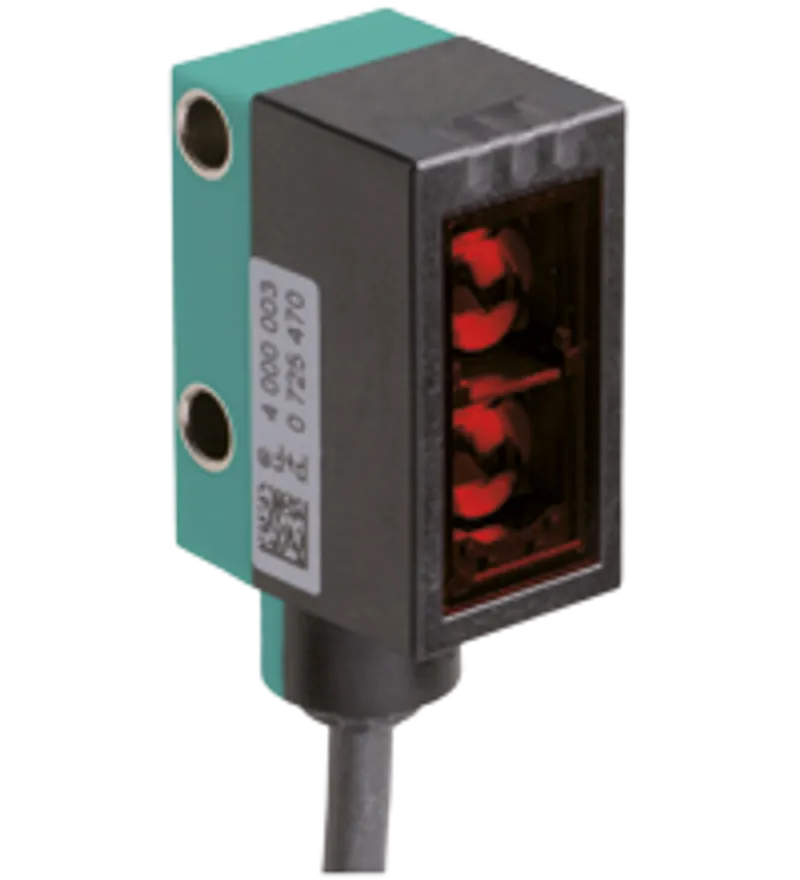

Retroreflective sensor OBR7500-R101-P1-Y0429 — photo 1 of 5

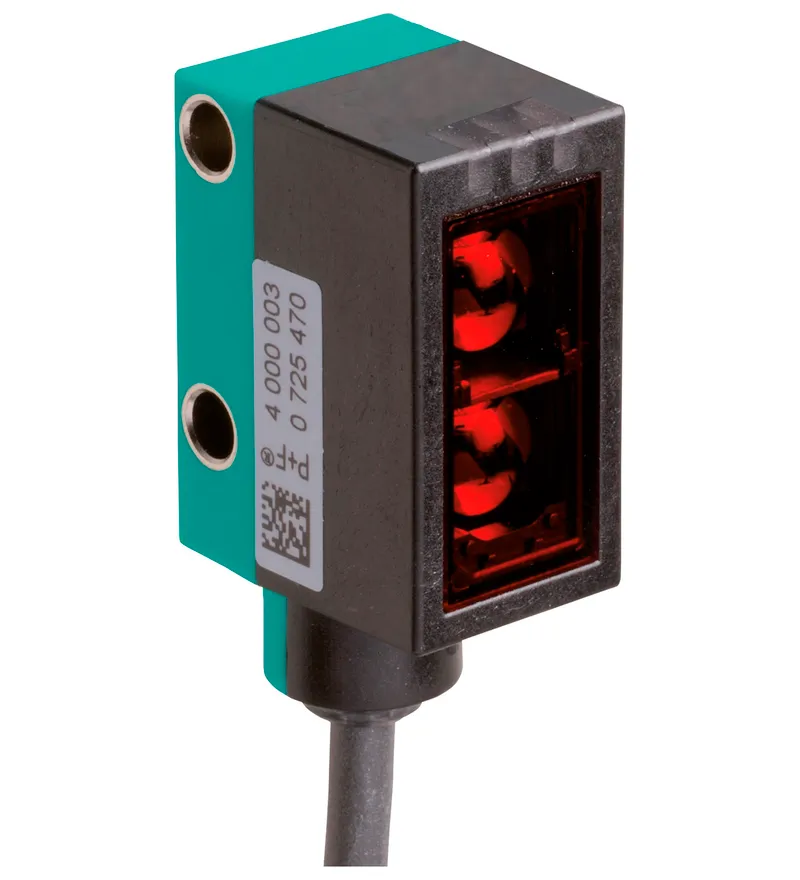

Retroreflective sensor OBR7500-R101-P1-Y0429 — photo 2 of 5

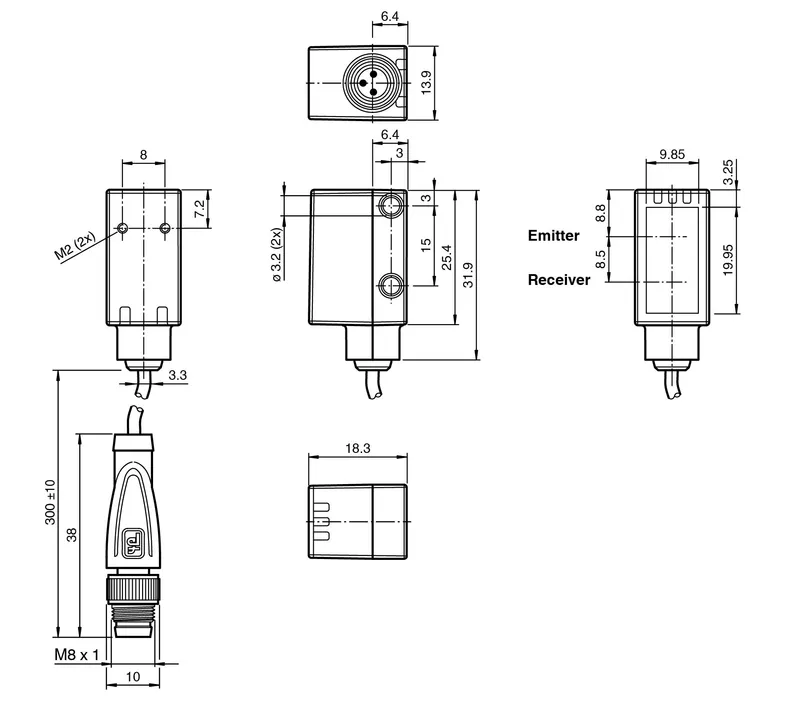

Retroreflective sensor OBR7500-R101-P1-Y0429 — photo 3 of 5

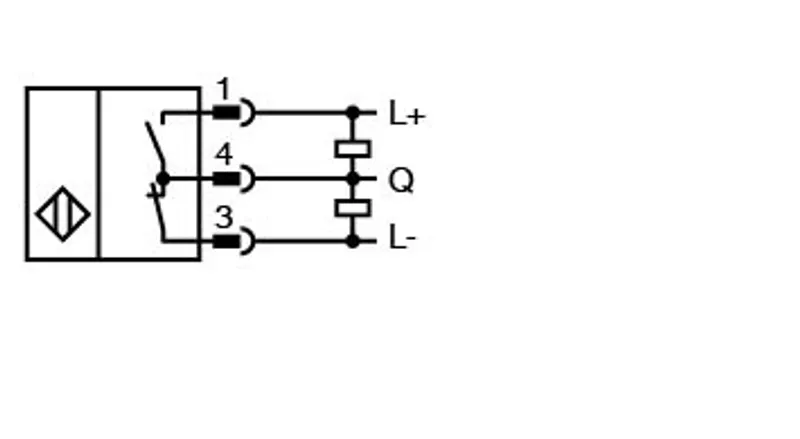

Retroreflective sensor OBR7500-R101-P1-Y0429 — photo 4 of 5

Retroreflective sensor OBR7500-R101-P1-Y0429 — photo 5 of 5

Available on request

Pepperl Fuchs OBR7500-R101-P1-Y0429 – Retroreflective sensor

MPN: OBR7500-R101-P1-Y0429 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Retroreflective Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OBR7500-R101-P1-Y0429 be shipped?

OBR7500-R101-P1-Y0429 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OBR7500-R101-P1-Y0429 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OBR7500-R101-P1-Y0429 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBR7500-R101-P1-Y0429, subject to availability and destination.

• Miniature design with versatile mounting options

• Extended temperature range -40 °C ... 60 °C

• High degree of protection IP69K

Retroreflective sensor with polarization filter, Miniature design with versatile mounting options, Extended temperature range, -40 °C ... 60 °C, High degree of protection IP69K

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	267075-100429
Effective detection range	0 ... 7.5 m
Reflector distance	0.03 ... 7.5 m
Threshold detection range	10 m
Reference target	H85-2 reflector
Light source	LED
Light type	modulated visible red light
LED risk group labelling	exempt group
Polarization filter	yes
Diameter of the light spot	approx. 65 mm at a distance of 1 m
Opening angle	3.7 °
Ambient light limit	EN 60947-5-2
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	724 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	Green LED: Permanently lit - power on Flashing (4 Hz) - short circuit
Function indicator	Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	max. 10 %
No-load supply current	< 25 mA at 24 V supply voltage I0
Protection class	III

Output

Switching type	The default setting is: Q - Pin4: NPN normally closed / light-on, PNP normally open / dark-on
Signal output	1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Usage category	DC-12 and DC-13
Voltage drop	≤ 1.5 V DC Ud
Switching frequency	1000 Hz f
Response time	0.5 ms

Conformity

Communication interface	IEC 61131-9
Product standard	EN 60947-5-2

Approvals and certificates

UL approval

E87056 , cULus Listed , class 2 power supply , type rating 1

Ambient conditions

Ambient temperature	-40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation -25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP67 / IP69 / IP69K
Connection	300 mm fixed cable with M8 x 1, 3-pin connector
Material: Housing	PC (Polycarbonate)
Material: Optical face	PMMA
Mass	approx. 15 g
Dimensions: Height	33.8 mm
Dimensions: Width	13.9 mm
Dimensions: Depth	18.3 mm
Cable length	0.3 m

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet OBR7500-R101-P1-Y0429	PDF
Instruction Manual	PDF · 150 kB

CAD & dimension drawings

EPLAN macro OBR7500-R101-P1-Y0429	EDZ · 42 kB
3-D model (STEP) OBT22-R102-2P1-IO-0,3M-V31	STP · 402 kB

Certificates (3)

EU Declaration of Conformity (Pepperl+Fuchs)	PDF · 315 kB
UK Declaration of Conformity (Pepperl+Fuchs)	PDF · 306 kB
Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3)	PDF · 1.8 MB
