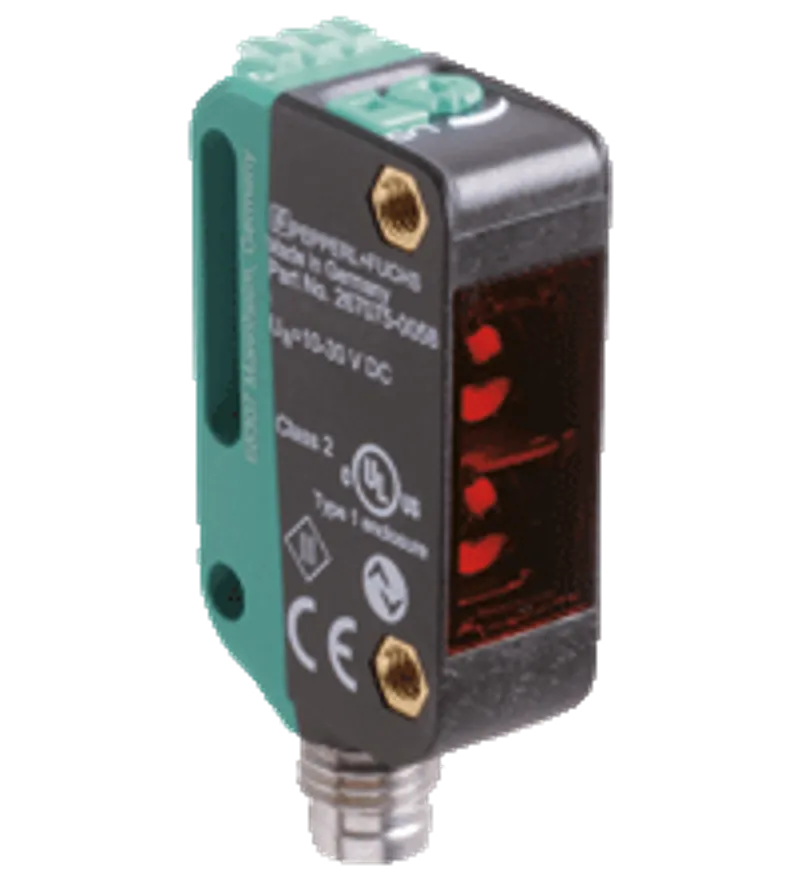

Retroreflective sensor OBR7500-R100-2EP-IO-V31 — photo 1 of 5

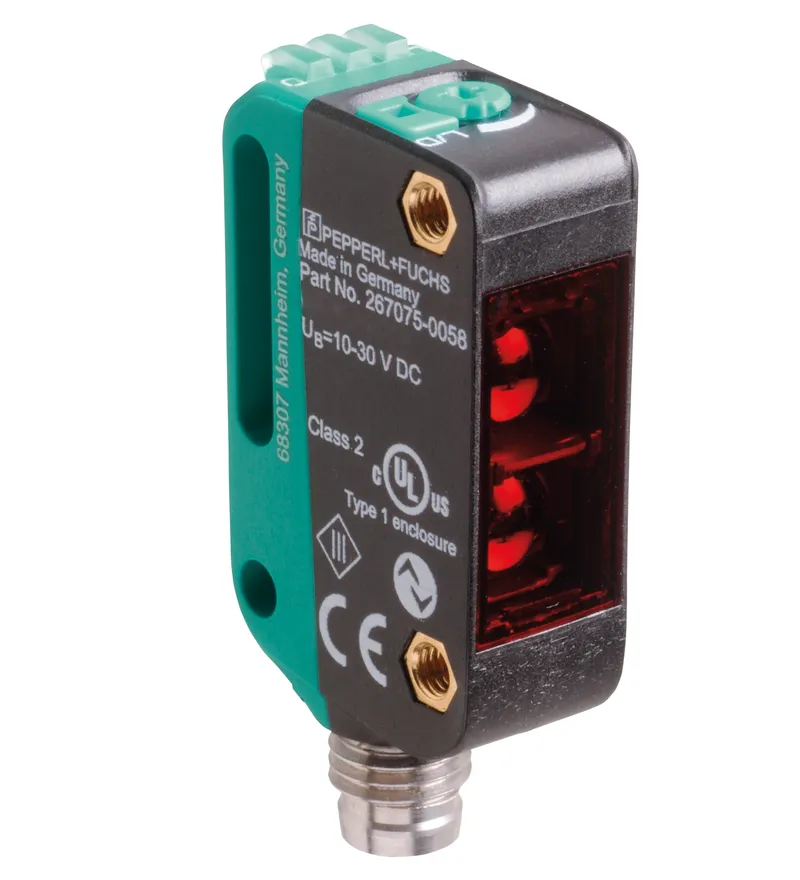

Retroreflective sensor OBR7500-R100-2EP-IO-V31 — photo 2 of 5

Retroreflective sensor OBR7500-R100-2EP-IO-V31 — photo 3 of 5

Retroreflective sensor OBR7500-R100-2EP-IO-V31 — photo 4 of 5

Retroreflective sensor OBR7500-R100-2EP-IO-V31 — photo 5 of 5

Available on request

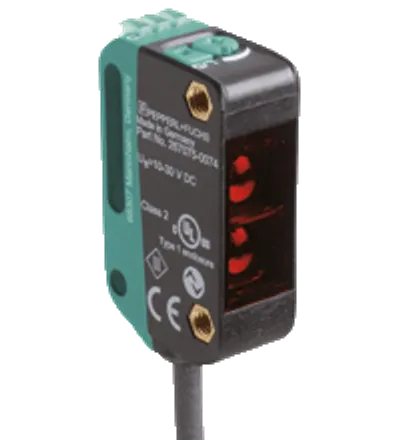

Pepperl Fuchs OBR7500-R100-2EP-IO-V31 – Retroreflective sensor

MPN: OBR7500-R100-2EP-IO-V31 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Retroreflective Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OBR7500-R100-2EP-IO-V31 be shipped?

OBR7500-R100-2EP-IO-V31 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OBR7500-R100-2EP-IO-V31 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OBR7500-R100-2EP-IO-V31 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBR7500-R100-2EP-IO-V31, subject to availability and destination.

• Miniature design with versatile mounting options

• Extended temperature range -40 °C ... 60 °C

• High degree of protection IP69K

• IO-Link interface for service and process data

Retroreflective sensor with polarization filter, Miniature design with versatile mounting options, Extended temperature range, -40 °C ... 60 °C, High degree of protection IP69K, IO-Link interface for service and process data

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	267075-0119
Effective detection range	0 ... 7.5 m
Reflector distance	0.03 ... 7.5 m
Threshold detection range	10 m
Reference target	H85-2 reflector
Light source	LED
Light type	modulated visible red light
LED risk group labelling	exempt group
Polarization filter	yes
Diameter of the light spot	approx. 65 mm at a distance of 1 m
Opening angle	3.7 °
Ambient light limit	EN 60947-5-2
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	724 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode
Function indicator	Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve
Control elements	Light-on/dark-on changeover switch
Control elements	sensitivity adjustment
Parameterization indicator	IO link communication: green LED goes out briefly (1 Hz)

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	max. 10 %
No-load supply current	< 25 mA at 24 V supply voltage I0
Protection class	III

Interface

Interface type	IO-Link ( via C/Q = pin 4 )
IO-Link revision	1.1
Device ID	0x110201 (1114625)
Transfer rate	COM2 (38.4 kBit/s)
Min. cycle time	2.3 ms
Process data width	Process data input 2 BitProcess data output 2 Bit
SIO mode support	yes
Compatible master port type	A

Output

Switching type	The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
Signal output	2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Usage category	DC-12 and DC-13
Voltage drop	≤ 1.5 V DC Ud
Switching frequency	1000 Hz f
Response time	0.5 ms

Conformity

Communication interface	IEC 61131-9
Product standard	EN 60947-5-2

Approvals and certificates

UL approval

E87056 , cULus Listed , class 2 power supply , type rating 1

Ambient conditions

Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP67 / IP69 / IP69K
Connection	M8 x 1 connector, 4-pin
Material: Housing	PC (Polycarbonate)
Material: Optical face	PMMA
Mass	approx. 10 g

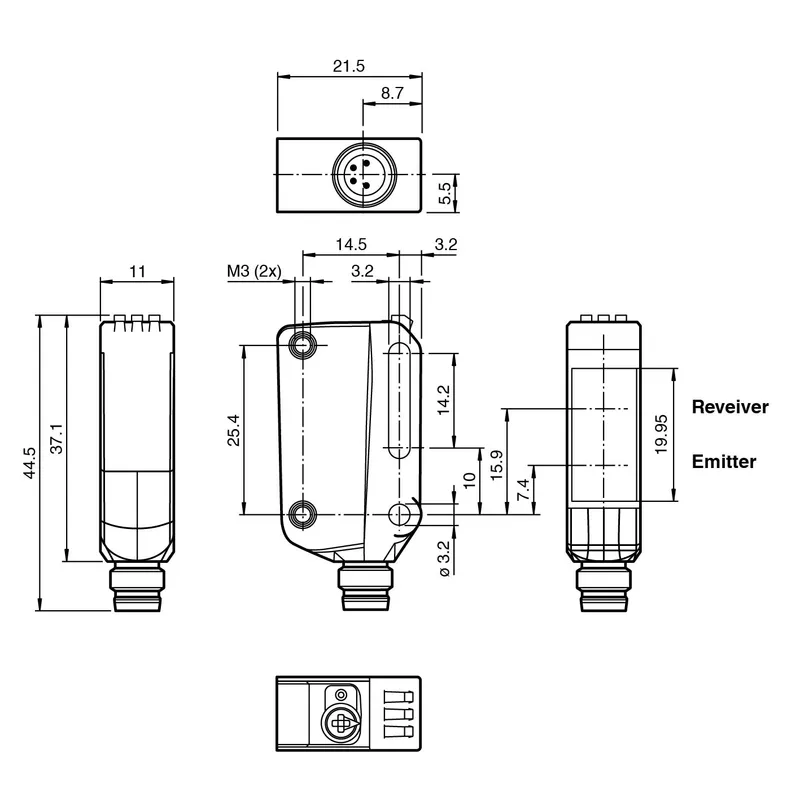

Dimensions: Height	44.5 mm
Dimensions: Width	11 mm
Dimensions: Depth	21.5 mm
