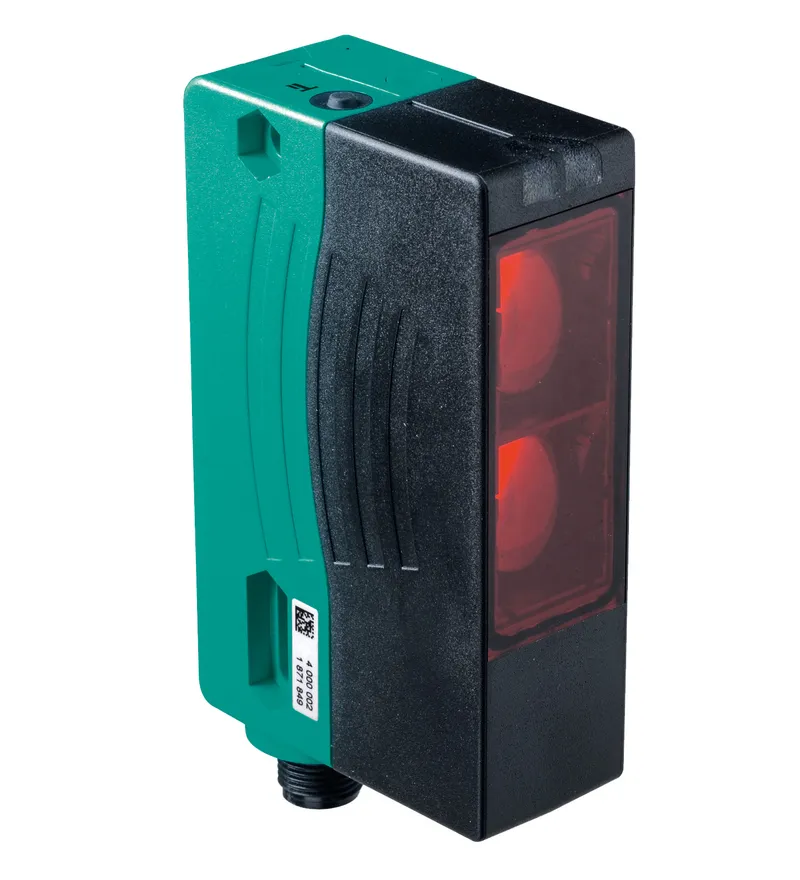

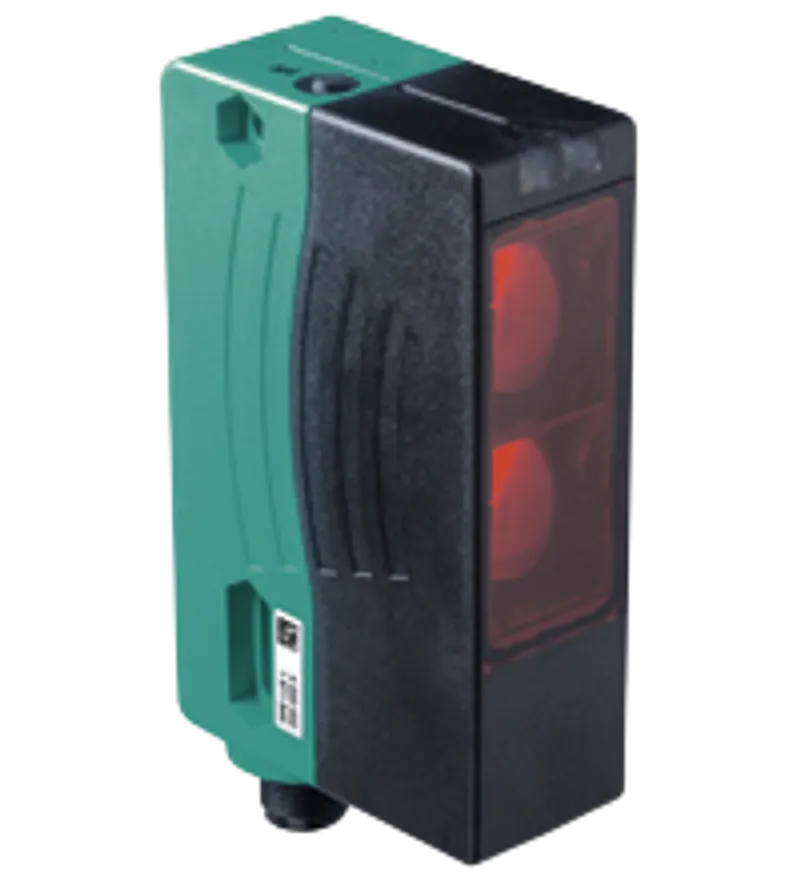

Pepperl Fuchs OBR50M-R300-2PP-V1 – Retroreflective sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBR50M-R300-2PP-V1 be shipped?
OBR50M-R300-2PP-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBR50M-R300-2PP-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBR50M-R300-2PP-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBR50M-R300-2PP-V1, subject to availability and destination.
• Pulse Ranging Technology (PRT)
• Optimized for use with fixed reflectors
• Good alignability due to red transmission LED
• Reliable detection of reflecting metall objects
• Simple operation with only one Teach-In button
Retroreflective sensor, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmission LED, Reliable detection of reflecting metall objects, Simple operation with only one Teach-In button
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 254271 |
| Effective detection range | 0 ... 50 m |
| Reflector distance | 0.2 ... 50 m |
| Reference target | 3 x REF-H100 |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Angle deviation | max. ± 2° |
| Measuring method | Pulse Ranging Technology (PRT) |
| Diameter of the light spot | approx. 16 cm x 18 cm at a distance of 10 m |
| Ambient light limit | 50000 Lux |
| Window width | 100 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 100 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green |
| Function indicator | 2 LEDs yellow for switching state |
| Control elements | Teach-In key |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | 10 % within the supply tolerance |
| No-load supply current | ≤ 80 mA / 24 V DC I0 |
| Time delay before availability | < 0.7 s , for temperatures <-30°C compliance of the specification 5 mins after power on tv |
Output

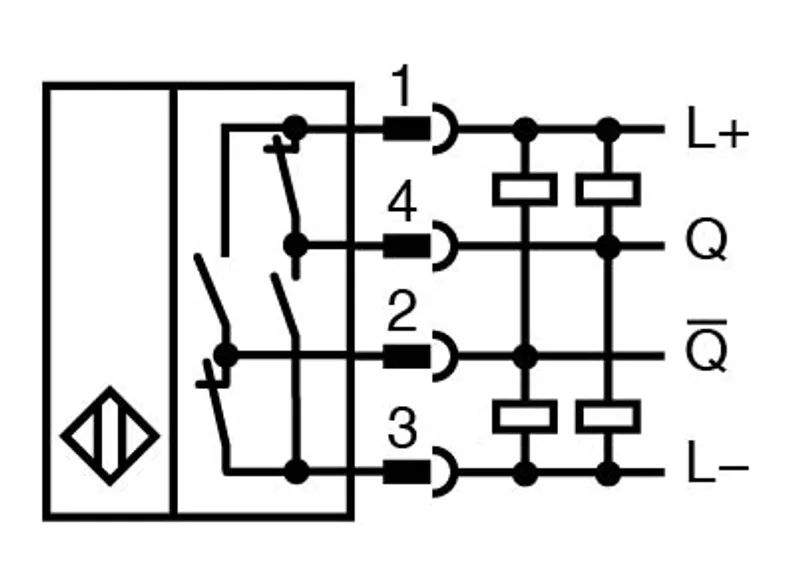

| Switching type | Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Switching frequency | 50 Hz f |
| Response time | 5 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
| Material: Housing | Plastic ABS |
| Material: Optical face | PMMA |
| Mass | 90 g |

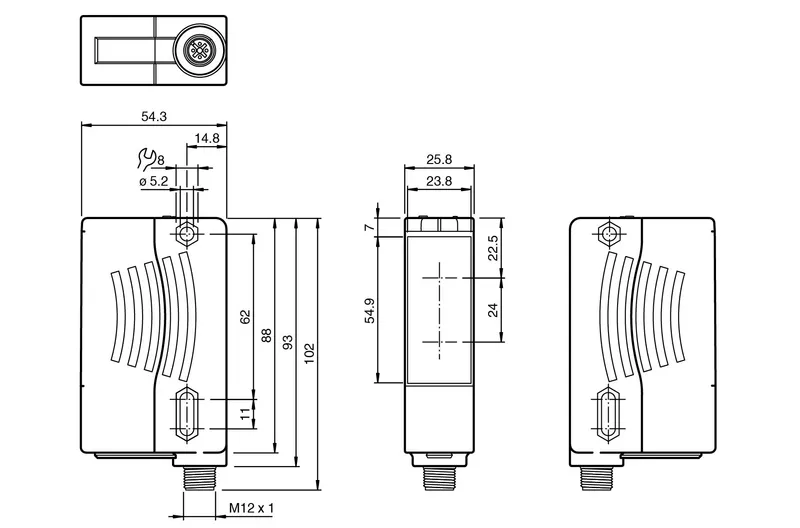

| Dimensions: Height | 88 mm |
| Dimensions: Width | 25.8 mm |
| Dimensions: Depth | 54.3 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBR50M-R300-2PP-V1 | |
| Instruction Manual | PDF · 150 kB |
| Commissioning Instructions | PDF · 495 kB |
CAD & dimension drawings
| 3-D model (STEP) OBR50M-R300-2P1-V1 | STP · 1.3 MB |
| EPLAN macro OBR50M-R300-2PP-V1 | EDZ · 71 kB |
Certificates (3)
More Pepperl Fuchs parts

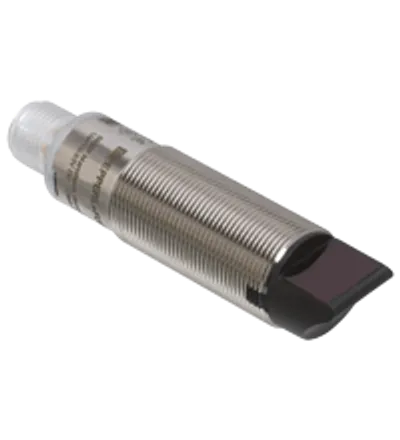

Available on requestRetroreflective sensor OBR5000-18GM60A-E4-V1

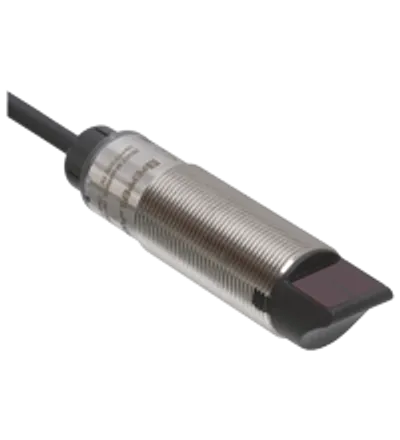

Available on requestRetroreflective sensor OBR5000-18GM60A-E5Available on requestRetroreflective sensor OBR5000-18GM60A-E5-V1
