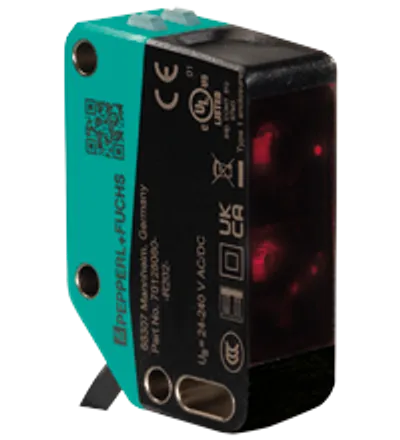

Pepperl Fuchs OBR12M-R100-2EP-IO-V31-L – Laser retroreflective sensor

MPN: OBR12M-R100-2EP-IO-V31-L · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Retroreflective Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OBR12M-R100-2EP-IO-V31-L be shipped?

OBR12M-R100-2EP-IO-V31-L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OBR12M-R100-2EP-IO-V31-L in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OBR12M-R100-2EP-IO-V31-L and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBR12M-R100-2EP-IO-V31-L, subject to availability and destination.

• Miniature design with versatile mounting options

• DuraBeam Laser Sensors - durable and employable like an LED

• Extended temperature range -40 °C ... 60 °C

• High degree of protection IP69K

• IO-Link interface for service and process data

Laser retroreflective sensor, Miniature design with versatile mounting options, DuraBeam Laser Sensors - durable and employable like an LED, Extended temperature range, -40 °C ... 60 °C, High degree of protection IP69K, IO-Link interface for service and process data

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	267075-0121
Effective detection range	0 ... 12 m
Reflector distance	0.16 ... 12 m
Threshold detection range	15 m
Reference target	Reflector REF-MH50
Light source	laser diode
Light type	modulated visible red light
Polarization filter	yes
Laser nominal ratings: Note	LASER LIGHT , DO NOT STARE INTO BEAM
Laser nominal ratings: Laser class	1
Laser nominal ratings: Wave length	680 nm
Laser nominal ratings: Beam divergence	> 5 mrad d63 < 2 mm in the range of 250 mm ... 750 mm
Laser nominal ratings: Pulse length	1.6 µs
Laser nominal ratings: Repetition rate	max. 17.6 kHz
Laser nominal ratings: max. pulse energy	9.6 nJ
Diameter of the light spot	approx. 30 mm at a distance of 12 m
Opening angle	approx. 0.3 °
Ambient light limit	EN 60947-5-2
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	672 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode
Function indicator	Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve
Control elements	Light-on/dark-on changeover switch
Control elements	sensitivity adjustment
Parameterization indicator	IO link communication: green LED goes out briefly (1 Hz)

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	max. 10 %
No-load supply current	< 20 mA at 24 V supply voltage I0
Protection class	III

Interface

Interface type	IO-Link ( via C/Q = pin 4 )
IO-Link revision	1.1
Device ID	0x110202 (1114626)
Transfer rate	COM2 (38.4 kBit/s)
Min. cycle time	2.3 ms
Process data width	Process data input 2 BitProcess data output 2 Bit
SIO mode support	yes
Compatible master port type	A

Output

Switching type	The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
Signal output	2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Usage category	DC-12 and DC-13
Voltage drop	≤ 1.5 V DC Ud
Switching frequency	2000 Hz f
Response time	250 µs

Conformity

Communication interface	IEC 61131-9
Product standard	EN 60947-5-2
Laser safety	EN 60825-1:2014

Approvals and certificates

UL approval	E87056 , cULus Listed , class 2 power supply , type rating 1
FDA approval	IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.

Ambient conditions

Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP67 / IP69 / IP69K
Connection	M8 x 1 connector, 4-pin
Material: Housing	PC (Polycarbonate)
Material: Optical face	PMMA
Mass	approx. 10 g
Dimensions: Height	44.5 mm
Dimensions: Width	11 mm
Dimensions: Depth	21.5 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet OBR12M-R100-2EP-IO-V31-L	PDF
Instruction Manual	PDF · 150 kB
Installation and user instructions for offline parameterization of IO-Link sensors	PDF · 1.8 MB

CAD & dimension drawings

3-D model (STEP) OBT350-R100-E5-IO-V31-IR	STP · 360 kB
EPLAN macro OBR12M-R100-2EP-IO-V31-L	EDZ · 45 kB

Certificates (3)

EU Declaration of Conformity (Pepperl+Fuchs)	PDF · 315 kB
UK Declaration of Conformity (Pepperl+Fuchs)	PDF · 306 kB
Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3)	PDF · 1.8 MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
