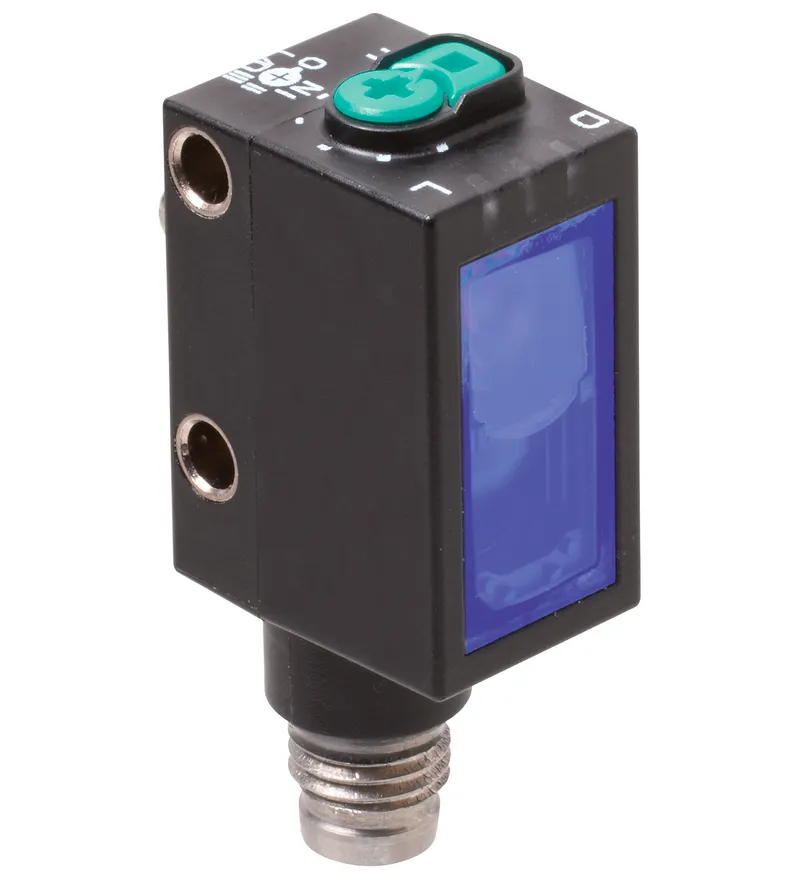

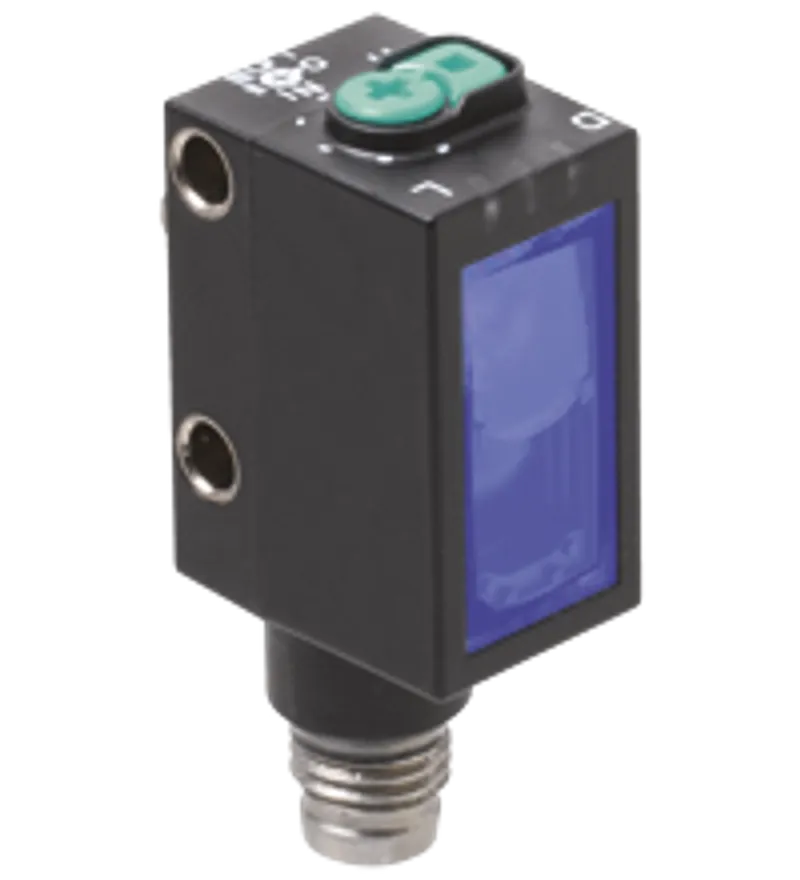

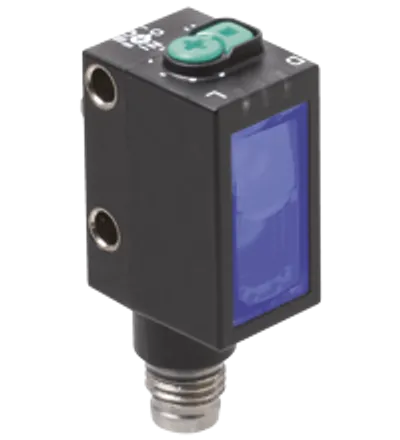

Pepperl Fuchs OBG5000-R102-2EP1-IO-V31 – Retroreflective sensor (glass)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBG5000-R102-2EP1-IO-V31 be shipped?
OBG5000-R102-2EP1-IO-V31 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBG5000-R102-2EP1-IO-V31 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBG5000-R102-2EP1-IO-V31 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBG5000-R102-2EP1-IO-V31, subject to availability and destination.
• Miniature design with versatile mounting options
• Detects transparent objects, i.e., clear glass, PET and transparent films
• Two machines in one: clear object detection or reflection operating mode with long range
• High degree of protection IP69K
• IO-Link interface for service and process data
Retroreflective sensor with polarization filter for clear object detection, Miniature design with versatile mounting options, Detects transparent objects, i.e., clear glass, PET and transparent films, Two machines in one: clear object detection or reflection operating mode with long range, High degree of protection IP69K, IO-Link interface for service and process data
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 267075-100569 |
| Effective detection range | 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N" |
| Reflector distance | 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N" |
| Threshold detection range | 6 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Diameter of the light spot | approx. 170 mm at a distance of 3.5 m |
| Opening angle | approx. 5 ° |
| Ambient light limit | EN 60947-5-2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 600 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve |
| Control elements | Teach-In key |
| Control elements | 5-step rotary switch for operating modes selection |
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA at 24 V supply voltage I0 |
| Protection class | III |
Interface
| Interface type | IO-Link ( via C/Q = pin 4 ) |
| IO-Link revision | 1.1 |
| Device ID | 0x110A0C (1116684) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| Process data width | Process data input 2 BitProcess data output 2 Bit |
| SIO mode support | yes |
| Compatible master port type | A |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally closed / light-on, PNP normally open / dark-on, IO-Link /Q - Pin2: NPN normally open / dark-on, PNP normally closed / light-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Usage category | DC-12 and DC-13 |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | 1 ms |
Conformity
| Communication interface | IEC 61131-9 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | M8 x 1 connector, 4-pin |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | Float glass |
| Mass | approx. 10 g |

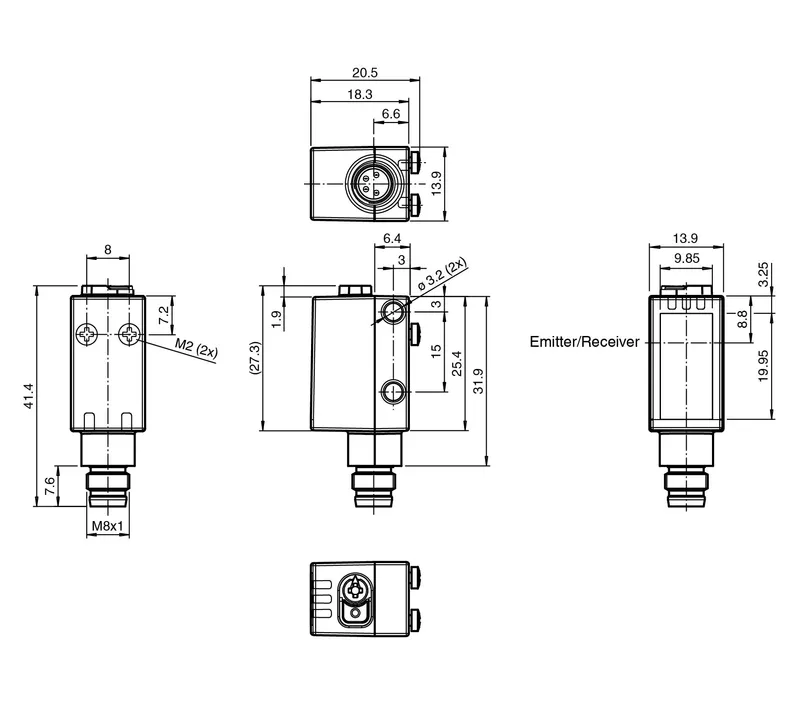

| Dimensions: Height | 41.4 mm |
| Dimensions: Width | 13.9 mm |
| Dimensions: Depth | 18.3 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBG5000-R102-2EP1-IO-V31 | |
| Instruction Manual | PDF · 150 kB |
| Installation and user instructions for offline parameterization of IO-Link sensors | PDF · 1.8 MB |
CAD & dimension drawings
| EPLAN macro OBG5000-R102-2EP1-IO-V31 | EDZ · 67 kB |
| 3-D model (STEP) OBG5000-R102-2EP1-IO-V31 | STP · 783 kB |
Certificates (3)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 315 kB |
| IO-Link Manufacturer Declaration (CERT-4438A) | PDF · 232 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 306 kB |
