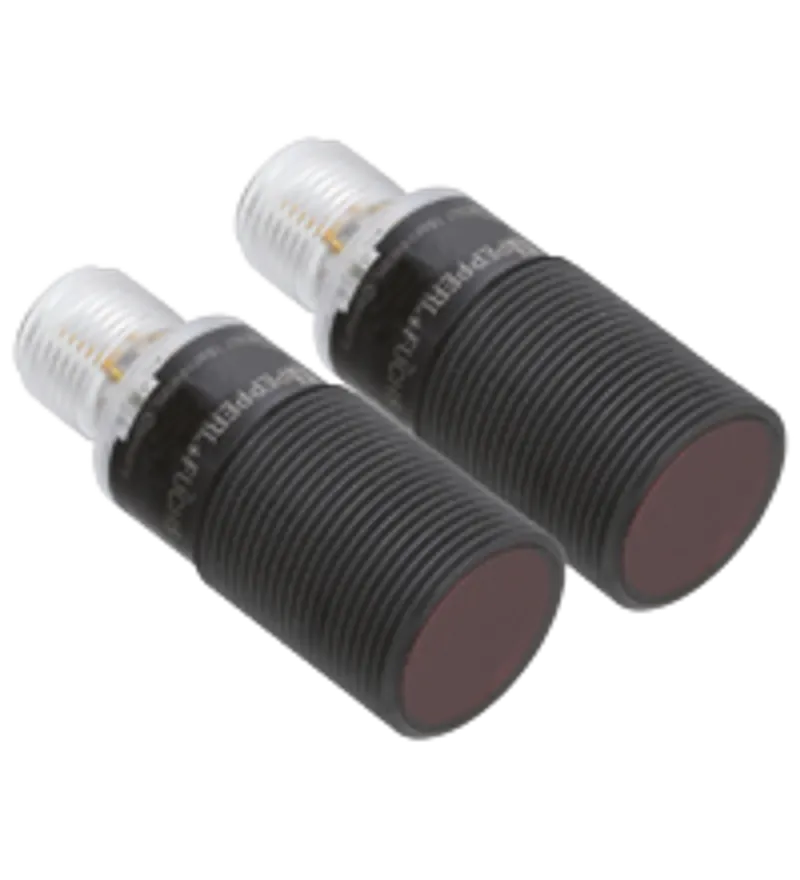

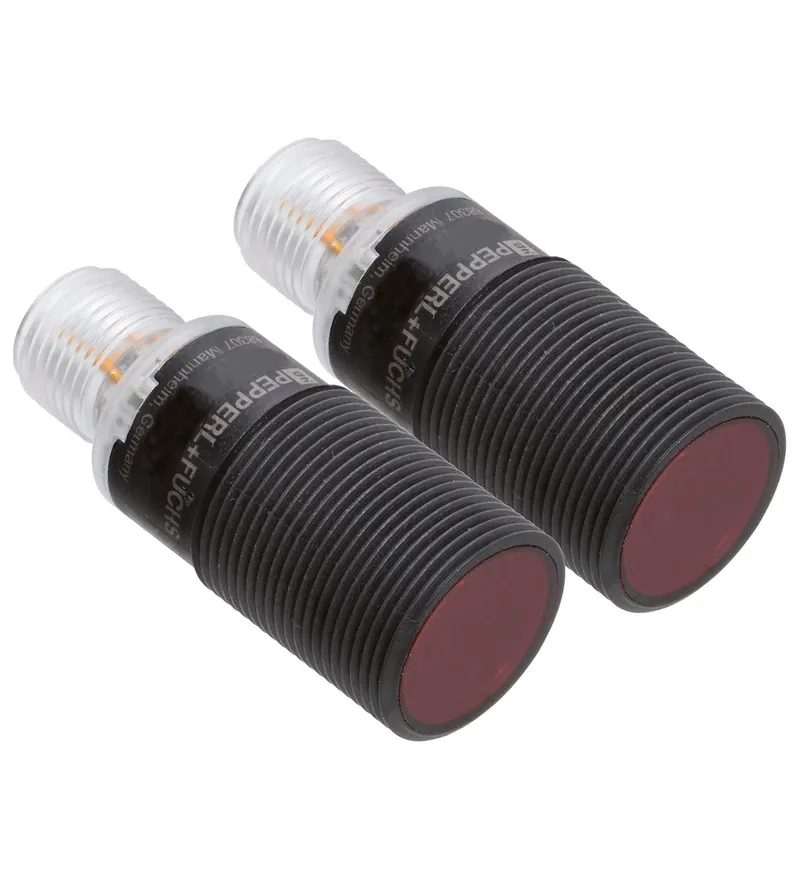

Pepperl Fuchs OBE25M-18GK40-SA2-V1 – Thru-beam sensor (pair)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBE25M-18GK40-SA2-V1 be shipped?
OBE25M-18GK40-SA2-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBE25M-18GK40-SA2-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBE25M-18GK40-SA2-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBE25M-18GK40-SA2-V1, subject to availability and destination.
• Short design in M18 plastic housing
• Not sensitive to ambient light
• Degree of protection IP67
• Very high detection range
Thru-beam sensor (pair), Short design in M18 plastic housing, Not sensitive to ambient light, Degree of protection IP67, Very high detection range
Specifications
System components
| Order code (Pepperl+Fuchs part number) | 70201385 |
| Emitter | OBE25M-18GK40-S-V1 |
| Receiver | OBE25M-18GK40-A2-V1 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
General specifications
| Effective detection range | 0 ... 25 m |
| Threshold detection range | 35 m |
| Light source | LED |
| Light type | modulated visible red light |
| Diameter of the light spot | approx. 110 mm at 1 m |
| Opening angle | approx. 2.9 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 10000 Lux |
Functional safety related parameters
| MTTFd | 776 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
| Function indicator | Receiver: Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Protection class | III |
Output
| Switching type | Q - Pin4: PNP normally open / dark-on /Q - Pin2: PNP normally closed / light-on |
| Signal output | 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | ≤ 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Material: Connector | Plastic |
| Mass | approx. 8 g per device |

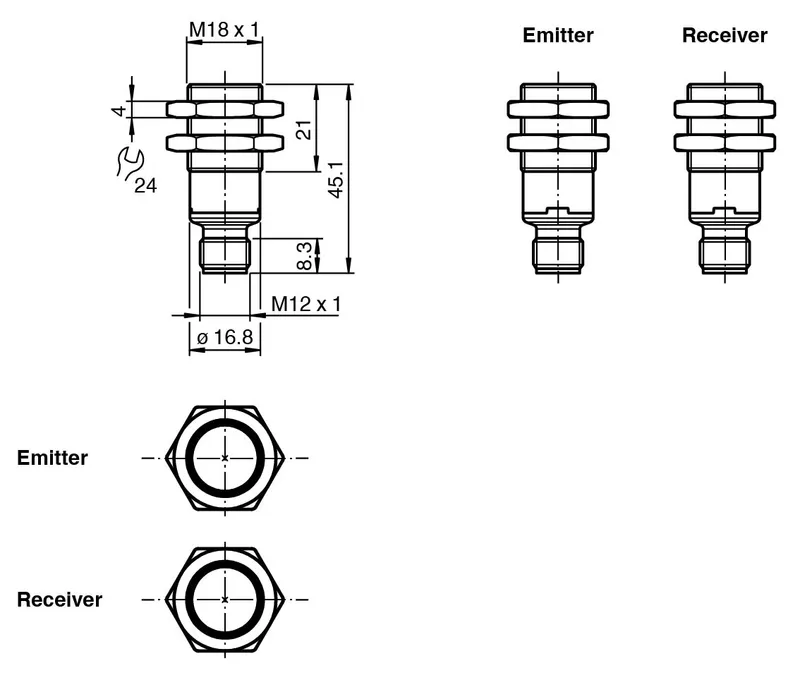

| Dimensions: Length | 45.1 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBE25M-18GK40-SA2-V1 | |
| Instruction Manual | PDF · 150 kB |
Certificates (3)
More Pepperl Fuchs parts

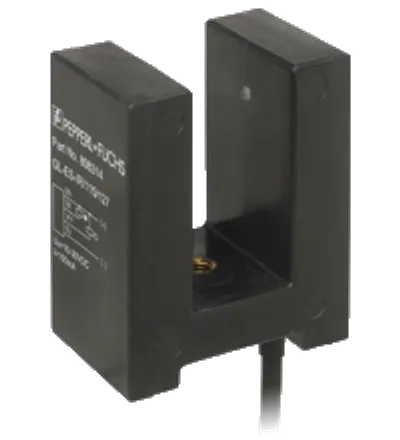

Available on requestPhotoelectric slot sensor OBE24-S1-A0-Y093828Available on requestPhotoelectric slot sensor OBE24-S1-A0-Y905121Available on requestPhotoelectric slot sensor OBE24-S1-A2-Y909799Available on requestPhotoelectric slot sensor OBE24-S1-A2-Y909983
Available on requestThru-beam sensor (pair) OBE25M-18GK40-SE0

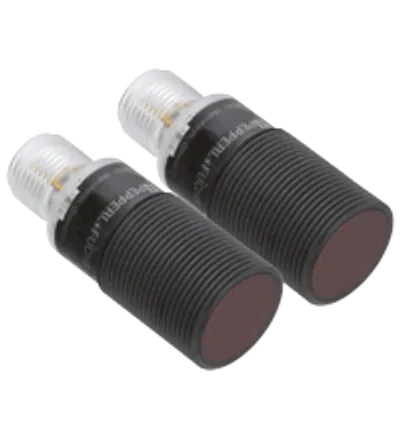

Available on requestThru-beam sensor (pair) OBE25M-18GK40-SE0-V1Available on requestThru-beam sensor (pair) OBE25M-18GK40-SE1Available on requestThru-beam sensor (pair) OBE25M-18GK40-SE1-V1
