Pepperl Fuchs OBE10M-18GM60-SE5-IR-1C – Thru-beam sensor (pair)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thru-Beam Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBE10M-18GM60-SE5-IR-1C be shipped?
OBE10M-18GM60-SE5-IR-1C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBE10M-18GM60-SE5-IR-1C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBE10M-18GM60-SE5-IR-1C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBE10M-18GM60-SE5-IR-1C, subject to availability and destination.
• Strong metallic housing in cylindrical shape M18 x 1
• Not sensitive to ambient light
• Degree of protection IP67
• Very high detection range
Thru-beam sensor (pair), Strong metallic housing in cylindrical shape M18 x 1, Not sensitive to ambient light, Degree of protection IP67, Very high detection range
Specifications
System components
| Order code (Pepperl+Fuchs part number) | 70134681 |
| Emitter | OBE10M-18GM60-S-IR-1C |
| Receiver | OBE10M-18GM60-E5-IR-1C |
| Lifecycle | Active (current Pepperl+Fuchs product) |
General specifications
| Effective detection range | 0 ... 10 m |
| Threshold detection range | 17 m |
| Light source | IRED |
| Light type | Infrared LED |
| Diameter of the light spot | approx. 55 mm at 1 m |
| Opening angle | approx. 1.6 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 10000 Lux |
Functional safety related parameters
| MTTFd | 564 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
| Function indicator | Receiver: yellow LED permanently lit - output active permanently off - output inactive flashing (4 Hz) - insufficient operating reserve |
| Control elements | light/dark on electrically switchable |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Protection class | III |
Output

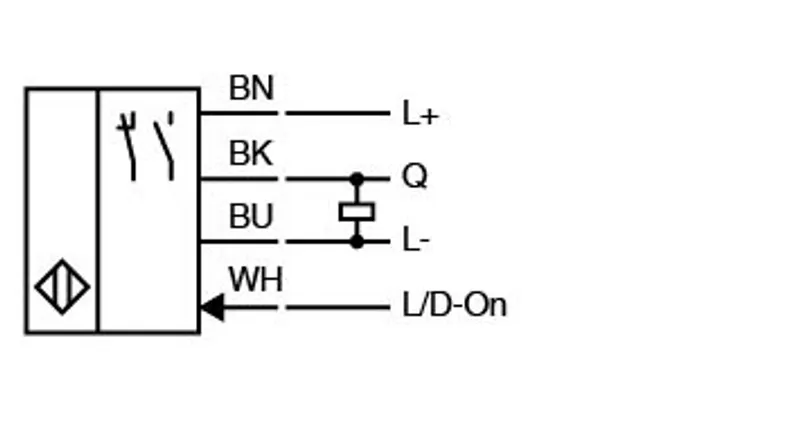

| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP output / light-on L/D-On - WH: Low-active input |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 2 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | ≤ 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material: Housing | brass, nickel-plated |
| Material: Optical face | PMMA |
| Material: Cable | PVC |
| Mass | approx. 70 g per device |
| Dimensions: Length | 60 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBE10M-18GM60-SE5-IR-1C | |
| Instruction Manual | PDF · 150 kB |
CAD & dimension drawings
| EPLAN macro OBE10M-18GM60-SE5-IR-1C | EDZ · 80 kB |
| 3-D model (STEP) OBE25M-18GM60-SE4 | STP · 575 kB |
| 3-D model (STEP) OBE25M-18GM60-SE4 | STP · 575 kB |
Certificates (3)
