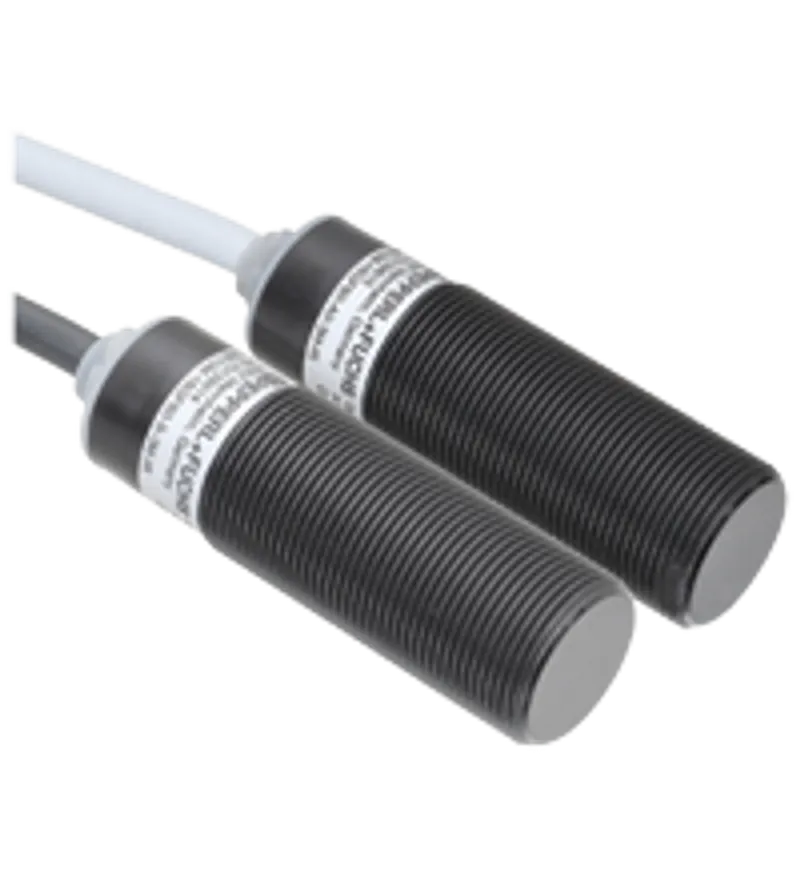

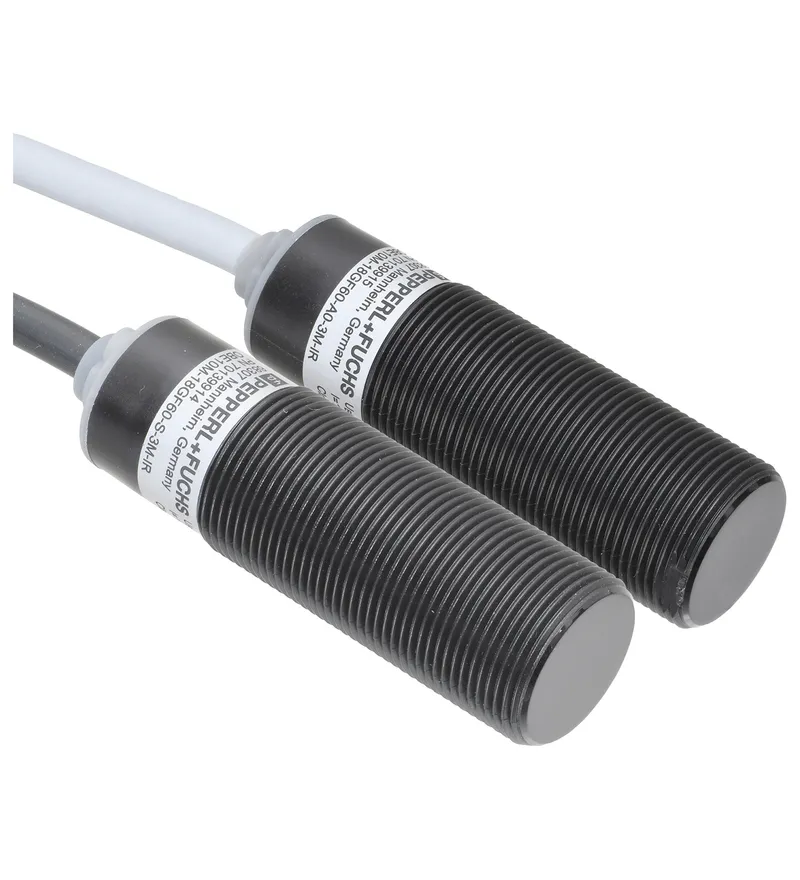

Pepperl Fuchs OBE10M-18GF60-S2PP-0,3M-V1-IR – Thru-beam sensor (pair)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thru-Beam Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBE10M-18GF60-S2PP-0,3M-V1-IR be shipped?
OBE10M-18GF60-S2PP-0,3M-V1-IR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBE10M-18GF60-S2PP-0,3M-V1-IR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBE10M-18GF60-S2PP-0,3M-V1-IR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBE10M-18GF60-S2PP-0,3M-V1-IR, subject to availability and destination.
• Sensing range 10 m
• With increased sealing, degree of protection IP68
• Integrated circuit
• Narrow opening angle, suitable for mounting in pairs
• Not sensitive to ambient light
• DC voltage version
• Test input
• Reverse polarity protection
• Short-circuit protected
• Switching status indicator, yellow LED
Thru-beam sensor, M18 threaded housing design, plastic housing, 10 m detection range, infrared light, light/dark on, DC version, 2 push-pull outputs, fixed cable with M12 plug, Sensing range 10 m, With increased sealing, degree of protection IP68, Integrated circuit, Narrow opening angle, suitable for mounting in pairs, Not sensitive to ambient light
Specifications
System components
| Order code (Pepperl+Fuchs part number) | 70169398 |
| Emitter | OBE10M-18GF60-S-0,3M-V1-IR |
| Receiver | OBE10M-18GF60-2PP-0,3M-V1-IR |
| Lifecycle | Active (current Pepperl+Fuchs product) |
General specifications
| Effective detection range | 0 ... 10 m |
| Threshold detection range | 12 m |
| Light source | IRED |
| Light type | modulated infrared light , 850 nm |
| Diameter of the light spot | approx. 1500 mm at a distance of 10 m |
| Opening angle | Emitter: ± 5 ° ; Receiver: ± 10 ° |
| Optical face | frontal |
| Ambient light limit | 10000 Lux |
| Accessories provided | Mounting nuts |
Functional safety related parameters
| MTTFd | 606 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | Emitter: LED green: Power on |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | Emitter: ≤ 17 mA Receiver: ≤ 13 mA I0 |
| Protection class | Class III |
Input
| Test input | emitter deactivation at 0 V |
Output
| Switching type | Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 80 Hz f |
| Response time | 6 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| CE conformity | CE |
| UKCA conformity | UKCA |
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 90 % , non-condensing |
Mechanical specifications
| Degree of protection | IP67 / IP68 |

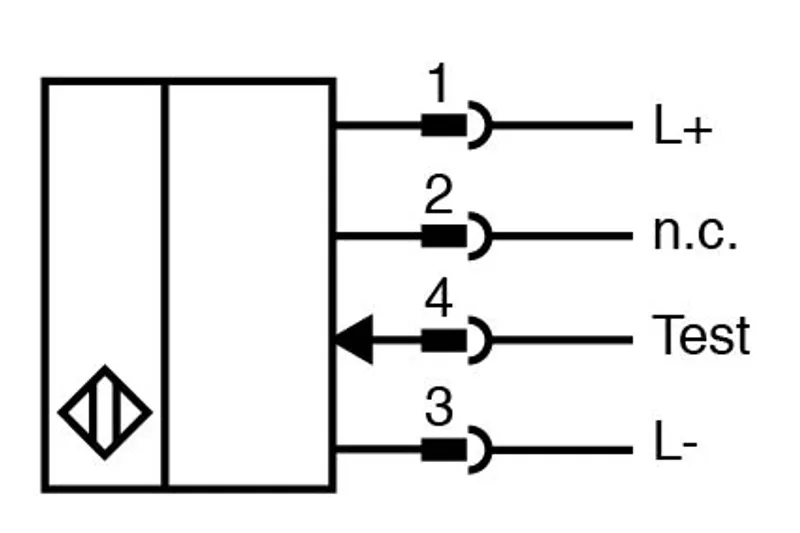

| Connection | fixed cable with 4-pin, M12 x 1 connector Emitter: black ; Receiver: grey |
| Material: Housing | PC , black |
| Material: Optical face | Plastic pane |
| Cable: Length | 0.3 m L |
| Mass | approx. 25 g per device |

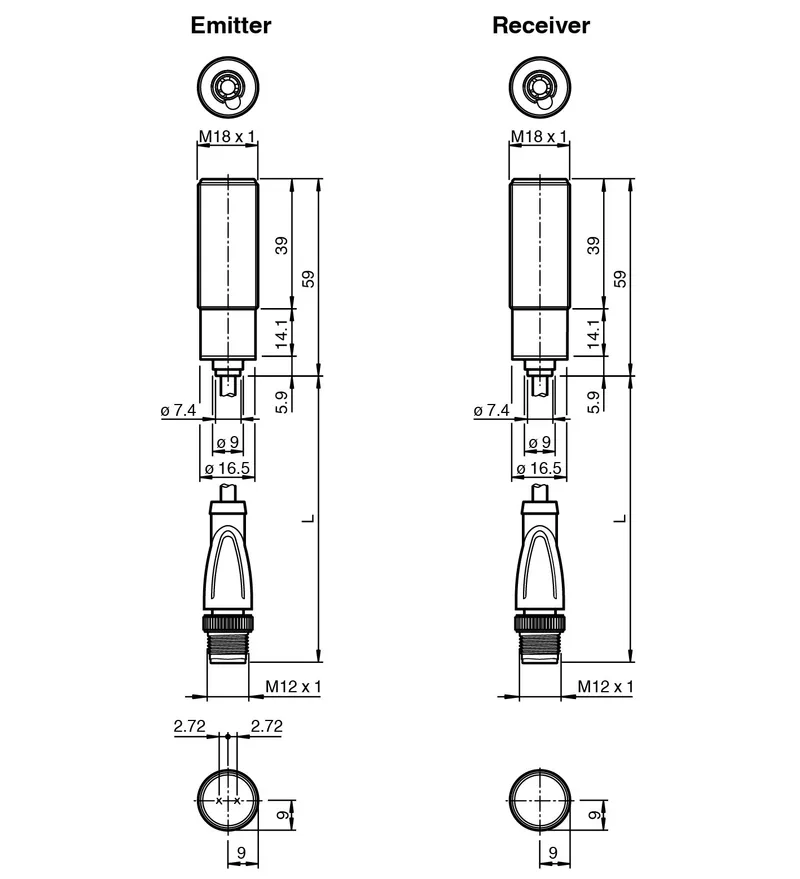

| Dimensions: Length | 59 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBE10M-18GF60-S2PP-0,3M-V1-IR | |
| Instruction Manual | PDF · 150 kB |
Certificates (6)
More Pepperl Fuchs parts

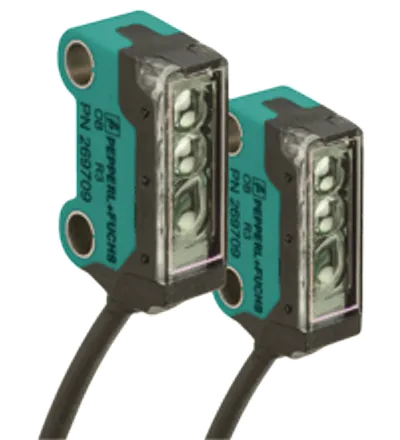

Available on requestThru-beam sensor (pair) OBE1000-R3-SE2-0,2M-V31-P-LAvailable on requestThru-beam sensor (pair) OBE1000-R3-SE2-P-LAvailable on requestThru-beam sensor (pair) OBE1000-R3-SE3-0,2M-V31-P-LAvailable on requestThru-beam sensor (pair) OBE1000-R3-SE3-P-L
Available on requestThru-beam sensor (pair) OBE10M-18GF60-S2PP-5M-IRAvailable on requestThru-beam sensor (pair) OBE10M-18GF60-SA0-3M-IR

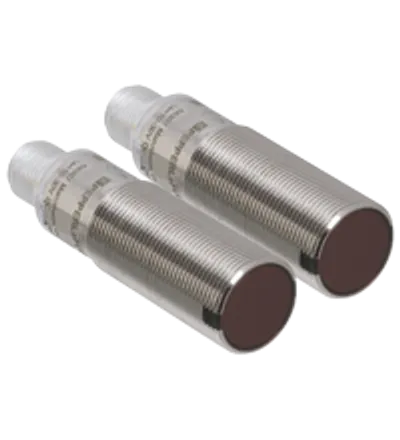

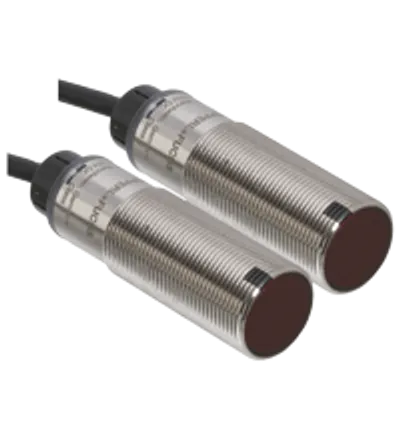

Available on requestThru-beam sensor (pair) OBE10M-18GM60-SE4-IR-1C
