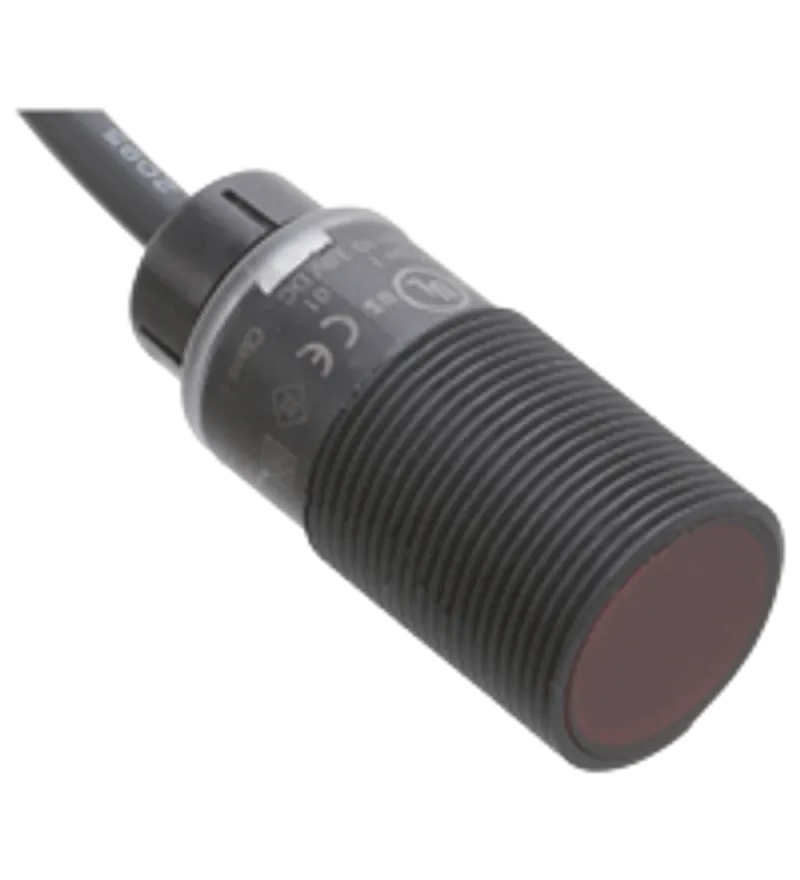

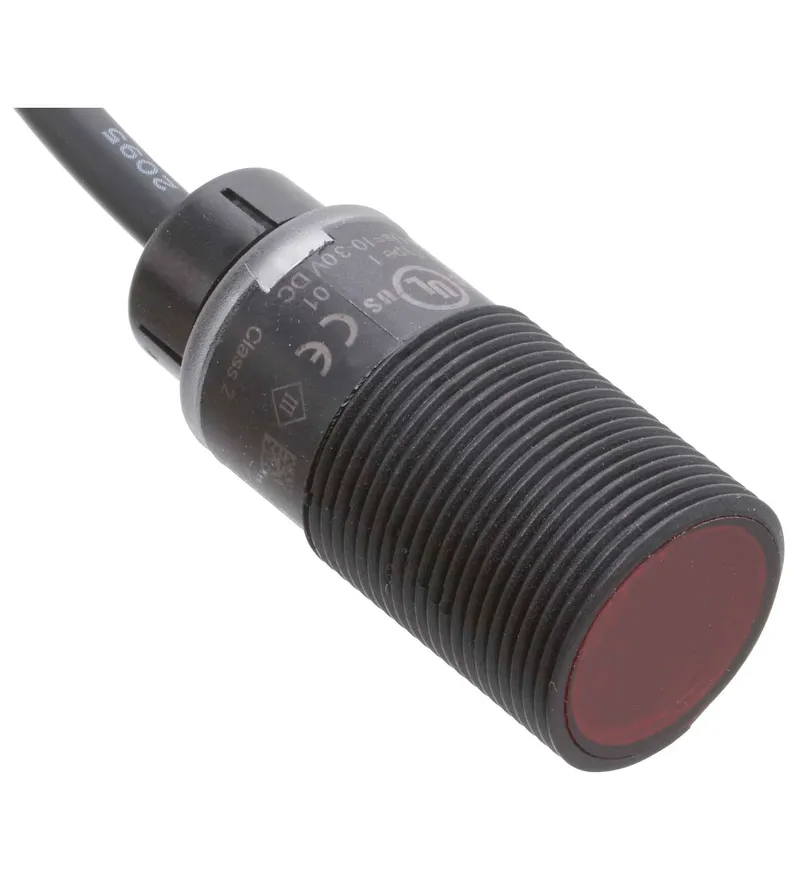

Pepperl Fuchs OBD600-18GK40-A2 – Diffuse mode sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBD600-18GK40-A2 be shipped?
OBD600-18GK40-A2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBD600-18GK40-A2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBD600-18GK40-A2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBD600-18GK40-A2, subject to availability and destination.
• Short design in M18 plastic housing
• Operating distance adjustable
• Not sensitive to ambient light
• Degree of protection IP67
• High operating distance
Diffuse mode sensor, Short design in M18 plastic housing, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating distance
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70113328-100185 |
| Detection range | 0 ... 600 mm |
| Detection range min. | 0 ... 30 mm |
| Detection range max. | 0 ... 600 mm |
| Adjustment range | 30 ... 600 mm |
| Reference target | standard white 200 mm X 200 mm |
| Light source | LED |
| Light type | modulated visible red light |
| Diameter of the light spot | approx. 40 mm at 600 mm |
| Opening angle | approx. 2.6 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 20000 Lux |
| Hysteresis | < 15 % H |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 1158 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
| Function indicator | LED yellow: constantly on - object detected constantly off - object not detected |
| Control elements | sensitivity adjustment |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Protection class | III |
Output

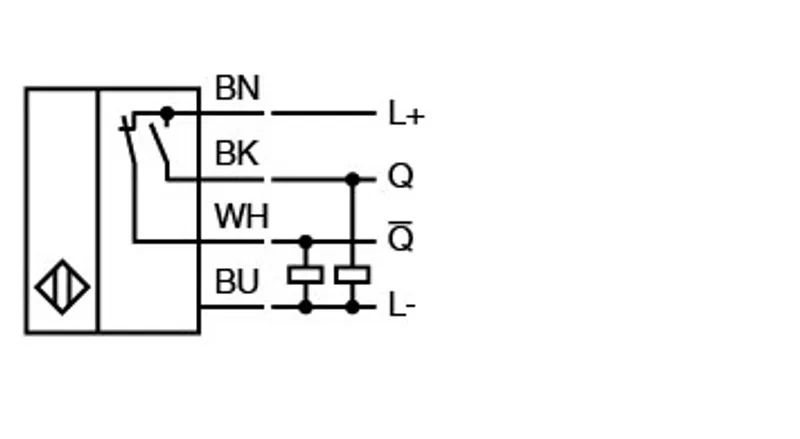

| Switching type | Q - Pin4: PNP normally open / light-on /Q - Pin2: PNP normally closed / dark-on |
| Signal output | 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | ≤ 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Material: Cable | PVC |
| Mass | approx. 54 g |

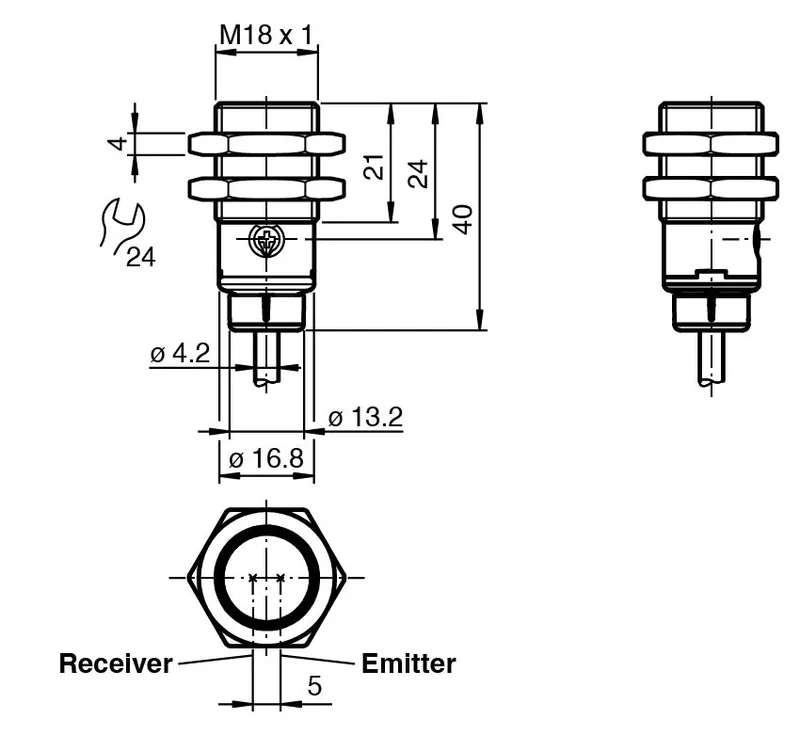

| Dimensions: Length | 40 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
