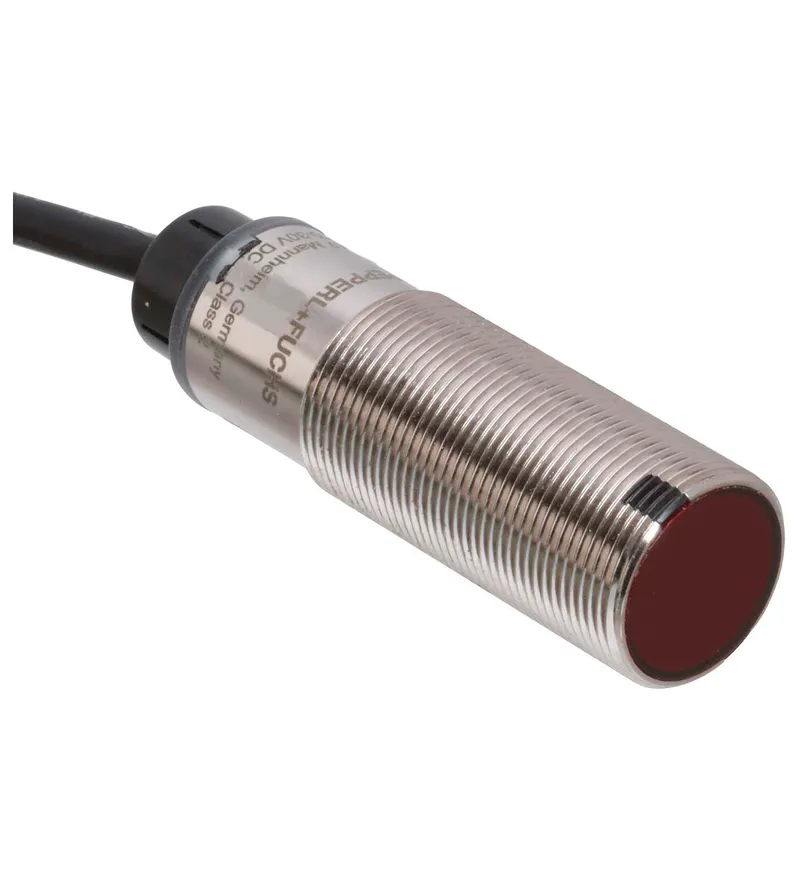

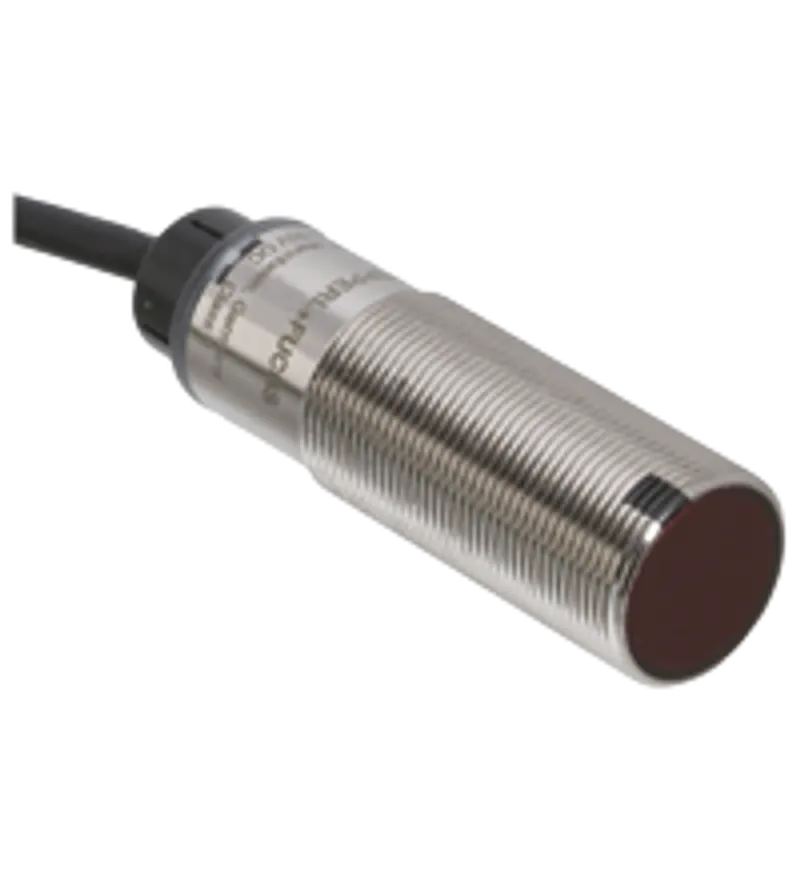

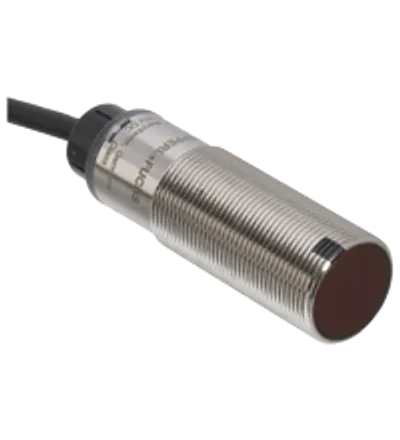

Pepperl Fuchs OBD500-18GM60-E4-5M-IR-1C – Diffuse mode sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBD500-18GM60-E4-5M-IR-1C be shipped?
OBD500-18GM60-E4-5M-IR-1C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBD500-18GM60-E4-5M-IR-1C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBD500-18GM60-E4-5M-IR-1C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBD500-18GM60-E4-5M-IR-1C, subject to availability and destination.
• Strong metallic housing in cylindrical shape M18 x 1
• Operating distance adjustable
• Not sensitive to ambient light
• Degree of protection IP67
• High operating distance
Strong metallic housing in cylindrical shape M18 x 1, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating distance
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70113328-100155 |
| Detection range | 0 ... 500 mm |
| Detection range min. | 0 ... 30 mm |
| Detection range max. | 0 ... 500 mm |
| Adjustment range | 30 ... 500 mm |
| Reference target | standard white 200 mm X 200 mm |
| Light source | IRED |
| Light type | infrared |
| Diameter of the light spot | approx. 52 mm at 500 mm |
| Opening angle | approx. 2.6 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 10000 Lux |
| Hysteresis | < 15 % H |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 854 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
| Function indicator | LED yellow: permanently lit - output active permanently off - output inactive |
| Control elements | sensitivity adjustment |
| Control elements | light/dark on electrically switchable |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Protection class | III |
Output

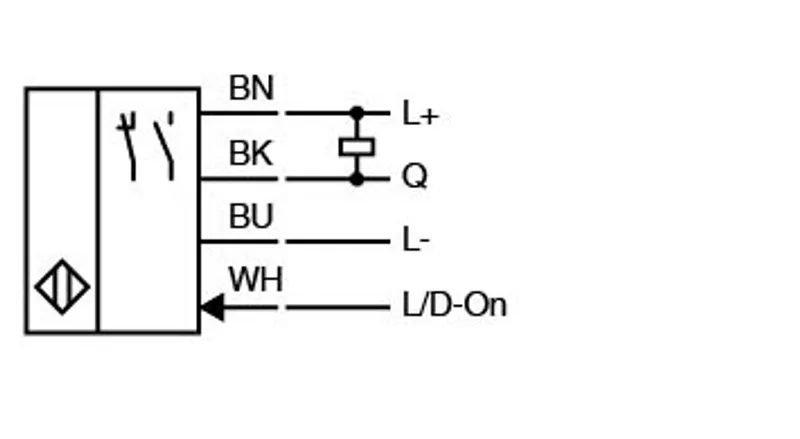

| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - Pin4: NPN output / light-on L/D-On - WH: Low-active input |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 2 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | ≤ 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 5 m fixed cable |
| Material: Housing | brass, nickel-plated |
| Material: Optical face | PMMA |
| Material: Cable | PVC |
| Mass | approx. 140 g |
| Dimensions: Length | 60 mm |
| Dimensions: Diameter | 18 mm |
| Dimensions: Thread size | M18 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OBD500-18GM60-E4-5M-IR-1C | |
| Instruction Manual | PDF · 150 kB |

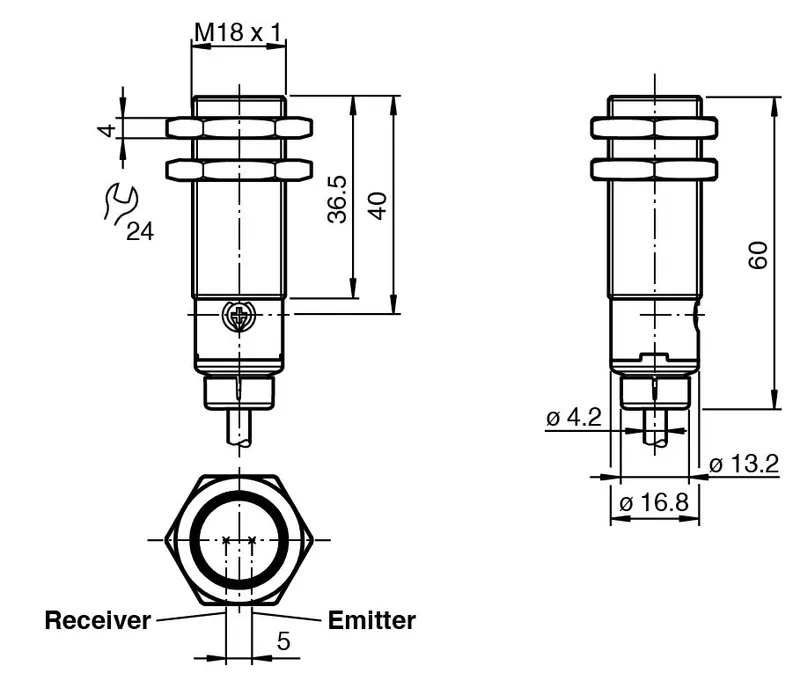

CAD & dimension drawings
| 3-D model (STEP) OBD200-18GM60-E5-5M-IR-1C | STP · 786 kB |
Certificates (3)
More Pepperl Fuchs parts
