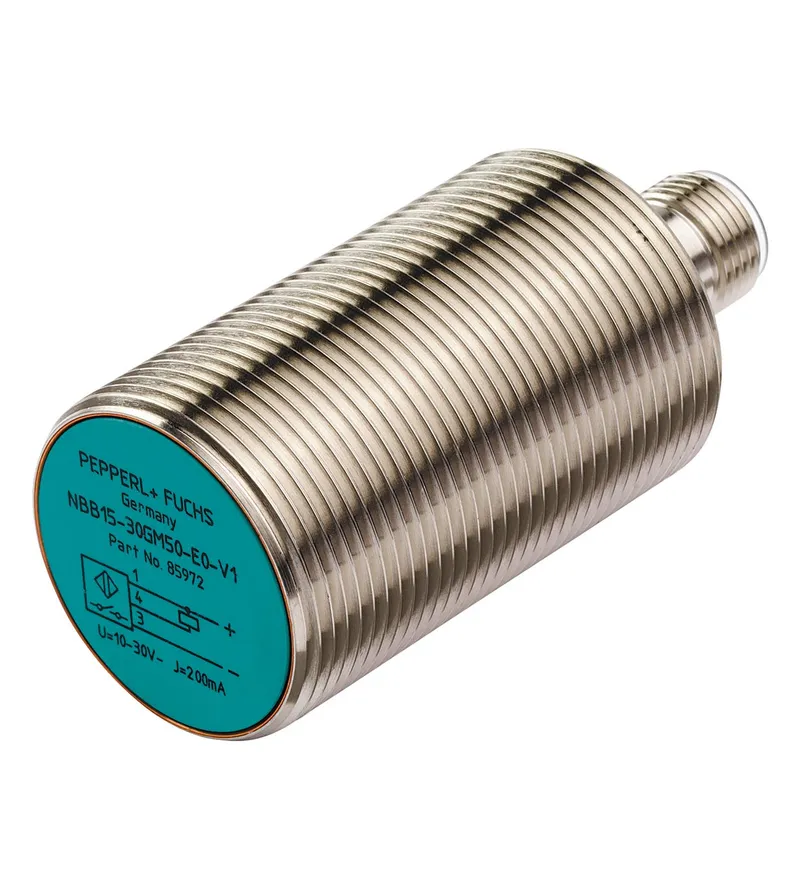

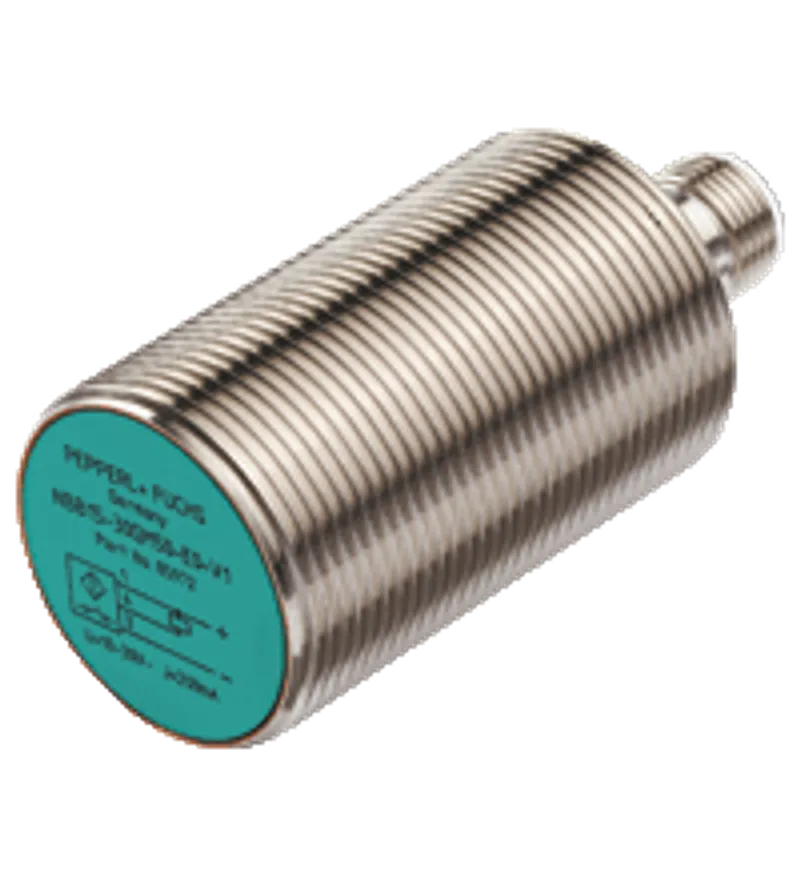

Pepperl Fuchs NRB15-30GS50-E2-IO-V1 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NRB15-30GS50-E2-IO-V1 be shipped?
NRB15-30GS50-E2-IO-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NRB15-30GS50-E2-IO-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NRB15-30GS50-E2-IO-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NRB15-30GS50-E2-IO-V1, subject to availability and destination.
• 15 mm flush
• Reduction factor = 1
• Magnetic field resistant
• IO-Link interface for service and process data
• Switch point mode or window mode can be set
• Switching function, stability alarm and pulse extension can be set
Reduction factor 1, magnetic field resistant, Weld immune proximity sensors, Switching function: Normally open/closed (NO/NC) programmable, Output type: PNP, Rated operating distance: 15 mm (factory setting), Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 306533-0021 |
| Switching function | Normally open/closed (NO/NC) programmable |
| Output type | PNP |
| Rated operating distance | 15 mm (factory setting) sn |
| Near operating distance | 10 mm (can be activated by software) |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.15 mm sa |
| Reduction factor rAl | 1 |
| Reduction factor rCu | 1 |
| Reduction factor r304 | 1 |
| Reduction factor rSt37 | 1 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 0 ... 600 Hz (switch point mode) 0 ... 25 Hz (window mode, switch point mode with stability alarm) f |
| Hysteresis | typ. 3 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 0.5 V Ud |
| Operating current | 0 ... 200 mA IL |
| Off-state current | 0 ... 0.5 mA typ. 60 µA at 25 °C Ir |
| No-load supply current | ≤ 15 mA I0 |
| Time delay before availability | max. 150 ms tv |
| Constant magnetic field | 200 mT B |
| Alternating magnetic field | 200 mT B |
| Status indicator | Multihole-LED, yellow |
Safety-relevant product characteristics
| MTTFd | 362 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Interface

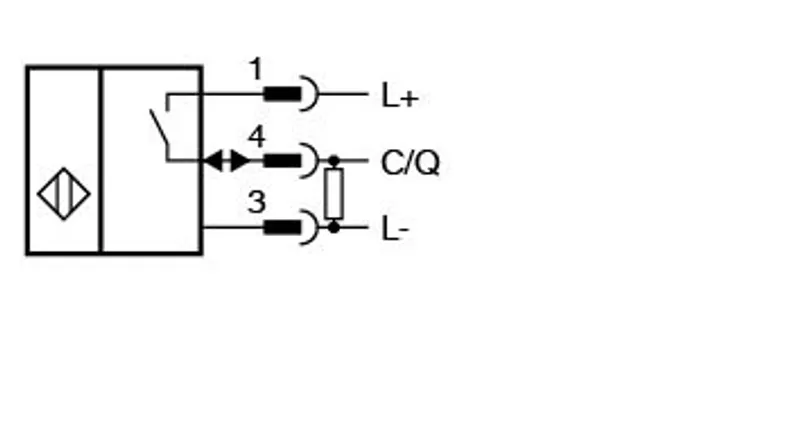

| Interface type | IO-Link ( via C/Q = pin 4 ) |
| IO-Link revision | 1.1 |
| Device ID | 0x201003 (2101251) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.3 ms |
| Process data width | Process data input (control system side): 2 Bit Process data output (control system side): none |
| SIO mode support | yes |
| Compatible master port type | A |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| Protection class | II |
| Rated insulation voltage | 60 V Ui |
| Rated impulse withstand voltage | 800 V Uimp |
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

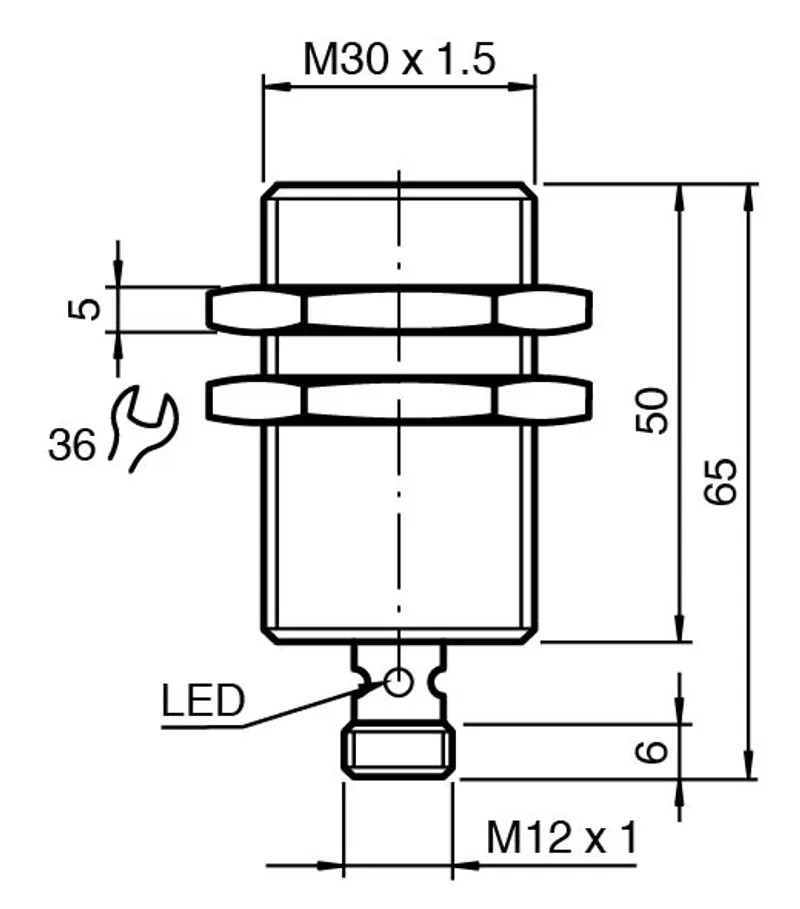

Mechanical specifications
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 3 |
| Mass | 153 g |
| Dimensions: Length | 65 mm |
| Dimensions: Diameter | 30 mm |
Factory settings
| Default setting | operating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 15 mm |
General information
| Scope of delivery | 2 self locking nuts in scope of delivery |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
| 3-D model (STEP) NRB10-30GM50-E0-C-V1 | STP · 59 kB |
Certificates (5)
More Pepperl Fuchs parts

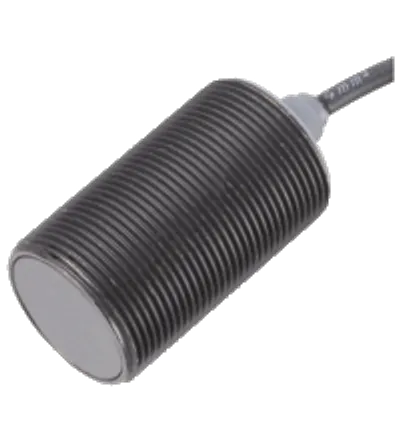

Available on requestInductive sensor NRB15-30GM50-E2-IO-C

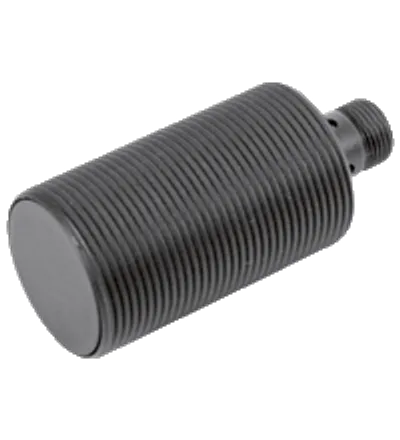

Available on requestInductive sensor NRB15-30GM50-E2-IO-C-V1

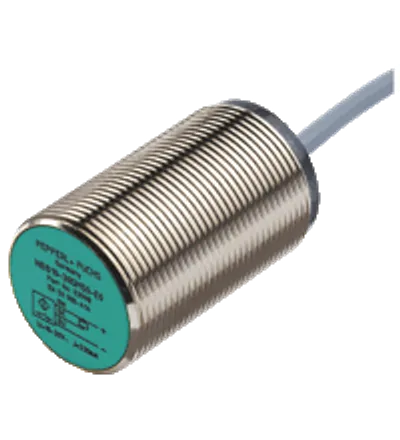

Available on requestInductive sensor NRB15-30GS50-E2Available on requestInductive sensor NRB15-30GS50-E2-IO

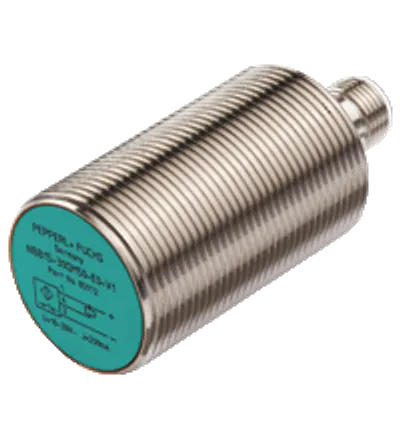

Available on requestInductive sensor NRB15-30GS50-E2-V1Available on requestInductive sensor NRB15-30GS50-E3-V1

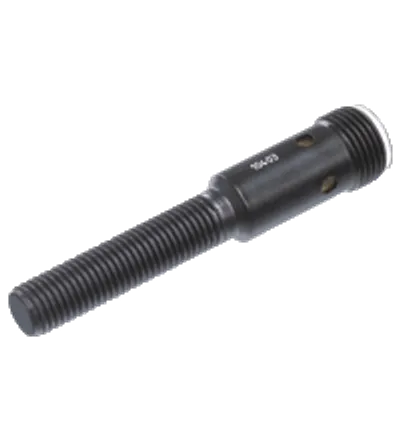

Available on requestInductive sensor NRB1,5-8GM40-E2-C-V1

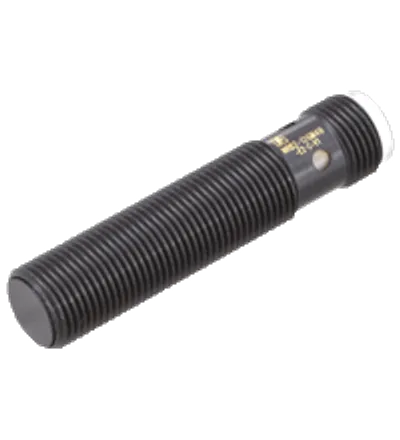

Available on requestInductive sensor NRB2-12GM40-E2-C-V1
