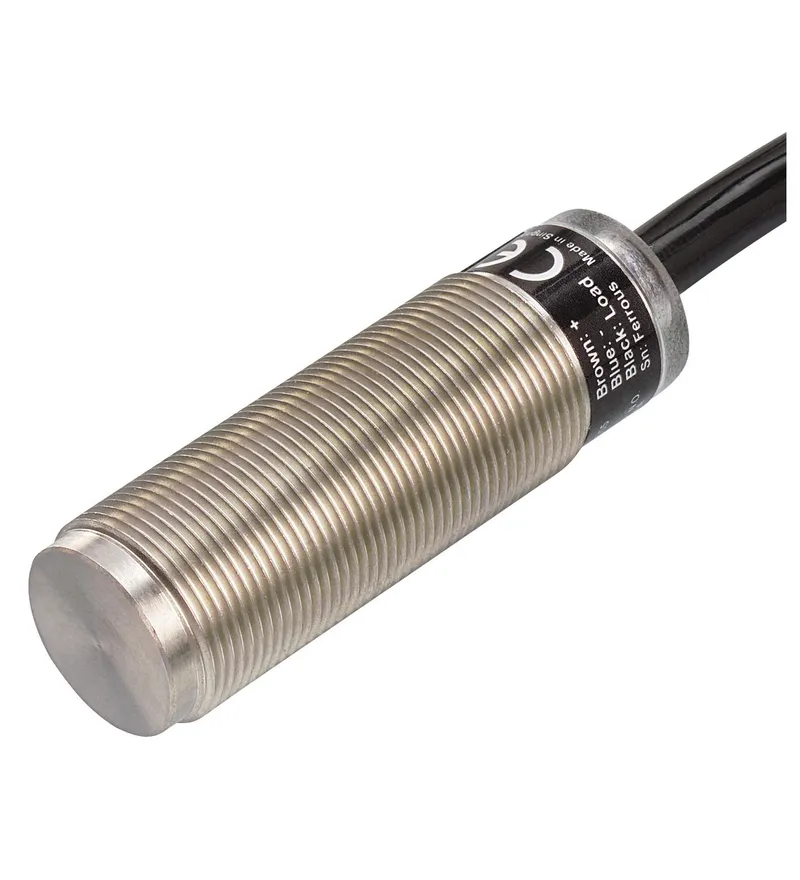

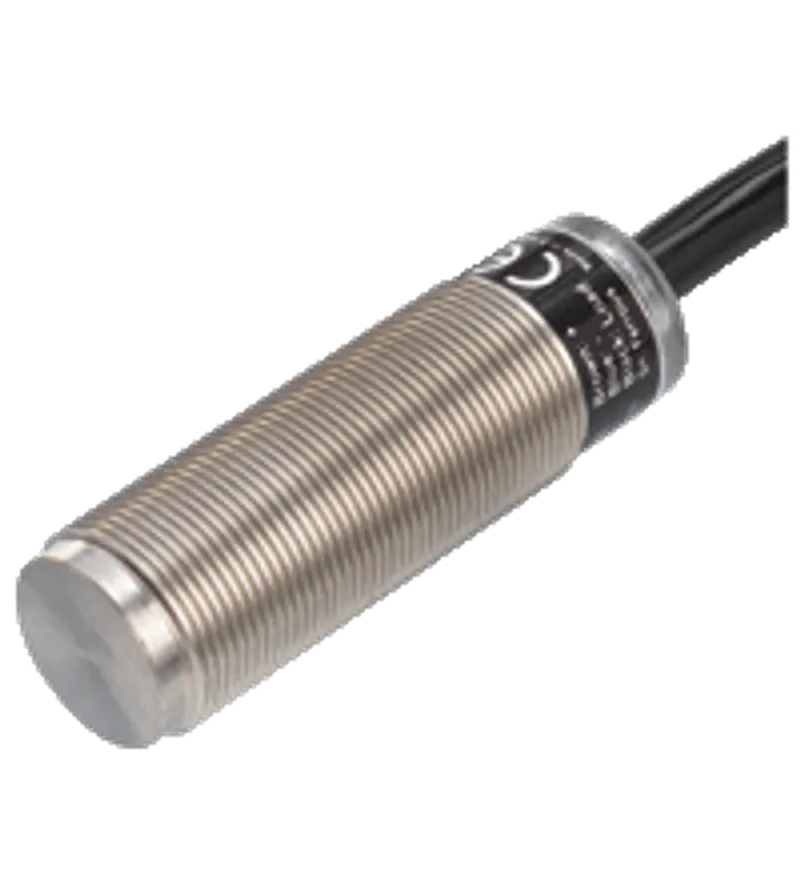

Pepperl Fuchs NMB5-18GM55-E2-FE-5M – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NMB5-18GM55-E2-FE-5M be shipped?
NMB5-18GM55-E2-FE-5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NMB5-18GM55-E2-FE-5M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NMB5-18GM55-E2-FE-5M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NMB5-18GM55-E2-FE-5M, subject to availability and destination.
• Stainless steel sensing face
• Sensing range 5 mm
• 3-wire DC
• Ferrous targets
Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP69K, Material: PUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 908446 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 5 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 4.05 mm sa |
| Actuating element | Ferrous targets |
| Reduction factor rAl | 0 |
| Reduction factor rCu | 0 |
| Reduction factor r304 | 0.6 ... 0.8 |
| Reduction factor rSt37 | 1 |
| Reduction factor rBrass | 0 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 15 Hz f |
| Hysteresis | 3 ... 15 typ. 5 % H |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Voltage drop | ≤ 2 V Ud |
| Operating current | 0 ... 200 mA IL |
| Current consumption | < 14 mA |
| Off-state current | ≤ 10 µA Ir |
Indicators/operating means
| Operation indicator | 4-way dual LED Green: power Yellow: output |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP69K |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 6.2 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.5 mm2 |
| Cable: Length | 5 m L |

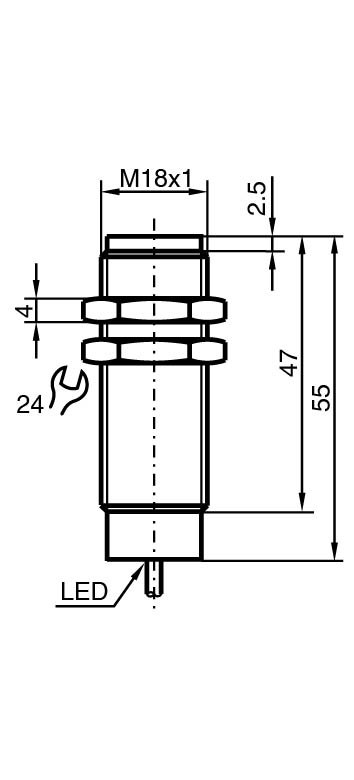

| Dimensions: Length | 55 mm |
| Dimensions: Diameter | 18 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NMB5-18GM55-E2-FE-5M | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NMB5-18GM55-E0-FE | STP · 56 kB |
| EPLAN macro NMB5-18GM55-E2-FE-5M | EDZ · 65 kB |
Certificates (4)
More Pepperl Fuchs parts

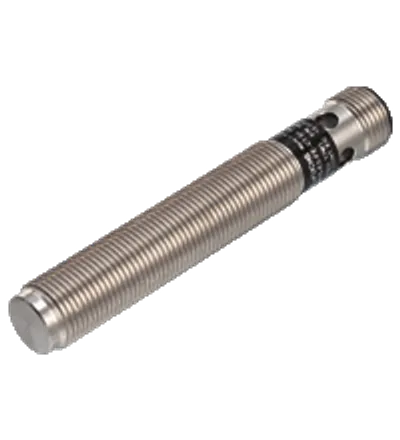

Available on requestInductive sensor NMB5-12GM65-E2-V1Available on requestInductive sensor NMB5-12GM65-E3-V1

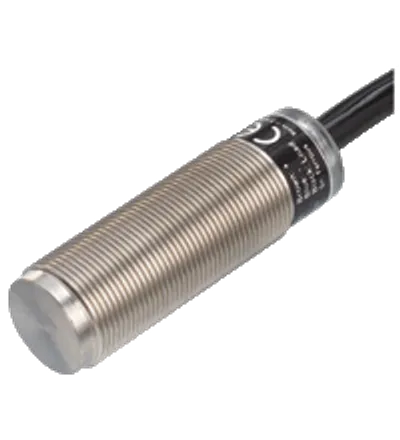

Available on requestInductive sensor NMB5-18GM55-E0-FEAvailable on requestInductive sensor NMB5-18GM55-E2-FE

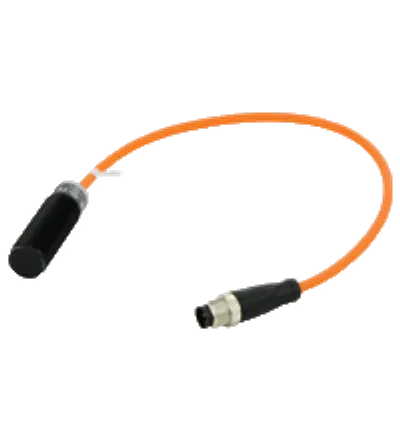

Available on requestInductive sensor NMB5-18GM55-Z0-C-FE-300MM-V1Available on requestInductive sensor NMB5-18GM55-Z3-C-FE-300MM-V1

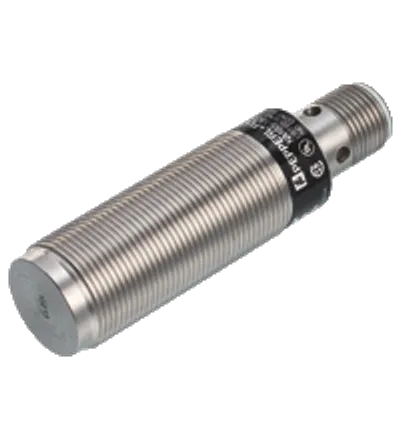

Available on requestInductive sensor NMB5-18GM65-E0-FE-V1

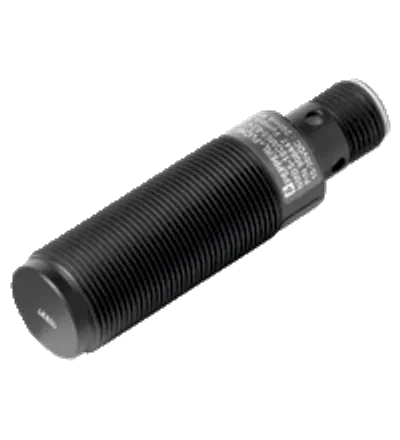

Available on requestInductive sensor NMB5-18GM65-E2-C-FE-V1
