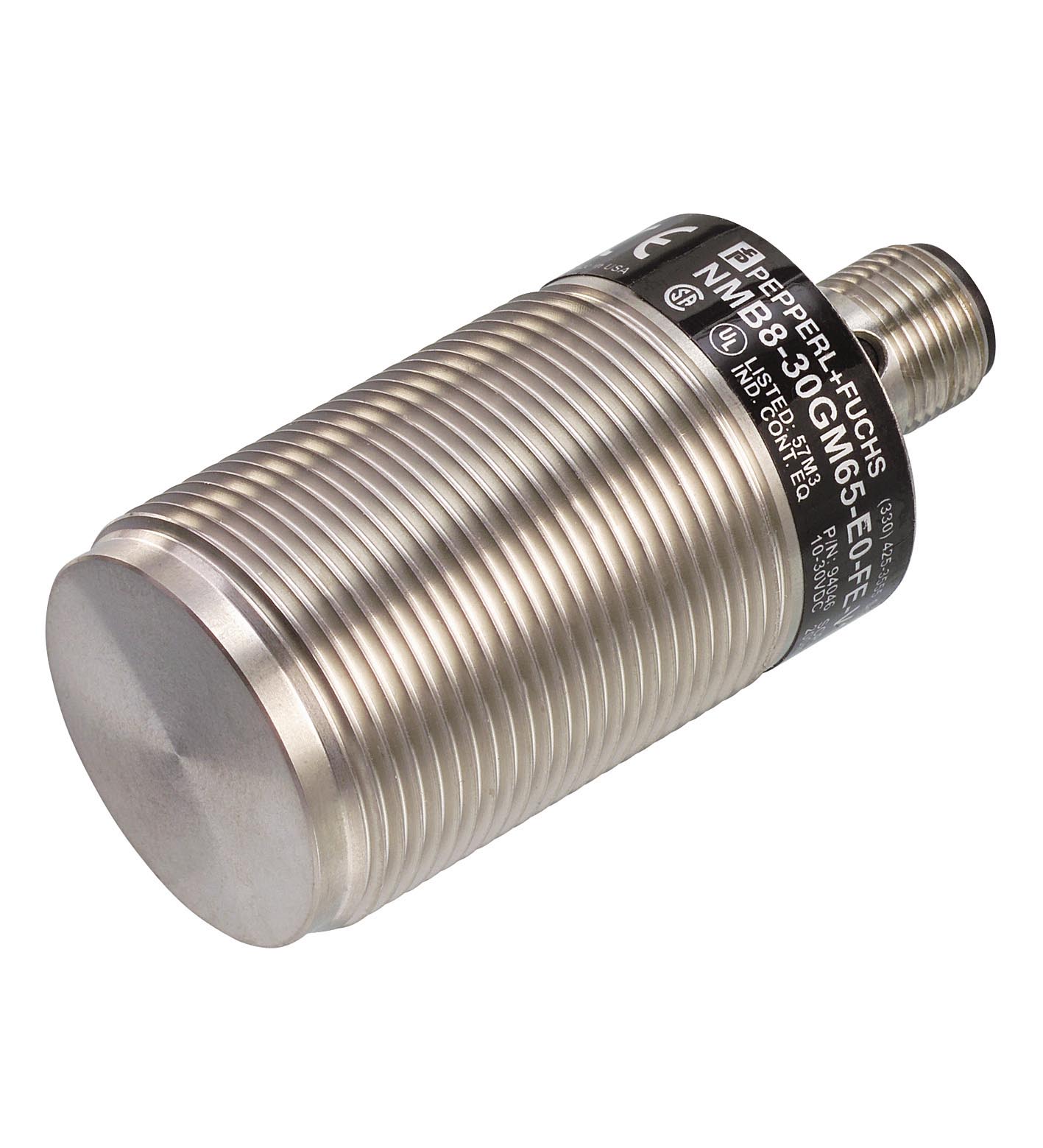

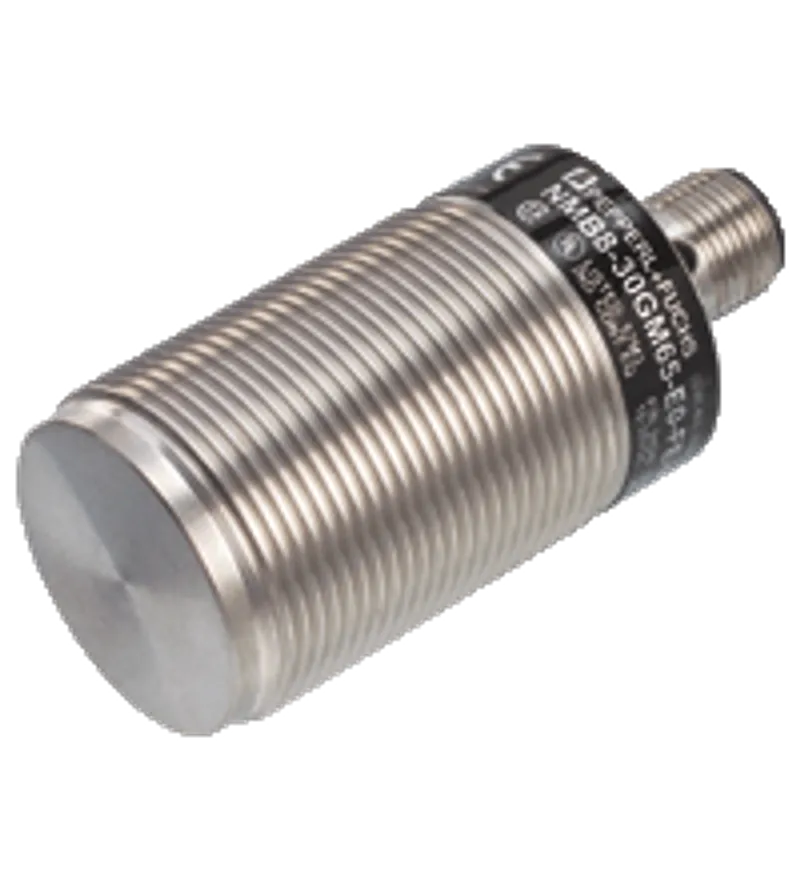

Pepperl Fuchs NMB10-30GM65-Z0-NFE-V1 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NMB10-30GM65-Z0-NFE-V1 be shipped?
NMB10-30GM65-Z0-NFE-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NMB10-30GM65-Z0-NFE-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NMB10-30GM65-Z0-NFE-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NMB10-30GM65-Z0-NFE-V1, subject to availability and destination.
• Stainless steel sensing face
• Sensing range 10 mm

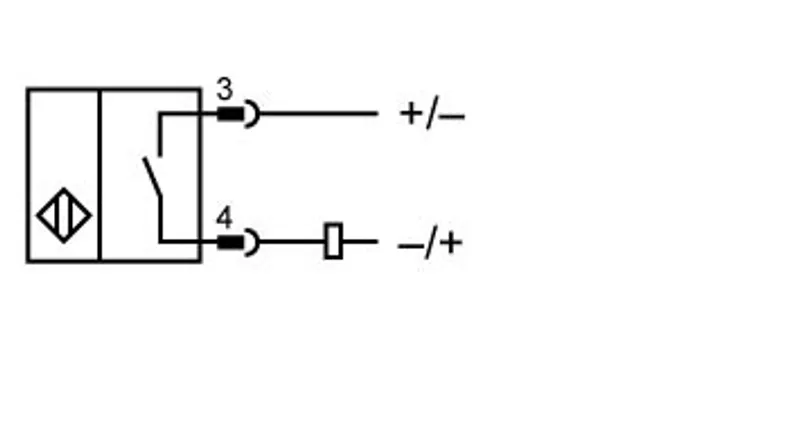

• 2-wire DC
• Nonferrous targets
Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67 / IP68 / IP69K - cordset dependent according to cable specification, Threading: M12 x 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 094803 |
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 10 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 8.1 mm sa |
| Actuating element | Nonferrous targets |
| Reduction factor rAl | 1 |
| Reduction factor rCu | 1.1 |
| Reduction factor r304 | 0 |
| Reduction factor rSt37 | 0 |
| Reduction factor rBrass | 0.9 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 6 ... 30 V UB |
| Switching frequency | 5 Hz f |
| Hysteresis | 3 ... 15 typ. 10 % H |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | no |
| Voltage drop | ≤ 5.5 V Ud |
| Operating current | 2 ... 100 mA IL |
| Off-state current | ≤ 1 mA Ir |
Indicators/operating means
| Operation indicator | 4-way LED Yellow: output |
Standard conformity
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |

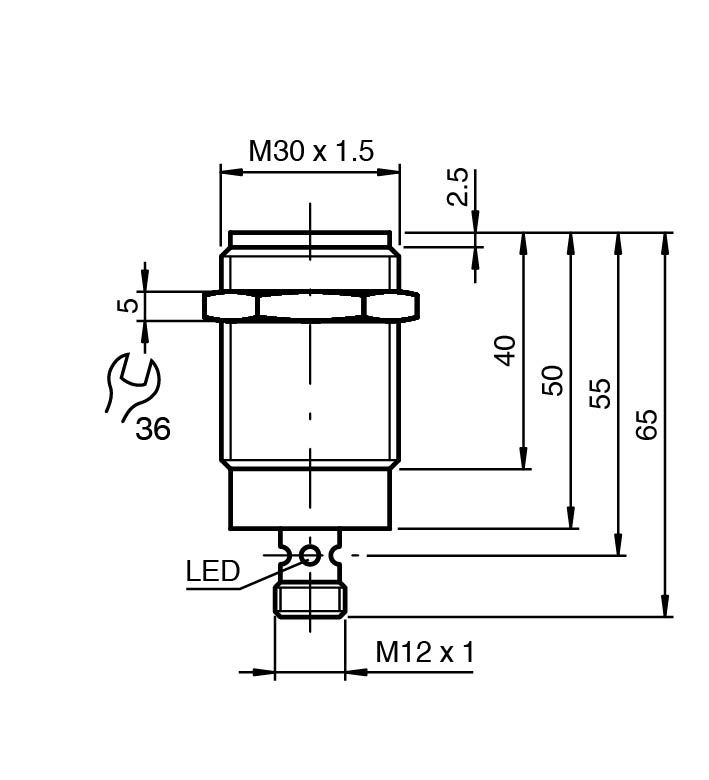

Mechanical specifications
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP67 / IP68 / IP69K - cordset dependent according to cable specification |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 3 |
| Mass | 166 g |
| Dimensions: Length | 65 mm |
| Dimensions: Diameter | 30 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NMB10-30GM65-Z0-NFE-V1 | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NMB15-30GM65-E2-C4-V1 | STP · 68 kB |
Certificates (2)
| China Information on CCC (CCC-Exempt Declaration (Pepperl+Fuchs)) | PDF · 467 kB |
| Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3) | PDF · 1.8 MB |
More Pepperl Fuchs parts
Available on requestInductive sensor NMB10-18GM65-E3-V1Available on requestInductive sensor NMB10-18GM65-Z4-V1Available on requestInductive sensor NMB10-18GM65-Z9-V1

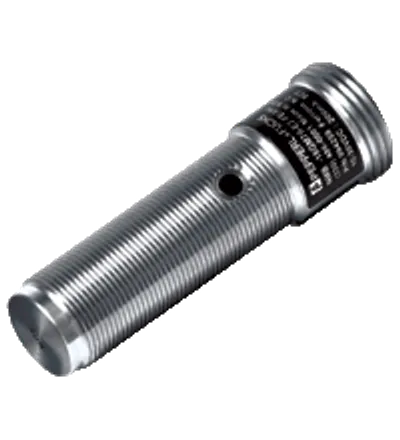

Available on requestInductive sensor NMB10-18GM70-E2-V94
Available on requestInductive sensor NMB15-30GM55-E0Available on requestInductive sensor NMB15-30GM55-E2

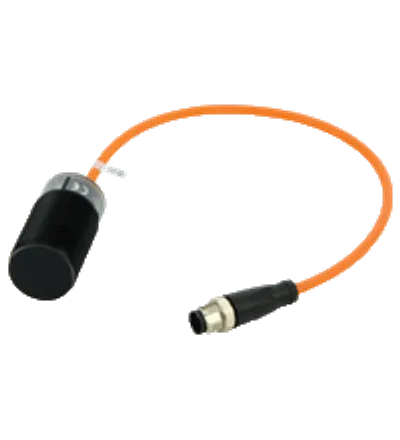

Available on requestInductive sensor NMB15-30GM55-Z4-C4-300MM-V1Available on requestInductive sensor NMB15-30GM55-Z9-C4-300MM-V1
