Pepperl Fuchs NJ6-F-A2 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ6-F-A2 be shipped?
NJ6-F-A2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ6-F-A2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ6-F-A2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ6-F-A2, subject to availability and destination.
• 6 mm flush

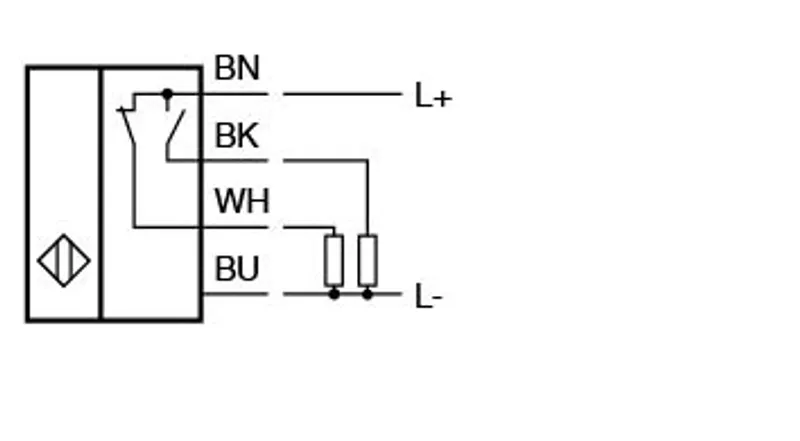

• 4-wire DC
• Polarity reversal protected
Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 60 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 024682 |
| Switching function | complementary |
| Output type | PNP |
| Rated operating distance | 6 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 4.8 mm sa |
| Actual operating distance | 5.4 ... 6.6 mm typ. sr |
| Reduction factor rAl | 0.22 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.7 |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 60 V DC UB |
| Switching frequency | 0 ... 500 Hz f |
| Hysteresis | 0 ... 0.3 mm typ. 5 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 20 mA I0 |
| Time delay before availability | ≤ 15 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 690 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4.8 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 2 m L |
| Mass | 94 g |

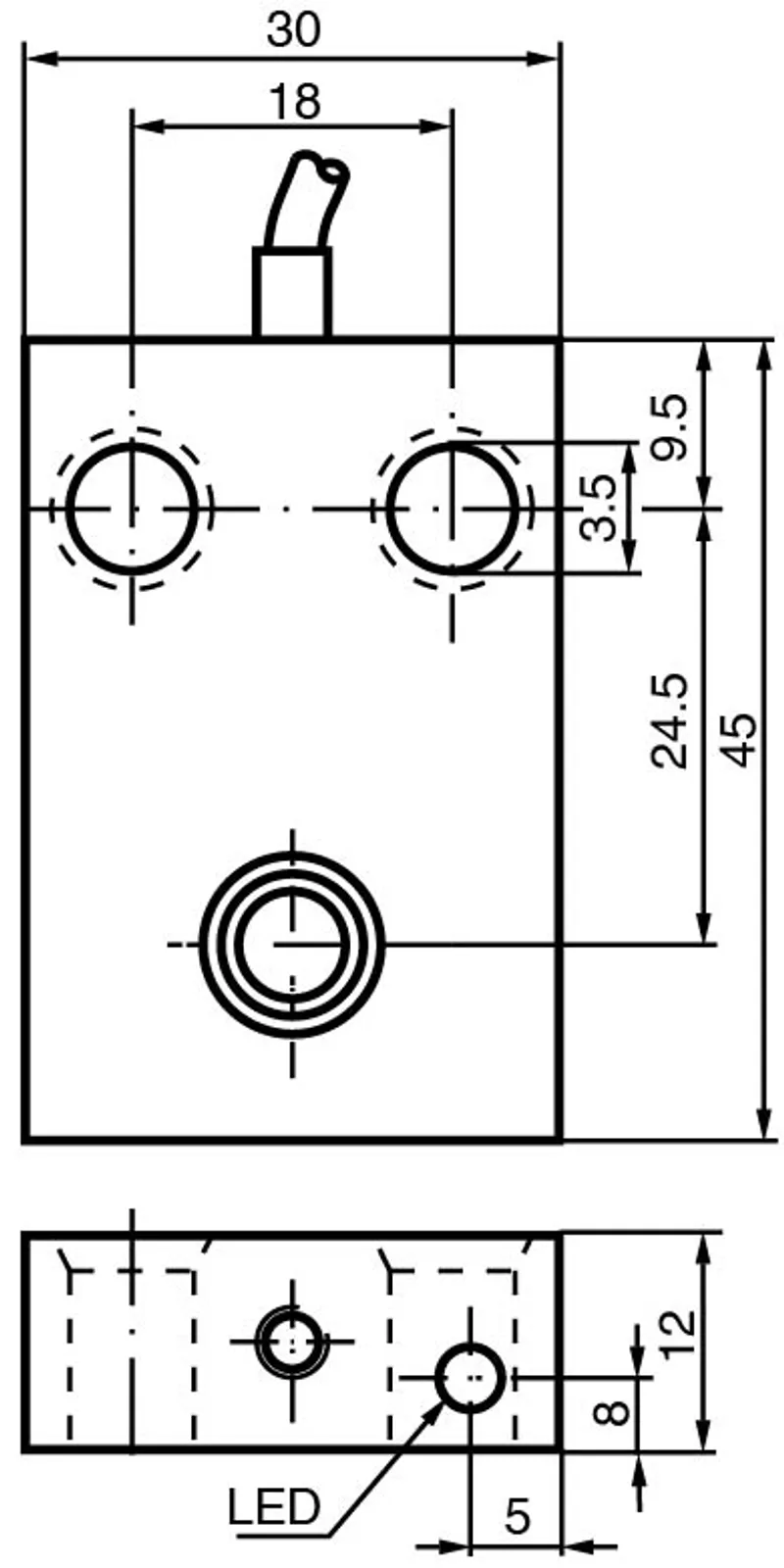

| Dimensions: Height | 12 mm |
| Dimensions: Width | 30 mm |
| Dimensions: Length | 45 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ6-F-A2 | |
| Installation conditions | PDF · 131 kB |
CAD & dimension drawings
| 3-D model (STEP) NJ6-F-A2-3M | STP · 90 kB |
| EPLAN macro NJ6-F-A2 | EDZ · 67 kB |
Certificates (3)
More Pepperl Fuchs parts

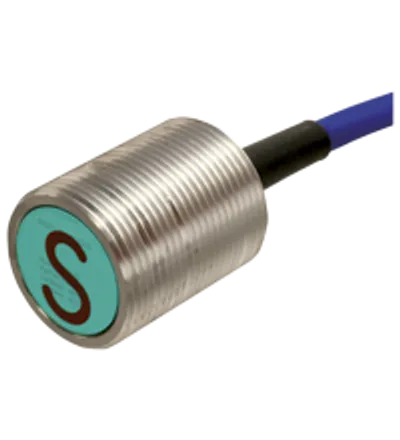

Available on requestInductive sensor NJ6-22-SN-G-10MAvailable on requestInductive sensor NJ6-22-SN-G-3M

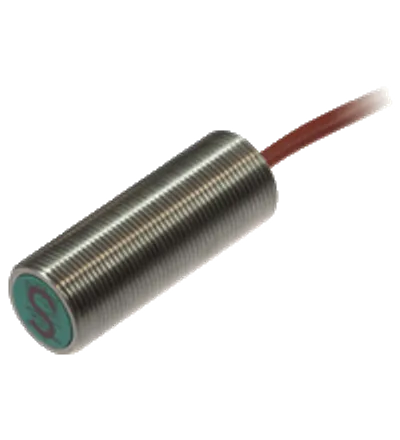

Available on requestInductive sensor NJ6-22-SN-G-Y15196

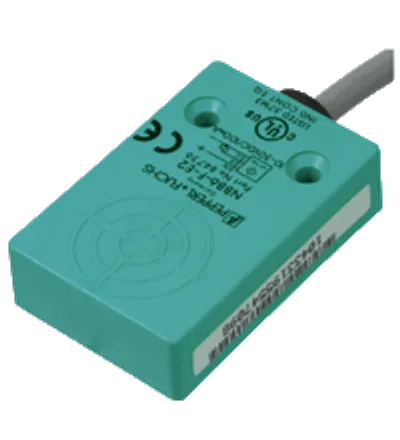

Available on requestInductive sensor NJ6-F-AAvailable on requestInductive sensor NJ6-F-A2-3MAvailable on requestInductive sensor NJ6-F-EAvailable on requestInductive sensor NJ6-F-E-5MAvailable on requestInductive sensor NJ6-F-E2
