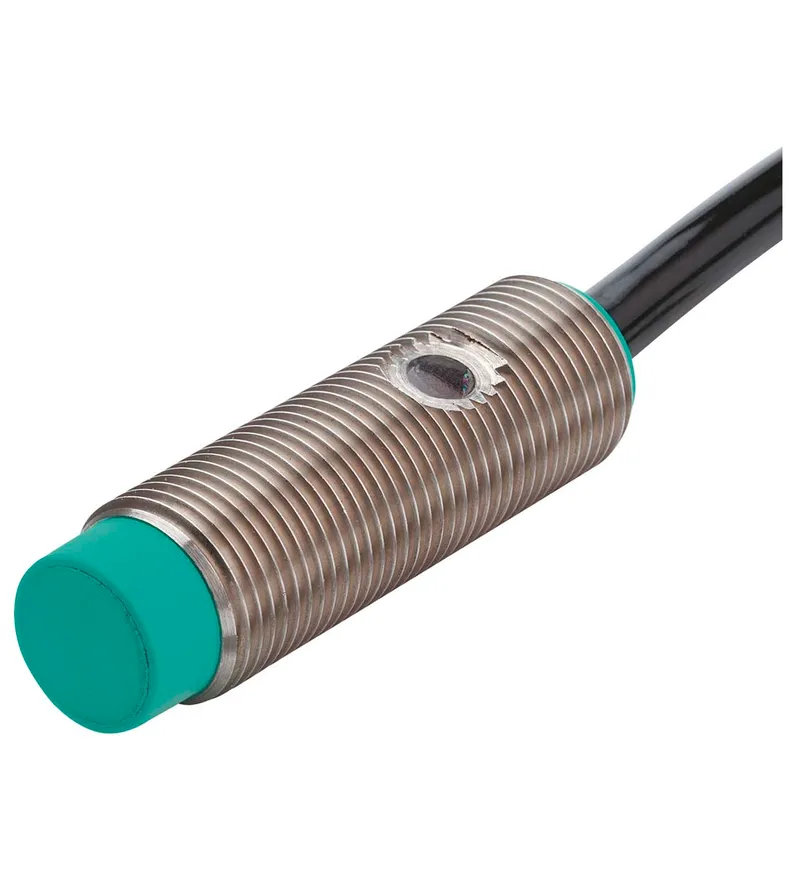

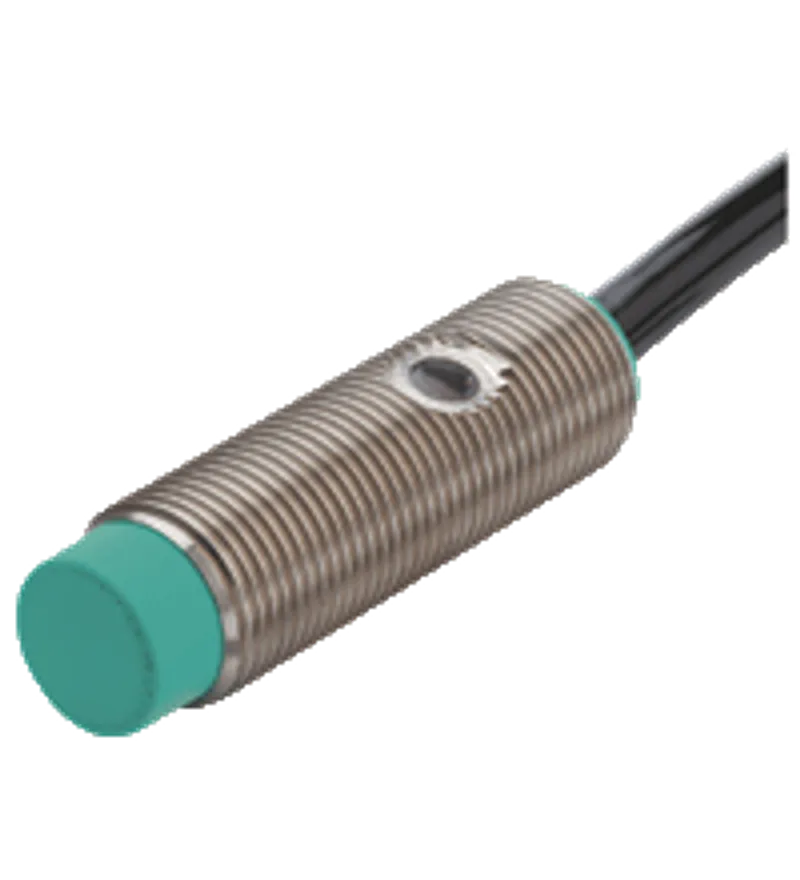

Pepperl Fuchs NJ4-12GM40-E-Y70199495 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ4-12GM40-E-Y70199495 be shipped?
NJ4-12GM40-E-Y70199495 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ4-12GM40-E-Y70199495 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ4-12GM40-E-Y70199495 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ4-12GM40-E-Y70199495, subject to availability and destination.
• 4 mm non-flush
• PTFE connection cable
Switching function: Normally open (NO), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PTFE
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70199495 |
| Switching function | Normally open (NO) |
| Output type | NPN |
| Rated operating distance | 4 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 3.24 mm sa |
| Actual operating distance | 3.6 ... 4.4 mm typ. sr |
| Reduction factor rAl | 0.37 |
| Reduction factor rCu | 0.36 |
| Reduction factor r304 | 0.74 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 60 V UB |
| Switching frequency | 0 ... 2000 Hz f |
| Hysteresis | 1 ... 10 % typ. 3 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Voltage drop at IL: Voltage drop IL = 100 mA, switching element on | 1.2 ... 2.5 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 15 mA I0 |
| Time delay before availability | ≤ 20 ms tv |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4 mm |
| Cable: Material | PTFE |
| Cable: Color | grey |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.25 mm2 |
| Cable: Length | 2 m L |

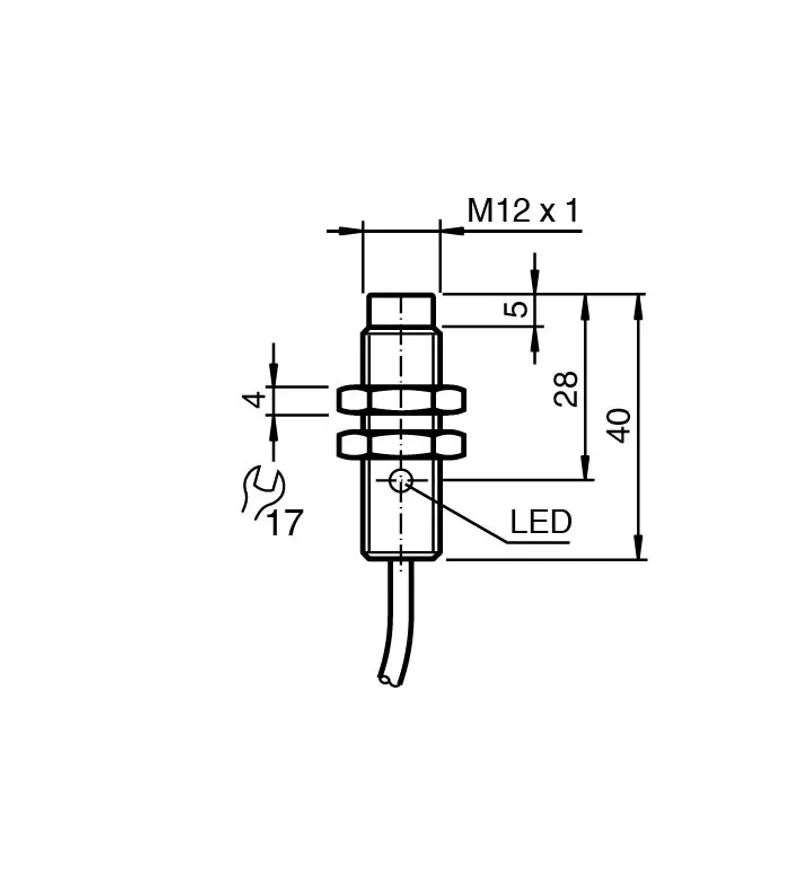

| Dimensions: Length | 40 mm |
| Dimensions: Diameter | 12 mm |
General information
| Scope of delivery | 2 self locking nuts in scope of delivery |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ4-12GM40-E-Y70199495 |
CAD & dimension drawings
| 3-D model (STEP) NJ4-12GM40-E2-5M | STP · 52 kB |
Certificates (2)
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
More Pepperl Fuchs parts

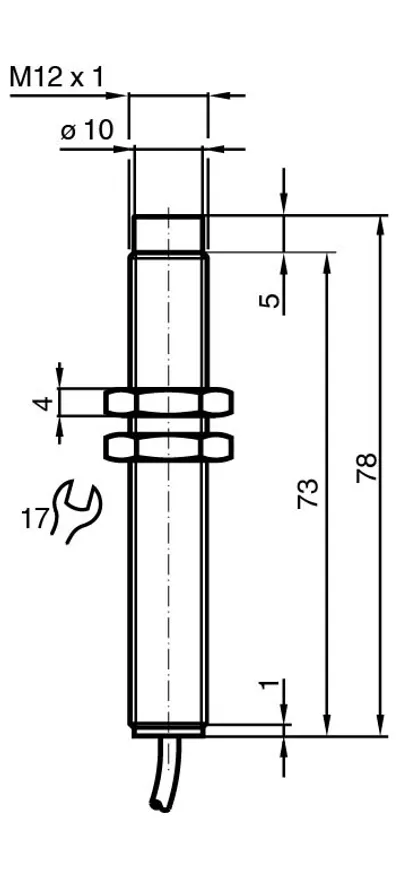

Available on requestInductive sensor NJ4-12GM-N-Y19785

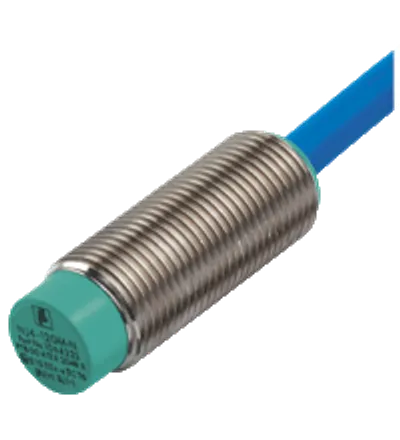

Available on requestInductive sensor NJ4-12GM-Z11-2M-Y

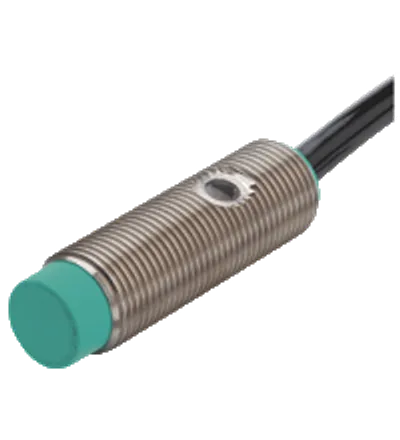

Available on requestInductive sensor NJ4-12GM40-E

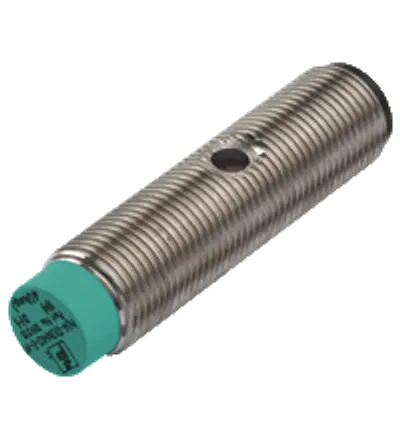

Available on requestInductive sensor NJ4-12GM40-E-V1Available on requestInductive sensor NJ4-12GM40-E1Available on requestInductive sensor NJ4-12GM40-E2Available on requestInductive sensor NJ4-12GM40-E2-10MAvailable on requestInductive sensor NJ4-12GM40-E2-5M
