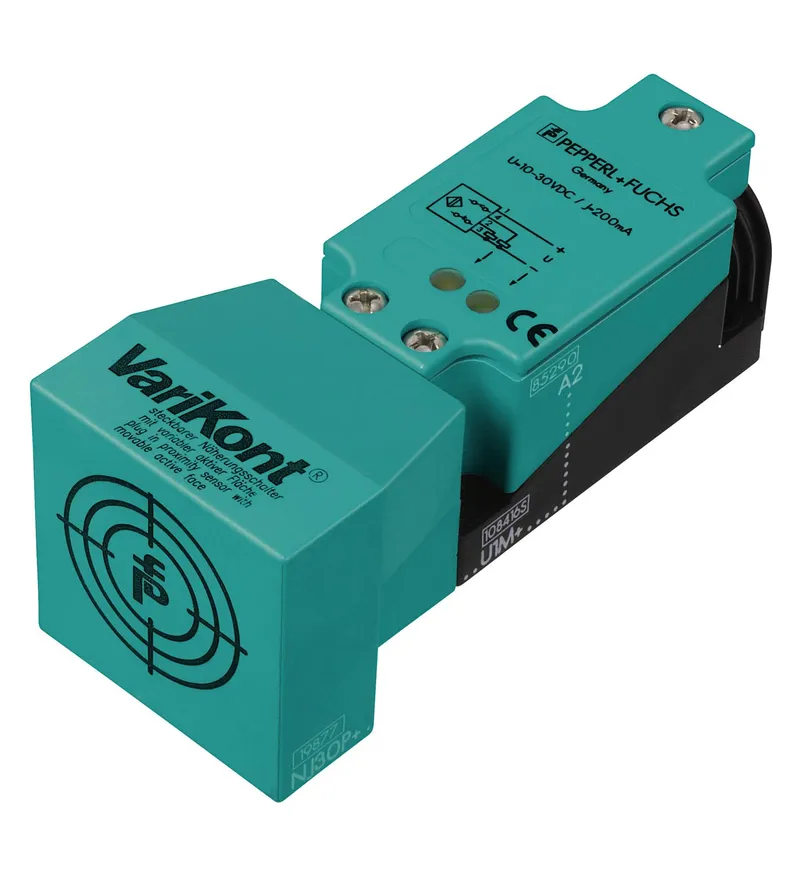

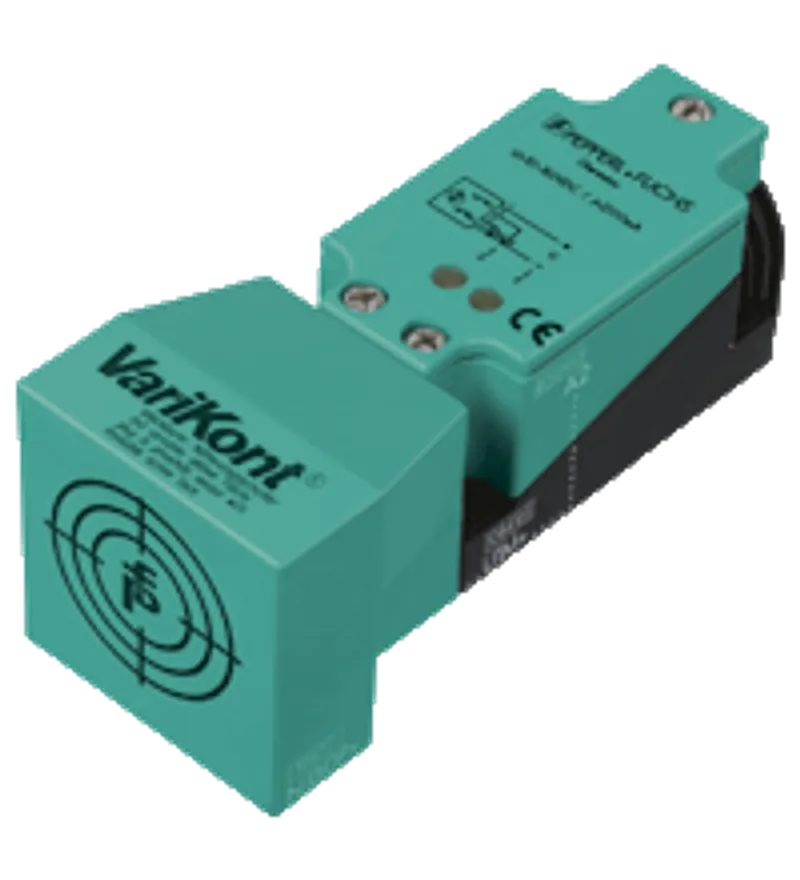

Pepperl Fuchs NJ30P+U1+A2 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ30P+U1+A2 be shipped?
NJ30P+U1+A2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ30P+U1+A2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ30P+U1+A2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ30P+U1+A2, subject to availability and destination.
• 30 mm non-flush
• Only for non-ferrous metals

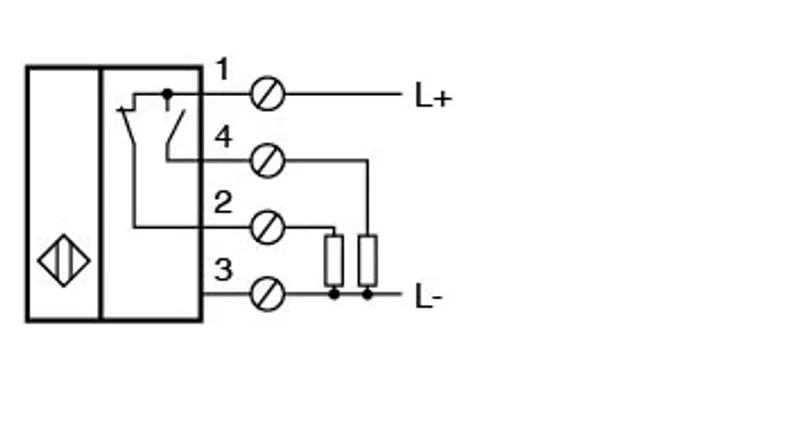

Switching function: complementary, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: VariKont ®, Series: VariKont ®, Type of voltage: DC, Connection type: screw terminals, Housing material: PBT, Degree of protection: IP68
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 020995 |
| Switching function | complementary |
| Output type | PNP |
| Rated operating distance | 30 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 1 ... 24.3 mm sa |
| Reduction factor rAl | 1 |
| Reduction factor rCu | 1 |
| Reduction factor rSt37 | 0 |
| Reduction factor rBrass | 1 |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 150 Hz f |
| Hysteresis | typ. 5 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 20 mA I0 |
| Time delay before availability | ≤ 10 ms tv |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 768 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | screw terminals |
| Information for connection | A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % |
| Core cross section | up to 2.5 mm2 |
| Minimum core cross-section | without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2 |
| Maximum core cross-section | without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2 |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP68 |
| Dimensions: Height | 55 mm |
| Dimensions: Width | 55 mm |
| Dimensions: Length | 128 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ30P+U1+A2 |
CAD & dimension drawings
| 3-D model (STEP) NJ40+U1+E2 | STP · 243 kB |
| EPLAN macro NJ30P+U1+A2 | EDZ · 71 kB |
Certificates (3)
More Pepperl Fuchs parts

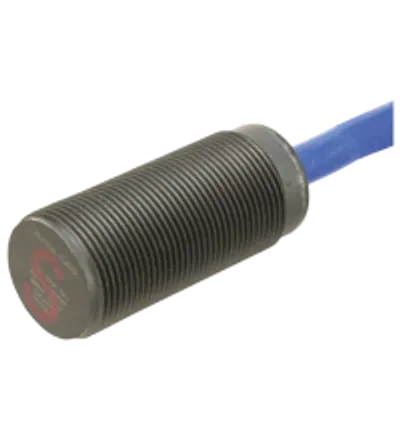

Available on requestInductive sensor NJ3-18GK-S1NAvailable on requestInductive sensor NJ3-18GK-S1N-10MAvailable on requestInductive sensor NJ3-18GK-S1N-15MAvailable on requestInductive sensor NJ3-18GK-S1N-5M

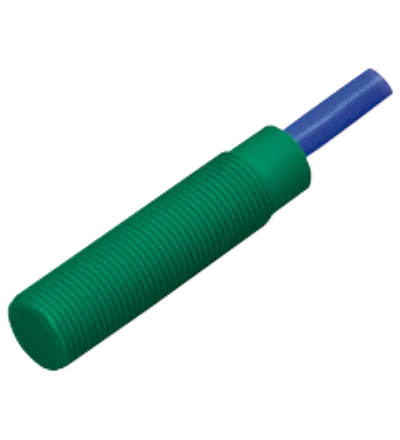

Available on requestInductive sensor NJ4-12GK-NAvailable on requestInductive sensor NJ4-12GK-N-10MAvailable on requestInductive sensor NJ4-12GK-N-35MAvailable on requestInductive sensor NJ4-12GK-N-5M
