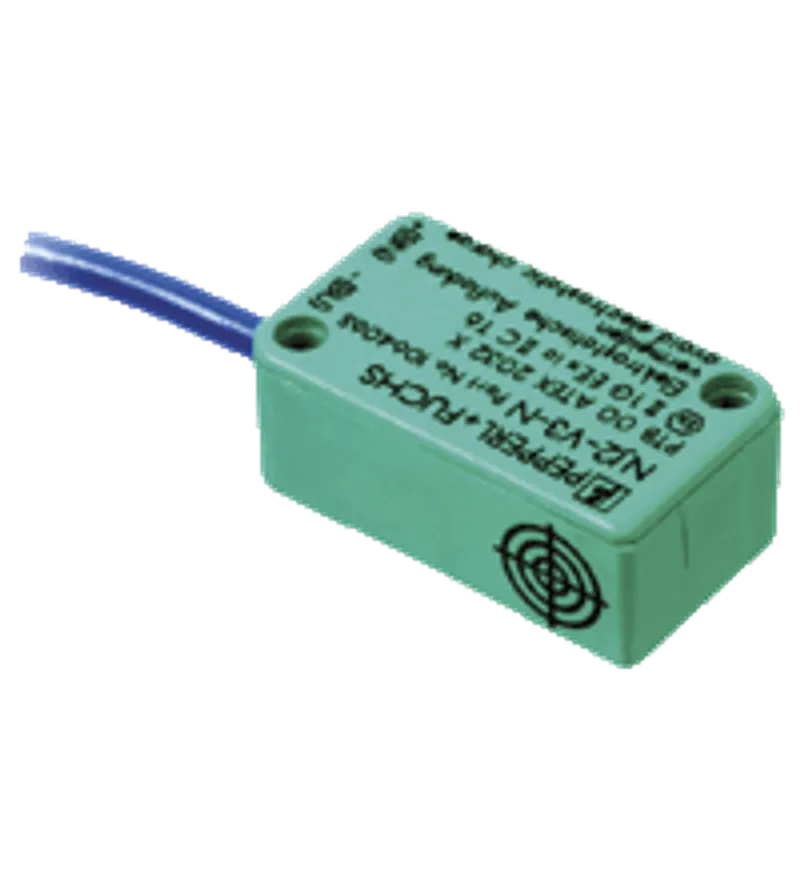

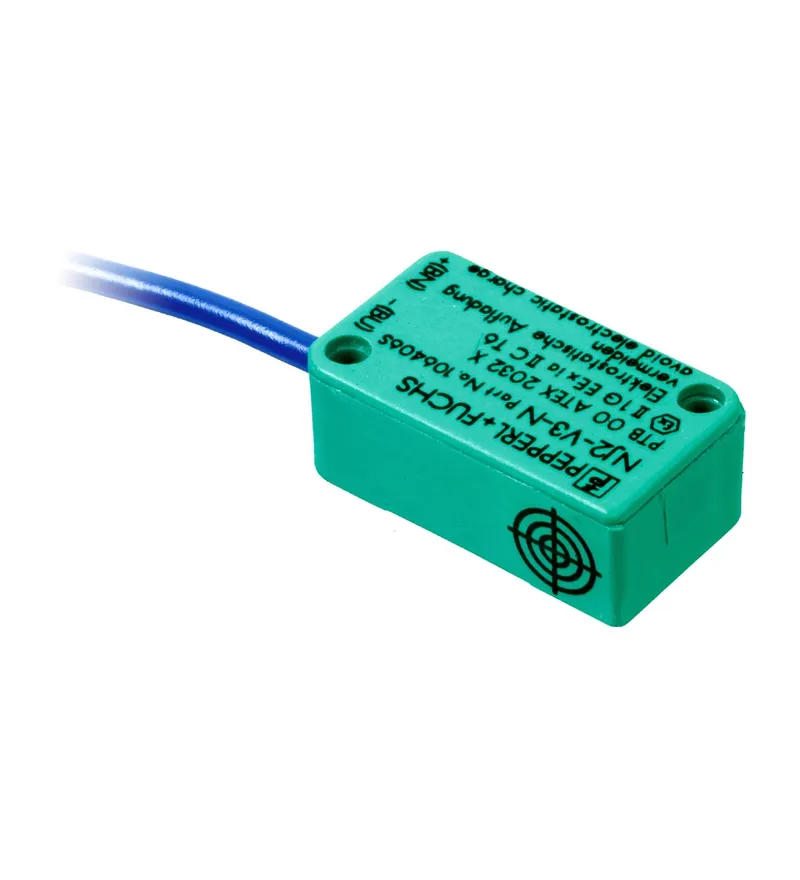

Pepperl Fuchs NJ2-V3-N-Y220141 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ2-V3-N-Y220141 be shipped?
NJ2-V3-N-Y220141 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ2-V3-N-Y220141 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ2-V3-N-Y220141 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ2-V3-N-Y220141, subject to availability and destination.
• 2 mm flush
• Usable up to SIL 2 acc. to IEC 61508
• NAMUR output
Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Safety Integrity Level (SIL): SIL 2, Type of voltage: DC, Equipment protection level Ga: IECEx PTB 11.0021X, Equipment protection level Gb: IECEx PTB 11.0021X, Equipment protection level Da: IECEx PTB 11.0021X, Equipment protection level Mb: IECEx PTB 11.0021X, Equipment protection level Ga: PTB 00 ATEX 2032 X
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70133097 |
| Switching function | Normally closed (NC) |
| Output type | NAMUR |
| Rated operating distance | 2 mm sn |
| Installation | flush |
| Assured operating distance | 0 ... 1.62 mm sa |
| Reduction factor rAl | 0.25 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.7 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) Uo |
| Switching frequency | 0 ... 1000 Hz f |
| Hysteresis | 0.01 ... 0.1 mm H |
| Current consumption: Measuring plate not detected | ≥ 3 mA |
| Current consumption: Measuring plate detected | ≤ 1 mA |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
| MTTFd | 11775 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| IECEx approval: Equipment protection level Ga | IECEx PTB 11.0021X |
| IECEx approval: Equipment protection level Gb | IECEx PTB 11.0021X |
| IECEx approval: Equipment protection level Da | IECEx PTB 11.0021X |
| IECEx approval: Equipment protection level Mb | IECEx PTB 11.0021X |
| ATEX approval: Equipment protection level Ga | PTB 00 ATEX 2032 X |
| ATEX approval: Equipment protection level Gb | PTB 00 ATEX 2032 X |
| ATEX approval: Equipment protection level Da | PTB 00 ATEX 2032 X |
| UL approval | cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC |
| Ordinary Location | E87056 |
| Hazardous Location | E501628 |
| Control drawing | 116-0451 |
| CCC approval: Hazardous Location | 2020322315002302 |
| CML approval | on request |
| ANZEx | 19.3001X |
Ambient conditions
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Cable diameter | 2.6 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 170 mm L |
| Tightening torque, fastening screws | ≤ 0.4 Nm |

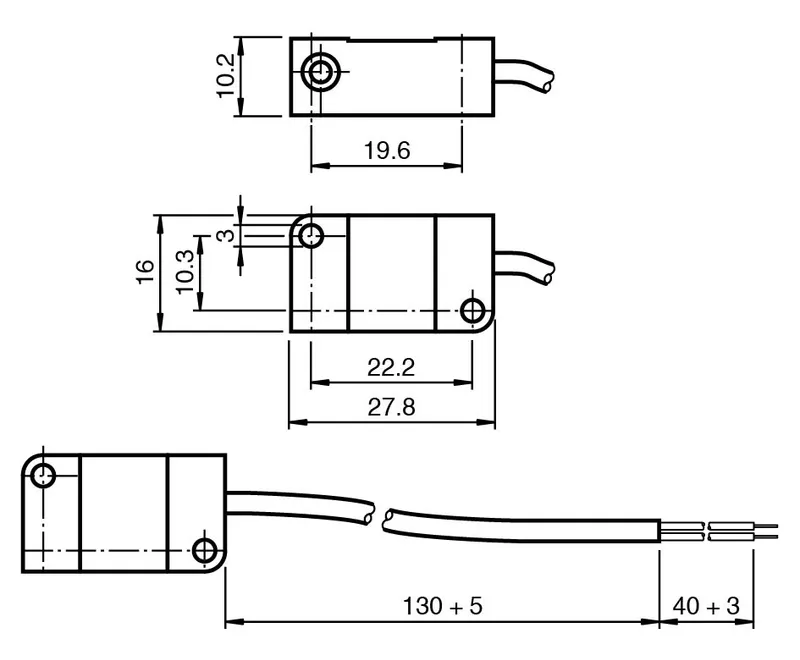

| Dimensions: Height | 10.2 mm |
| Dimensions: Width | 27.8 mm |
| Dimensions: Length | 16 mm |
General information
| Use in the hazardous area | see instruction manuals |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ2-V3-N-Y220141 | |
| Instruction Manual | PDF · 188 kB |
CAD & dimension drawings
| EPLAN macro NJ2-V3-N-Y220141 | EDZ · 65 kB |
Certificates (10)
More Pepperl Fuchs parts
Available on requestInductive sensor NJ2-V3-NAvailable on requestInductive sensor NJ2-V3-N-0,075M

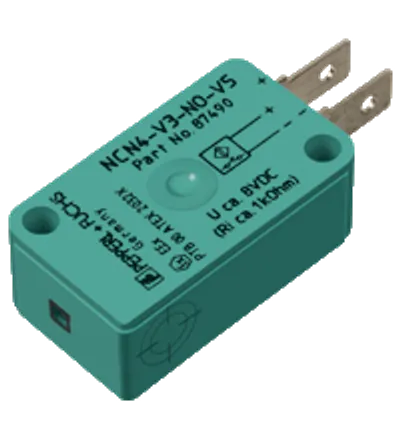

Available on requestInductive sensor NJ2-V3-N-V5Available on requestInductive sensor NJ2-V3-N-Y211641

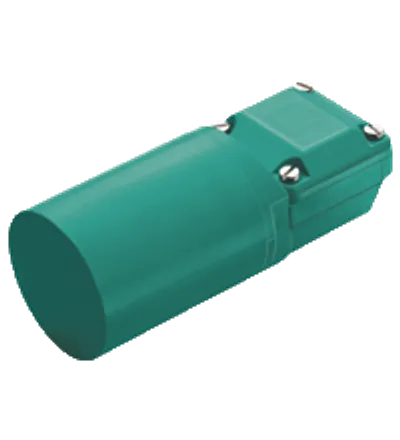

Available on requestInductive sensor NJ20-40-N

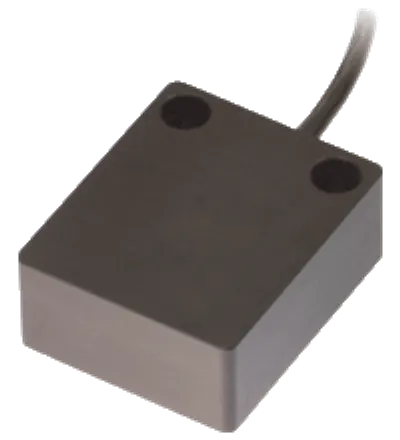

Available on requestInductive sensor NJ20E-F34-E3-Y38055

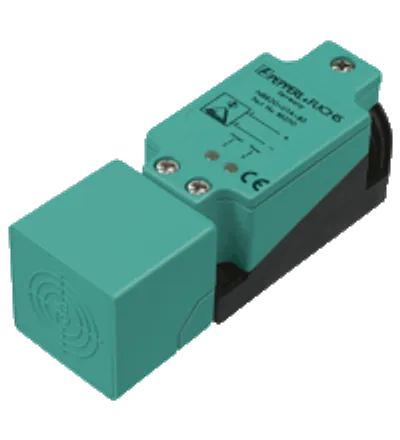

Available on requestInductive sensor NJ20P+U1+A2
