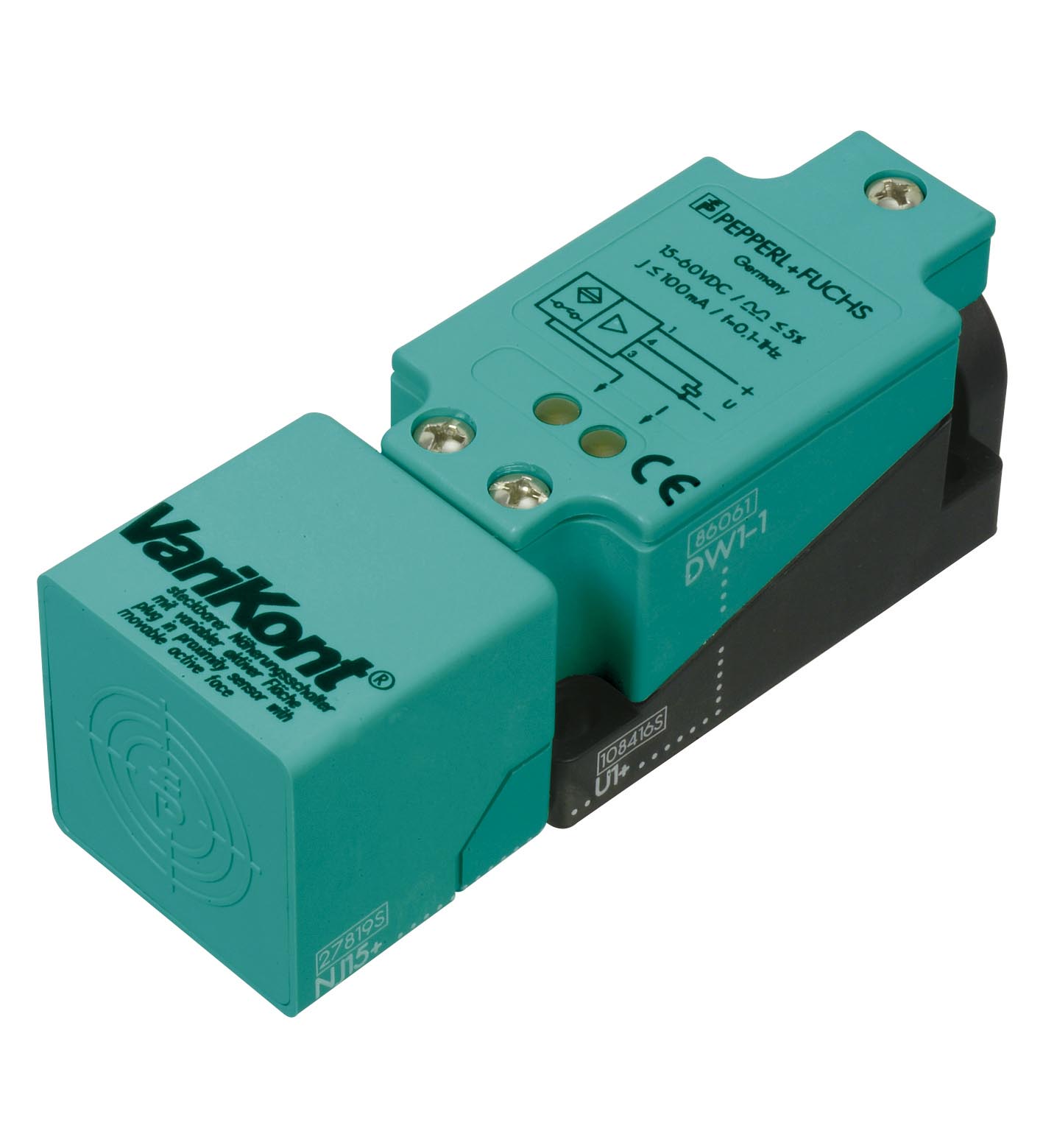

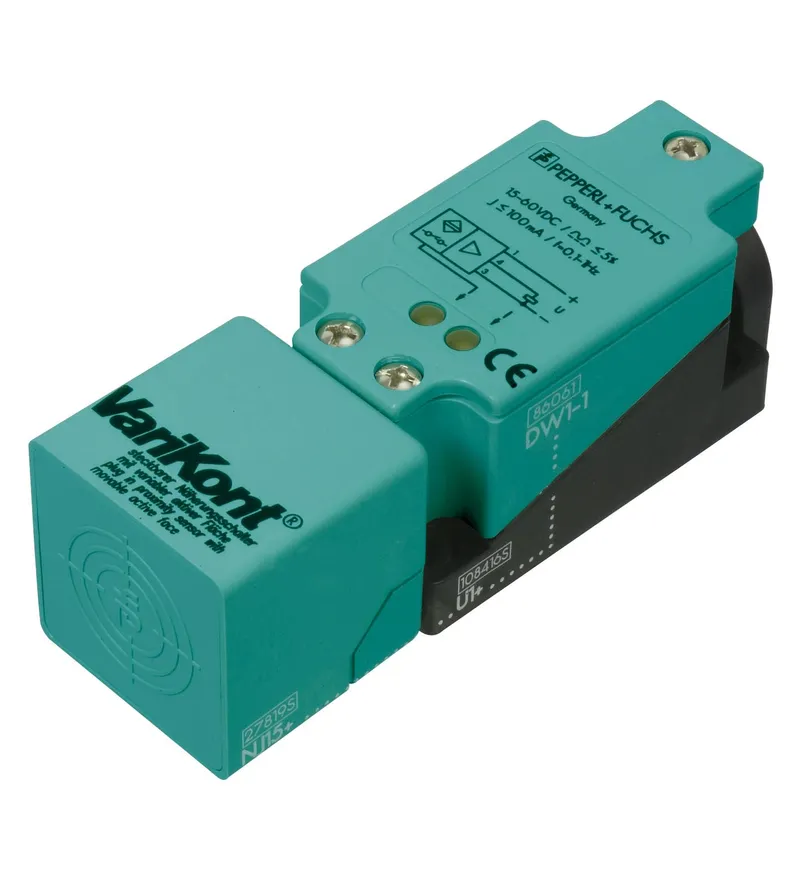

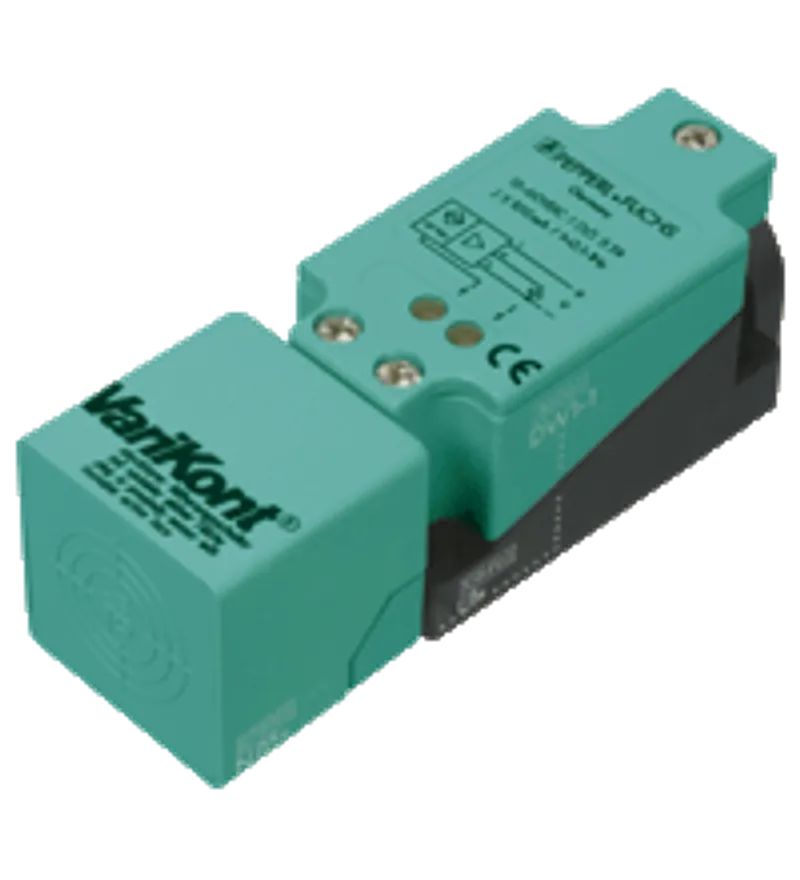

Pepperl Fuchs NJ15+U1+DW1-100 – Inductive rotation speed monitor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ15+U1+DW1-100 be shipped?
NJ15+U1+DW1-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ15+U1+DW1-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ15+U1+DW1-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ15+U1+DW1-100, subject to availability and destination.
• Rotational speed controller
• 15 mm flush
• Start-up override time = approx. 30 s
• Up to 100 Hz

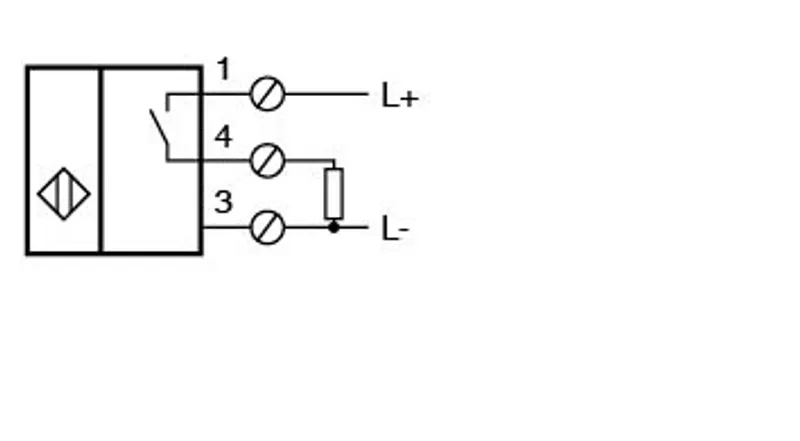

Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: VariKont ®, Series: VariKont ®, Operating voltage: 15 ... 60 V DC, Type of voltage: DC, Connection type: screw terminals, Housing material: PBT, Degree of protection: IP67
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 015950 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Frequency range | 10 ... 100 Hz , adjustable |
| Rated operating distance | 15 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.15 mm sa |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.85 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 15 ... 60 V DC UB |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V Ud |
| Operating current | 0 ... 100 mA IL |
| No-load supply current | ≤ 25 mA I0 |
| Switching state indicator | LED 1: yellow |
| Damping indicator | LED 2: yellow |
Safety-relevant product characteristics
| MTTFd | 820 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 100 mA |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | screw terminals |
| Information for connection | A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % |
| Core cross section | up to 2.5 mm2 |
| Minimum core cross-section | without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2 |
| Maximum core cross-section | without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2 |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |

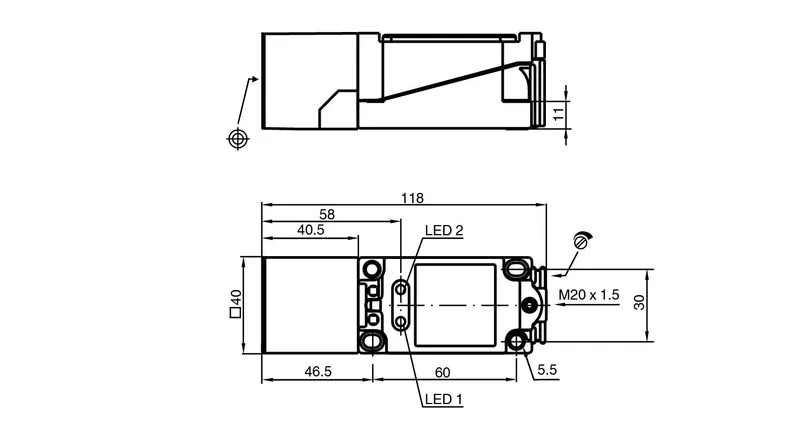

| Dimensions: Height | 40 mm |
| Dimensions: Width | 40 mm |
| Dimensions: Length | 118 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ15+U1+DW1-100 | |
| Installation conditions | PDF · 214 kB |
| Function description for speed monitors | PDF · 88 kB |
CAD & dimension drawings
| EPLAN macro NJ15+U1+DW1-100 | EDZ · 68 kB |
| 3-D model (STEP) NJ15+U1+DW1-10 | STP · 185 kB |
Certificates (3)
More Pepperl Fuchs parts
Available on requestInductive sensor NJ10-F-A2Available on requestInductive sensor NJ10-F-E2Available on requestInductive sensor NJ10-F-E2-10M-Y89586

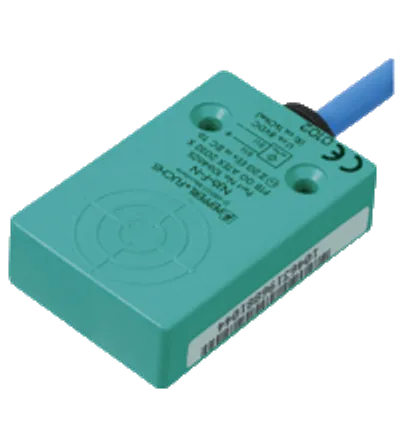

Available on requestInductive sensor NJ10-F-N

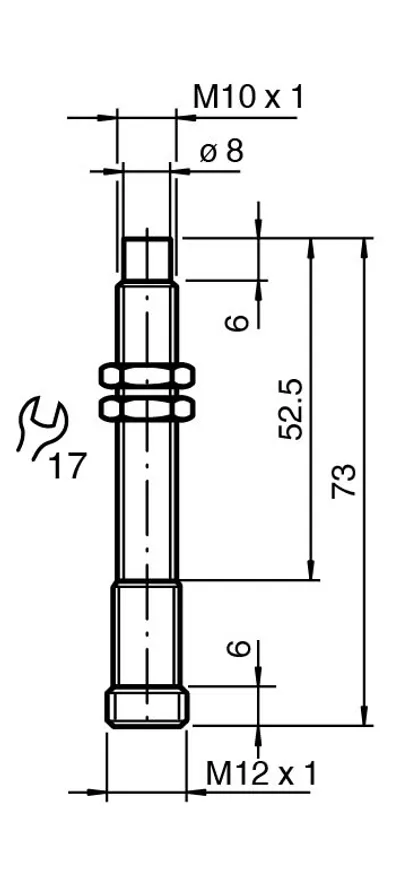

Available on requestInductive sensor NJ1,5-10GM-N-Y183937
