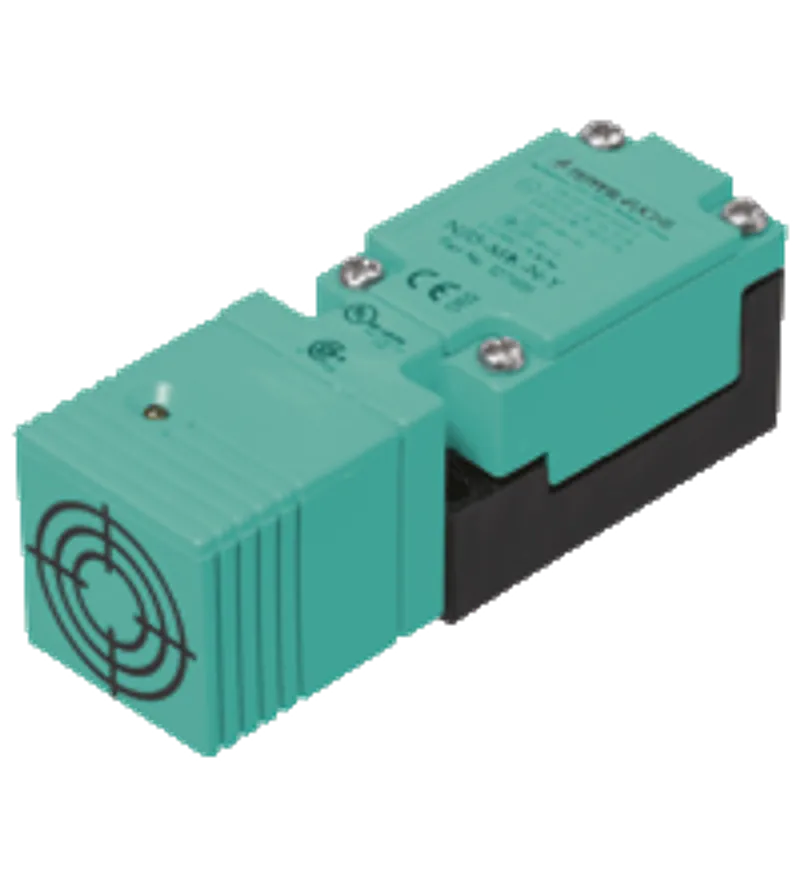

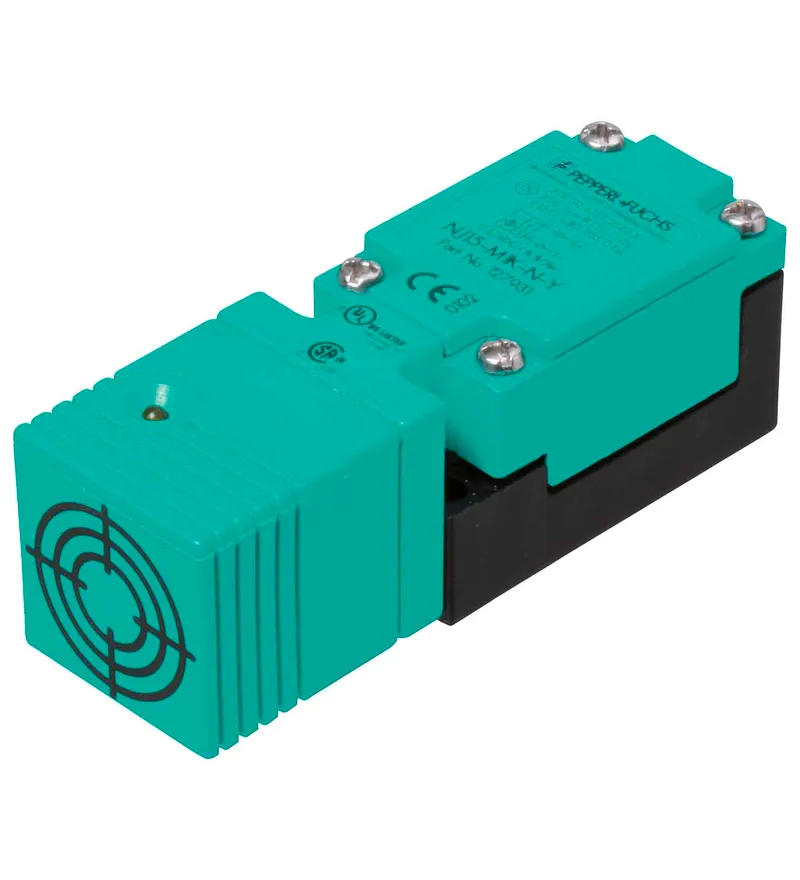

Pepperl Fuchs NJ15-M1K-N-Y127931 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ15-M1K-N-Y127931 be shipped?
NJ15-M1K-N-Y127931 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ15-M1K-N-Y127931 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ15-M1K-N-Y127931 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ15-M1K-N-Y127931, subject to availability and destination.
• Comfort series
• 15 mm non-flush
Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: non-flush, Output type: 2-wire, Construction type: Rectangular, Series: VariKont M ®, Type of voltage: DC, Equipment protection level Gb: IECEx PTB 11.0021X, Equipment protection level Da: IECEx PTB 11.0021X, Equipment protection level Mb: IECEx PTB 11.0021X, Equipment protection level Gb: PTB 00 ATEX 2032 X, Equipment protection level Da: PTB 00 ATEX 2032 X
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70133130 |

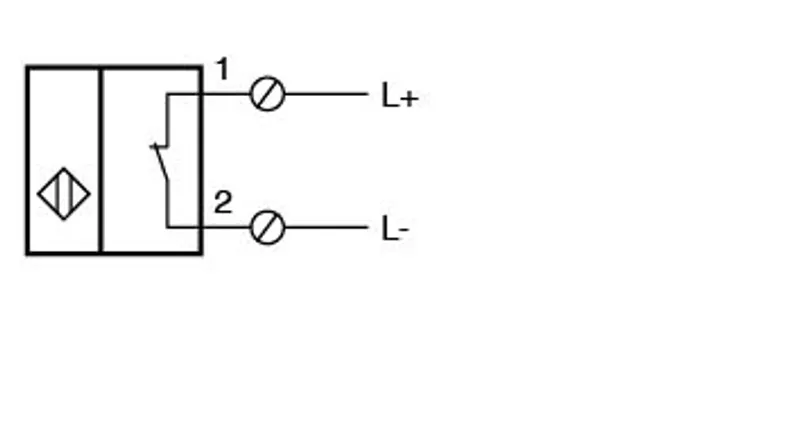

| Switching function | Normally closed (NC) |
| Output type | NAMUR |
| Rated operating distance | 15 mm sn |
| Installation | non-flush |
| Assured operating distance | 0 ... 12.15 mm sa |
| Actual operating distance | 13.5 ... 16.5 mm typ. sr |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.4 |
| Reduction factor r304 | 0.8 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) Uo |
| Switching frequency | 0 ... 100 Hz f |
| Current consumption: Measuring plate not detected | min. 3 mA |
| Current consumption: Measuring plate detected | ≤ 1 mA |
| Switching state indicator | LED, yellow |
Functional safety related parameters
| MTTFd | 2424 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| IECEx approval: Equipment protection level Gb | IECEx PTB 11.0021X |
| IECEx approval: Equipment protection level Da | IECEx PTB 11.0021X |
| IECEx approval: Equipment protection level Mb | IECEx PTB 11.0021X |
| ATEX approval: Equipment protection level Gb | PTB 00 ATEX 2032 X |
| ATEX approval: Equipment protection level Da | PTB 00 ATEX 2032 X |
| UL approval | cULus Listed, General Purpose |
| CML approval | on request |
| ANZEx | 19.3001X |
Ambient conditions
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |
Mechanical specifications
| Connection type | screw terminals |
| Information for connection | A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % |
| Core cross section | up to 2.5 mm2 |
| Minimum core cross-section | without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2 |
| Maximum core cross-section | without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2 |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |

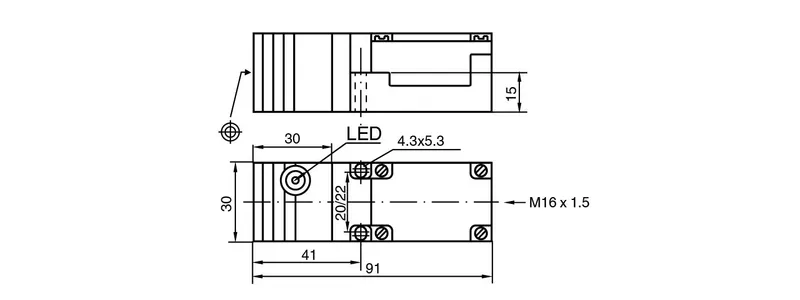

| Dimensions: Height | 30 mm |
| Dimensions: Width | 30 mm |
| Dimensions: Length | 91 mm |
General information
| Use in the hazardous area | see instruction manuals |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ15-M1K-N-Y127931 | |
| Instruction Manual | PDF · 183 kB |
| Installation conditions | PDF · 164 kB |
CAD & dimension drawings
| 3-D model (STEP) NJ15-M1K-N-Y127931 | STP · 469 kB |
Certificates (4)
More Pepperl Fuchs parts

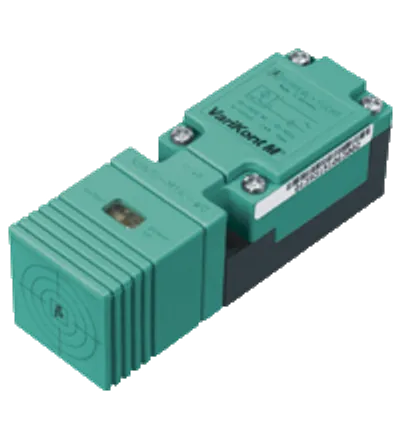

Available on requestInductive sensor NJ15-M1K-A2Available on requestInductive sensor NJ15-M1K-A2-V1

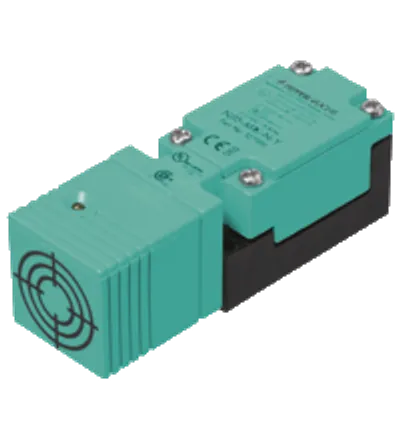

Available on requestInductive sensor NJ15-M1K-NAvailable on requestInductive sensor NJ15-M1K-N-V1

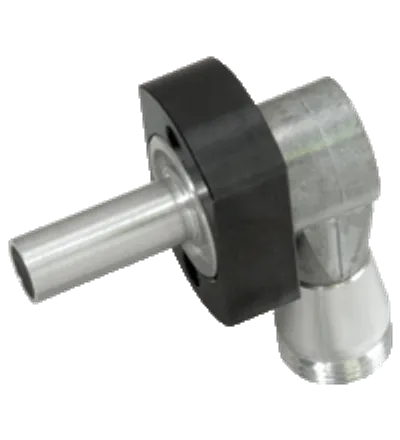

Available on requestInductive sensor NJ1.5-PD-E02-1.250-V95Available on requestInductive sensor NJ1.5-PD-US-1.250-V93

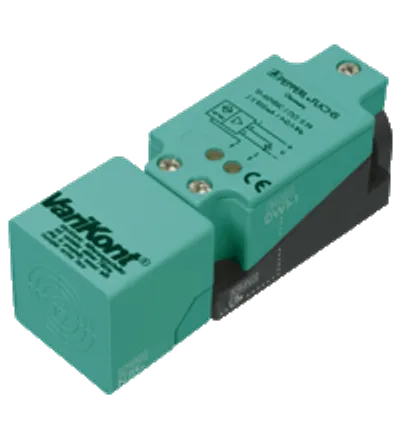

Available on requestInductive rotation speed monitor NJ15+U1+DW1-1Available on requestInductive rotation speed monitor NJ15+U1+DW1-10
