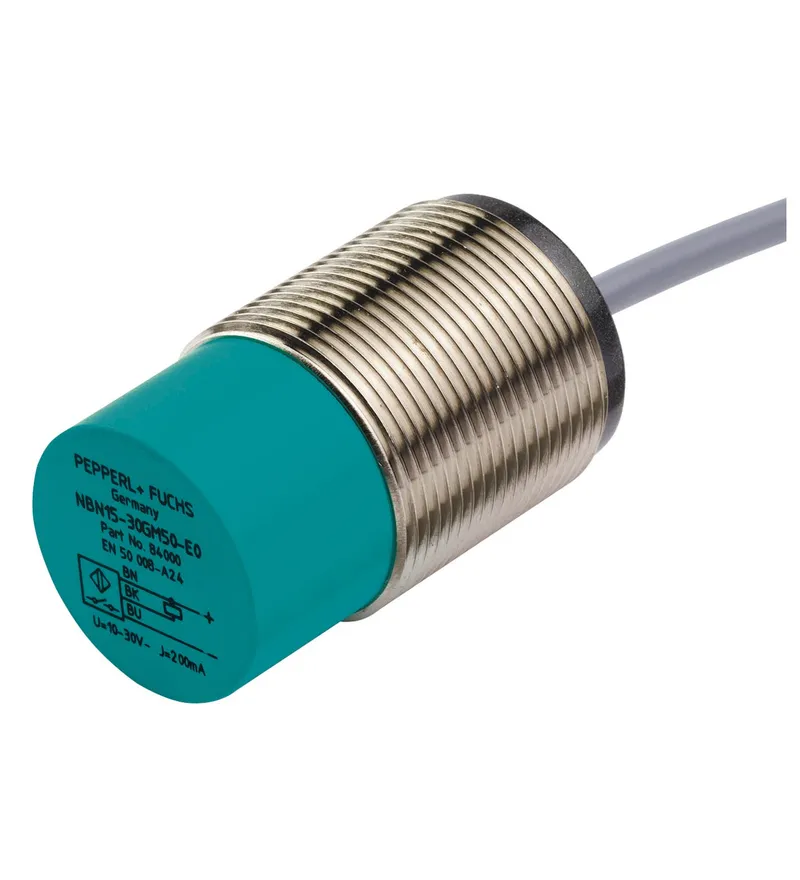

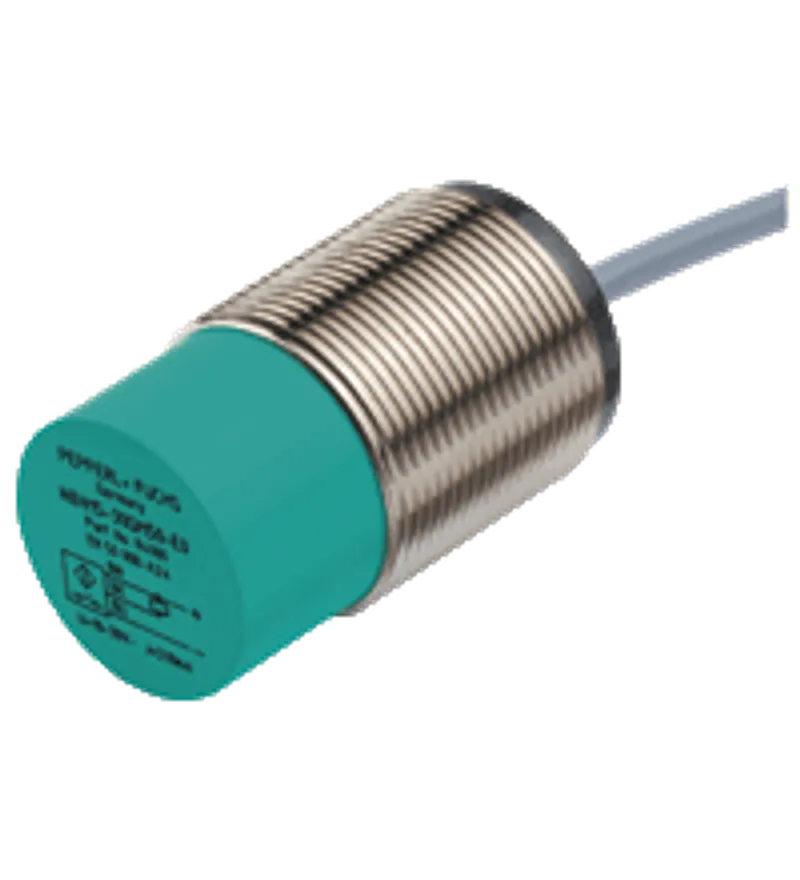

Pepperl Fuchs NJ15-30GM50-A2-5M – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ15-30GM50-A2-5M be shipped?
NJ15-30GM50-A2-5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ15-30GM50-A2-5M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ15-30GM50-A2-5M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ15-30GM50-A2-5M, subject to availability and destination.
• 15 mm non-flush
• Stainless steel housing
Switching function: complementary, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 222511 |
| Switching function | complementary |
| Output type | PNP |
| Rated operating distance | 15 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.15 mm sa |
| Actual operating distance | 13.5 ... 16.5 mm typ. 15 mm sr |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.4 |
| Reduction factor r304 | 0.8 |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 60 V UB |
| Switching frequency | 0 ... 300 Hz f |
| Hysteresis | typ. 5 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 400 mA IL |
| No-load supply current | ≤ 15 mA I0 |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 1190 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 400 mA |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 6.8 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | grey |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.75 mm2 |
| Cable: Length | 5 m L |

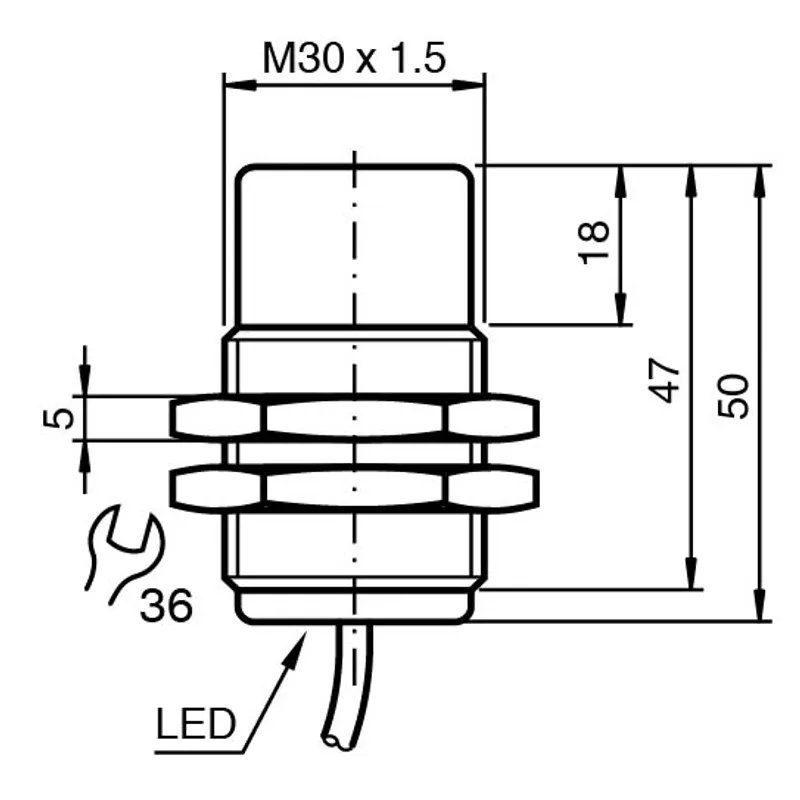

| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 30 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ15-30GM50-A2-5M | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NJ15-30GM50-A2 | STP · 52 kB |
| EPLAN macro NJ15-30GM50-A2-5M | EDZ · 66 kB |
Certificates (4)
More Pepperl Fuchs parts

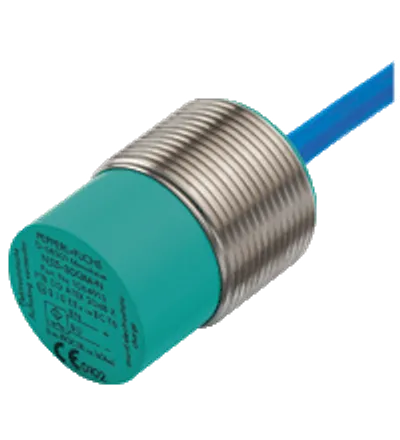

Available on requestInductive sensor NJ15-30GM-NAvailable on requestInductive sensor NJ15-30GM-N-10MAvailable on requestInductive sensor NJ15-30GM-N-5M

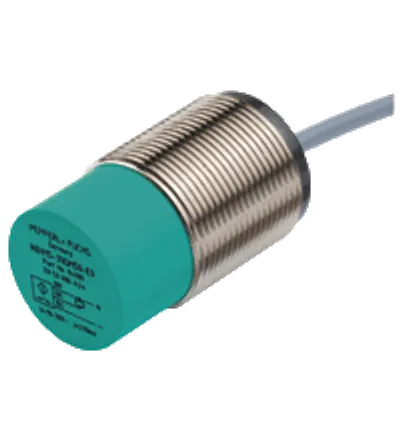

Available on requestInductive sensor NJ15-30GM50-A2

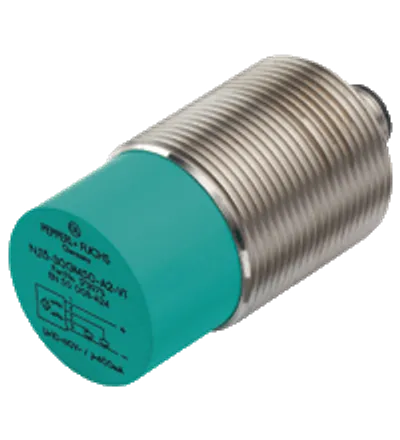

Available on requestInductive sensor NJ15-30GM50-A2-V1Available on requestInductive sensor NJ15-30GM50-E2-3G-3D

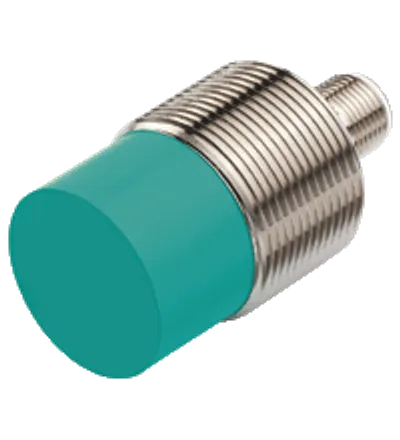

Available on requestInductive sensor NJ15-30GM50-E2-V1-3G-3D

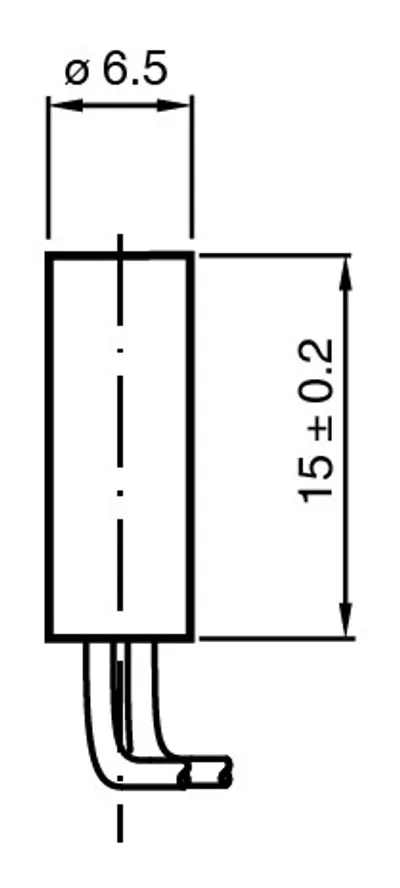

Available on requestInductive sensor NJ1,5-6,5-15-N-Y180094
