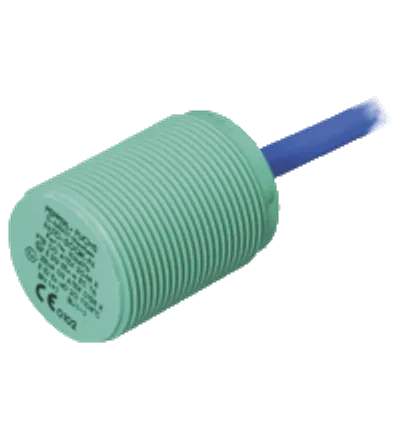

Pepperl Fuchs NJ15-30GK-E2-T – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ15-30GK-E2-T be shipped?
NJ15-30GK-E2-T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ15-30GK-E2-T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ15-30GK-E2-T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ15-30GK-E2-T, subject to availability and destination.
• Comfort series
• 15 mm non-flush
• Temperature range -25 ... 100 °C (-13 ... 212 °F)
Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP68, Material: PUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 006823 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 15 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.15 mm sa |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.85 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 300 Hz f |
| Hysteresis | 0 ... 8 % typ. 3 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 20 mA I0 |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
Ambient conditions
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP68 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 6.8 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.75 mm2 |
| Cable: Length | 2 m L |
| Mass | 200 g |
| Dimensions: Length | 80 mm |
| Dimensions: Diameter | 30 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ15-30GK-E2-T | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NJ10-30GK-E2-T-10M | STP · 56 kB |
| EPLAN macro NJ15-30GK-E2-T | EDZ · 61 kB |
Certificates (3)
More Pepperl Fuchs parts

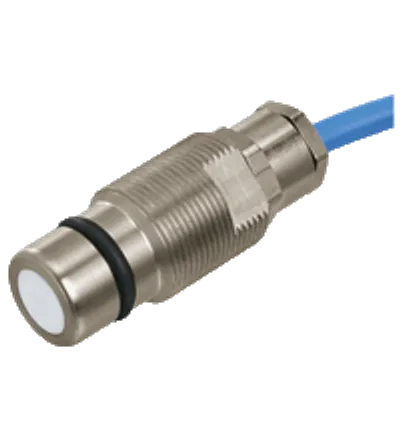

Available on requestInductive sensor NJ1,5-18GM-N-D-10M

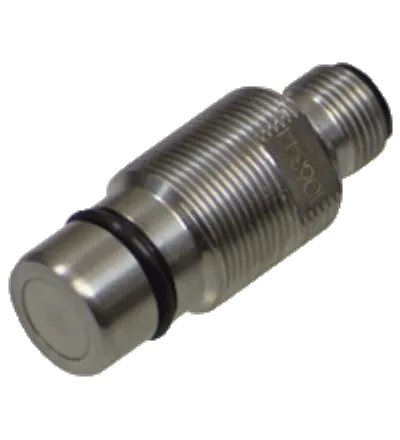

Available on requestInductive sensor NJ1,5-18GM-N-D-V1

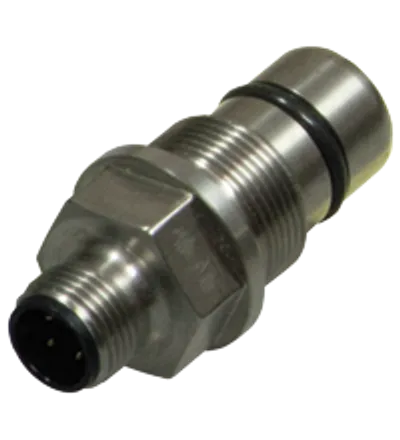

Available on requestInductive sensor NJ1,5-18GM-N-D-V1-Y29033
Available on requestInductive sensor NJ15-30GK-E-TAvailable on requestInductive sensor NJ15-30GK-E2-T-5M
Available on requestInductive sensor NJ15-30GK-NAvailable on requestInductive sensor NJ15-30GK-N-10M

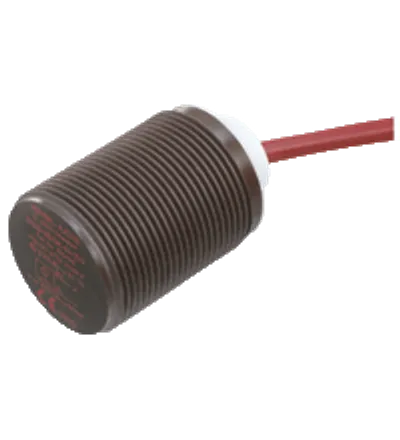

Available on requestInductive sensor NJ15-30GK-N-150
