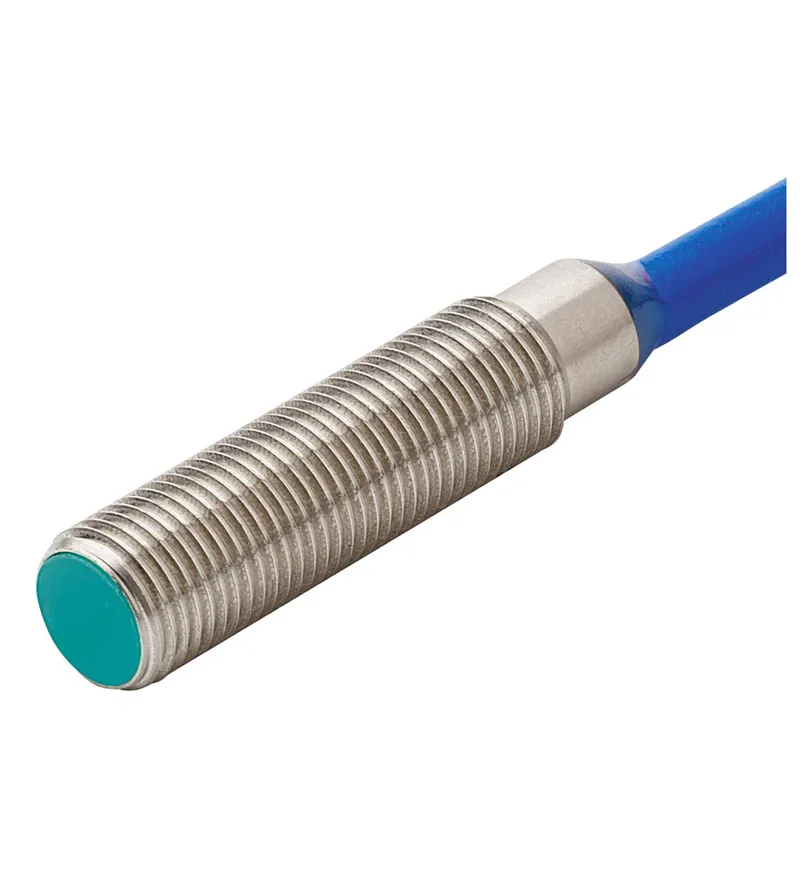

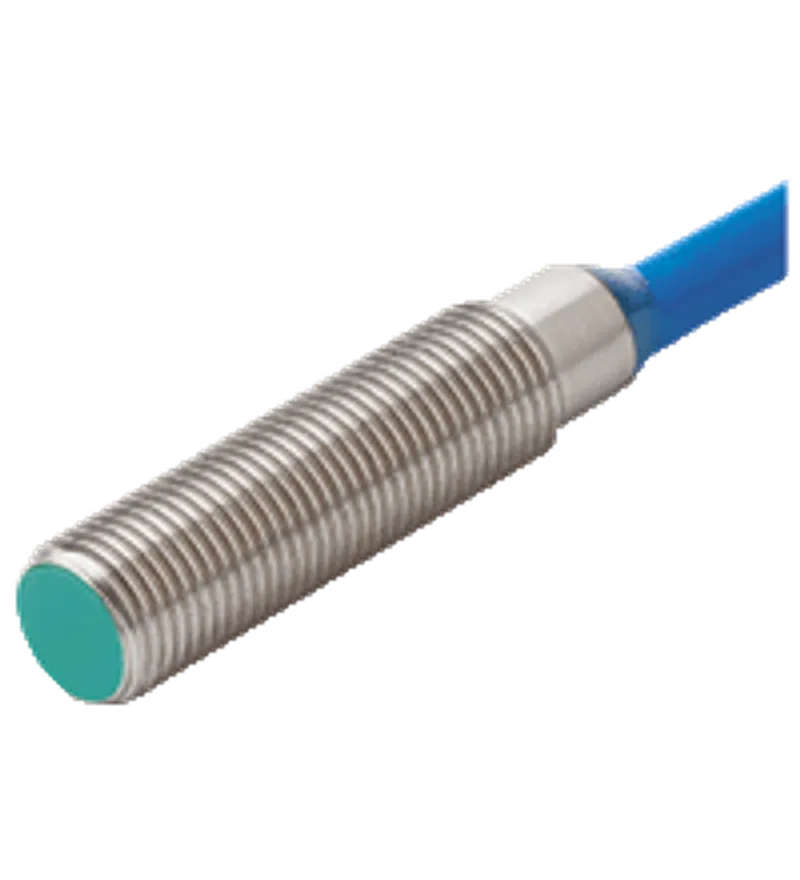

Pepperl Fuchs NJ0,8-5GM-N-Y70201468 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ0,8-5GM-N-Y70201468 be shipped?
NJ0,8-5GM-N-Y70201468 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ0,8-5GM-N-Y70201468 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ0,8-5GM-N-Y70201468 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ0,8-5GM-N-Y70201468, subject to availability and destination.
• 0.8 mm flush
• NAMUR output
Extended temperature range, Suitable for 2:1 technology, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Thread mold: M5, Construction type: Cylindrical, thread, Series: Cylindrical type, Suitable for 2:1 technology, Type of voltage: DC, Equipment protection level Ga: IECEx PTB 11.0037X, Equipment protection level Gb: IECEx PTB 11.0037X, Equipment protection level Da: IECEx PTB 11.0037X, Equipment protection level Mb: IECEx PTB 11.0037X
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70201468 |
| Switching function | Normally closed (NC) |
| Output type | NAMUR |
| Rated operating distance | 0.8 mm sn |
| Installation | flush |
| Assured operating distance | 0 ... 0.65 mm sa |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.85 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) Uo |
| Operating voltage | 5 ... 25 V UB |
| Switching frequency | 0 ... 5000 Hz f |
| Hysteresis | 3 % H |
| Suitable for 2:1 technology | yes , Reverse polarity protection diode not required |
| Current consumption: Measuring plate not detected | ≥ 3 mA at nominal voltage |
| Current consumption: Measuring plate detected | ≤ 1 mA at nominal voltage |
Safety-relevant product characteristics
| MTTFd | 1050 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| IECEx approval: Equipment protection level Ga | IECEx PTB 11.0037X |
| IECEx approval: Equipment protection level Gb | IECEx PTB 11.0037X |
| IECEx approval: Equipment protection level Da | IECEx PTB 11.0037X |
| IECEx approval: Equipment protection level Mb | IECEx PTB 11.0037X |
| ATEX approval: Equipment protection level Ga | PTB 00 ATEX 2048 X |
| ATEX approval: Equipment protection level Gb | PTB 00 ATEX 2048 X |
| ATEX approval: Equipment protection level Da | PTB 00 ATEX 2048 X |
| CML approval | on request |
Ambient conditions
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 2.6 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | blue |
| Cable: Number of cores | 2 |
| Cable: Core cross section | 0.14 mm2 |

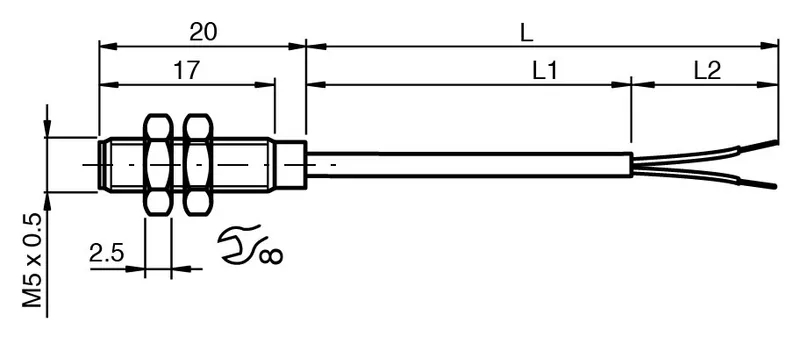

| Cable: Length | 250 mm further length specifications: L1 = 200 mm L2 = 50 mm L |
| Dimensions: Length | 20 mm |
| Dimensions: Diameter | 5 mm |
General information
| Use in the hazardous area | see instruction manuals |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ0,8-5GM-N-Y70201468 | |
| Instruction Manual | PDF · 185 kB |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NJ0,8-5GM-N-Y70201468 | STP · 28 kB |
| EPLAN macro NJ0,8-5GM-N-Y70201468 | EDZ · 63 kB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.4 MB |
| EU PTB ATEX ia 2G, 1G, 1D s. certificate (PTB 00 ATEX 2048 X) | PDF · 13.2 MB |
More Pepperl Fuchs parts

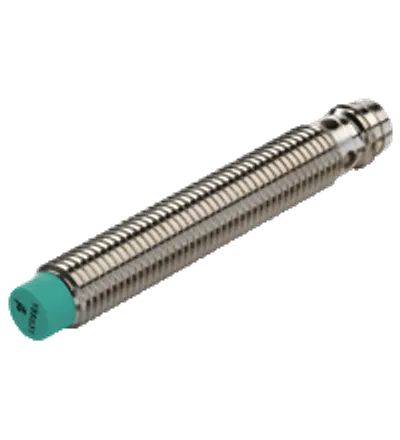

Available on requestInductive sensor NEN6-8GM40-E2-V3
Available on requestInductive sensor NEN6-8GM40-E3-PUR

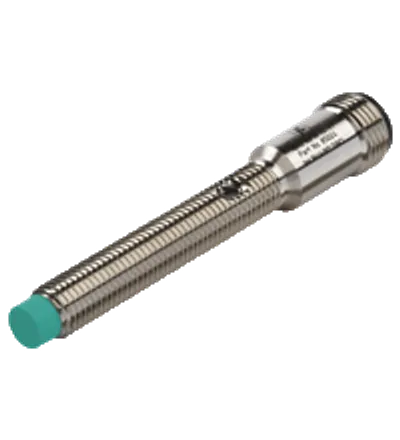

Available on requestInductive sensor NEN6-8GM40-E3-V1Available on requestInductive sensor NEN6-8GM40-E3-V3

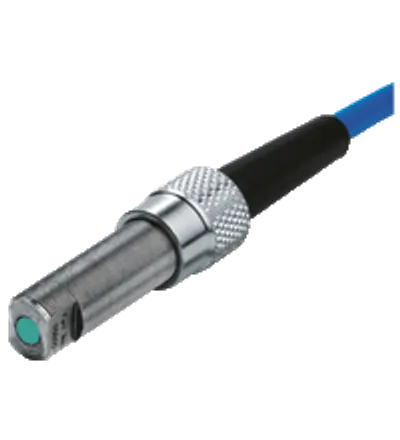

Available on requestInductive sensor NJ0,2-10GM-NAvailable on requestInductive sensor NJ0,2-10GM-N-Y199308

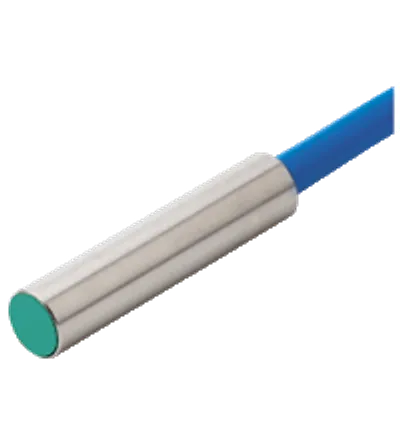

Available on requestInductive sensor NJ0,8-4,5-NAvailable on requestInductive sensor NJ0,8-4,5-N-Y30948
