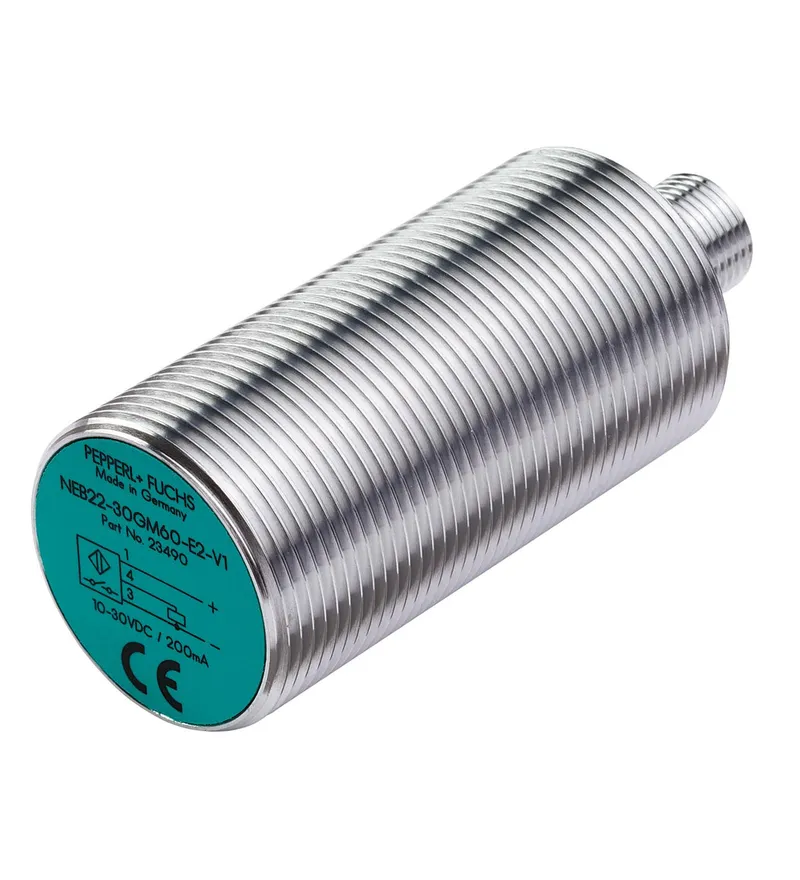

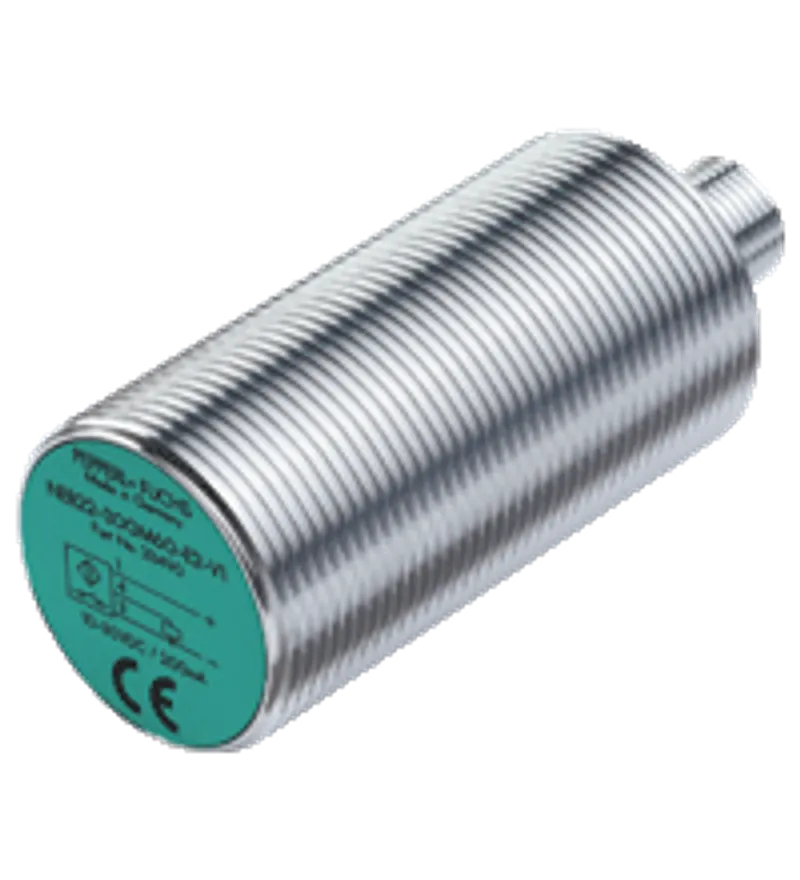

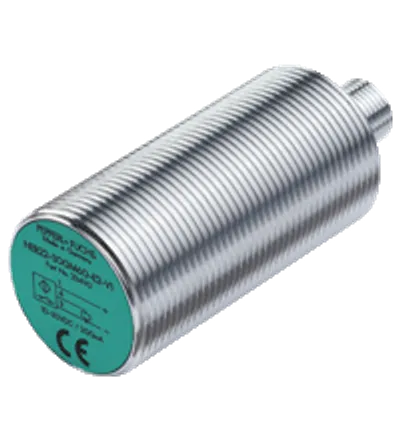

Pepperl Fuchs NEB22-30GM60-E2-V1 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NEB22-30GM60-E2-V1 be shipped?
NEB22-30GM60-E2-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NEB22-30GM60-E2-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NEB22-30GM60-E2-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NEB22-30GM60-E2-V1, subject to availability and destination.
• 22 mm quasi flush
• Increased operating distance
Switching function: Normally open (NO), Output type: PNP, Installation: quasi flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: chromium plated brass, Degree of protection: IP67, Threading: M12 x 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 023490 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 22 mm sn |
| Installation | quasi flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 17.8 mm sa |
| Reduction factor rAl | 0.25 |
| Reduction factor rCu | 0.22 |
| Reduction factor r304 | 0.65 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Installation conditions: A | 6 mm |
| Installation conditions: B | 37 mm |
| Installation conditions: C | 66 mm |
| Installation conditions: F | 80 mm |
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 150 Hz f |
| Hysteresis | ≤ 10 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 5 V Ud |
| Operating current | 0 ... 200 mA IL |
| Off-state current | ≤ 0.1 mA Ir |
| No-load supply current | ≤ 10 mA I0 |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 213 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | chromium plated brass |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 4 |
| Dimensions: Length | 73.5 mm |
| Dimensions: Diameter | 30 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NEB22-30GM60-E2-V1 | |
| Installation conditions | PDF · 1.1 MB |

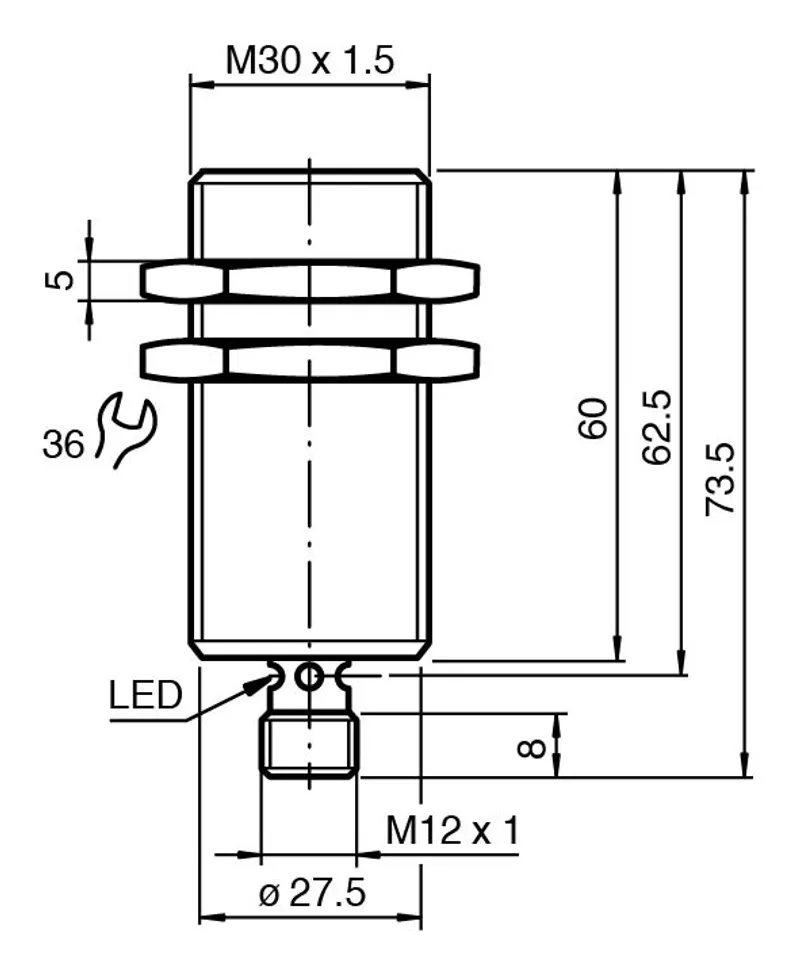

CAD & dimension drawings
| EPLAN macro NEB22-30GM60-E2-V1 | EDZ · 72 kB |
| 3-D model (STEP) NEB22-30GM60-E2-V1 | STP · 75 kB |
Certificates (3)
| China Information on CCC (CCC-Exempt Declaration (Pepperl+Fuchs)) | PDF · 467 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.2 MB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
