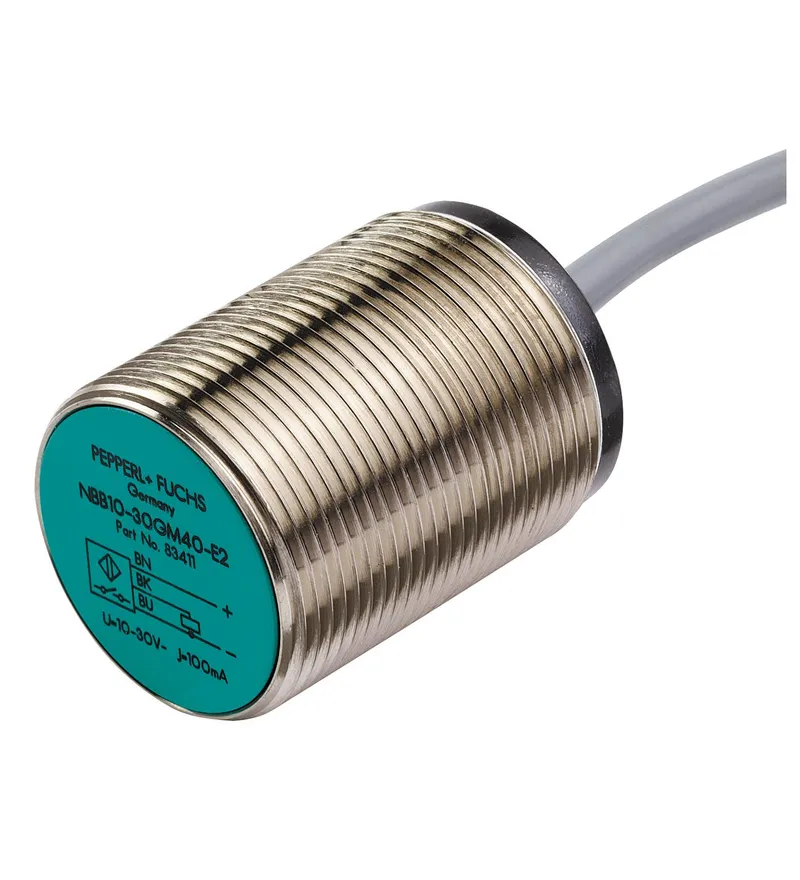

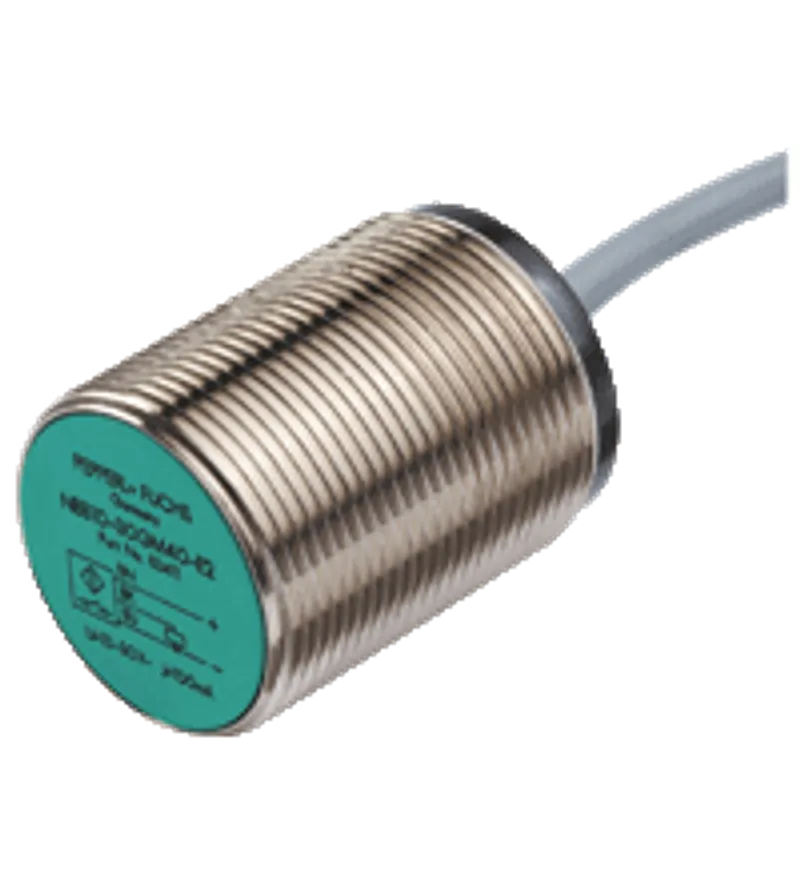

Pepperl Fuchs NCB10-30GM40-Z0-Y70166634

Inductive sensor

MPN
NCB10-30GM40-Z0-Y70166634
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs NCB10-30GM40-Z0-Y70166634?

Comfort series

10 mm flush

2-wire DC

Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67

Specifications

General specifications

Order code (Pepperl+Fuchs part number)70166634
Switching functionNormally open (NO)
Output typeTwo-wire
Rated operating distance10 mm sn
Installationflush
Output polarityDC
Assured operating distance0 ... 8.1 mm sa
Actual operating distance9 ... 11 mm typ. sr
Reduction factor rAl0.32
Reduction factor rCu0.28
Reduction factor r3040.7
Output type2-wire
LifecycleActive (current Pepperl+Fuchs product)

Nominal ratings

Operating voltage5 ... 60 V UB
Switching frequency0 ... 150 Hz f
Hysteresis1 ... 10 % typ. 5 % H
Reverse polarity protectionreverse polarity tolerant
Short-circuit protectionpulsing
Voltage drop≤ 5 V Ud
Operating current2 ... 100 mA IL
Lowest operating current2 mA Im
Off-state current0 ... 0.5 mA typ. Ir
Time delay before availability≤ tv
Switching state indicatorall direction LED, yellow

Safety-relevant product characteristics

MTTFd1830 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %

Compliance with standards and directives

Standard conformity: StandardsEN IEC 60947-5-2

Approvals and certificates

UL approvalUL Recognized , Class 2 power source

Ambient conditions

Ambient temperature-25 ... 70 °C (-13 ... 158 °F)

Mechanical specifications

Connection typefixed cable with plug
Housing materialStainless steel 1.4305 / AISI 303
Sensing facePBT
Degree of protectionIP67

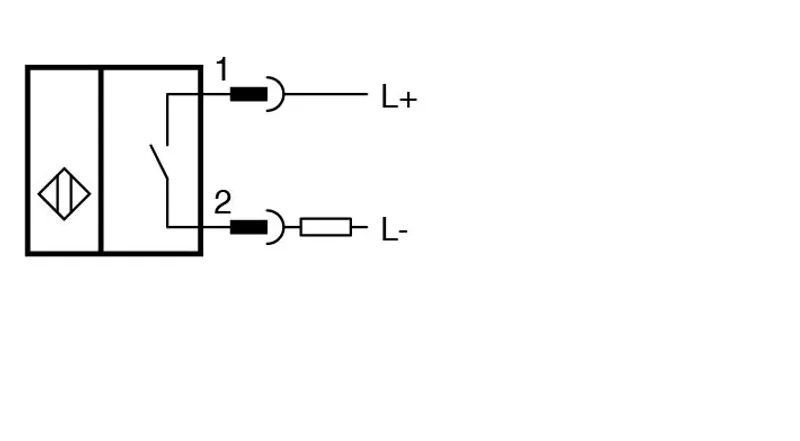

Connector: Number of pins2
Connector: Connection assemblyDeutsch connector DT04-2P-CE04 Deutsch contact 1060-16-0644 Deutsch wedge W2P Deutsch retaining clip 1027-003-1200 Copat protective sleeve: 1/20392/87EY
Cable: Cable diameter4.3 mm ± 0.1 mm
Cable: Bending radius> 15 x cable diameter
Cable: MaterialPUR
Cable: Colorblack
Cable: Number of cores2
Cable: Core cross section0.5 mm2
Cable: Length0.42 m L
Cable: Cable protectionPanduit flexible conduit SE25P-MR8

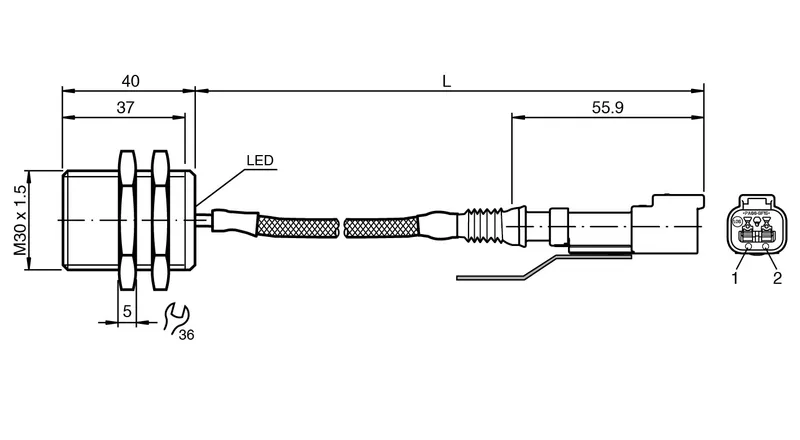

Dimensions: Length40 mm
Dimensions: Diameter30 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

NCB10-30GM40-Z0-Y70166634: frequently asked questions

When can NCB10-30GM40-Z0-Y70166634 be shipped?

NCB10-30GM40-Z0-Y70166634 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NCB10-30GM40-Z0-Y70166634 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NCB10-30GM40-Z0-Y70166634 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NCB10-30GM40-Z0-Y70166634, subject to availability and destination.
