Pepperl Fuchs NCB1,5-8GM40-Z0-10M-Y314871 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NCB1,5-8GM40-Z0-10M-Y314871 be shipped?
NCB1,5-8GM40-Z0-10M-Y314871 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NCB1,5-8GM40-Z0-10M-Y314871 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NCB1,5-8GM40-Z0-10M-Y314871 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NCB1,5-8GM40-Z0-10M-Y314871, subject to availability and destination.
• 1.5 mm flush

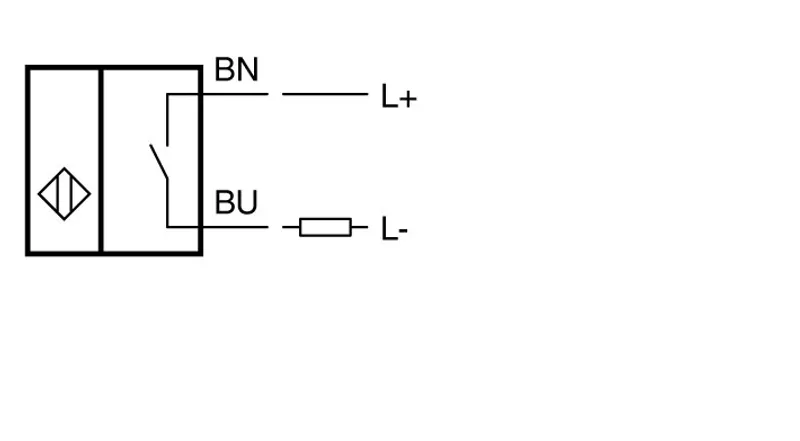

• 2-wire DC
Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 314871 |
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 1.5 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.21 mm sa |
| Actual operating distance | 1.35 ... 1.65 mm typ. sr |
| Reduction factor rAl | 0.22 |
| Reduction factor rCu | 0.16 |
| Reduction factor r304 | 0.64 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 5 ... 60 V UB |
| Switching frequency | 0 ... 1200 Hz f |
| Hysteresis | 1 ... 10 % typ. 5 % H |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 5 V Ud |
| Operating current | 2 ... 100 mA IL |
| Lowest operating current | 2 mA Im |
| Off-state current | 0 ... 0.5 mA typ. Ir |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | LCP |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 2.8 mm ± 0.1 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 2 |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 10 m L |

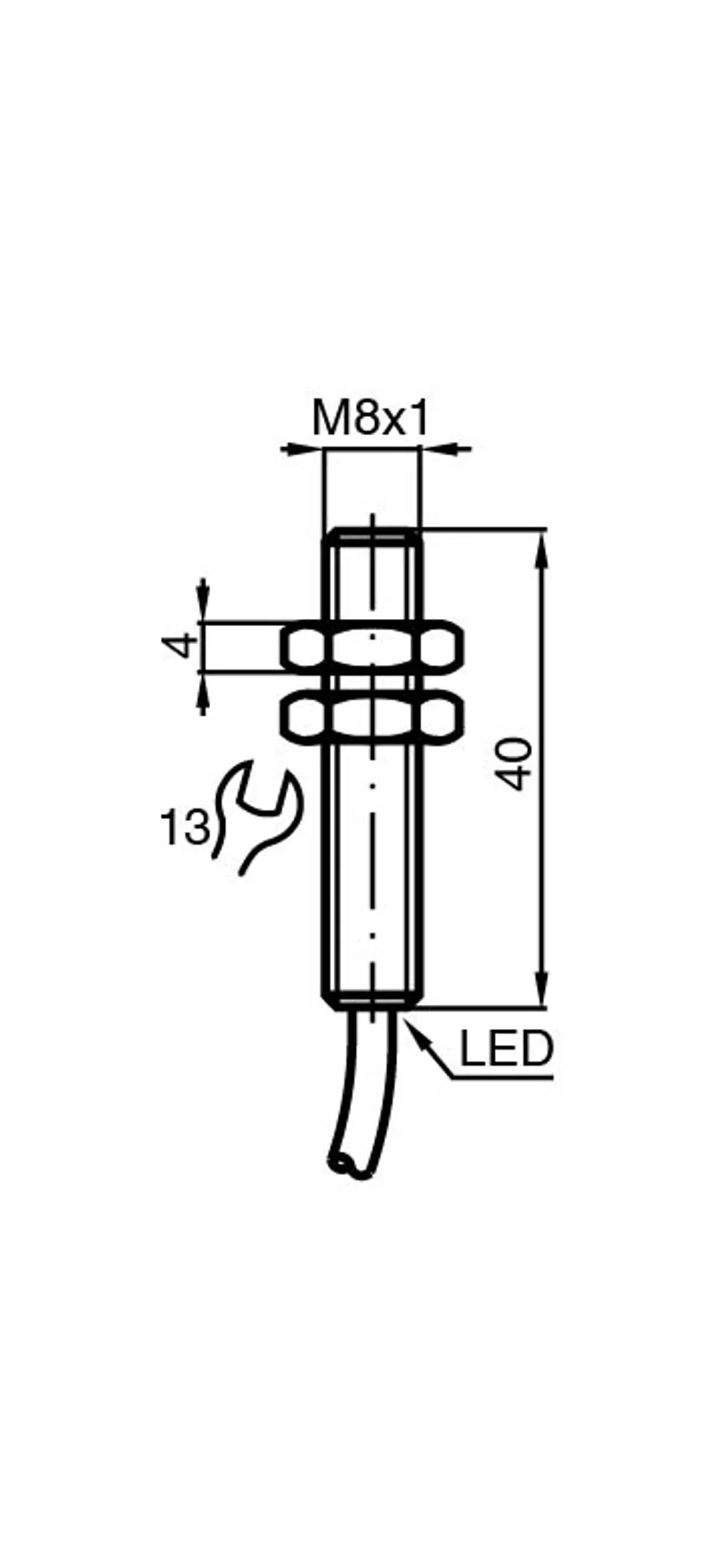

| Dimensions: Length | 40 mm |
| Dimensions: Diameter | 8 mm |
General information
| Scope of delivery | wire end ferrule enclosed |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NCB1,5-8GM40-Z0-10M-Y314871 |
CAD & dimension drawings
| 3-D model (STEP) NCB1,5-8GM40-Z1 | STP · 109 kB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
More Pepperl Fuchs parts

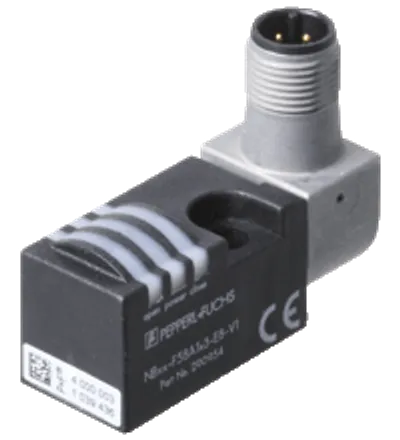

Available on requestInductive power clamp sensor NBxx-F58A1x3-E8-V1

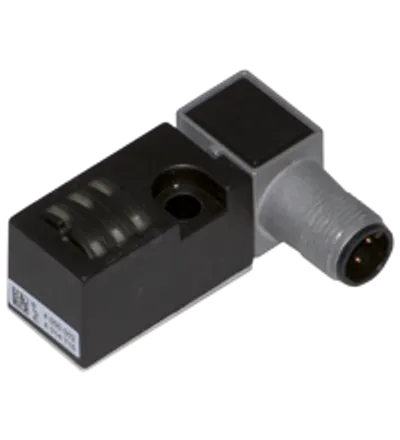

Available on requestInductive power clamp sensor NBxx-F58A3x3-E8-V1

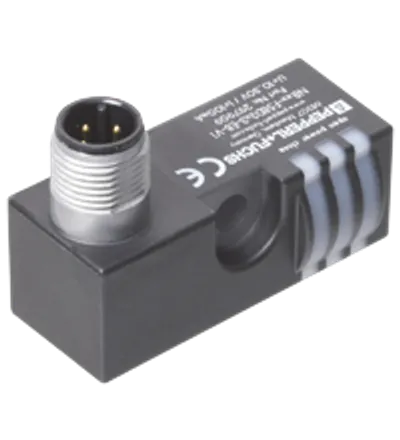

Available on requestInductive power clamp sensor NBxx-F58D3x3-E8-V1

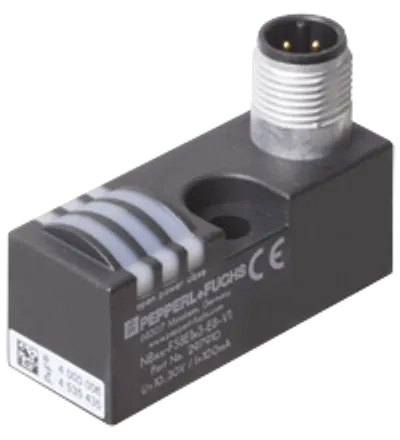

Available on requestInductive power clamp sensor NBxx-F58E1x3-E8-V1

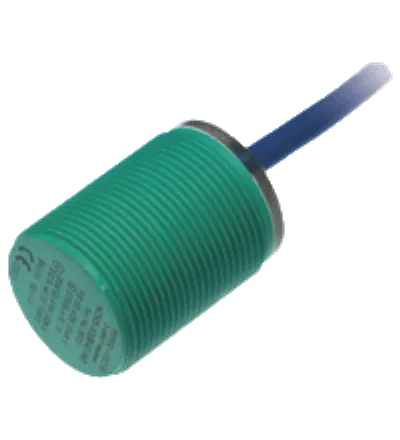

Available on requestInductive sensor NCB10-30GK40-N0
