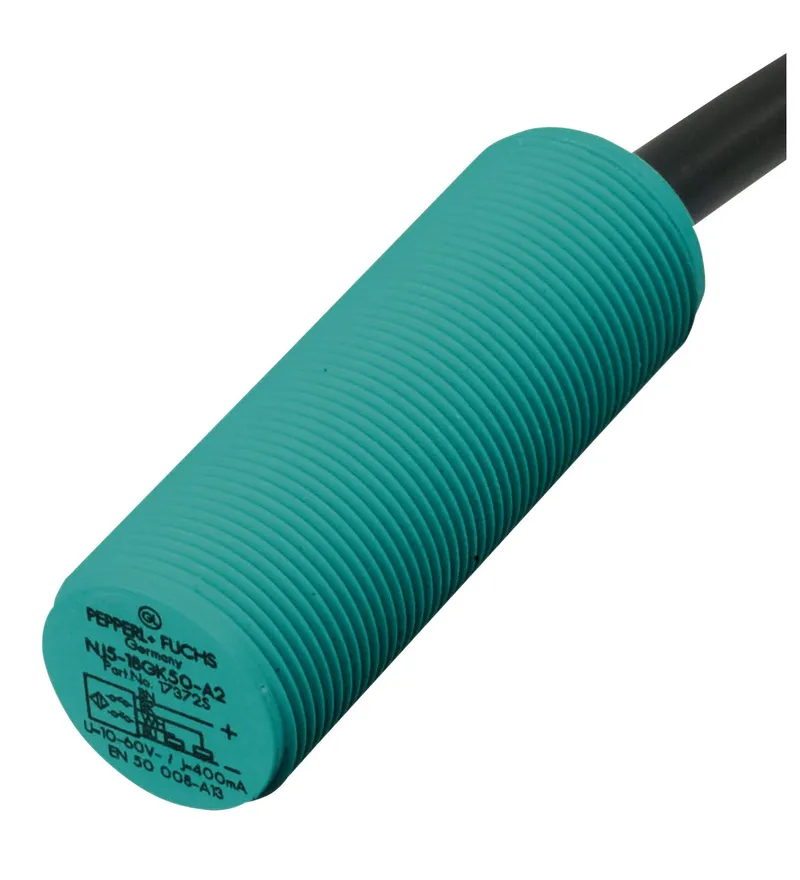

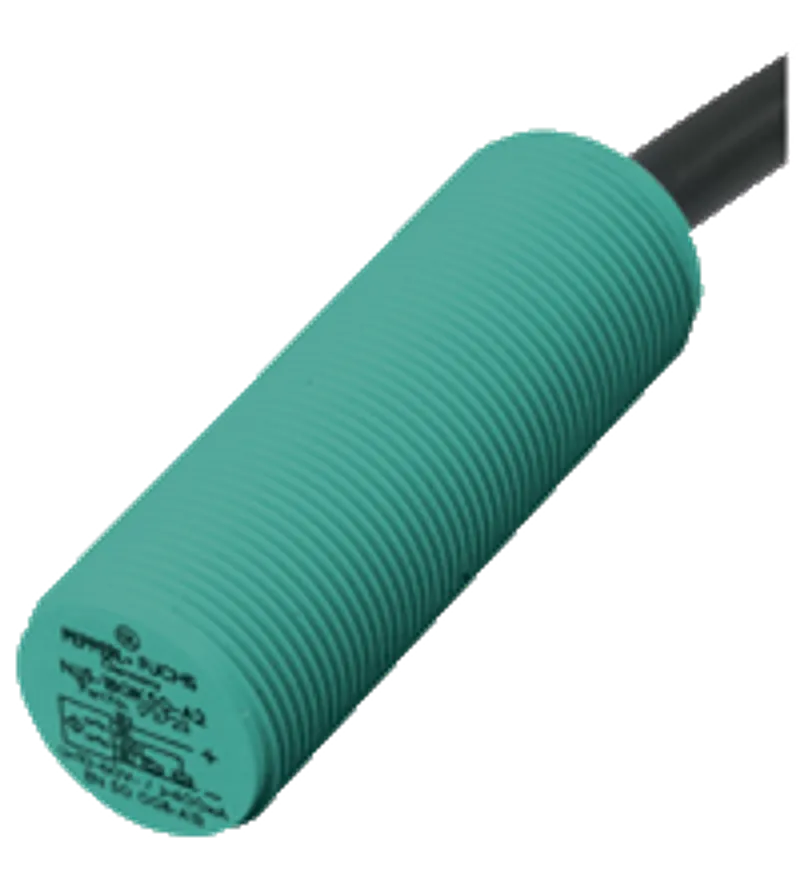

Pepperl Fuchs NBN8-18GK50-E1-5M – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBN8-18GK50-E1-5M be shipped?
NBN8-18GK50-E1-5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBN8-18GK50-E1-5M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBN8-18GK50-E1-5M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBN8-18GK50-E1-5M, subject to availability and destination.
Switching function: Normally closed (NC), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 199977 |

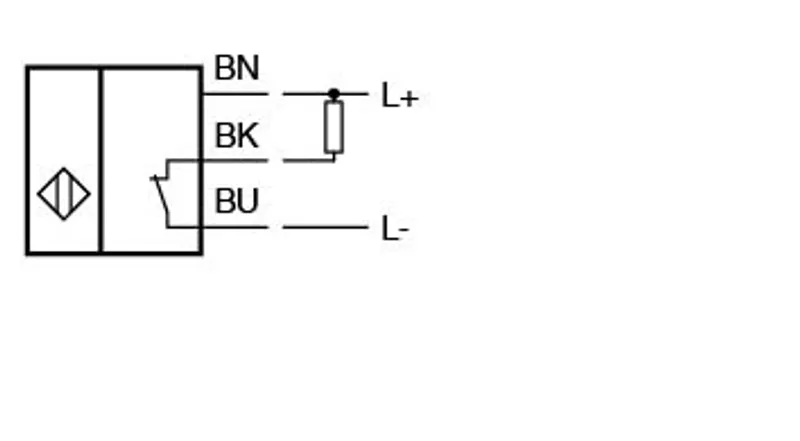

| Switching function | Normally closed (NC) |
| Output type | NPN |
| Rated operating distance | 8 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 6.48 mm sa |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.7 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 500 Hz f |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 100 mA IL |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C Ir |
| No-load supply current | ≤ 15 mA I0 |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4.6 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | grey |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 5 m L |

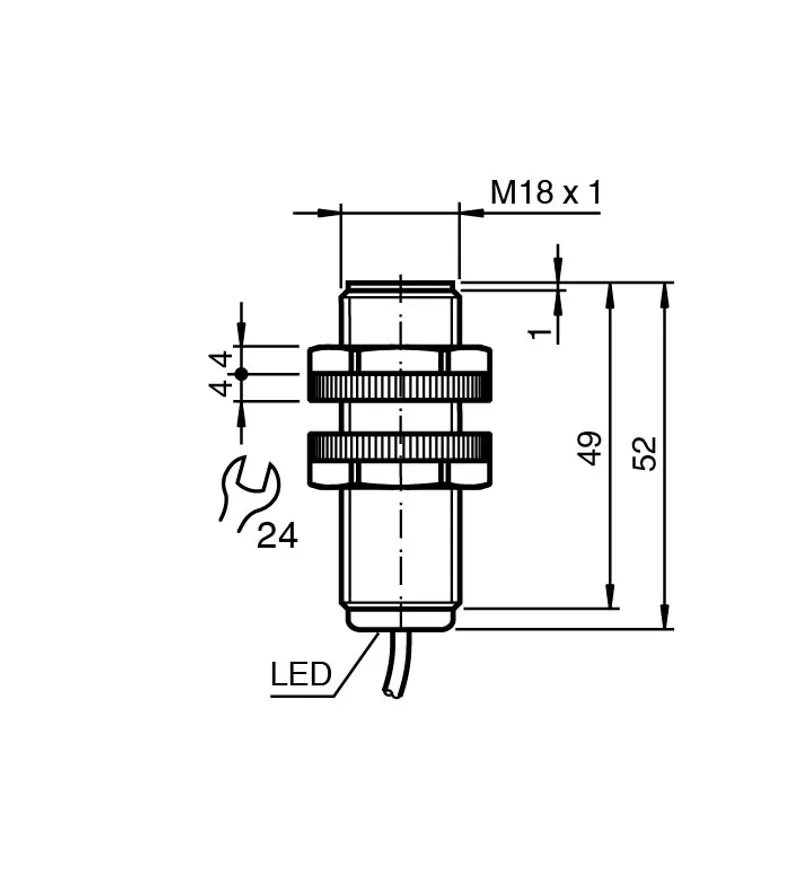

| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 18 mm |
| Note | use only delivered nuts |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBN8-18GK50-E1-5M | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NJ5-18GK50-A2 | STP · 56 kB |
| EPLAN macro NBN8-18GK50-E1-5M | EDZ · 65 kB |
Certificates (2)
| China Information on CCC (CCC-Exempt Declaration (Pepperl+Fuchs)) | PDF · 467 kB |
| Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3) | PDF · 1.8 MB |
More Pepperl Fuchs parts

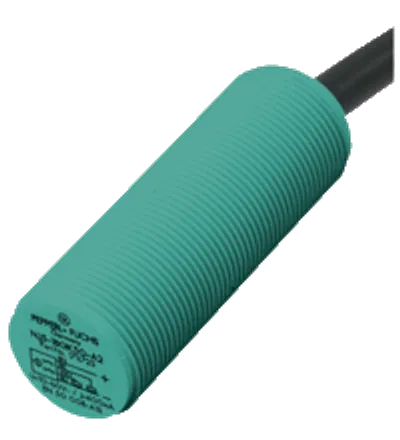

Available on requestInductive sensor NBN8-18GK50-A2-Y70158255Available on requestInductive sensor NBN8-18GK50-E0Available on requestInductive sensor NBN8-18GK50-E0-0,3M-Y70174828Available on requestInductive sensor NBN8-18GK50-E0-5MAvailable on requestInductive sensor NBN8-18GK50-E2Available on requestInductive sensor NBN8-18GK50-E2-5M

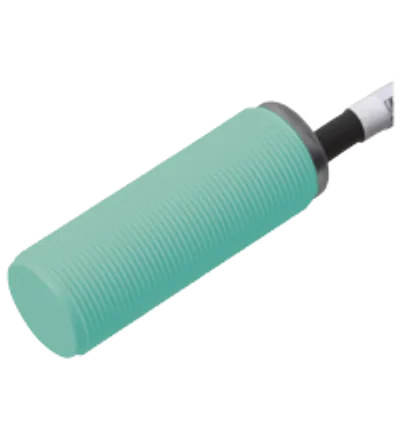

Available on requestInductive sensor NBN8-18GK50-Z1-1,1M-Y

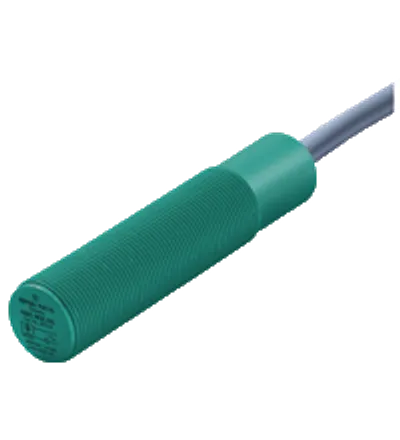

Available on requestInductive sensor NBN8-18GK60-E2-10M
