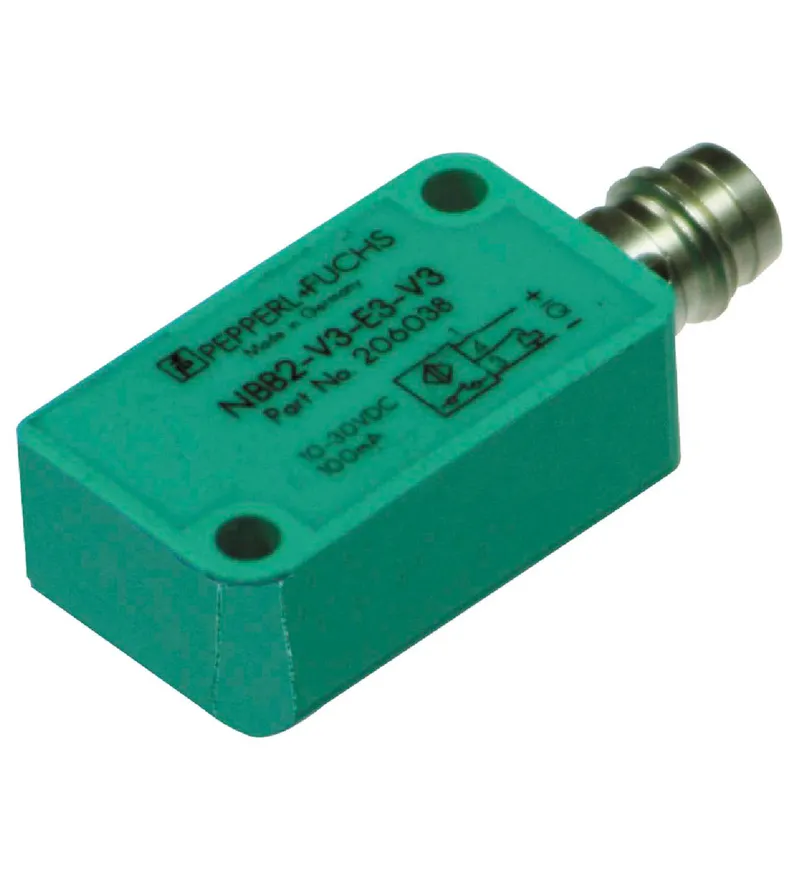

Pepperl Fuchs NBN6-V3-E3-V3 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBN6-V3-E3-V3 be shipped?
NBN6-V3-E3-V3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBN6-V3-E3-V3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBN6-V3-E3-V3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBN6-V3-E3-V3, subject to availability and destination.
• 6 mm non-flush
• 3-wire DC
Switching function: Normally closed (NC), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: PBT, Degree of protection: IP67, Threading: M8 x 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 225248 |
| Switching function | Normally closed (NC) |
| Output type | PNP |
| Rated operating distance | 6 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 4.8 mm sa |
| Reduction factor rAl | 0.35 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.7 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 0 ... 1000 Hz f |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 100 mA IL |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C Ir |
| No-load supply current | ≤ 15 mA I0 |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 1920 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector: Threading | M8 x 1 |
| Connector: Number of pins | 3 |
| Tightening torque, fastening screws | ≤ 0.4 Nm |

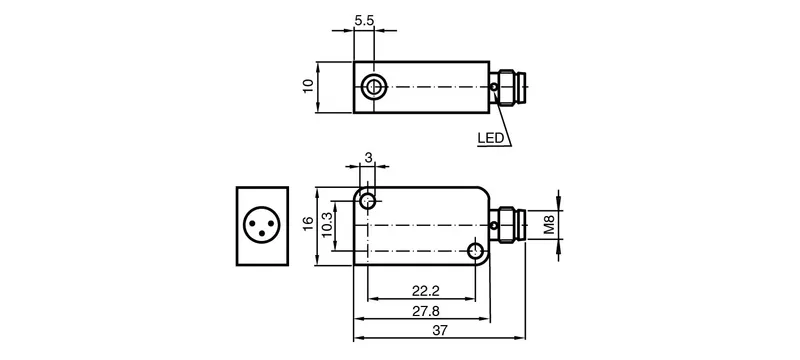

| Dimensions: Height | 10.2 mm |
| Dimensions: Width | 27.8 mm |
| Dimensions: Length | 16 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBN6-V3-E3-V3 |
CAD & dimension drawings
| EPLAN macro NBN6-V3-E3-V3 | EDZ · 65 kB |
| 3-D model (STEP) NBN6-V3-E1-V3 | STP · 114 kB |
Certificates (3)
| China Information on CCC (CCC-Exempt Declaration (Pepperl+Fuchs)) | PDF · 467 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.2 MB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
More Pepperl Fuchs parts

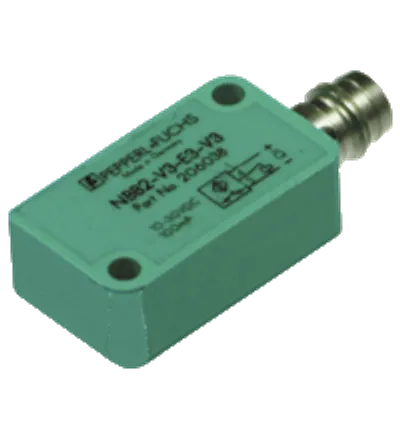

Available on requestInductive sensor NBN6-V3-E1-V3

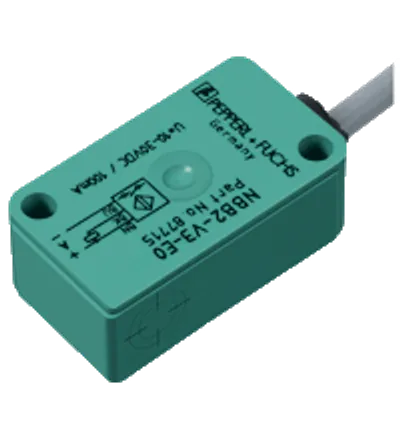

Available on requestInductive sensor NBN6-V3-E2Available on requestInductive sensor NBN6-V3-E2-V3Available on requestInductive sensor NBN6-V3-E3
