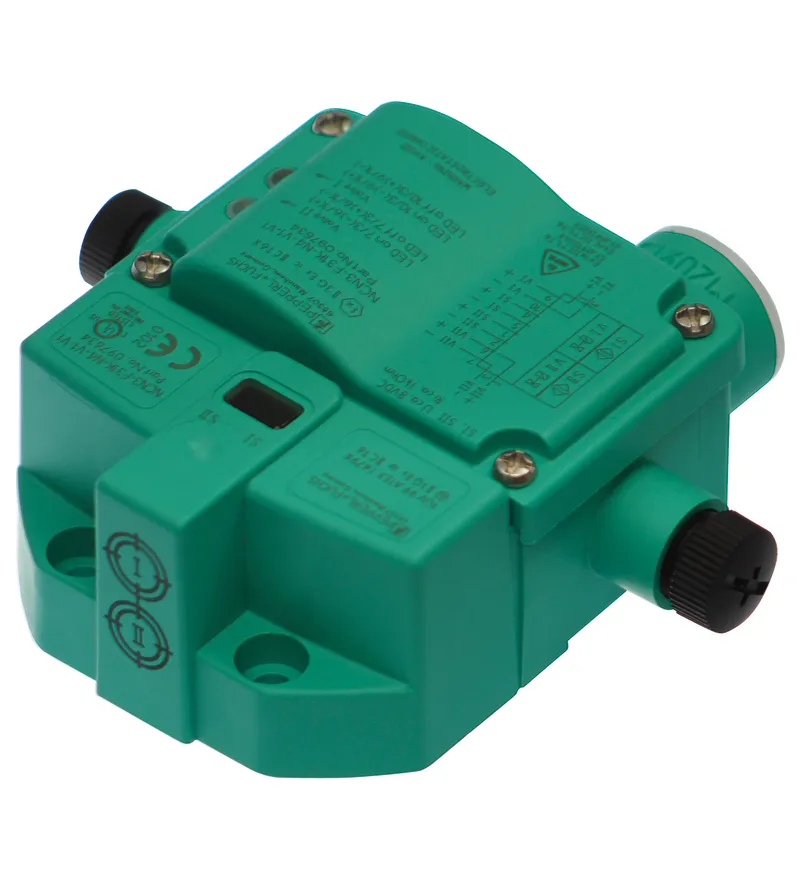

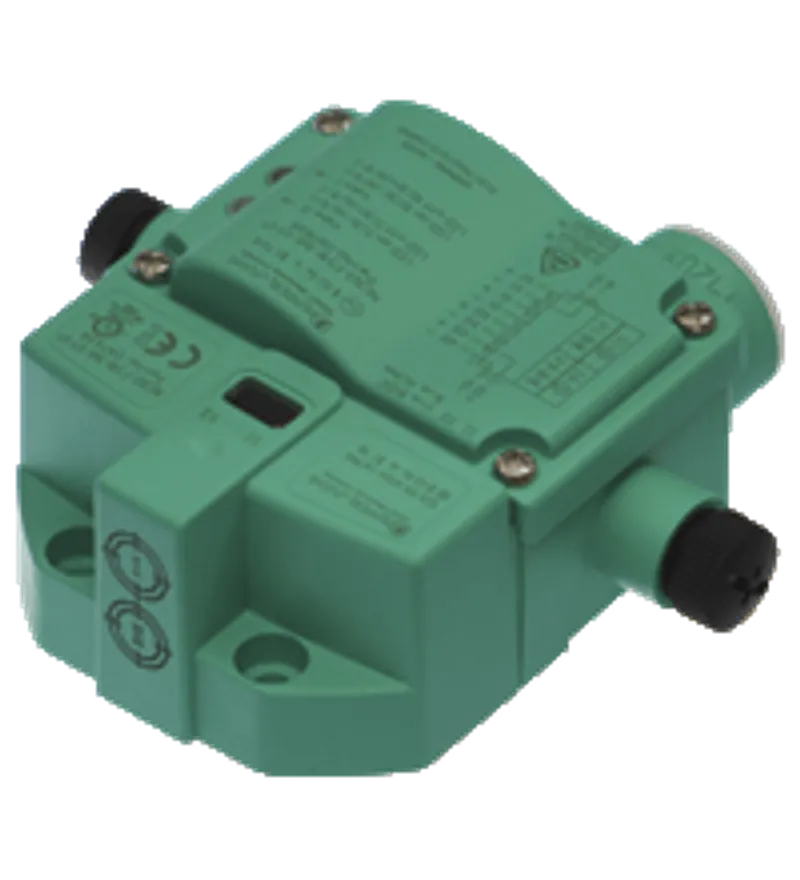

Pepperl Fuchs NBN3-F31K-Z8-V1-V1 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBN3-F31K-Z8-V1-V1 be shipped?
NBN3-F31K-Z8-V1-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBN3-F31K-Z8-V1-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBN3-F31K-Z8-V1-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBN3-F31K-Z8-V1-V1, subject to availability and destination.
• Direct mounting on standard actuators
• Fixed setting
• LEDs for switching state of sensor and solenoid valve
Valve position detection, Solenoid valve output, Switching function: 2 x normally open (NO), Output type: Two-wire, Installation: flush mountable, Output polarity: DC, Output type: 4-wire, Construction type: Dual sensor, Series: Dual sensor, Operating voltage: 6 ... 60 V DC, Type of voltage: DC, Connection (system side): Cage tension spring terminals, Housing material: PBT, Degree of protection: IP67
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 282692 |
| Switching function | 2 x normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 3 mm sn |
| Installation | flush mountable |
| Output polarity | DC |
| Assured operating distance | 0 ... 2.43 mm sa |
| Actual operating distance | 2.7 ... 3.3 mm typ. 3 mm sr |
| Reduction factor rAl | 0.5 |
| Reduction factor rCu | 0.4 |
| Reduction factor r304 | 1 |
| Reduction factor rSt37 | 1.1 |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 6 ... 60 V DC UB |
| Switching frequency | 0 ... 500 Hz f |
| Hysteresis | typ. 5 % H |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 5.5 V Ud |
| Operating current | 4 ... 100 mA IL |
| Lowest operating current | 4 mA Im |
| Off-state current | 0.5 ... 0.9 mA typ. 0.65 mA Ir |
| Time delay before availability | ≤ 40 ms tv |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
| Valve status indicator | LED, yellow |
Limit data
| Tightening torque, fastening screws | 0.4 Nm |
Safety-relevant product characteristics
| MTTFd | 570 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |

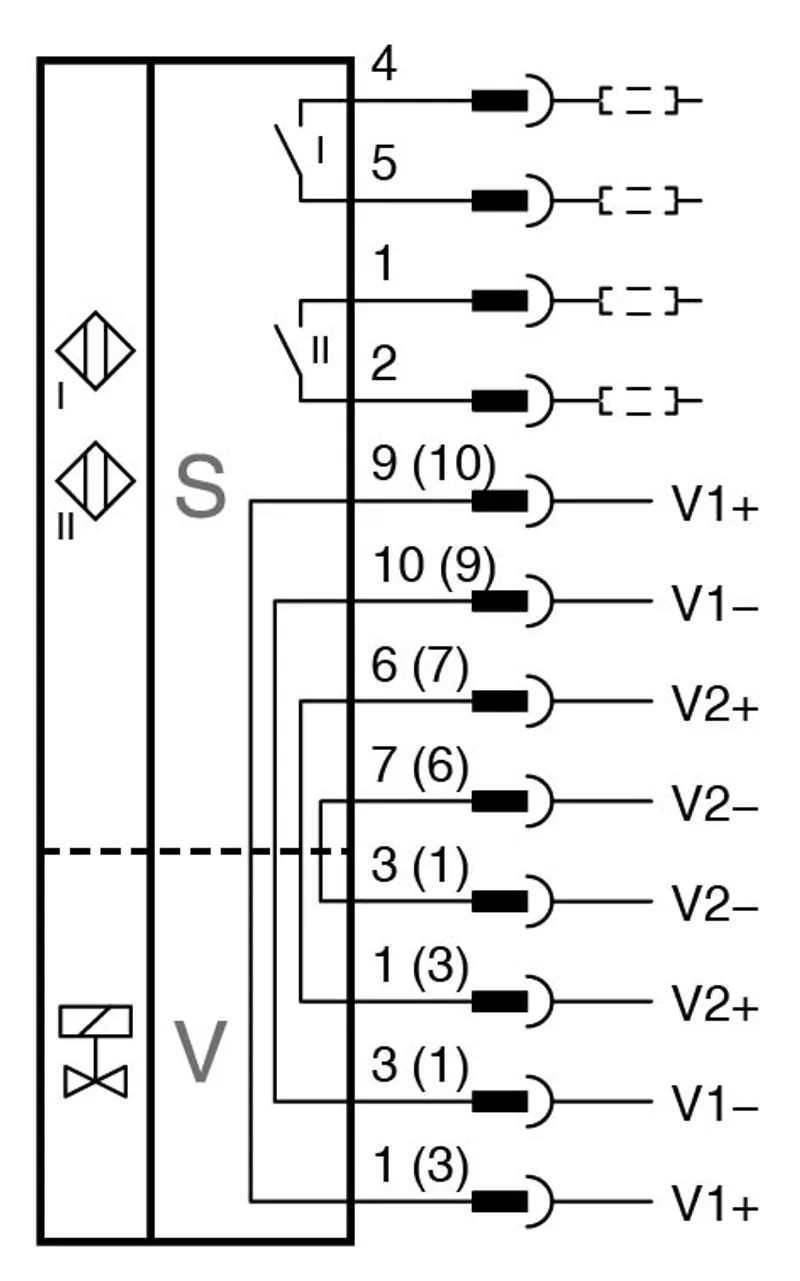

Valve circuit
| Voltage | max. 32 V DC |
| Current | max. 240 mA |
| Short-circuit protection | no |
| Reverse polarity protection | yes, with reversed output LED is out of function, therfore more power for solenoid valve |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 100 mA |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection (system side) | Cage tension spring terminals |
| Core cross section (system side) | 1.5/2.5 mm2 flexible/rigid |
| Connection (valve side) | 4-pin, M12 x 1 socket |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 188 g |
| Tightening torque, fastening screws | ≤ 5 Nm |
| Tightening torque, housing screws | 1 Nm |
| Tightening torque, cable gland | M20 x 1.5 ; max. 7 Nm |

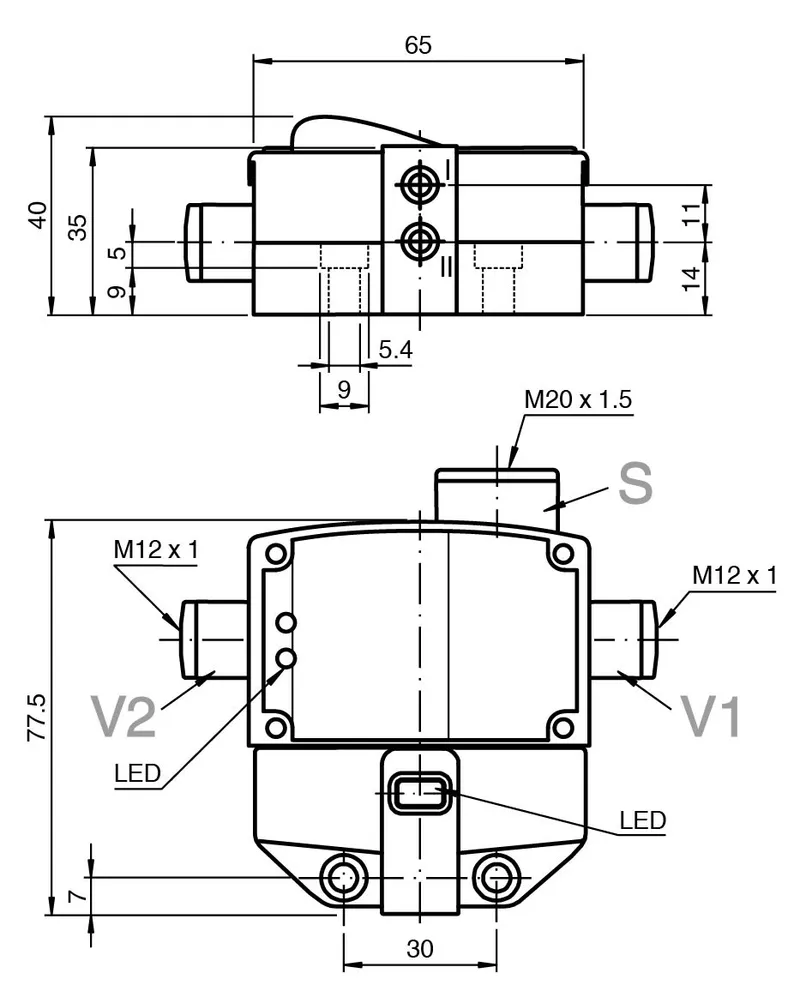

| Dimensions: Height | 35 mm |
| Dimensions: Width | 65 mm |
| Dimensions: Length | 77.5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBN3-F31K-Z8-V1-V1 |
CAD & dimension drawings
| 3-D model (STEP) NBN3-F31K-Z8-V1-V1 | STP · 1.0 MB |
| EPLAN macro NBN3-F31K-Z8-V1-V1 | EDZ · 220 kB |
Certificates (3)
More Pepperl Fuchs parts

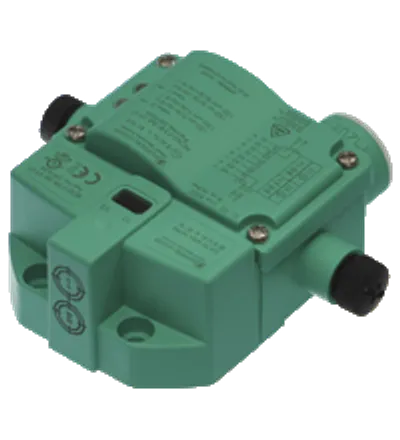

Available on requestInductive sensor NBN3-F31K-E8-V1-V1

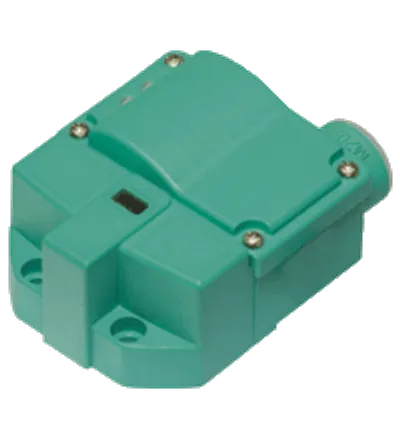

Available on requestInductive sensor NBN3-F31K-E8-Y114754Available on requestInductive sensor NBN3-F31K-Z8

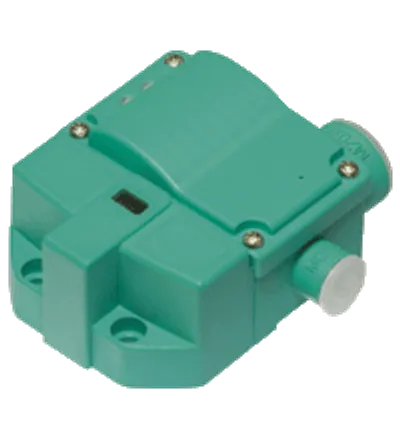

Available on requestInductive sensor NBN3-F31K-Z8-K

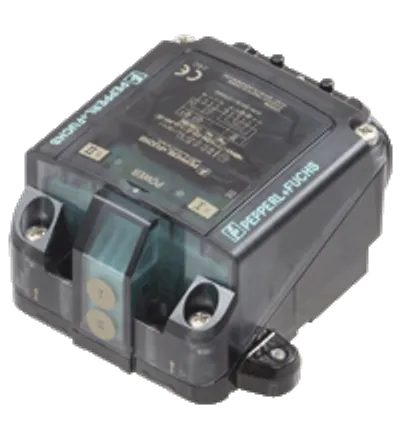

Available on requestInductive sensor NBN3-F31K2-E8-B13-S
