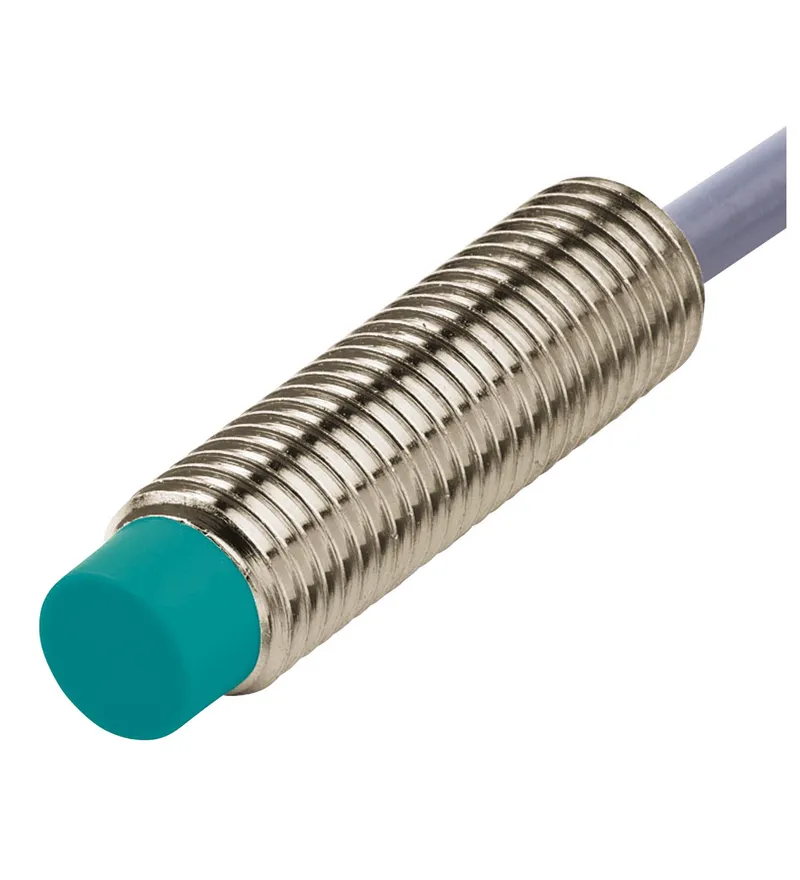

Pepperl Fuchs NBN3-8GM30-E3 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBN3-8GM30-E3 be shipped?
NBN3-8GM30-E3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBN3-8GM30-E3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBN3-8GM30-E3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBN3-8GM30-E3, subject to availability and destination.
• 3 mm non-flush
• Increased operating distance
• Extended temperature range -40 ... +85 °C
Extended temperature range, Switching function: Normally closed (NC), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP65 / IP66 / IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 304615-0207 |
| Switching function | Normally closed (NC) |
| Output type | PNP |
| Rated operating distance | 3 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 2.43 mm sa |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm |
| Reduction factor rAl | 0.5 |
| Reduction factor rCu | 0.45 |
| Reduction factor r304 | 0.75 |
| Reduction factor rBrass | 0.55 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 5 ... 30 V UB |
| Switching frequency | 0 ... 4500 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 1.5 V Ud |
| Operating current | 0 ... 100 mA IL |
| Off-state current | 0 ... 0.2 mA Ir |
| No-load supply current | ≤ 10 mA I0 |
| Time delay before availability | ≤ 100 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 960 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | LCP |
| Degree of protection | IP65 / IP66 / IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 3.5 mm ± 0.1 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | black |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 2 m L |

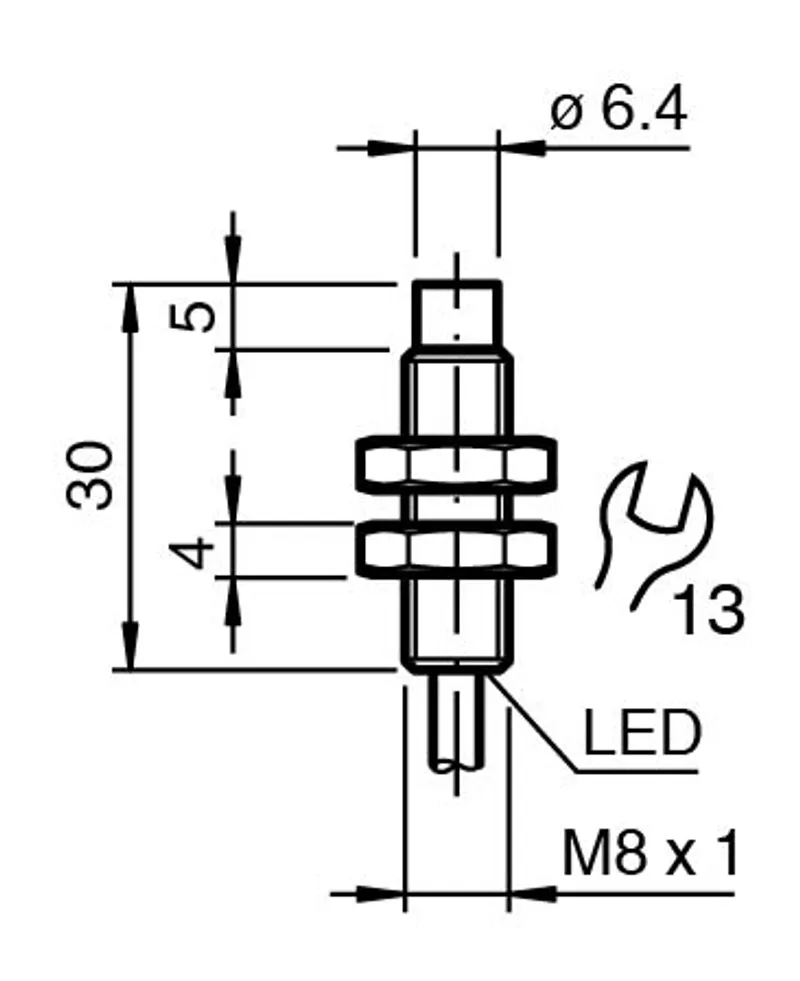

| Dimensions: Length | 30 mm |
| Dimensions: Diameter | 8 mm |
General information
| Scope of delivery | 2 hex nuts included |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBN3-8GM30-E3 | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NBN3-8GM30-E0 | STP · 59 kB |
Certificates (4)
More Pepperl Fuchs parts

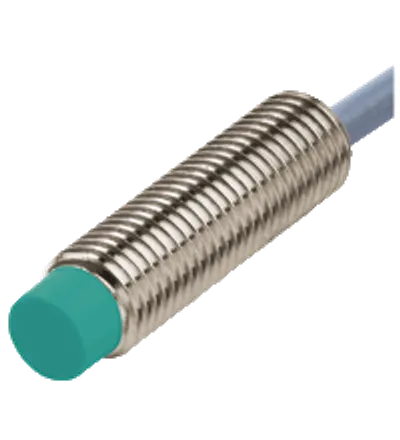

Available on requestInductive sensor NBN3-8GM30-E2-5M

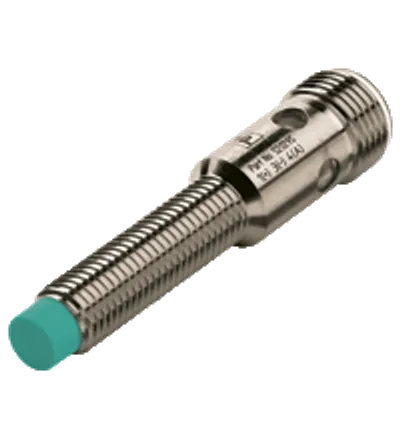

Available on requestInductive sensor NBN3-8GM30-E2-C-V1Available on requestInductive sensor NBN3-8GM30-E2-V1Available on requestInductive sensor NBN3-8GM30-E2-Y319327

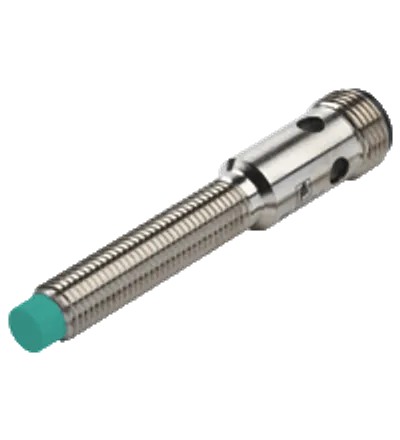

Available on requestInductive sensor NBN3-8GM40-A0-V1Available on requestInductive sensor NBN3-8GM40-A2-V1Available on requestInductive sensor NBN3-8GM40-E0-V1Available on requestInductive sensor NBN3-8GM40-E2-V1
