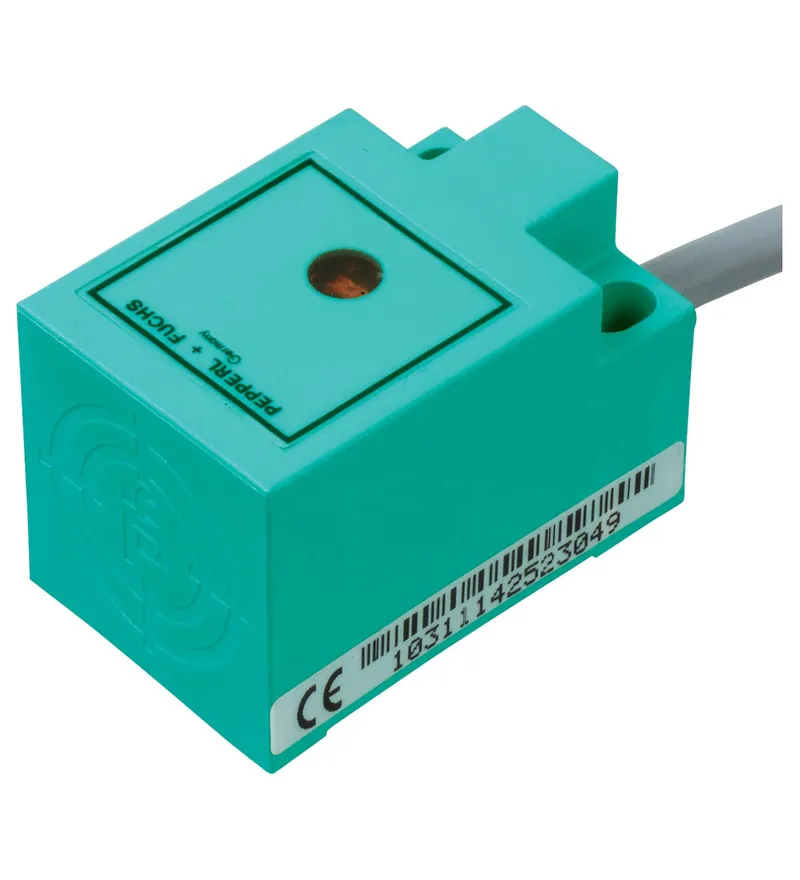

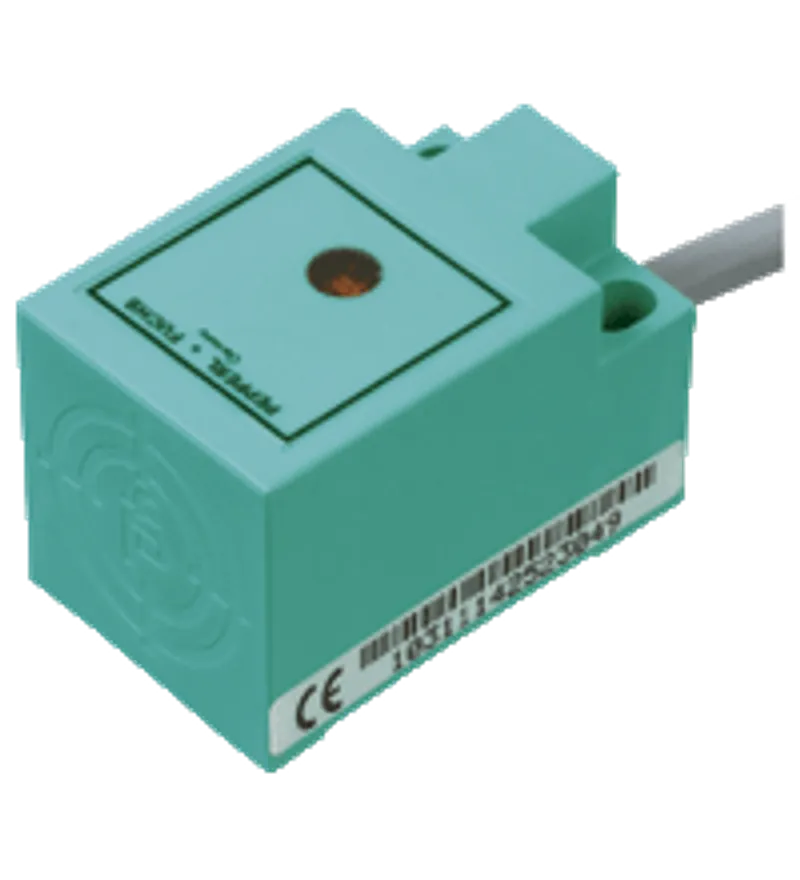

Pepperl Fuchs NBN10-F10-E2 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBN10-F10-E2 be shipped?
NBN10-F10-E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBN10-F10-E2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBN10-F10-E2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBN10-F10-E2, subject to availability and destination.
• 10 mm non-flush
• 3-wire DC
Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 082762 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 10 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 8.1 mm sa |
| Reduction factor rAl | 0.3 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.6 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 0 ... 500 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 100 mA IL |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C Ir |
| No-load supply current | ≤ 15 mA I0 |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4.6 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | grey |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 2 m L |

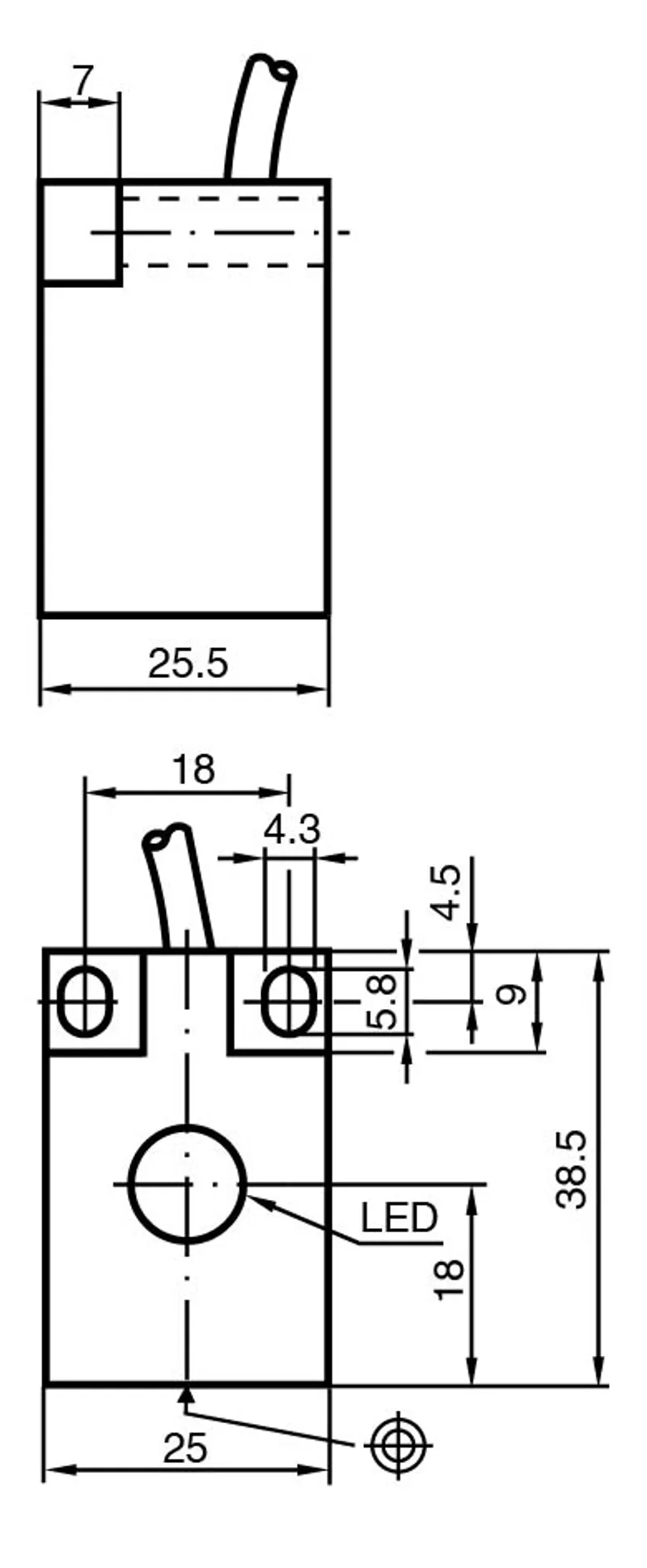

| Dimensions: Height | 25.5 mm |
| Dimensions: Width | 25 mm |
| Dimensions: Length | 38.5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBN10-F10-E2 | |
| Installation conditions | PDF · 131 kB |
CAD & dimension drawings
| 3-D model (STEP) NBN10-F10-E0 | STP · 123 kB |
| EPLAN macro NBN10-F10-E2 | EDZ · 65 kB |
Certificates (4)
More Pepperl Fuchs parts

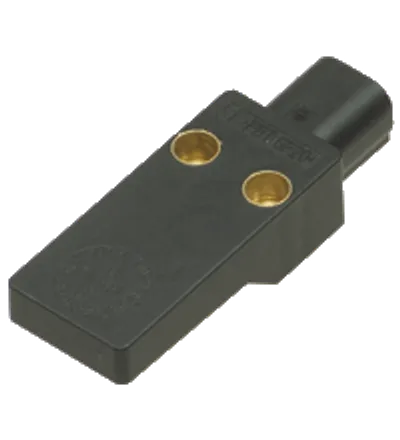

Available on requestInductive sensor NBB8-F33X-E2-AMP-Y70190376Available on requestInductive sensor NBB8-F33X-E3-AMP
Available on requestInductive sensor NBN10-F10-E0
Available on requestInductive sensor NBN10-F10-E0-V1Available on requestInductive sensor NBN10-F10-E2-V1

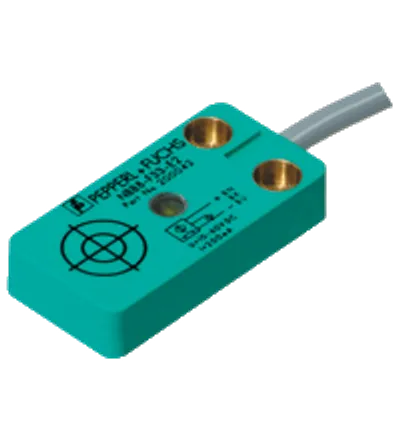

Available on requestInductive sensor NBN10-F33-E0-MAvailable on requestInductive sensor NBN10-F33-E1-MAvailable on requestInductive sensor NBN10-F33-E2-M
