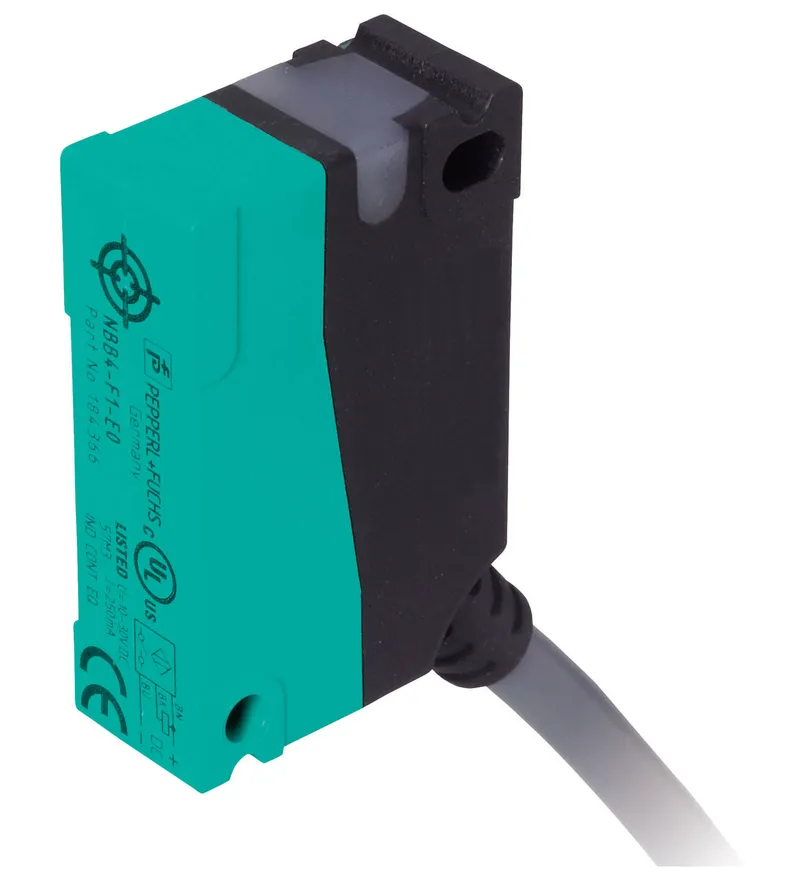

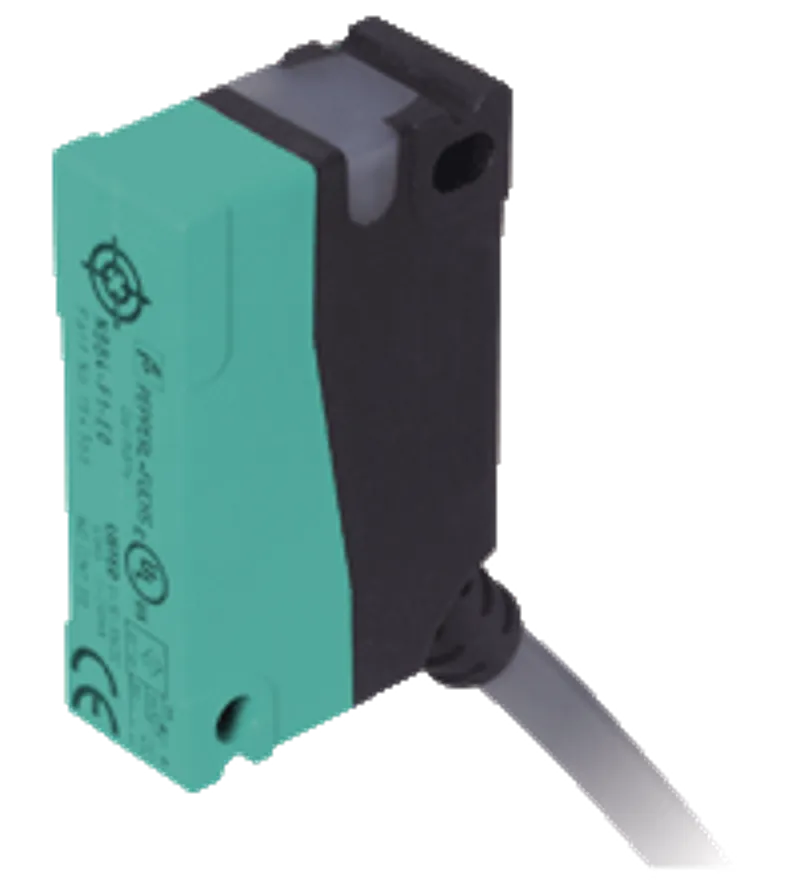

Pepperl Fuchs NBB4-F1-A2 5M – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBB4-F1-A2 5M be shipped?
NBB4-F1-A2 5M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB4-F1-A2 5M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB4-F1-A2 5M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB4-F1-A2 5M, subject to availability and destination.
• 4 mm flush
• 4-wire DC
Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: cable, Housing material: PA, green, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 910389 |
| Switching function | complementary |
| Output type | PNP |
| Rated operating distance | 4 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 3.24 mm sa |
| Reduction factor rAl | 0.3 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.7 |
| Reduction factor rBrass | 0.55 |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 1400 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V Ud |
| Rated insulation voltage | 60 V UBIS |
| Operating current | 0 ... 250 mA IL |
| Off-state current | < 0.5 mA Ir |
| No-load supply current | ≤ 15 mA I0 |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 1640 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Output Switching Current: 250 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PA, green |
| Sensing face | PA |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 5.2 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | grey |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.5 mm2 |
| Cable: Length | 5 m L |
| Tightening torque, fastening screws | Threading M3 ≤ 1.1 Nm |

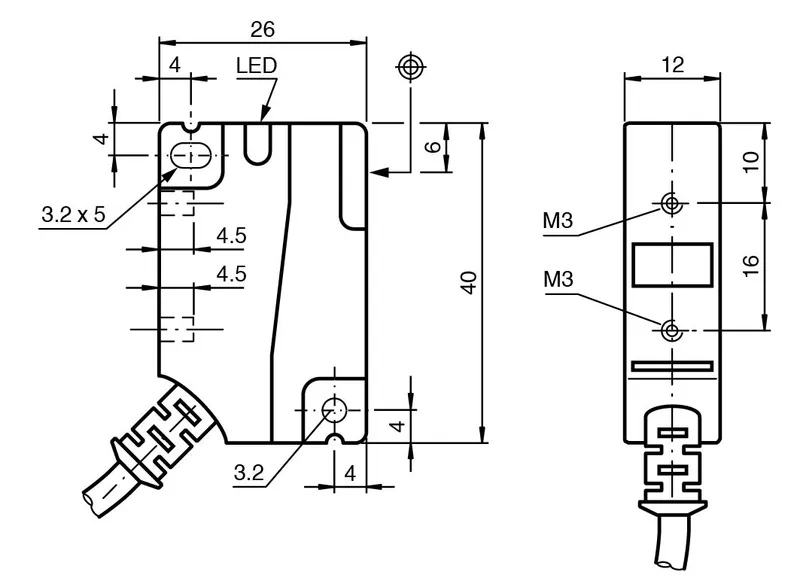

| Dimensions: Height | 40 mm |
| Dimensions: Width | 12 mm |
| Dimensions: Length | 26 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBB4-F1-A2 5M | |
| Installation conditions | PDF · 131 kB |
CAD & dimension drawings
| 3-D model (STEP) NBB4-F1-UO | STP · 193 kB |
| EPLAN macro NBB4-F1-A2 5M | EDZ · 62 kB |
Certificates (4)
More Pepperl Fuchs parts

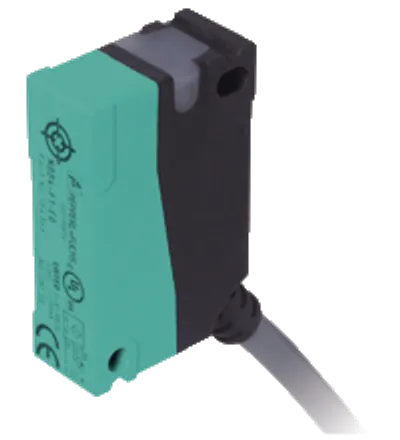

Available on requestInductive sensor NBB4-F1-A0 5M

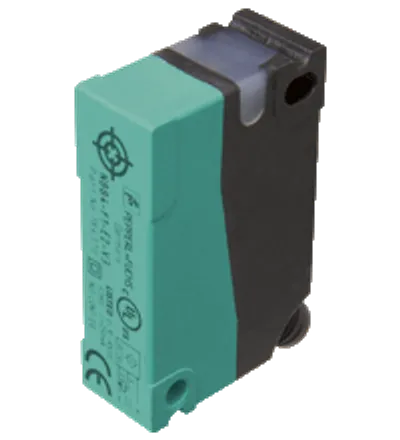

Available on requestInductive sensor NBB4-F1-A0-V31Available on requestInductive sensor NBB4-F1-A0-Y218693Available on requestInductive sensor NBB4-F1-A2Available on requestInductive sensor NBB4-F1-A2-V31Available on requestInductive sensor NBB4-F1-E0Available on requestInductive sensor NBB4-F1-E0-V3Available on requestInductive sensor NBB4-F1-E0-V3-Y218696
