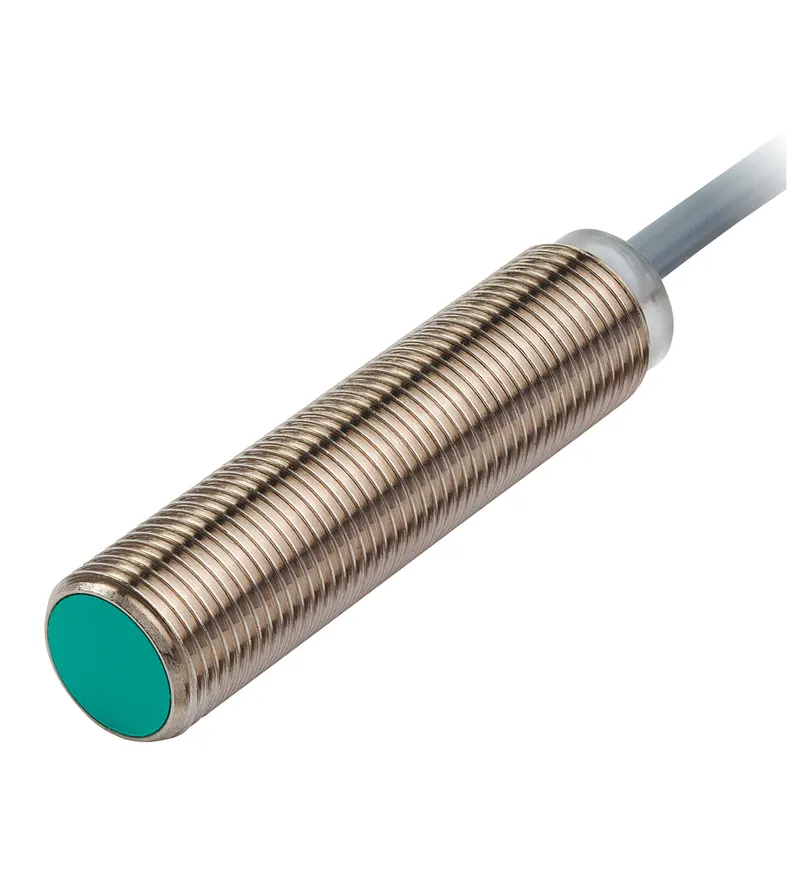

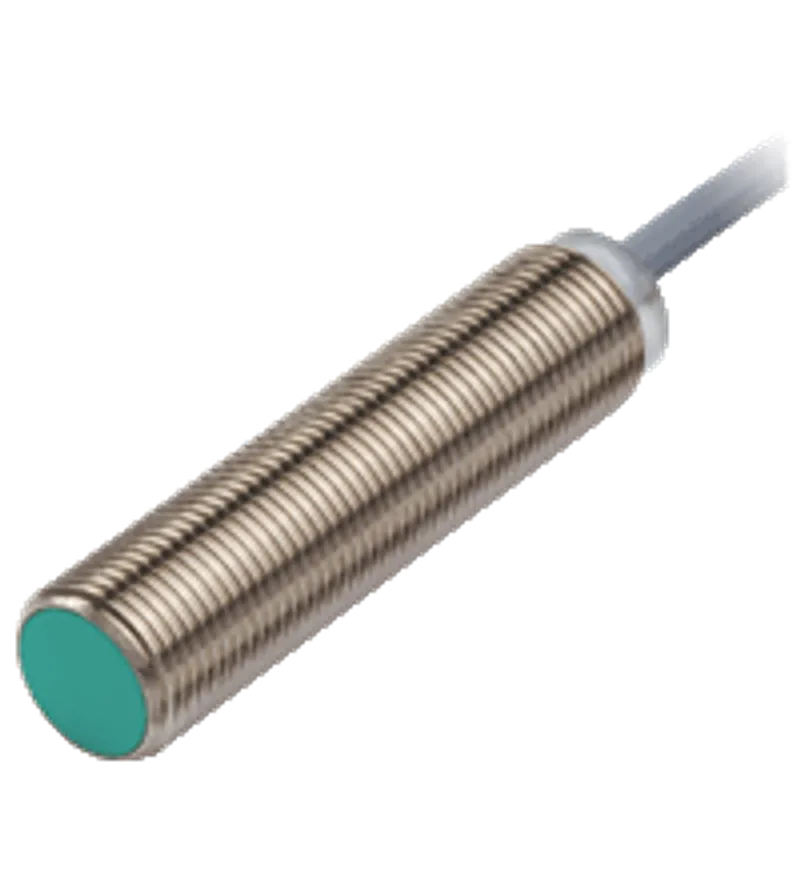

Pepperl Fuchs NBB4-12GM50-E2-M-150MM-3DT04 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBB4-12GM50-E2-M-150MM-3DT04 be shipped?
NBB4-12GM50-E2-M-150MM-3DT04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB4-12GM50-E2-M-150MM-3DT04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB4-12GM50-E2-M-150MM-3DT04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB4-12GM50-E2-M-150MM-3DT04, subject to availability and destination.
• 4 mm flush
• Extended temperature range -40 ... +85 °C
• E1-Type approval
• Increased noise immunity 100 V/m
• With increased sealing, protection class IP68 / IP69K
• Highly shock and vibration resistant

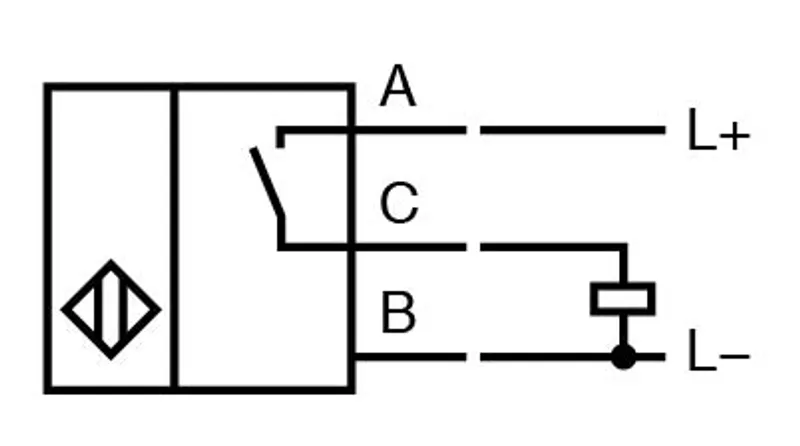

• 3-pin Deutsch connector (DT04)
Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Ambient temperature: -40 ... 85 °C (-40 ... 185 °F) , , Connection type: fixed cable with plug, Housing material: brass, nickel-plated, Degree of protection: IP68 / IP69K
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 916993 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 4 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 3.24 mm sa |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.35 |
| Reduction factor r304 | 0.75 |
| Reduction factor rBrass | 0.45 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 5 ... 60 V UB |
| Switching frequency | 0 ... 2500 Hz f |
| Hysteresis | typ. 5 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Inductive overvoltage protection | yes |
| Surge suppression | yes |
| Voltage drop | ≤ 2 V Ud |
| Rated insulation voltage | 60 V UBIS |
| Operating current | 0 ... 200 mA IL |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C Ir |
| No-load supply current | ≤ 7 mA I0 |
| Time delay before availability | ≤ 200 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 1000.5 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| E1 Type approval | 10R-06 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

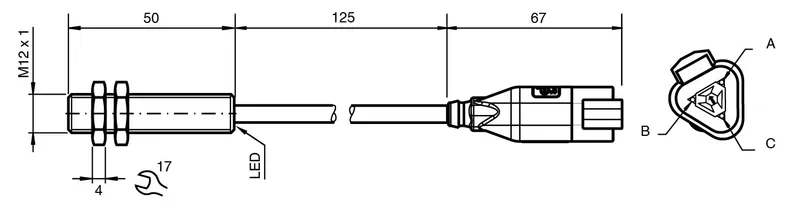

Mechanical specifications
| Connection type | fixed cable with plug |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP68 / IP69K |
| Connector: Number of pins | 3 |
| Connector: Connection assembly | Deutsch connector DT04-3P-CE02 Deutsch wedge W3P Deutsch contact 1060-16-0622 |
| Cable: Cable diameter | 6 mm ± 0.2 mm |
| Cable: Bending radius | > 6 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.75 mm2 |
| Cable: Length | 125 mm L |
| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 12 mm |
| Note | molded Connector |
