Pepperl Fuchs NBB15-30GM50-Z0-Y70183708 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBB15-30GM50-Z0-Y70183708 be shipped?
NBB15-30GM50-Z0-Y70183708 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB15-30GM50-Z0-Y70183708 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB15-30GM50-Z0-Y70183708 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB15-30GM50-Z0-Y70183708, subject to availability and destination.
• Basic series
• 15 mm flush
• 2-wire DC
Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 20 ... 30 V DC, Type of voltage: UC, Connection type: fixed cable with plug, Housing material: brass, nickel-plated, Degree of protection: IP67
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70183708 |
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 15 mm sn |
| Installation | flush |
| Output polarity | DC |
| Reduction factor rAl | 0.5 |
| Reduction factor rCu | 0.45 |
| Reduction factor r304 | 0.75 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 20 ... 30 V DC UB |
| Switching frequency | 30 Hz f |
| Hysteresis | 3 ... 15 % typ. 5 % H |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | yes |
| Voltage drop | ≤ 8 V Ud |
| Rated operating current | 4 ... 200 mA DC Ie |
| Lowest operating current | 4 mA Im |
| Off-state current | ≤ 0.8 mA Ir |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA Further UL information see section "Additional Information" |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

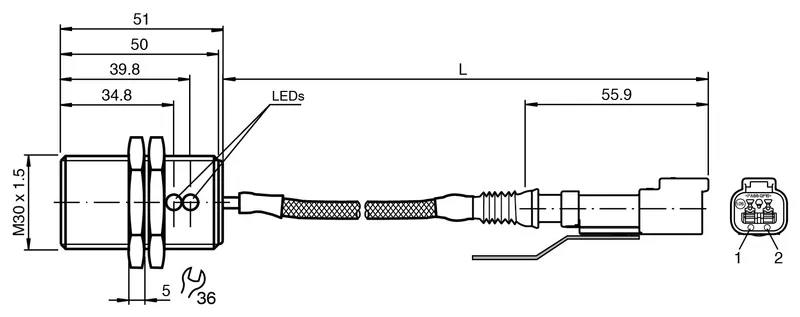

Mechanical specifications
| Connection type | fixed cable with plug |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector: Number of pins | 2 |
| Connector: Connection assembly | Deutsch connector DT04-2P-CE04 Deutsch contact 1060-16-0644 Deutsch wedge W2P Deutsch retaining clip 1027-003-1200 Copat protective sleeve: 1/20392/87EY |
| Cable: Cable diameter | 4.3 mm ± 0.1 mm |
| Cable: Bending radius | > 15 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 2 |
| Cable: Core cross section | 0.5 mm2 |
| Cable: Length | 0.4 m L |
| Cable: Cable protection | Panduit flexible conduit SE25P-MR8 |
| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 30 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBB15-30GM50-Z0-Y70183708 | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NBB15-30GM50-Z0-Y70183708 | STP · 50 kB |
Certificates (3)
| Canada USA UL Ordinary Location (UL-US-2013143-6 / UL-CA-2010423-6) | PDF · 371 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
More Pepperl Fuchs parts
Available on requestInductive sensor NBB15-30GM50-WS-10MAvailable on requestInductive sensor NBB15-30GM50-WS-5M
Available on requestInductive sensor NBB15-30GM50-WS-V12
Available on requestInductive sensor NBB15-30GM50-WS-V93
Available on requestInductive sensor NBB15-30GM60-B3B-V1
Available on requestInductive sensor NBB15-30GM70-E3

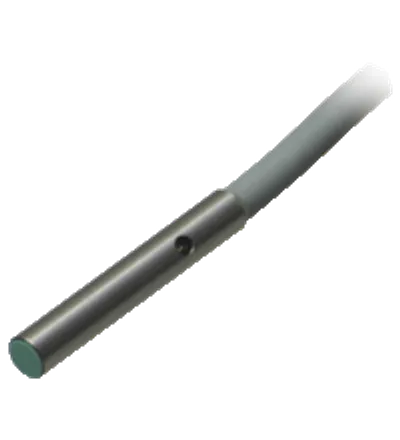

Available on requestInductive sensor NBB1,5-4M25-E0Available on requestInductive sensor NBB1,5-4M25-E0-0,3M-V3
